Another Ryca Build Log
11/26/13 at 12:37:03

Hi all, been kind of lurking here since I discovered the Ryca kit and Googled Suzuki Savage and found this forum. About half way through my build now I decided I would put together a build log on the forum.

Back in about mid August I searched Graig's List and found about a dozen various years used Savage's for sale within easy driving distance. After a few phone calls and emails I settled on this one.
A 1997 with ~12,000 miles.

I rode it for a day to see how the engine ran and everything seems fine. So I pushed it up on the lift and started taking it apart.

About that time I also ordered the CS-1 kit from Ryca and sent my deposit. I wanted to get the tank and rear hub ready to ship off to Ryca right away. Rather than snip the rear spokes I deflated the tire and unscrewed the spoke nipples and pushed them into the tire making it possible to remove the hub with the spokes.

After removing the spokes, internal brake components and plate from the hub I mounted the hub in the lathe to try and polish it up a bit.

Here it is finished. In addition I stripped the clear coat off the brake plate and polished that as well.

Next came the tank. The tank had a small dent in it. When I was on the phone placing my order with Ryan at Ryca I mentioned the ding and he said if it is not too bad they will knock it out when they have the bottom of the tank open. He said just draw a circle around the dent and make a note on the tank and they will take care of it.

I shipped the tank and hub off to Ryca and proceeded to continue with dismantling the Savage.

Finally got the engine out of the frame. It was pretty greasy and crusted up with road grime and oil. I wanted to mount it on a home made stand like I had seen on this forum using angle and attaching that to a Harbor Freight furniture mover so that I could roll the whole thing up on to my trailer and take it to the do it yourself car wash along with a can of Gunk and degrease it.

I needed to seal the motor up the best I could before spraying it. I used rubber glove fingers and zip ties to seal the speedometer cable opening and the breather on the head cover. And for the starter motor hole I used a plumbers tool that I found at Home Depot.

I also wanted to seal off the intake and exhaust as well. I have a 3 axis CNC mill and CAD/CAM so I drew up a model for some cover plates.
Here is some stock in the vice ready to machine.

And here it is finished. For thin stock like this I create tabs in the CAM software and then when the part is finished I just put the part in the bench vise and using a Dremal with a cut off wheel remove the part from the blank. A little touch up on the belt sander and it is ready to use.

Attached to the motor along with a gasket I cut from an old inner tube using the aluminum plate as a template.

I removed the side covers to strip and polish but here are a couple of shots of the motor after cleaning.

I was thinking about painting the case but it come out pretty nice after cleaning so I am going to leave it like it is.

At this point I modified the cam chain tensioner and removed and replace the head cover bolts with new ones. A couple of them were rounded off and one was broken. I also bought new caps for the head cover and the one over the head bolt and put the whole thing back together with new silicone RTV for the head cover and new gaskets for the case covers. I also prepped and painted the cylinder satin black.
Here is a shot of the engine back together.

While waiting for the kit to come in from Ryca I started thinking about what color to paint the tank, side covers, seat cowling and frame. I am going to use Duplicolor rattle cans and have a friend spray the clear with 2K. I thought it would be cool to have a red frame and paint the other parts Wimbledon White.

I thought the white was a little too cream colored, didn't look at all like an old Mustang.
So than I thought that I might paint the frame silver and the rest of the components some variation of British Racing Green.

I kind of liked that, the silver sprayed nice and the green I found was OK I guess.

My wife came home from a local "antique mall" that sells those old looking signs and she knew I like Ford GT or GT40's so she bought me this poster.

That got me thinking about that white and whatever blue that is. I did a little Googling and found out the colors for that version of the Ford GT are Performance White and Sonic Blue Perl. I found those colors in Duplicolor cans at my local Advance Auto and made a sample of that.

I kind of like that and I'm thinking I'll do stripes just like they are on the Ford GT. So that is what I'll paint it then with a satin black frame... who knows, I'll probably change my mind again

Back to top

This message was posted using Google Chrome on a system using Linux Mint 17 Mate

IP Logged

Gerry

Full Member

Offline

SuzukiSavage.com
Rocks!

Posts: 121
Southwest Michigan
Gender: male

Re: Another Ryca Build Log
Reply #1 - 11/26/13 at 13:12:00

I really liked the way Dave Seidman did his Ryca CS-1 and especially the way he machined out the stock top triple clamp. Here is a link to his gallery on the Ryca web site http://rycamotors.com/customer_builds/ryca_customer_dseidman2.html

My 97 has a chrome plated top clamp and I didn't really want to try and machine thru that so I modeled a new top clamp in SolidWorks and machined it out of billet aluminum.
This is a screen cap of my first design. At the time I was thinking about putting the turn signals, high beam and neutral indicators in the top clamp using LED's.

I have since then evolved the design into adding a dash to hold the light as well as the clocks. Here is the blank for the top clamp mounted to the machine table on top of a sacrificial plate.

And here it is about two thirds done. Just need to move the cap screws out of the pockets where the forks and steering stem go and add clamps to keep it in place but out of the way of those areas.

I made a mock up for the dash just to see scale and see if I need to make any changes to the model in CAD before I commit to a piece of aluminum.

Here is a screen cap of the model for the dash in the CAM program. I had received the kit from Ryca and discovered that I can not remove the trip odometer re-set knob so I had to some how make a way for the speedo to slip into the dash. That's why you see that big notch in the right hand hole at about 7:00.

Here is a shot of the blank ready to machine.

And finished.

I also had to make some kind of bracket to attach to the to the dash and hold the gauges in place. Here is a shot of both parts after machining and ready to be separated from the "fixtures"

Next I had to design something to hold the stock light bulbs in location under the dash.
Here it is with the first side done. Just need to flip it over and use a face mill to mill the excess from the other side.

Here are a few shots of the part finished, bulbs and stock lens installed.

I needed to make a cover to hide the notch for the trip meter knob. I thought it might look cool if I made it out of brass and a jeweled finish.
After the jeweling operation.

And after the profiling operation.

Here are some shots of the assembly.

And the assembly on the bike.

After all that you know what? I don't think I like it Undecided

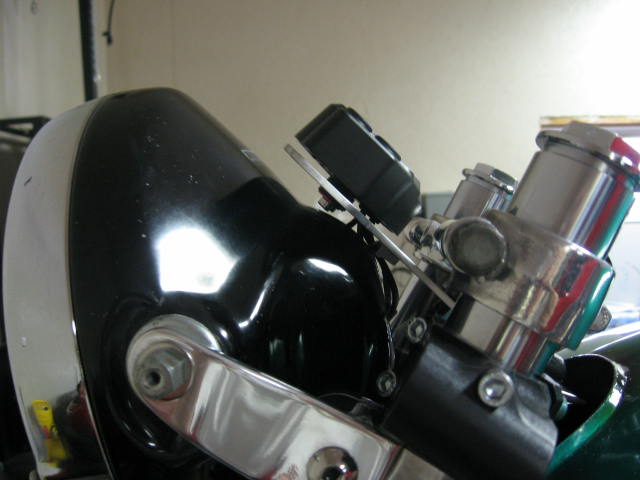

It kind of looks too complicated and not right on the bike. I need to mount on that little post thingy I machined to get it up and away from the head light. As well as make room for the speedo cable. I'm thinking that maybe I'll paint the components for the dash assembly satin black and see how that looks. I need to finish prepping the tank and prime it and put that on, maybe that will help? Don't know, lot's of fun trying to figure it out for sure.

Coming up I need to finish assembling the body parts figure out the wiring and get odds and ends prepped and at least primered. I am also going to try to make my own front turn signals and a few other things.
Thanks for reading
Gerry
