Cut out when put into gear (Read 121 times)
Niallmac
YaBB Newbies
Offline
Posts: 25
UK
Cut out when put into gear
07/11/22 at 04:35:31
Hi
I’m having a problem whereby the engine starts up fine but stops as soon as I put it into gear. Almost like it had an ‘intelligent’ side stand that cuts the engine when put into gear with it down.
Any thoughts please?
Cheers
Niall
LS650 1994
Back to top
IP Logged
justin_o_guy2
Serious Thumper
Offline
What happened?
Posts: 55279
East Texas, 1/2 dallas/la.
Re: Cut out when put into gear
Reply #1 -
07/11/22 at 05:56:38
It'll do that if the sidestand is down
Back to top
The people never give up their liberties but under some delusion.- Edmund Burke.
IP Logged
Serowbot
YaBB Moderator
ModSquad
Offline
OK.... so what's the
speed of dark?
Posts: 28375
Tucson Az
Gender:
Re: Cut out when put into gear
Reply #2 -
07/11/22 at 07:18:11
Yup,.. test that switch. or bypass with a jumper. You can access the 2 wire connector under the seat.
Back to top
Ludicrous Speed !... ...
...
IP Logged
Tocsik
Serious Thumper
Offline
the singularity
Posts: 1140
Denver, CO
Gender:
Re: Cut out when put into gear
Reply #3 -
07/11/22 at 07:45:45
Niallmac wrote
on 07/11/22 at 04:35:31:
Hi
... the engine starts up fine but stops as soon as I put it into gear. Almost like it had an ‘intelligent’ side stand that cuts the engine when put into gear with it down...
It's working perfectly as designed. The side stand needs to be "up" when you put it in gear. There is indeed a switch for that.
Now, if only there was a way to prevent getting
off
the bike without the side stand down....
Back to top
'08|Raptor|Dyna|Stock jets & no other carb changes @ 5280' alt|'slavy CCT|Kawa front pulley|130/90 rear tire|7" LED headlight|3" straight risers|FIAMM El Grande horns|Mutazu hard bags
IP Logged
justin_o_guy2
Serious Thumper
Offline
What happened?
Posts: 55279
East Texas, 1/2 dallas/la.
Re: Cut out when put into gear
Reply #4 -
07/11/22 at 08:19:58
There is
Do it One Time
Back to top
The people never give up their liberties but under some delusion.- Edmund Burke.
IP Logged
Niallmac
YaBB Newbies
Offline
Posts: 25
UK
Re: Cut out when put into gear
Reply #5 -
07/11/22 at 09:22:41
I did try it with the stand up as I thought it might have a switch but it did the same. Is there a way of testing the switch?
Cheers
Niall
Back to top
IP Logged
justin_o_guy2
Serious Thumper
Offline
What happened?
Posts: 55279
East Texas, 1/2 dallas/la.
Re: Cut out when put into gear
Reply #6 -
07/11/22 at 09:30:06
Does it Jump and die?
If you pull the clutch lever, put it in first,engine off, can you roll it?
Back to top
The people never give up their liberties but under some delusion.- Edmund Burke.
IP Logged
Niallmac
YaBB Newbies
Offline
Posts: 25
UK
Re: Cut out when put into gear
Reply #7 -
07/11/22 at 09:31:21
Not really a jump but it does feel like a stall…
Back to top
IP Logged
justin_o_guy2
Serious Thumper
Offline
What happened?
Posts: 55279
East Texas, 1/2 dallas/la.
Re: Cut out when put into gear
Reply #8 -
07/11/22 at 12:04:03
Do you have it idled down to get a loping idle sound?
It's supposed to be up around 1,100 RPM, IIRC.
If I'm wrong, someone will have the right answer.
Pull the clutch lever
Put it in first gear
If it doesn't roll pretty easily
Maybe The clutch is not disengaged enough to not kill it.
You can try picking it up off idle and drop it in gear. But be holding the front brake.
You know you better be on it for that,,
If that isn't it, then digging into the wiring at the sidestand switch is probably the next step.
Surely the people who know these things inside and out are following this and Hopefully, if I'm steering you wrong, someone will step in and take over for me. It's been a coupla years since I even had one. And I forget stuff.
Back to top
The people never give up their liberties but under some delusion.- Edmund Burke.
IP Logged
Niallmac
YaBB Newbies
Offline
Posts: 25
UK
Re: Cut out when put into gear
Reply #9 -
07/11/22 at 12:17:13
Thanks Justin
Will have another play on that basis when I’m back with the bike. Hopefully at the weekend.
Back to top
IP Logged
Tocsik
Serious Thumper
Offline
the singularity
Posts: 1140
Denver, CO
Gender:
Re: Cut out when put into gear
Reply #10 -
07/11/22 at 12:26:31
justin_o_guy2 wrote
on 07/11/22 at 08:19:58:
There is
Do it One Time
Yep. Did.
Had to put a coil in the left side mirror stem after. It was in my own garage and I was alone, but still embarrassing.
Back to top
'08|Raptor|Dyna|Stock jets & no other carb changes @ 5280' alt|'slavy CCT|Kawa front pulley|130/90 rear tire|7" LED headlight|3" straight risers|FIAMM El Grande horns|Mutazu hard bags
IP Logged
Tocsik
Serious Thumper
Offline
the singularity
Posts: 1140
Denver, CO
Gender:
Re: Cut out when put into gear
Reply #11 -
07/11/22 at 12:27:36
Niallmac wrote
on 07/11/22 at 09:22:41:
I did try it with the stand up as I thought it might have a switch but it did the same. Is there a way of testing the switch?
Cheers
Niall
Apologies for misreading your post. Looks like you're getting good help, which is to be expected here.
Back to top
'08|Raptor|Dyna|Stock jets & no other carb changes @ 5280' alt|'slavy CCT|Kawa front pulley|130/90 rear tire|7" LED headlight|3" straight risers|FIAMM El Grande horns|Mutazu hard bags
IP Logged
justin_o_guy2
Serious Thumper
Offline
What happened?
Posts: 55279
East Texas, 1/2 dallas/la.
Re: Cut out when put into gear
Reply #12 -
07/11/22 at 14:18:25
Tocsik wrote
on 07/11/22 at 12:26:31:
justin_o_guy2 wrote
on 07/11/22 at 08:19:58:
There is
Do it One Time
Yep. Did.
Had to put a coil in the left side mirror stem after. It was in my own garage and I was alone, but still embarrassing.
I don't Need a witness to get embarrassed. I can feel that pain all by myself.
Back to top
The people never give up their liberties but under some delusion.- Edmund Burke.
IP Logged
Niallmac
YaBB Newbies
Offline
Posts: 25
UK
Re: Cut out when put into gear
Reply #13 -
07/17/22 at 04:38:41

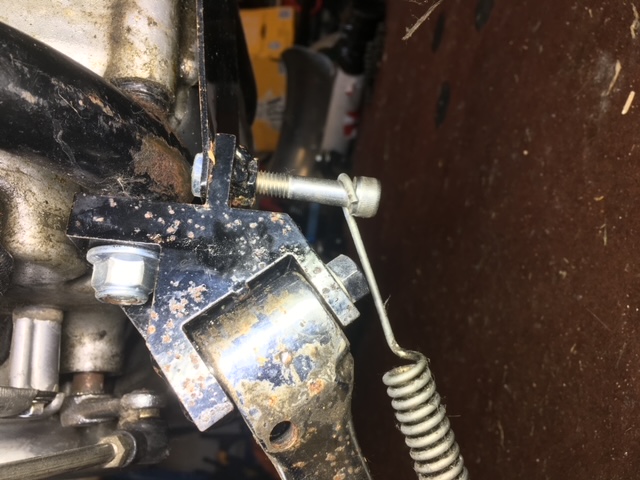

OK I've just checked the bike and it doesn't appear to have a side stand switch.
Photo attached.
Were the 1994 bikes fitted with them? Or am I missing something?
Cheers
Niall
Back to top
IP Logged
Niallmac
YaBB Newbies
Offline
Posts: 25
UK
Re: Cut out when put into gear
Reply #14 -
07/17/22 at 04:39:28

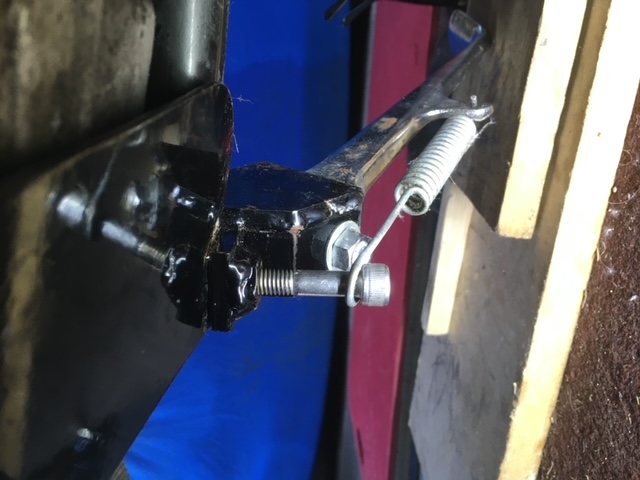

Another shot...
Back to top
IP Logged
