S40 Exhaust Header Pipe (Read 73 times)
MiamiBobbed
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 29
S40 Exhaust Header Pipe
04/09/22 at 07:53:34

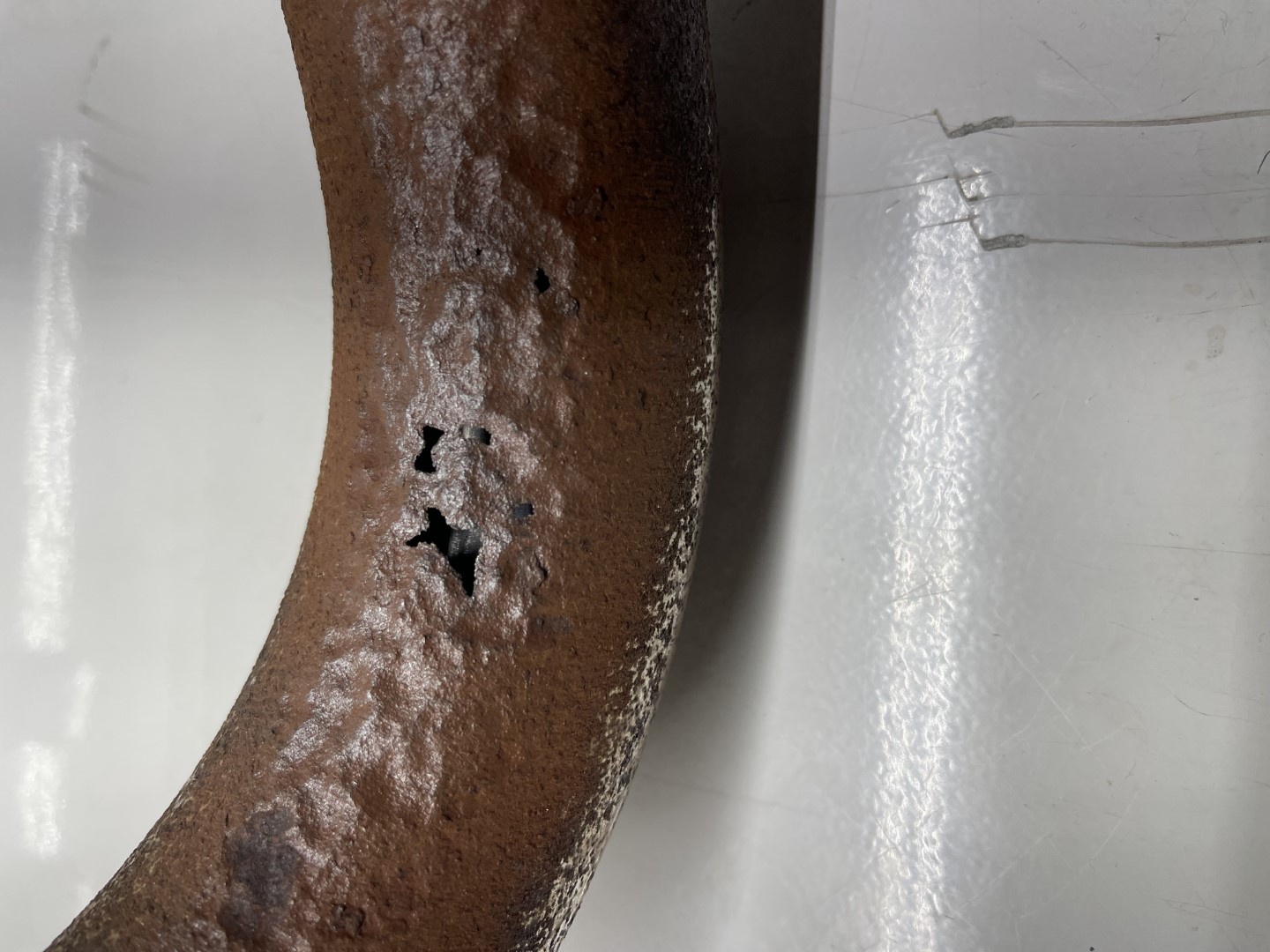

So as I try to get this old girl, who sat out in the South Florida elements for 3-4 years, back on the road, I find that the exhaust header pipe is rusted through. Curiously after I take it off to wire brush it to see how large the rot is I see what looks like a pristine pipe on the INSIDE. Are these exhaust pipes DOUBLE layered? Is there an inner and outer pipe? If so how would I go about having a muffler shop make me a new one, with the INNER diameter as the header size? Or would it be better just to replace it with a decent used one and not worry about it? Thanks guys!
Back to top
IP Logged
verslagen1
YaBB Moderator
ModSquad
Offline
Where there's a
will, I want to be
in it.
Posts: 28764
L.A. California
Gender:
Re: S40 Exhaust Header Pipe
Reply #1 -
04/09/22 at 11:14:17
yep, dual layer. outside pretty, inside ugly.
1.5" diameter should be fine.
Back to top
Versey's Place
Tech Section Index
IP Logged
justin_o_guy2
Serious Thumper
Offline
What happened?
Posts: 55279
East Texas, 1/2 dallas/la.
Re: S40 Exhaust Header Pipe
Reply #2 -
04/09/22 at 12:36:42
outside pretty, inside ugly.
I had a friend who dated her!
You can just run it ugly till you get everything sorted out.
Back to top
The people never give up their liberties but under some delusion.- Edmund Burke.
IP Logged
MiamiBobbed
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 29
Re: S40 Exhaust Header Pipe
Reply #3 -
04/09/22 at 19:26:59
So, I am guessing that having a new header made the same size as the OUTER diameter would be bad as it is apparently just for show? If so I see (kind of) why the header is double layered.
Back to top
IP Logged
MiamiBobbed
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 29
Re: S40 Exhaust Header Pipe
Reply #4 -
04/09/22 at 19:28:12
and on mine the outside is ugly but the inside is the pretty part!
Back to top
IP Logged
Dave
YaBB Moderator
ModSquad
Offline
SuzukiSavage.com
Rocks!
Posts: 17820
Camp Springs, Kentucky
Gender:
Re: S40 Exhaust Header Pipe
Reply #5 -
04/10/22 at 02:54:14
MiamiBobbed wrote
on 04/09/22 at 19:26:59:
So, I am guessing that having a new header made the same size as the OUTER diameter would be bad as it is apparently just for show?
Double wall headers help to keep the outer pipe from getting really hot, and that helps to keep the chrome from changing colors....but it doesn't always work. If your bike is not jetted properly or you spend a lot of time in traffic and/or ride in really hot climates the pipe color can change.
The stock inside header is about 1-1/4" diameter and that is a bit small.....the outer pipe is about 2" and that is a bit big for a stock engine. Having a pipe made 1-1/2" would be just fine.....larger diameters as you hop up the engine are OK.
I have a spare pipe that is not great and it is rusty......but there aren't any holes. You pay shipping you can have it.
Back to top
Someday I will be old......But not today!
IP Logged
MiamiBobbed
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 29
Re: S40 Exhaust Header Pipe
Reply #6 -
04/10/22 at 07:31:41
Dave thanks for the reply. If you think the pipe you have can be cleaned up a bit, some hi-temp paint shot on it and wrapped then I'll take it!
Back to top
IP Logged
Dave
YaBB Moderator
ModSquad
Offline
SuzukiSavage.com
Rocks!
Posts: 17820
Camp Springs, Kentucky
Gender:
Re: S40 Exhaust Header Pipe
Reply #7 -
04/10/22 at 15:45:20

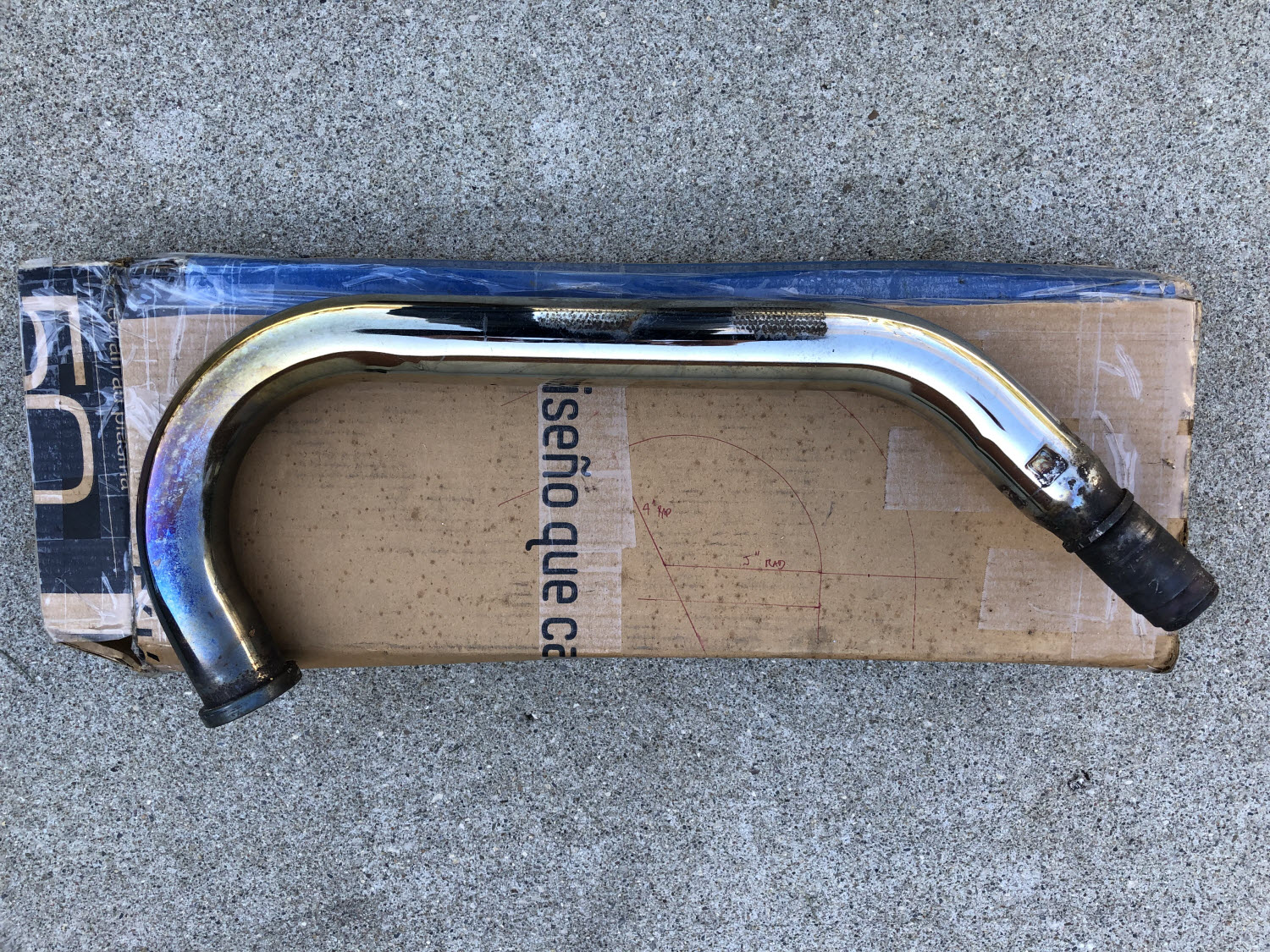

The front side looks pretty good.
Back to top
Someday I will be old......But not today!
IP Logged
Dave
YaBB Moderator
ModSquad
Offline
SuzukiSavage.com
Rocks!
Posts: 17820
Camp Springs, Kentucky
Gender:
Re: S40 Exhaust Header Pipe
Reply #8 -
04/10/22 at 15:46:41

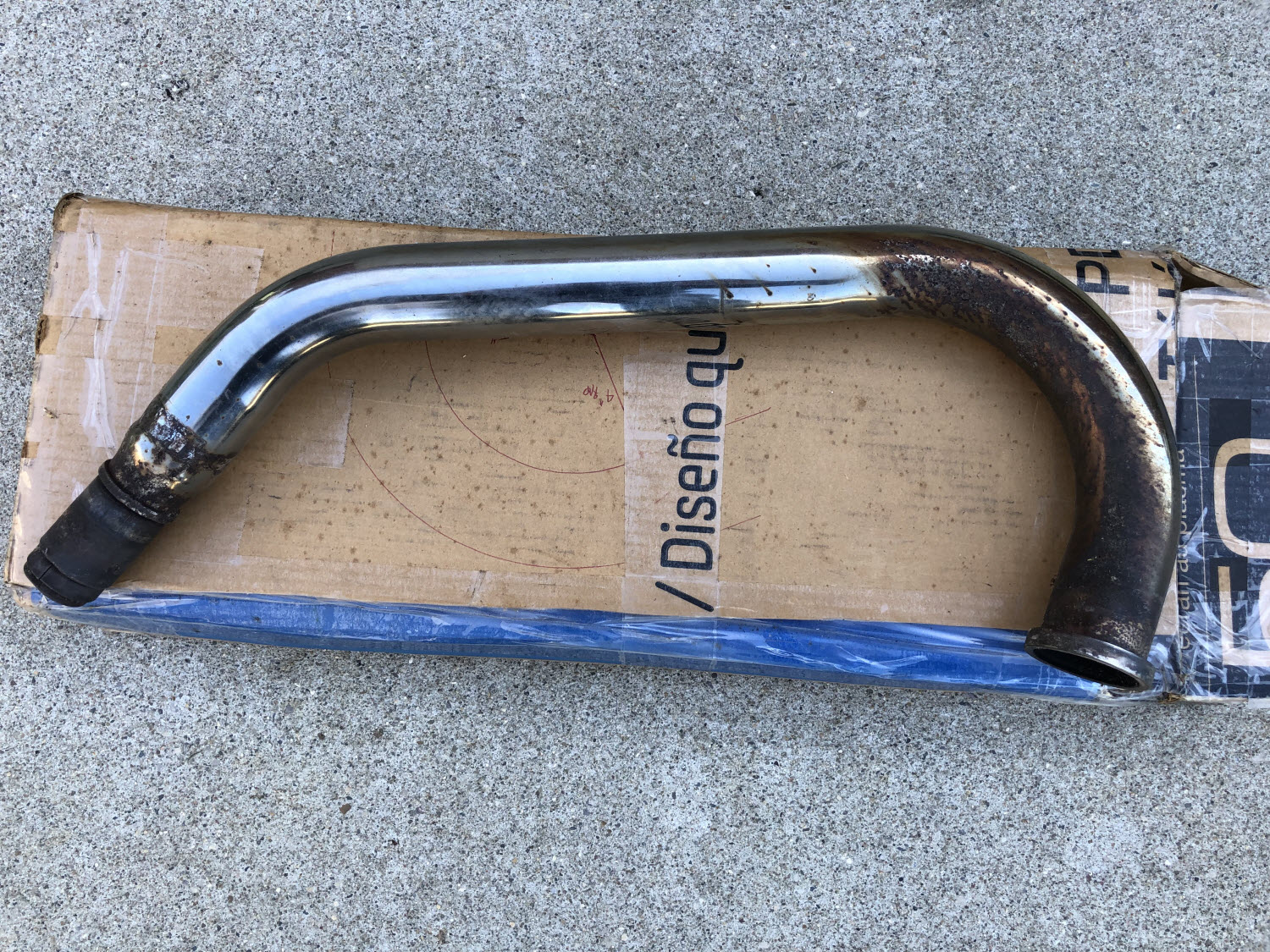

The backside has some light rust and grunge.....it is the best "free" header that I have.
I have it boxed up and I will get a price for shipping tomorrow.
Back to top
Someday I will be old......But not today!
IP Logged
MiamiBobbed
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 29
Re: S40 Exhaust Header Pipe
Reply #9 -
04/10/22 at 15:51:52
No need Dave. Email sent to you (I can't send a PM yet) with my UPS account number. I VERY MUCH appreciate the info and help with the exhaust header! THANKS!
Back to top
IP Logged
