Handlebars.
07/14/19 at 18:17:31

I bought my Savage with Buffalo style bars on it.  They are a T bar style with the risers all one part of the handlebar assembly.  They are a 7" rise overall. The bike was laid down and the handlebars took the brunt of the injury.  I cannot for the life of me find the same handlebars to fit and no parts places can either.  Everywhere I look, handlebars are 3.5" on center bolts and mine seem to measure wider.

Anyone have any ideas?  Is it possible that the top tree was changed out to accommodate a wider setup? Are stock bolts wider than 3.5"?

I'll also need some advice on grips as well.  Not looking to break the bank and hopefully I can find something on Amazon. (Grips, throttle sleeve, throttle cam setup)

This is driving me crazy and I'm dying to get that bike back on the road!
Back to top


  IP Logged
Ruttly
Serious Thumper
*****
Offline

Thumpers Rule

Posts: 3106
Manteca , CA
Gender: male
Re: Handlebars.
Reply #1 - 07/14/19 at 19:13:08

Check the ads in The Market Place , there is always someone selling take off parts from their bobber builds or try eBay. Keep after it and you'll find what you need.
Back to top



The Topic Terminator
  IP Logged
batman
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 3342
osceola new york
Gender: male
Re: Handlebars.
Reply #2 - 07/14/19 at 20:30:42

If you see 3.5 "spread there most likely for Harleys.
Back to top



my old work mates called me MacGyver
  IP Logged
verslagen1
YaBB Moderator
ModSquad
*****
Offline

And Though She Be
But Little She is
Fierce!

Posts: 26377
L.A. California
Gender: male
Re: Handlebars.
Reply #3 - 07/14/19 at 22:33:55

The stock spacing is close to 4", 3.5" spacing is HD's.

You need risers that are separate or made for our bike.

Tall risers and a wide drag bar would be a close match for what you had.
Back to top



WWW   IP Logged
Philmh
Junior Member
**
Offline

SuzukiSavage.com
Rocks!

Posts: 61

Re: Handlebars.
Reply #4 - 07/15/19 at 17:03:42

To tag on and not start a new thread....

Anyone know the size of the bolt for the risers?

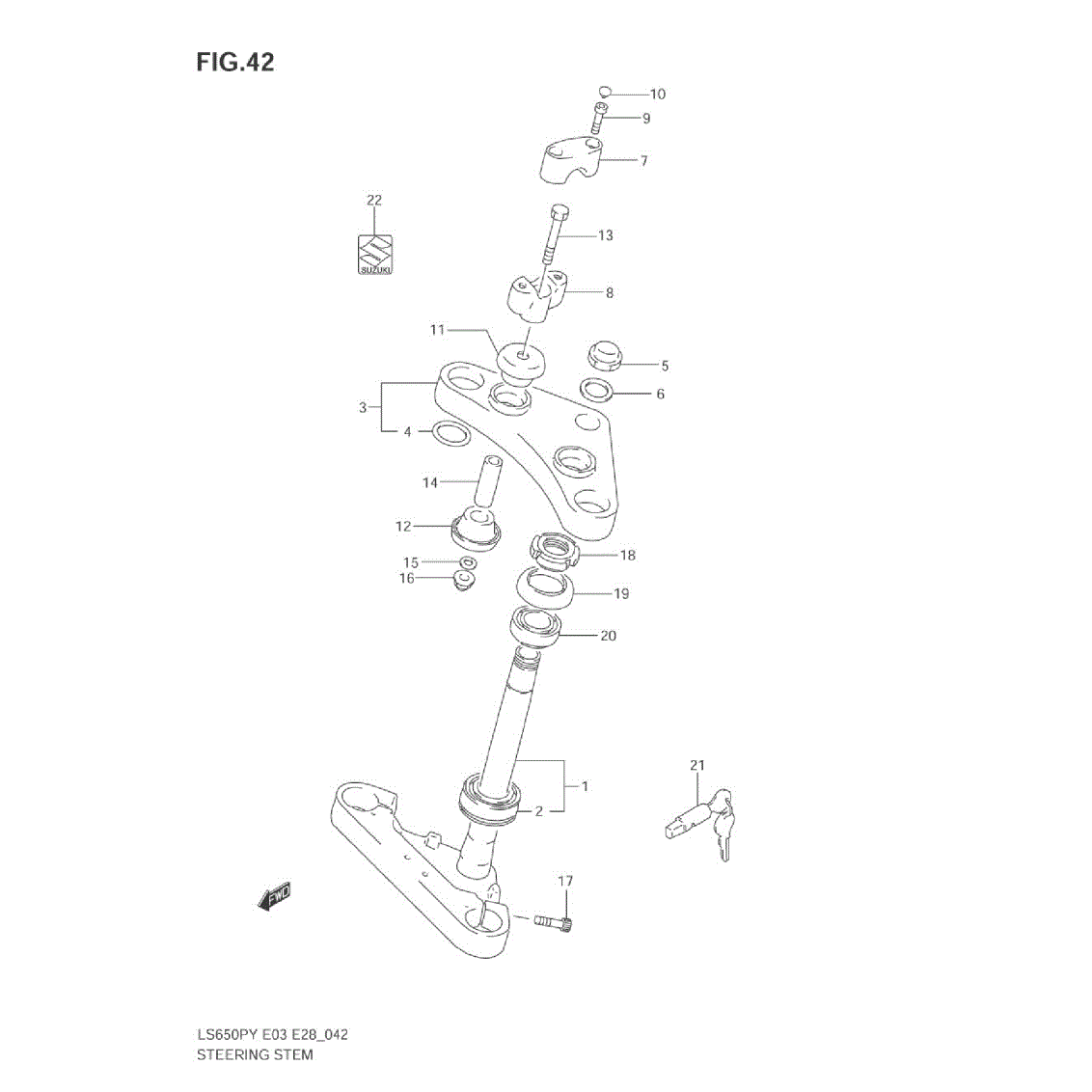

Part number 13 in the attached image.
Back to top


  IP Logged
PanchoTaffy
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 9

Re: Handlebars.
Reply #5 - 07/23/19 at 07:10:24

It is an M10 bolt not sure on the exact length.
Back to top


  IP Logged
batman
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 3342
osceola new york
Gender: male
Re: Handlebars.
Reply #6 - 07/23/19 at 08:40:27

Suz. part number- bolt-, 56223-24B10
