Greg Serious Thumper Offline Molon Labe Posts: 1251 Southeast PA, uSA Gender:	Risers 05/27/12 at 18:50:18 Will any riser for 1" bars work on the Savage? I have a 2002 with the buckhorn bars. From my searching here it appears that I can get 4" risers without having to purchase cables. Does that sound right? I want risers that lift and angle back. Does that limit the height?
Back to top	2002 Savage. IP Logged

Greg Serious Thumper Offline Molon Labe Posts: 1251 Southeast PA, uSA Gender:	Re: Risers Reply #1 - 05/28/12 at 08:17:23 I hate to bump my question, but I just want to make sure I am understanding the riser thing correctly.
Back to top	2002 Savage. IP Logged

arteacher

Serious Thumper

Offline

Ride as if your
naked and invisable!

Posts: 2581
London ontario
Gender: male

Re: Risers
Reply #2 - 05/28/12 at 08:30:35

I don't know the answer to your question, but I may have another solution.
If the risers cost around $100, you might think about keeping the risers you have and getting new handlebars.
I bought Builtwell Frisco bars which have an 8" rise and a bit of pull-back.
I used the cables (clutch and brake line) from an older bike with buck horns as they are about 4" longer than those on the drag bar bikes (post 2004), and the stock buckhorn risers. The advantage of the Builtwell bars is that you can position them forward or back to suit your riding position very easily.
Just a thought.
I am pretty sure (but not certain) that if you add 4" of rise to the buck horns you will have to get custom cables made up. What you can do is measure the cables you have with string and see if you have enough extra length for 4" more rise.

Back to top

white '07, Raask exh, Corbin seat, slipstreamer shie, Raptor, Routy's fwd controls, Baron tach, Frisco bars, Isogrips, Headlight and taillight modulators, Dial-a- jet, AME 9 deg chop kit, K&N air flt

IP Logged

Greg Serious Thumper Offline Molon Labe Posts: 1251 Southeast PA, uSA Gender:	Re: Risers Reply #3 - 05/28/12 at 08:38:43 Thanks for the reply. I was considering new bars as well. The Friscos have 8" rise and I think mine have 5" rise. 8-5=3. So 3" risers or new bars should do the trick.
Back to top	2002 Savage. IP Logged

arteacher Serious Thumper Offline Ride as if your naked and invisable! Posts: 2581 London ontario Gender:	Re: Risers Reply #4 - 05/28/12 at 08:42:08 Don't forget that the risers you have have 1.5" or so rise already.
Back to top	white '07, Raask exh, Corbin seat, slipstreamer shie, Raptor, Routy's fwd controls, Baron tach, Frisco bars, Isogrips, Headlight and taillight modulators, Dial-a- jet, AME 9 deg chop kit, K&N air flt IP Logged

RidgeRunner13

Serious Thumper

Offline

haulin' the
groceries!

Posts: 649
Mustang Island, Texas
Gender: male

Re: Risers
Reply #5 - 05/28/12 at 08:47:56

See if you can find an independent bike shop around that works on H-Ds. We had one here for a while & it was an excellent source of parts to mod for the Savage. They had storage boxes full of take off parts. I picked up a set of stainless steel handlebars for $10. I got my flooorboards for $40 a pair & they had a stack of mufflers for $20 each, your choice. I was going to get an engine guard & a seat to modify but they moved out of town & I haven't been able to find where they went. Angry

Back to top

Wind me up & watch me run, I ain't never had too much fun!

IP Logged

Greg Serious Thumper Offline Molon Labe Posts: 1251 Southeast PA, uSA Gender:	Re: Risers Reply #6 - 05/28/12 at 08:53:05 arteacher wrote on 05/28/12 at 08:42:08: Don't forget that the risers you have have 1.5" or so rise already. I thought my stock ones were replaced with the new ones. I wasn't aware they were added to them. Thanks!
Back to top	2002 Savage. IP Logged

Greg

Serious Thumper

Offline

Molon Labe

Posts: 1251
Southeast PA, uSA
Gender: male

Re: Risers
Reply #7 - 05/28/12 at 08:55:07

RidgeRunner13 wrote on 05/28/12 at 08:47:56:

See if you can find an independent bike shop around that works on H-Ds. We had one here for a while & it was an excellent source of parts to mod for the Savage. They had storage boxes full of take off parts. I picked up a set of stainless steel handlebars for $10. I got my flooorboards for $40 a pair & they had a stack of mufflers for $20 each, your choice. I was going to get an engine guard & a seat to modify but they moved out of town & I haven't been able to find where they went. Angry

We have one in town. I got my muffler there. They have tons of used stuff. I will check out the seat and handlebar selections.

Back to top

2002 Savage.

IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28769 L.A. California Gender:	Re: Risers Reply #8 - 05/28/12 at 08:57:30 http://suzukisavage.com/cgi-bin/YaBB.pl?num=1296279177 and somewhere there's mention of using many things as risers. 3/4" deep sockets, bmx footpegs and on and on.
Back to top	Versey's Place Tech Section Index IP Logged

arteacher

Serious Thumper

Offline

Ride as if your
naked and invisable!

Posts: 2581
London ontario
Gender: male

Re: Risers
Reply #9 - 05/28/12 at 09:52:17

Greg wrote on 05/28/12 at 08:53:05:

arteacher wrote on 05/28/12 at 08:42:08:

Don't forget that the risers you have have 1.5" or so rise already.

I thought my stock ones were replaced with the new ones. I wasn't aware they were added to them. Thanks!

Your stock ones are replaced. I only mentioned it because your calculations are off unless you take into account the (minimal) rise of the stock risers.
Example: If you figure you need 4 more inches of rise you would need to add the stock rise you have to the 4" to determine the height of the new risers.
Clear as mud? Grin

Back to top

white '07, Raask exh, Corbin seat, slipstreamer shie, Raptor, Routy's fwd controls, Baron tach, Frisco bars, Isogrips, Headlight and taillight modulators, Dial-a- jet, AME 9 deg chop kit, K&N air flt

IP Logged

Greg

Serious Thumper

Offline

Molon Labe

Posts: 1251
Southeast PA, uSA
Gender: male

Re: Risers
Reply #10 - 05/28/12 at 11:15:46

arteacher wrote on 05/28/12 at 09:52:17:

Greg wrote on 05/28/12 at 08:53:05:

arteacher wrote on 05/28/12 at 08:42:08:

Don't forget that the risers you have have 1.5" or so rise already.

I thought my stock ones were replaced with the new ones. I wasn't aware they were added to them. Thanks!

Your stock ones are replaced. I only mentioned it because your calculations are off unless you take into account the (minimal) rise of the stock risers.
Example: If you figure you need 4 more inches of rise you would need to add the stock rise you have to the 4" to determine the height of the new risers.
Clear as mud? Grin

Gotcha! That is what I figured. Thanks!

Back to top

2002 Savage.

IP Logged

Greg

Serious Thumper

Offline

Molon Labe

Posts: 1251
Southeast PA, uSA
Gender: male

Re: Risers
Reply #11 - 05/28/12 at 11:20:08

verslagen1 wrote on 05/28/12 at 08:57:30:

http://suzukisavage.com/cgi-bin/YaBB.pl?num=1296279177

and somewhere there's mention of using many things as risers.

3/4" deep sockets, bmx footpegs and on and on.

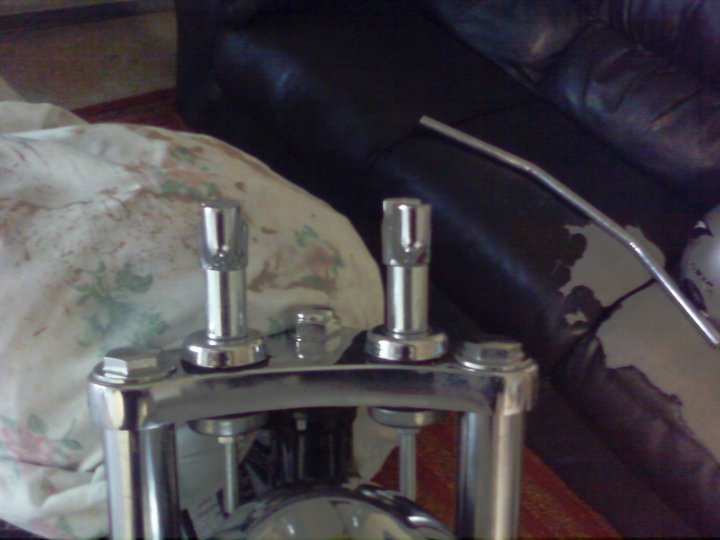

Thank you for the link. I would like to try what BarneyBWilde did but Lowe's doesn't list metal spacers, just plastic. He hasn't been online for over a year so I doubt he would get my PM. Any ideas what was used so I can make this work?

Back to top


2002 Savage.

IP Logged

Greg Serious Thumper Offline Molon Labe Posts: 1251 Southeast PA, uSA Gender:	Re: Risers Reply #12 - 05/29/12 at 12:47:30 He did respond to my email. I found the parts I needed and raised my bars 1.5". It feels like a new bike. I will see how it works on my longer rides. Thanks all!
Back to top	2002 Savage. IP Logged
