WTB: Dear I say, I need new springs? (Read 70 times)

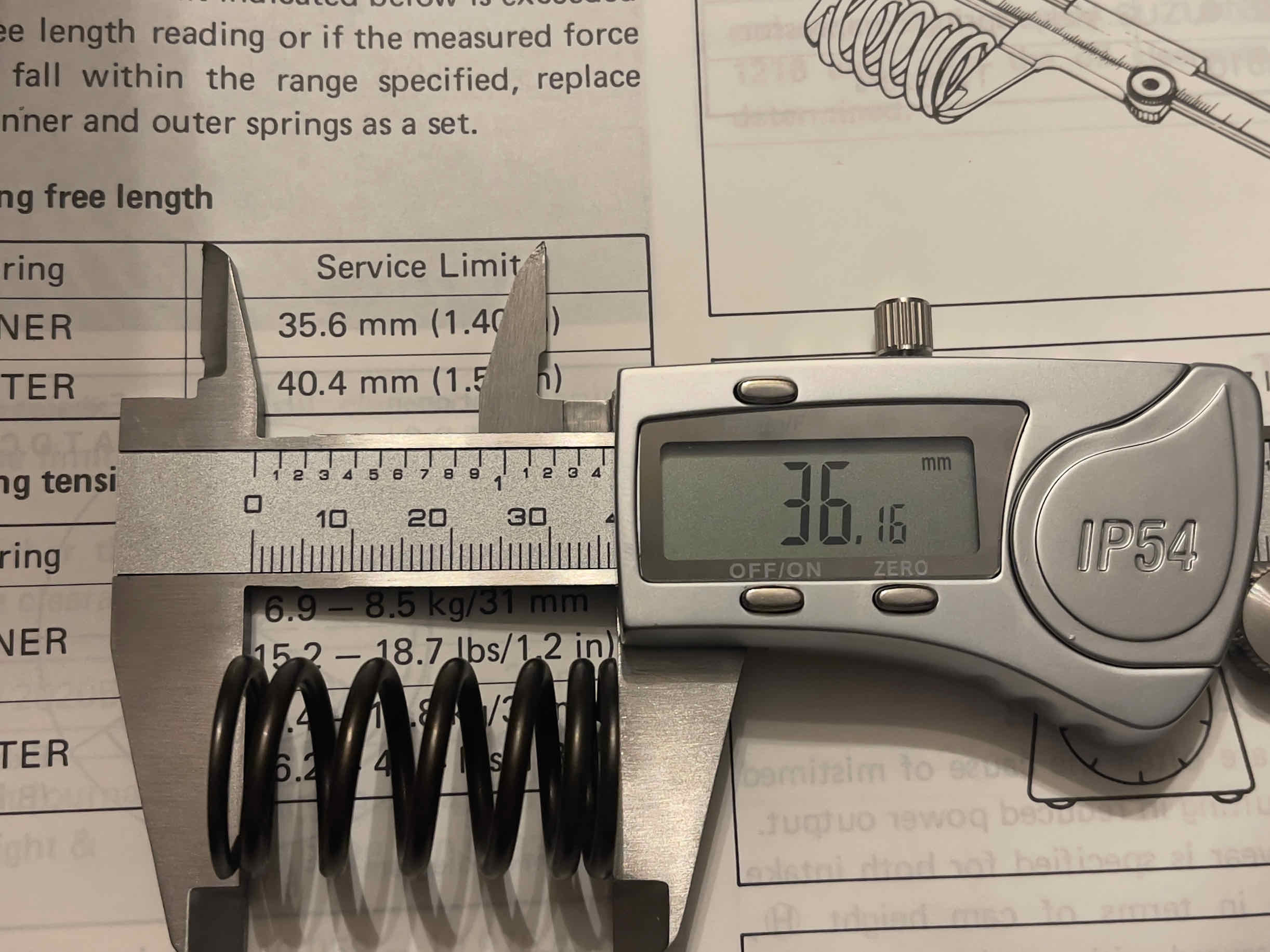

QNero YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 22 Denver, Colorado. Gender:	WTB: Dear I say, I need new springs? 12/09/21 at 11:04:41 So, I just wanted to get your folks' opinion on my Valve Springs and what maybe I should replace them with. Maybe Lancer will pipe-up to sell me some racing springs or not? hint Inner Spring.
Back to top	IMG_0464.jpeg « Last Edit: 12/09/21 at 13:32:09 by QNero » IP Logged

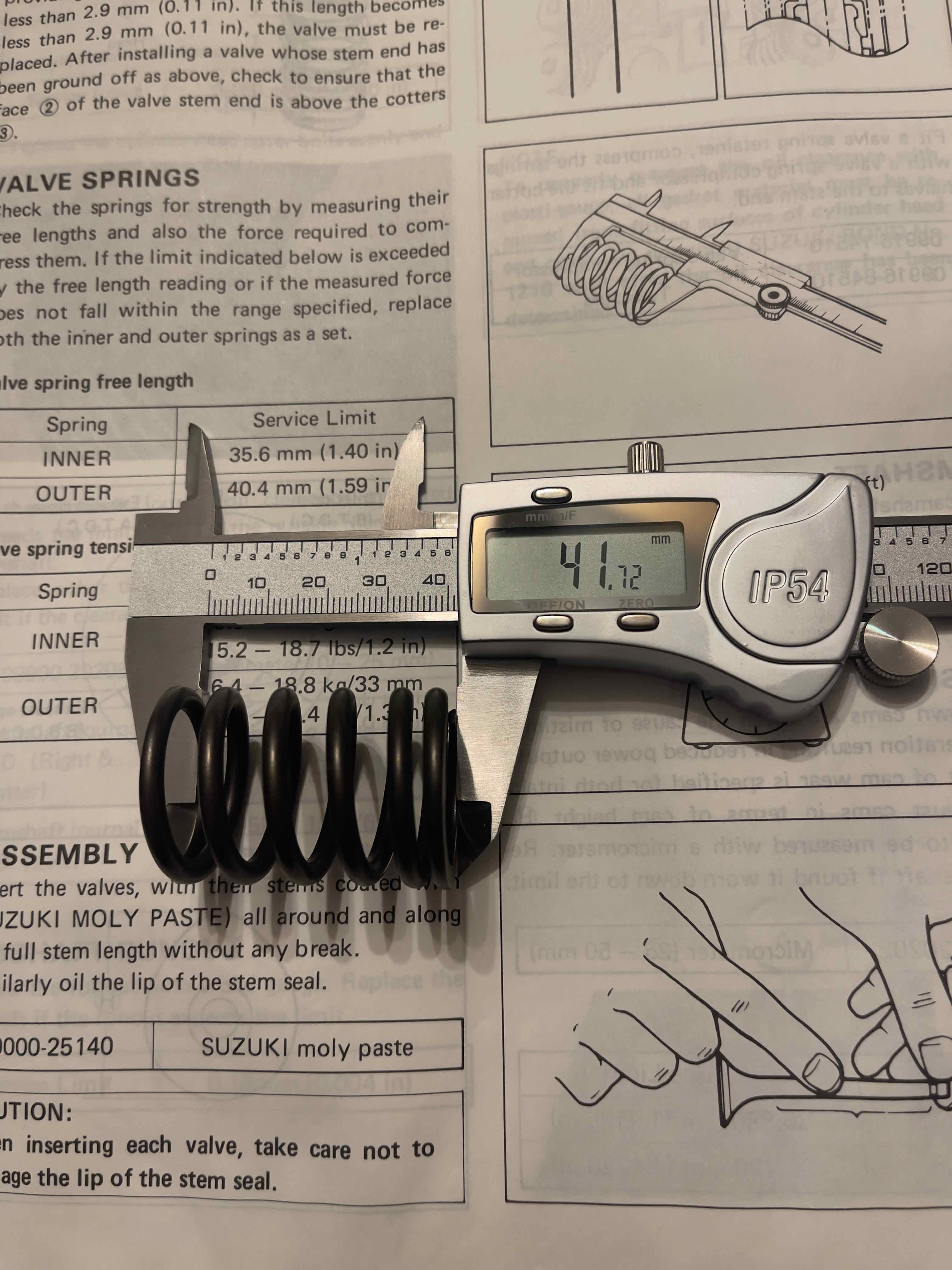

QNero YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 22 Denver, Colorado. Gender:	Re: Dear I say, I need new springs? Reply #1 - 12/09/21 at 11:07:46 So, I just wanted to get your folks' opinion on my Valve Springs and what maybe I should replace them with. Maybe Lancer will pipe-up to sell me some racing springs or not? hint Wink Outer Spring:
Back to top	IMG_0465.jpeg IP Logged

TheSneeze Serious Thumper Offline Posts: 1201 Northern Nevada Gender:	Re: WTB: Dear I say, I need new springs? Reply #2 - 12/09/21 at 21:10:49 They are within the service limit - why do you want to replace them? They get shorter as they wear out, not longer.
Back to top	Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribute IP Logged

DragBikeMike

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 4207
Honolulu

Re: WTB: Dear I say, I need new springs?
Reply #3 - 12/10/21 at 09:21:11

In my experience, the stock springs hold up well if not overheated. Like Sneeze said, your springs are within the service limit so they are probably OK.

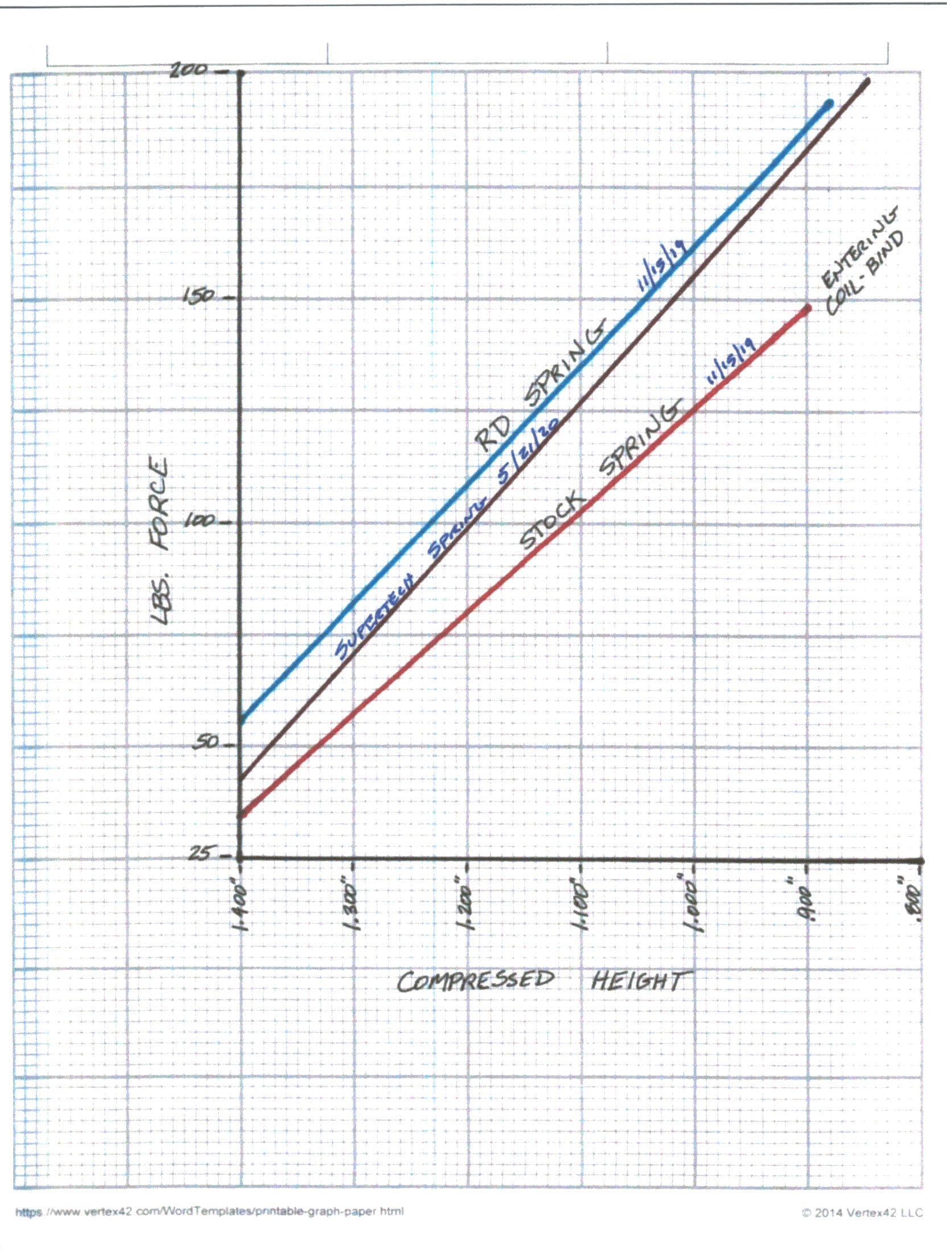

If you want more assurance, you can load test them. A new spring assembly (inner & outer together) exerts 55 lbs. of force at installed height of 1.3". The graph below gives you the load data for a new spring assembly.


Knowledge is power.

IP Logged

DragBikeMike

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 4207
Honolulu

Re: WTB: Dear I say, I need new springs?
Reply #4 - 12/10/21 at 09:26:38

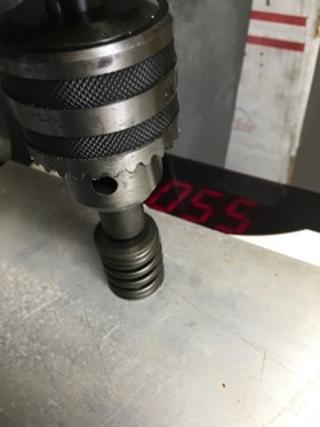

A bathroom scale works OK. Make sure to test them with the spring retainer since it sets the installed height for the inner spring. The installed height for the inner spring is a bit shorter than the outer spring. The retainer sets that up for you. A drill press works good for compressing the spring assembly. I wouldn't settle for anything less that 50 lbs @ 1.30" (10% reduction).


Knowledge is power.

IP Logged

DragBikeMike

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 4207
Honolulu

Re: WTB: Dear I say, I need new springs?
Reply #5 - 12/10/21 at 09:31:08

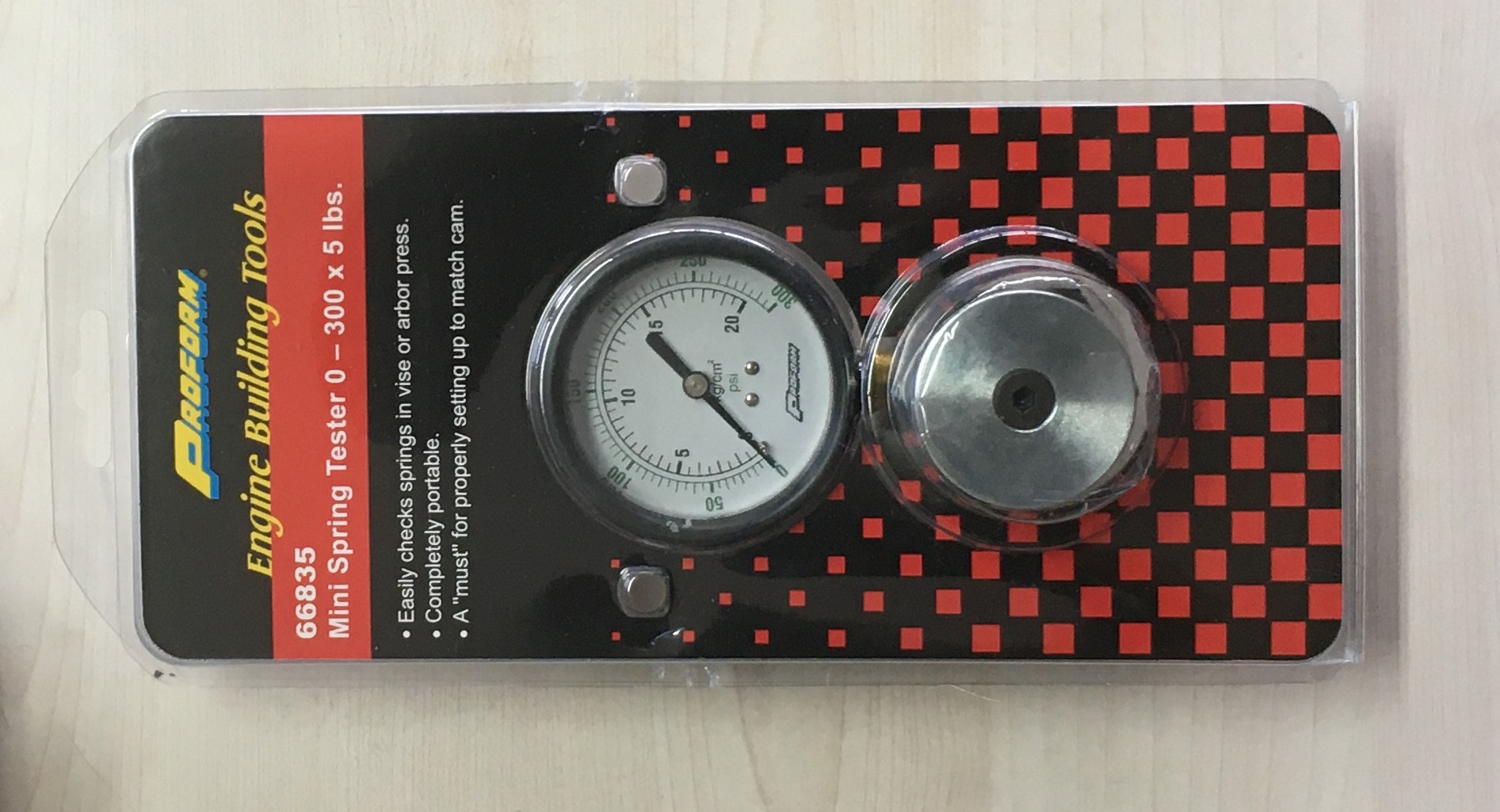

One of these Proform tools is a nice addition to your tool chest. They are cheap and make the job a lot easier. A lot of folks use these along with a bench vice to test springs. Again, you are looking for 55 lbs. @ 1.30". If you want to be sure, you can check them at the full open height too. The graph I provided will tell you what they should be at the full open height for your camshaft.


Knowledge is power.

IP Logged

Fast 650 Senior Member Offline SuzukiSavage.com Rocks! Posts: 393 Valrico, FL Gender:	Re: WTB: Dear I say, I need new springs? Reply #6 - 12/10/21 at 09:31:58 Stay with the stock valve springs unless you like replacing the cam and rockers on a regular basis. The stiff race type springs aren't needed and the increased pressure will wear the lobes and rocker pads at a greatly accelerated rate.
Back to top	IP Logged
