Nicks in drive belt normal? (Read 108 times)
Neil
Junior Member
Offline
SuzukiSavage.com
Rocks!
Posts: 55
Nicks in drive belt normal?
10/18/21 at 16:10:06

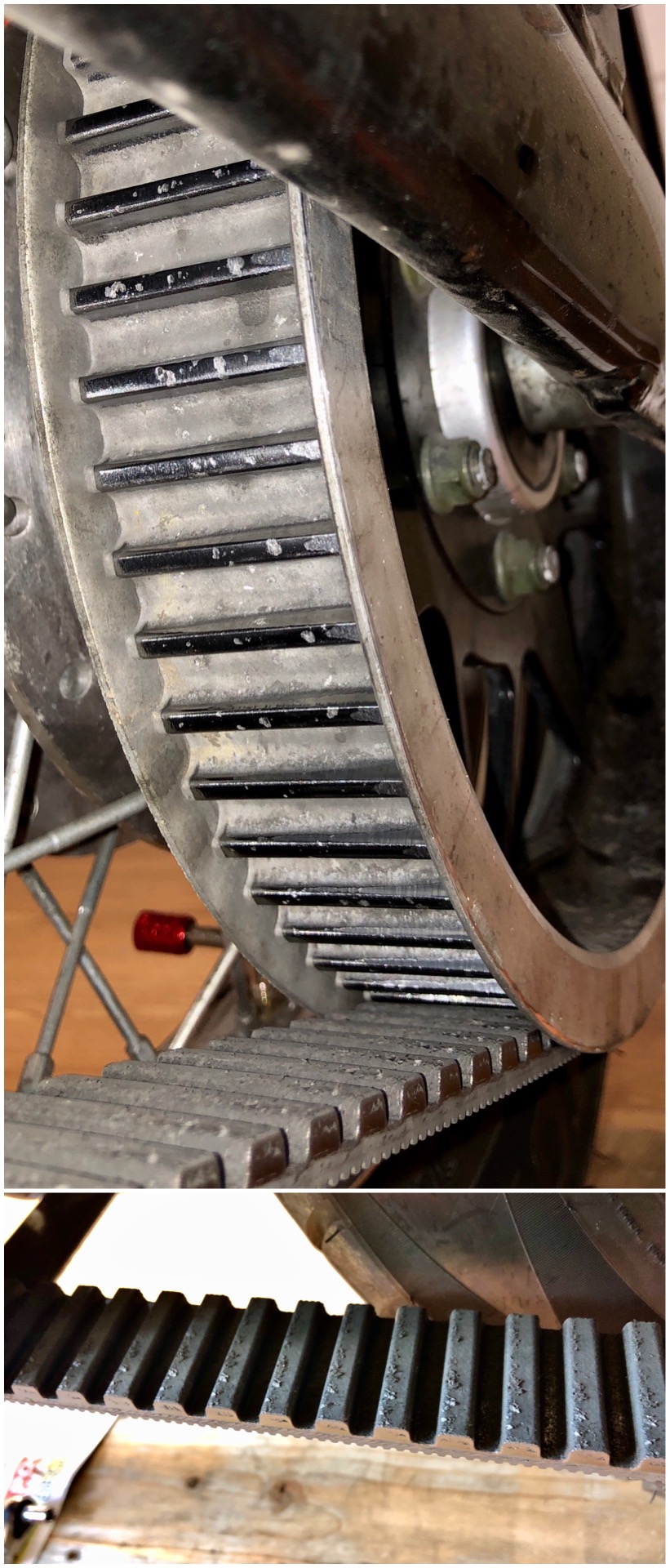

front pulley teeth look ok, but rear pulley teeth and belt have evident nicks. How normal? Belt is a real annoying squealer
Back to top
IP Logged
Neil
Junior Member
Offline
SuzukiSavage.com
Rocks!
Posts: 55
Re: Nicks in drive belt normal?
Reply #1 -
10/18/21 at 16:11:47
Better shot of belt nicks
Back to top
IP Logged
TheSneeze
Serious Thumper
Offline
Posts: 1209
Northern Nevada
Gender:
Re: Nicks in drive belt normal?
Reply #2 -
10/18/21 at 16:40:23
Looks like small bits of road grime/pebbles. I see the same issue on a Subaru vbelt in my Baja Bug. Sand and bits of dirt sticking in the rubber.
Back to top
Every twenty minute job is a stripped thread away from being a three day ordeal.
'87 LS650h Savage Street Tracker
'86 LS650g Savage (parts bike)
'81 Kawasaki KZ750e ELR tribute
IP Logged
ohiomoto
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 2706
WTF is JOG?
Re: Nicks in drive belt normal?
Reply #3 -
10/18/21 at 18:06:08
TheSneeze wrote
on 10/18/21 at 16:40:23:
I see the same issue on a Subaru vbelt in my Baja Bug...
-----------------
Care to share pictures of some of your toys sometime??? A lot of us here are interested in cool stuff.
Back to top
IP Logged
Neil
Junior Member
Offline
SuzukiSavage.com
Rocks!
Posts: 55
Re: Nicks in drive belt normal?
Reply #4 -
10/18/21 at 20:01:21
Normal, or worrisome, you think?
Back to top
IP Logged
TheSneeze
Serious Thumper
Offline
Posts: 1209
Northern Nevada
Gender:
Re: Nicks in drive belt normal?
Reply #5 -
10/18/21 at 22:35:02
I think it's normal, but you should pick that stuff out. If it accumulates too much, replace the belt. Clean the pulley if you replace the belt.
Back to top
Every twenty minute job is a stripped thread away from being a three day ordeal.
'87 LS650h Savage Street Tracker
'86 LS650g Savage (parts bike)
'81 Kawasaki KZ750e ELR tribute
IP Logged
TheSneeze
Serious Thumper
Offline
Posts: 1209
Northern Nevada
Gender:
Re: Nicks in drive belt normal?
Reply #6 -
10/18/21 at 22:36:22
ohiomoto wrote
on 10/18/21 at 18:06:08:
TheSneeze wrote
on 10/18/21 at 16:40:23:
I see the same issue on a Subaru vbelt in my Baja Bug...
-----------------
Care to share pictures of some of your toys sometime??? A lot of us here are interested in cool stuff.

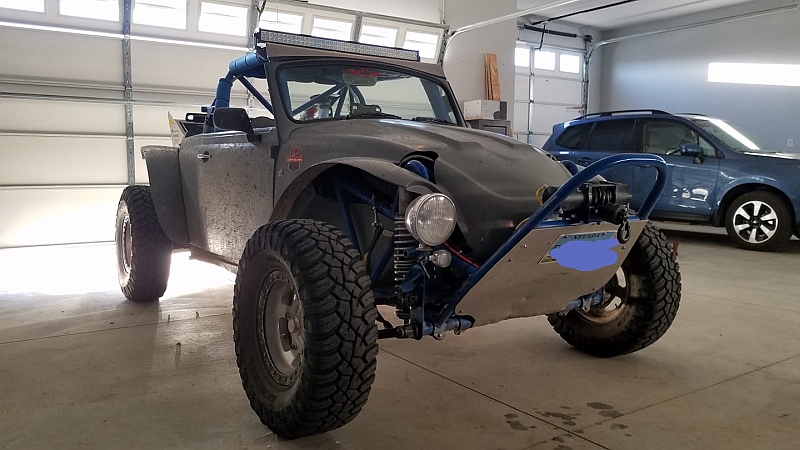

Not to derail the thread, but here is the baja...
Back to top
Every twenty minute job is a stripped thread away from being a three day ordeal.
'87 LS650h Savage Street Tracker
'86 LS650g Savage (parts bike)
'81 Kawasaki KZ750e ELR tribute
IP Logged
Tocsik
Serious Thumper
Offline
the singularity
Posts: 1141
Denver, CO
Gender:
Re: Nicks in drive belt normal?
Reply #7 -
10/19/21 at 07:33:56
Also not to derail, but that's a sweet buggy. I grew up in the East County of San Diego where Baja Bugs were abundant. And yours is tight.
Back to top
'08|Raptor|Dyna|Stock jets & no other carb changes @ 5280' alt|'slavy CCT|Kawa front pulley|130/90 rear tire|7" LED headlight|3" straight risers|FIAMM El Grande horns|Mutazu hard bags
IP Logged
Serowbot
YaBB Moderator
ModSquad
Offline
OK.... so what's the
speed of dark?
Posts: 28414
Tucson Az
Gender:
Re: Nicks in drive belt normal?
Reply #8 -
10/19/21 at 08:25:04
Scrub that belt with a brass bristle brush...
Back to top
Ludicrous Speed !... ...
...
IP Logged
badwolf
Serious Thumper
Offline
Ridin' my Lil'
Bagger - 153k miles
so far
Posts: 794
Palm Beach County, FL
Gender:
Re: Nicks in drive belt normal?
Reply #9 -
10/19/21 at 12:48:50
Those look like metal shavings. Most likley from wear on the front pulley. That is why they had to weld it. You have a huge belt alignment issue. Never seen one that bad before.
Back to top
IP Logged
Eegore
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 8049
Re: Nicks in drive belt normal?
Reply #10 -
10/19/21 at 12:54:30
"
Those look like metal shavings. Most likley from wear on the front pulley. That is why they had to weld it. You have a huge belt alignment issue. Never seen one that bad before."
I was thinking the same. I've been through plenty of dirt on my bike and the belt didn't get that type /consistency of buildup. I recall seeing on here a pretty jacked up pulley from abnormal wear, almost sharpening the teeth on it.
Would it be best to check the integrity/alignment of the rear pulley as well?
I'd think this bike is a good candidate for a front pulley replacement and a rear bushing upgrade.
Back to top
IP Logged
Tocsik
Serious Thumper
Offline
the singularity
Posts: 1141
Denver, CO
Gender:
Re: Nicks in drive belt normal?
Reply #11 -
10/19/21 at 13:00:24
Serowbot wrote
on 10/19/21 at 08:25:04:
Scrub that belt with a brass bristle brush...
There's your best advice. Do that and see if anything comes back. Brass brushes are pretty soft and great to have around.
Back to top
'08|Raptor|Dyna|Stock jets & no other carb changes @ 5280' alt|'slavy CCT|Kawa front pulley|130/90 rear tire|7" LED headlight|3" straight risers|FIAMM El Grande horns|Mutazu hard bags
IP Logged
Neil
Junior Member
Offline
SuzukiSavage.com
Rocks!
Posts: 55
Re: Nicks in drive belt normal?
Reply #12 -
10/19/21 at 13:02:54
Thanks very, very much gents. I think the belt photograph is misleading. That's not actually stuff, it is shreds of the belt material itself.
Dave will eventually send me a front pulley. How can I find out more about the bushing upgrade, and where to get the parts? This absolutely feels like something I have to take to a mechanic. I presume the rear wheel Hass to be raised in free for belt alignment? And of course disassembled for bushing replacement? I've never seen any of our Boulevards on a retail available rear stand. and looking at some recommended rear stands, I don't see how they will connect to our bikes. Anybody got pictures for a knucklehead?
Back to top
IP Logged
Eegore
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 8049
Re: Nicks in drive belt normal?
Reply #13 -
10/19/21 at 13:11:57
Bike lift thread:
http://suzukisavage.com/cgi-bin/YaBB.pl?num=1100379341
Rear pulley upgrade thread, I believe these have been sold here on the Marketplace, also Dave had another version that is on one of my bikes and works fine.
http://suzukisavage.com/cgi-bin/YaBB.pl?num=1561964431
Marketplace pulley spacer:
http://suzukisavage.com/cgi-bin/YaBB.pl?num=1563725075
Back to top
IP Logged
badwolf
Serious Thumper
Offline
Ridin' my Lil'
Bagger - 153k miles
so far
Posts: 794
Palm Beach County, FL
Gender:
Re: Nicks in drive belt normal?
Reply #14 -
10/19/21 at 13:52:36
Neil said - I think the belt photograph is misleading. That's not actually stuff, it is shreds of the belt material itself.
That is even worse! The belt should NOT be wearing off pieces like that. Scrape some off and see if a magnet will pick them up, if it does, there not belt.
Grab your rear pulley and try to wobble it sideways, it should barely move. If it moves a lot you need the double row bearing upgrade. ( and a new front pulley )
