poor weld on front pulley? (Read 53 times)

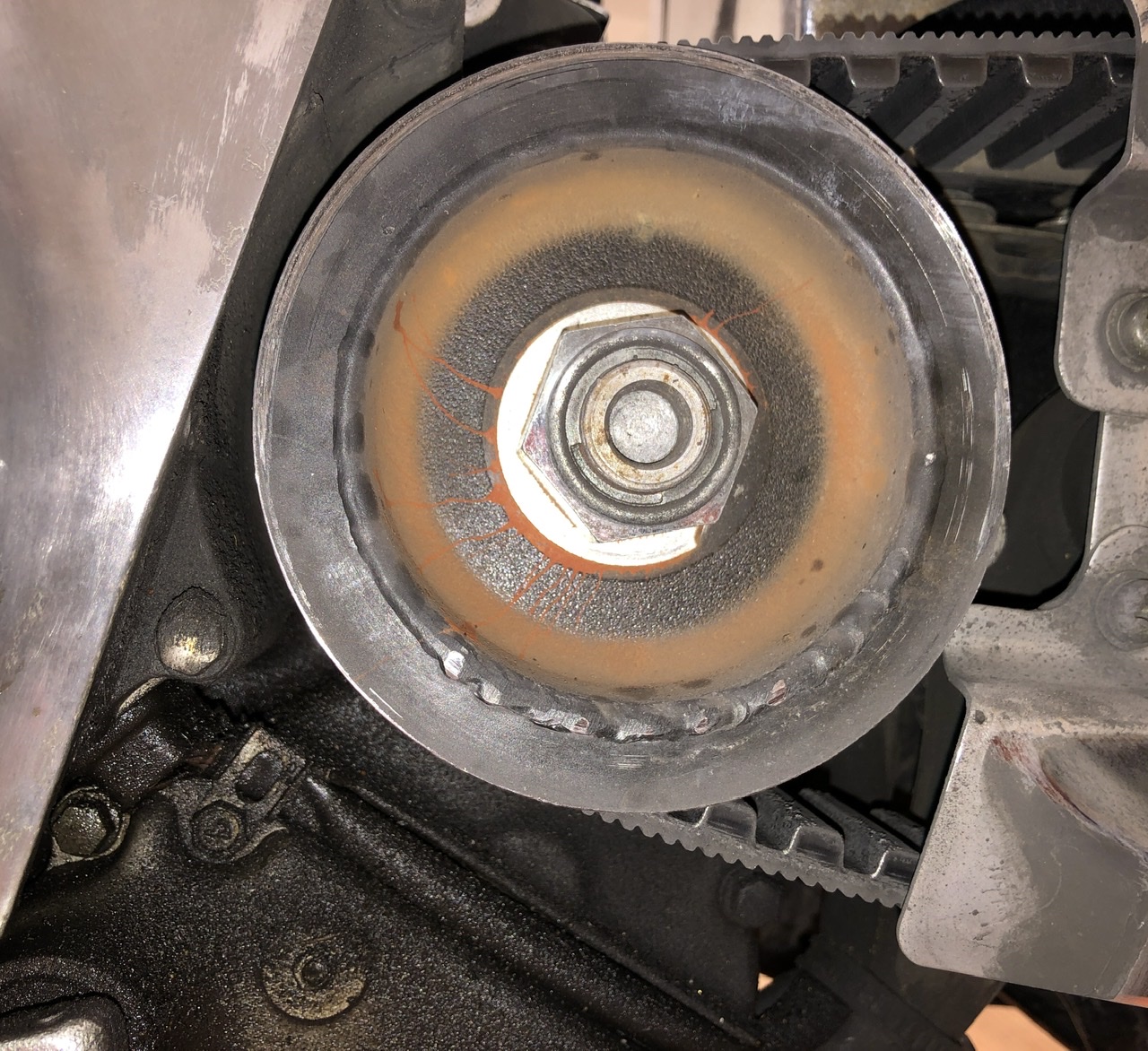

Neil Junior Member Offline SuzukiSavage.com Rocks! Posts: 55	poor weld on front pulley? 10/18/21 at 16:00:42 This uneven weld on my front pulley normal? I got a miserably squealy belt...
Back to top	C04F7034-A2B7-453F-B47D-1C88A25CB38A.jpeg IP Logged

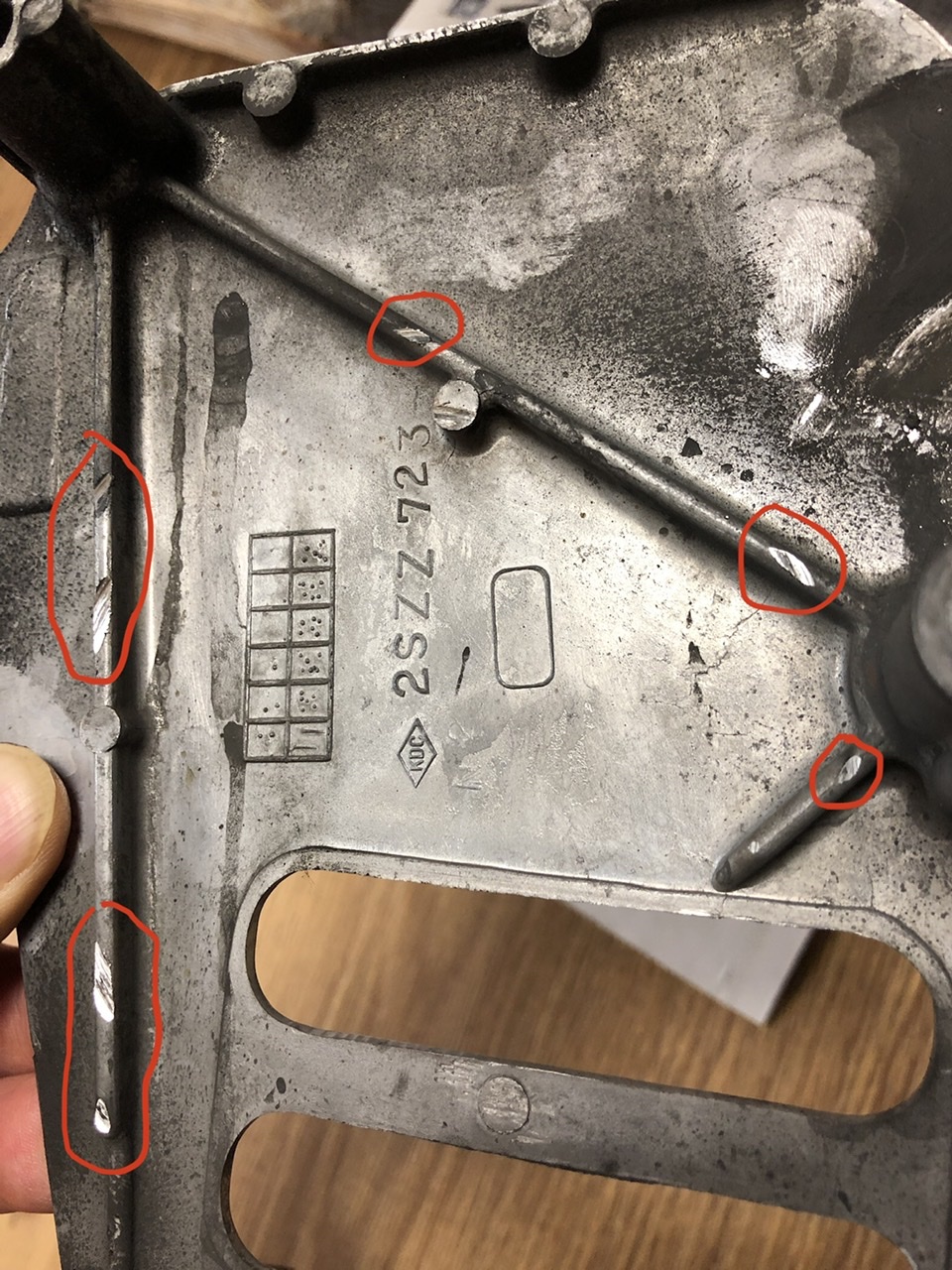

Neil Junior Member Offline SuzukiSavage.com Rocks! Posts: 55	Re: poor weld on front pulley? Reply #1 - 10/18/21 at 16:04:13 The high weld spots seems to have scored the inside of my front pulley cover too...
Back to top	0C27C284-D80B-4FD5-972E-9FB4ABF508D8.jpeg IP Logged

TheSneeze Serious Thumper Offline Posts: 1210 Northern Nevada Gender:	Re: poor weld on front pulley? Reply #2 - 10/18/21 at 16:34:45 The contact with the aluminum cover is more than likely the squeal - not your belt. It doesn't look consistent with the rest of the pulley circumference, so I would think someone did some dodgy welding on it at some point. Take a grinder and take off the high points until it no longer contacts the cover.
Back to top	Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribute IP Logged

badwolf

Serious Thumper

Offline

Ridin' my Lil'
Bagger - 153k miles
so far

Posts: 794
Palm Beach County, FL
Gender: male

Re: poor weld on front pulley?
Reply #3 - 10/18/21 at 17:06:17

The rubbing on the cover is a red flag. Check to see if the rubber washers are still in place on the 3 bolts that hold the cover on, if thier gone that could reduce the clearance.
The welds on the pulley are most likley to repair damage caused by long term belt misalignment. Replacing it would be a good idea, the welds put it out of balance. Many of us have swapped for the Kaw. pulley and have the stocker laying around. Where do you live?
You need to get the back wheel off the ground, spin it and line-up the belt. The marks on the swingarm could be off. A straight edge on the rear wheel can line it up with the front. Do both sides, the back is wider than the front, split the differnce. When it is right it will be in the middle of BOTH pulleys and the belt noise will go away. If you can't get at least close you might have a bent swingarm or bad swingarm bearings.

IP Logged

Neil Junior Member Offline SuzukiSavage.com Rocks! Posts: 55	Re: poor weld on front pulley? Reply #4 - 10/18/21 at 19:56:36 Live near Pittsburgh (PA). Dang, a pulley is $104 new. How do I go about begging to buy a part on this site?
Back to top	IP Logged

badwolf Serious Thumper Offline Ridin' my Lil' Bagger - 153k miles so far Posts: 794 Palm Beach County, FL Gender:	Re: poor weld on front pulley? Reply #5 - 10/18/21 at 20:17:39 E-mail Dave, he sells the modded Kaw pulleys and should have a stock one laying around. He lives south of Cincinnati. Shipping shouldent be too much. Find him in the marketplace.
Back to top	IP Logged

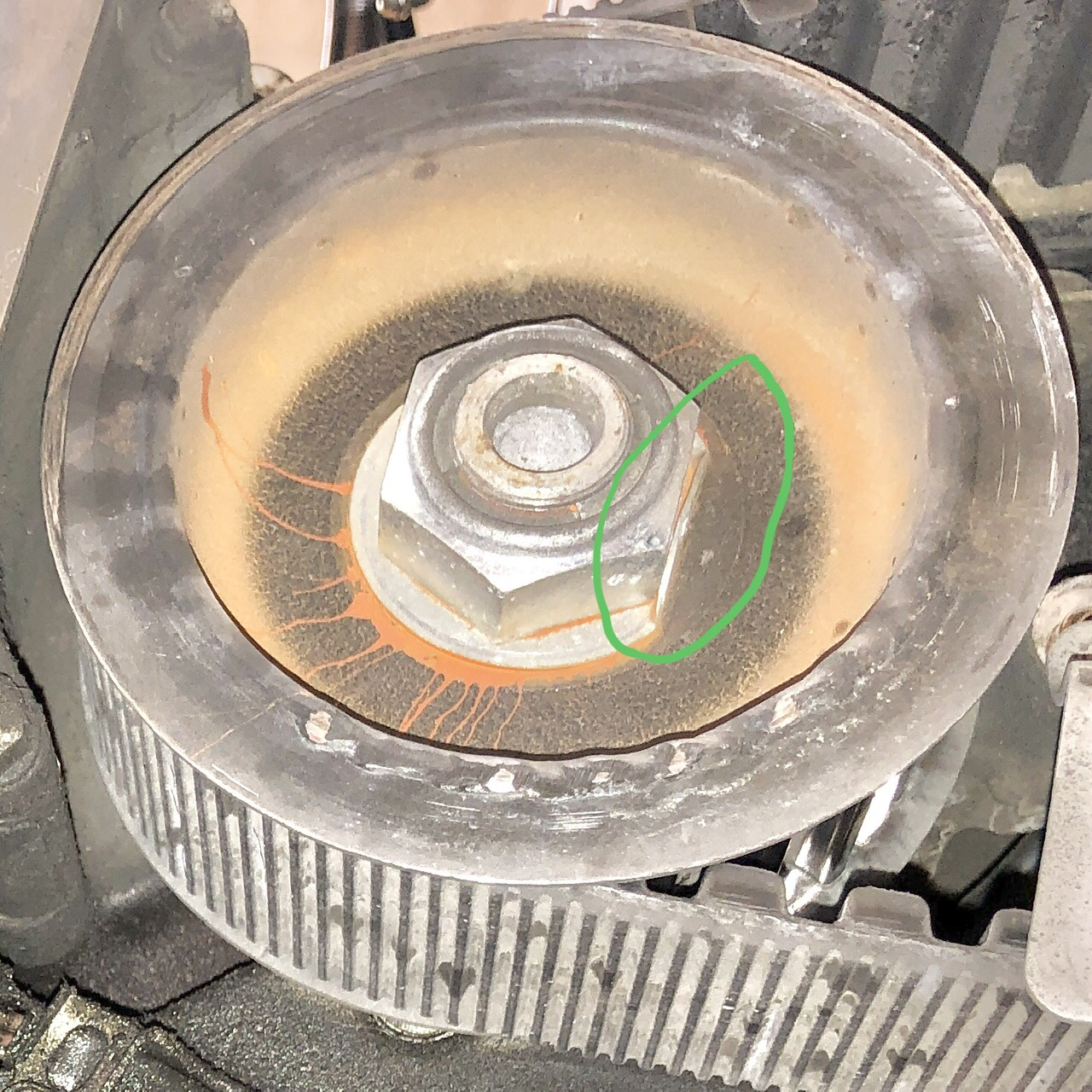

Neil Junior Member Offline SuzukiSavage.com Rocks! Posts: 55	Re: poor weld on front pulley? Reply #6 - 10/19/21 at 11:37:52 Any GOOD explanation for why the pulley washer is peeled up against the side of the nut?
Back to top	B12D089B-4105-4BEA-96A8-7F8C794C9FC3.jpeg IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28833 L.A. California Gender:	Re: poor weld on front pulley? Reply #7 - 10/19/21 at 11:59:32 anti rotation device bend it down to loosen bend it back up to lock the nut in place.
Back to top	Versey's Place Tech Section Index IP Logged

Tocsik Serious Thumper Offline the singularity Posts: 1144 Denver, CO Gender:	Re: poor weld on front pulley? Reply #8 - 10/19/21 at 12:58:10 Yeah, that nut is crucial and it gets torqued to bout 90 ft/pounds. Ya don't want that sucker coming loose b/c it'll wreck the splines on the output shaft. I bend two sides up and I think Dave mentioned he bends up three of 'em. You also want the red locktite on there. Pretty sure. Someone may differ.
Back to top	'08\|Raptor\|Dyna\|Stock jets & no other carb changes @ 5280' alt\|'slavy CCT\|Kawa front pulley\|130/90 rear tire\|7" LED headlight\|3" straight risers\|FIAMM El Grande horns\|Mutazu hard bags IP Logged
