Clunk in transmission in second on downshift (Read 58 times)
Theduderino
Full Member
Offline
The dude abides…
Posts: 216
Looziana
Gender:
Clunk in transmission in second on downshift
10/03/21 at 07:34:33
Hey all… well it’s been raining in Louisiana so I couldn’t stand it, I started fooling with my clutch cable and nuts fraud and now when I’m coming to a stop it’ll downshift fine through third when I hit second it doesn’t act like it engages all the way. And I hear a slight clunking…😖
Back to top
2000 Savage LS650P. Bobber kit, PWK CARB, air box mod. Rear bearing/spacer mod..
Do not fear mistakes, there are none.
IP Logged
Theduderino
Full Member
Offline
The dude abides…
Posts: 216
Looziana
Gender:
Re: Clunk in transmission in second on downshift
Reply #1 -
10/03/21 at 07:35:09
I don’t know what nuts fraud is? Shift rod is what it was supposed to say
Back to top
2000 Savage LS650P. Bobber kit, PWK CARB, air box mod. Rear bearing/spacer mod..
Do not fear mistakes, there are none.
IP Logged
badwolf
Serious Thumper
Offline
Ridin' my Lil'
Bagger - 153k miles
so far
Posts: 794
Palm Beach County, FL
Gender:
Re: Clunk in transmission in second on downshift
Reply #2 -
10/03/21 at 10:02:54
If you moved the linkage on the spline where it comes out of the tranny, you could have the rod hitting the bottom of the left side case. The way to adjust the shifter positon is to change the length of the rod. You DON'T want to change the spline positon. Most bikes have a small center punch on the shaft where the split goes.
Back to top
IP Logged
verslagen1
YaBB Moderator
ModSquad
Offline
Where there's a
will, I want to be
in it.
Posts: 28825
L.A. California
Gender:
Re: Clunk in transmission in second on downshift
Reply #3 -
10/03/21 at 10:22:09
Theduderino wrote
on 10/03/21 at 07:35:09:
I don’t know what nuts fraud is? Shift rod is what it was supposed to say
Spell check probably got you.
You probably typed 'sh!tf rod' and spell check might of changed it to 'sh!t fraud'
The YABB software will change 'sh!t' to nuts.
Note; ! is i
Back to top
Versey's Place
Tech Section Index
IP Logged
Theduderino
Full Member
Offline
The dude abides…
Posts: 216
Looziana
Gender:
Re: Clunk in transmission in second on downshift
Reply #4 -
10/03/21 at 16:59:43
Hey Ver! , i’m gonna need a tensioner soon I was wondering if you had one I will give you mine,I haven’t even take the cover off yet so there’s that but I appreciate it. Thanks for the info on the spline!!
Back to top
2000 Savage LS650P. Bobber kit, PWK CARB, air box mod. Rear bearing/spacer mod..
Do not fear mistakes, there are none.
IP Logged
verslagen1
YaBB Moderator
ModSquad
Offline
Where there's a
will, I want to be
in it.
Posts: 28825
L.A. California
Gender:
Re: Clunk in transmission in second on downshift
Reply #5 -
10/03/21 at 20:42:25
They come and they go.
best to get your order in if that's what you want.
Back to top
Versey's Place
Tech Section Index
IP Logged
Theduderino
Full Member
Offline
The dude abides…
Posts: 216
Looziana
Gender:
Re: Clunk in transmission in second on downshift
Reply #6 -
10/03/21 at 21:40:11
Also, lets say the gear shift wasn't centerpunched? What is the orientation of re-install?
Back to top
2000 Savage LS650P. Bobber kit, PWK CARB, air box mod. Rear bearing/spacer mod..
Do not fear mistakes, there are none.
IP Logged
Dave
YaBB Moderator
ModSquad
Offline
SuzukiSavage.com
Rocks!
Posts: 17888
Camp Springs, Kentucky
Gender:
Re: Clunk in transmission in second on downshift
Reply #7 -
10/04/21 at 04:20:13
Theduderino wrote
on 10/03/21 at 21:40:11:
Also, lets say the gear shift wasn't centerpunched? What is the orientation of re-install?
As close to a right angle as possible......between the centerline of the arm and the rod that goes to the shift pedal.
Back to top
Someday I will be old......But not today!
IP Logged
justin_o_guy2
Serious Thumper
Offline
What happened?
Posts: 55279
East Texas, 1/2 dallas/la.
Re: Clunk in transmission in second on downshift
Reply #8 -
10/04/21 at 13:27:29
The O-ring in the clutch cover that the clutch rod goes through costs a lot less than the irritation of it leaking is worth. If you are in there, pull it out, go to the hardware store and get a new one. You can ask me how I know, but I'm pretty sure you already know.
Back to top
The people never give up their liberties but under some delusion.- Edmund Burke.
IP Logged
DragBikeMike
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 4284
Honolulu
Re: Clunk in transmission in second on downshift
Reply #9 -
10/04/21 at 17:17:49

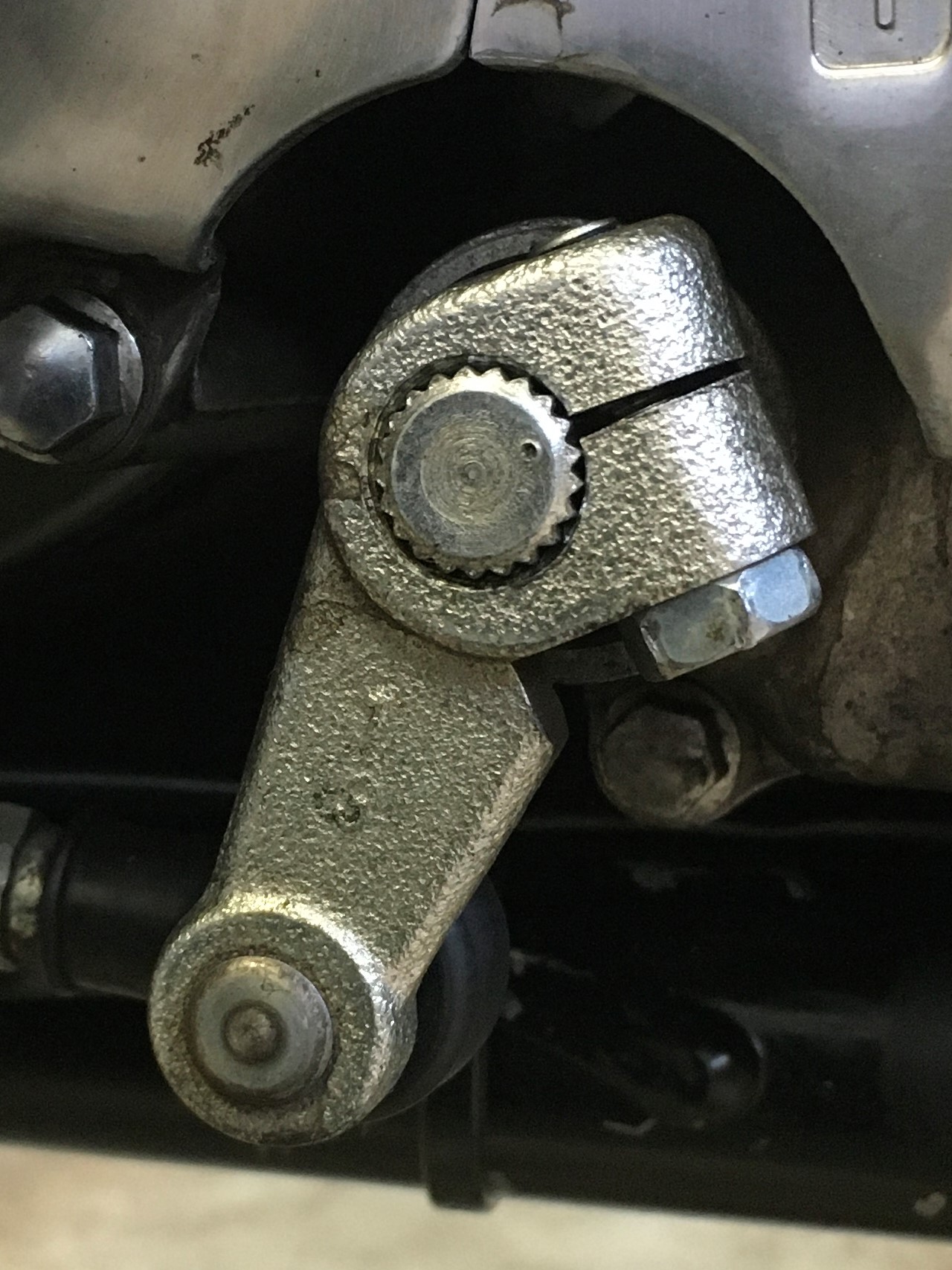

This is the alignment punch mark so you can get a good feel for the orientation.
Back to top
Knowledge is power.
IP Logged
DragBikeMike
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 4284
Honolulu
Re: Clunk in transmission in second on downshift
Reply #10 -
10/04/21 at 17:19:58

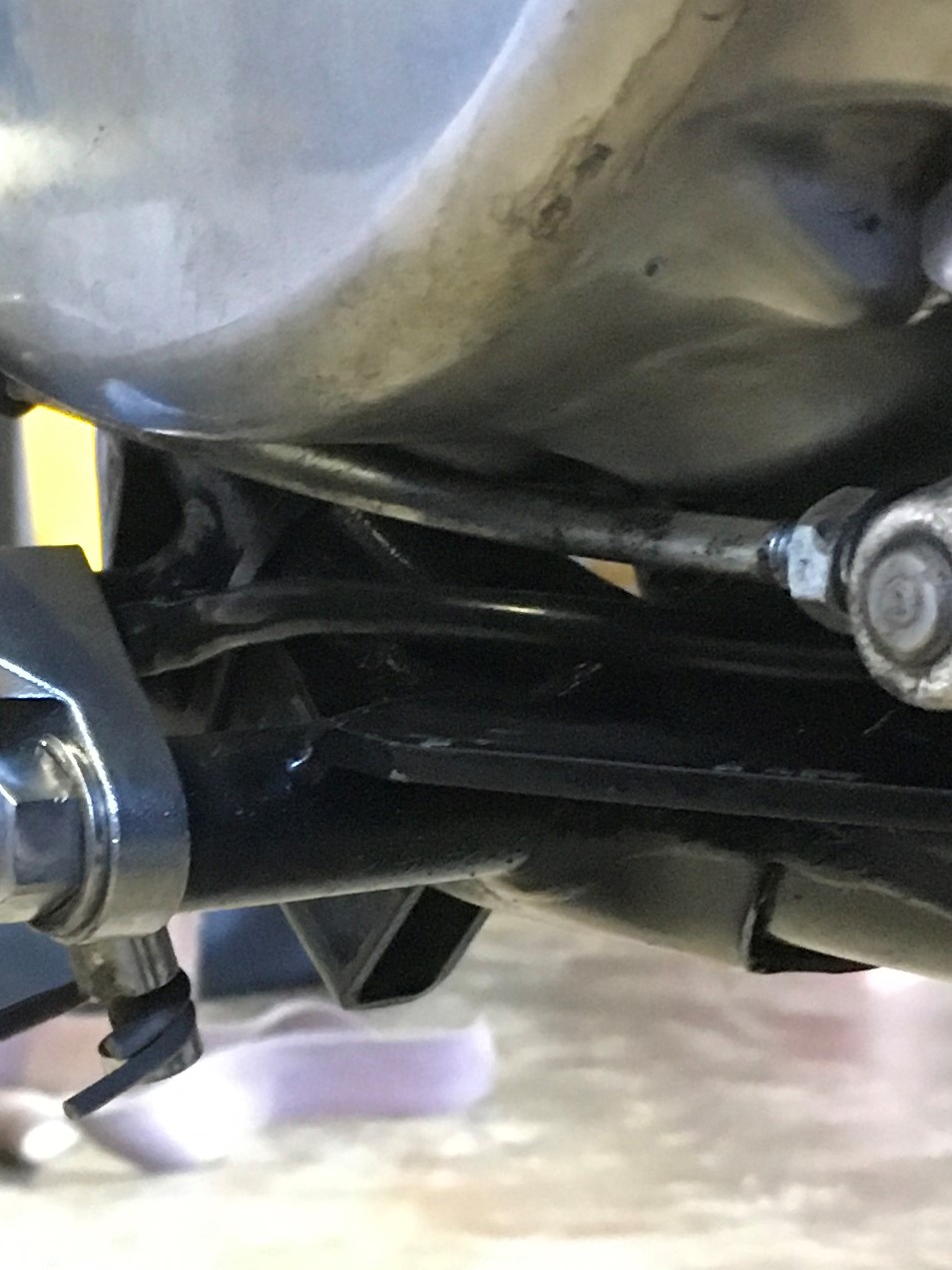

Make sure the link rod doesn't hit the underside of the case, like this. However, this type of interference would hinder upshifts, not downshifts.
Back to top
Knowledge is power.
IP Logged
DragBikeMike
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 4284
Honolulu
Re: Clunk in transmission in second on downshift
Reply #11 -
10/04/21 at 17:21:21

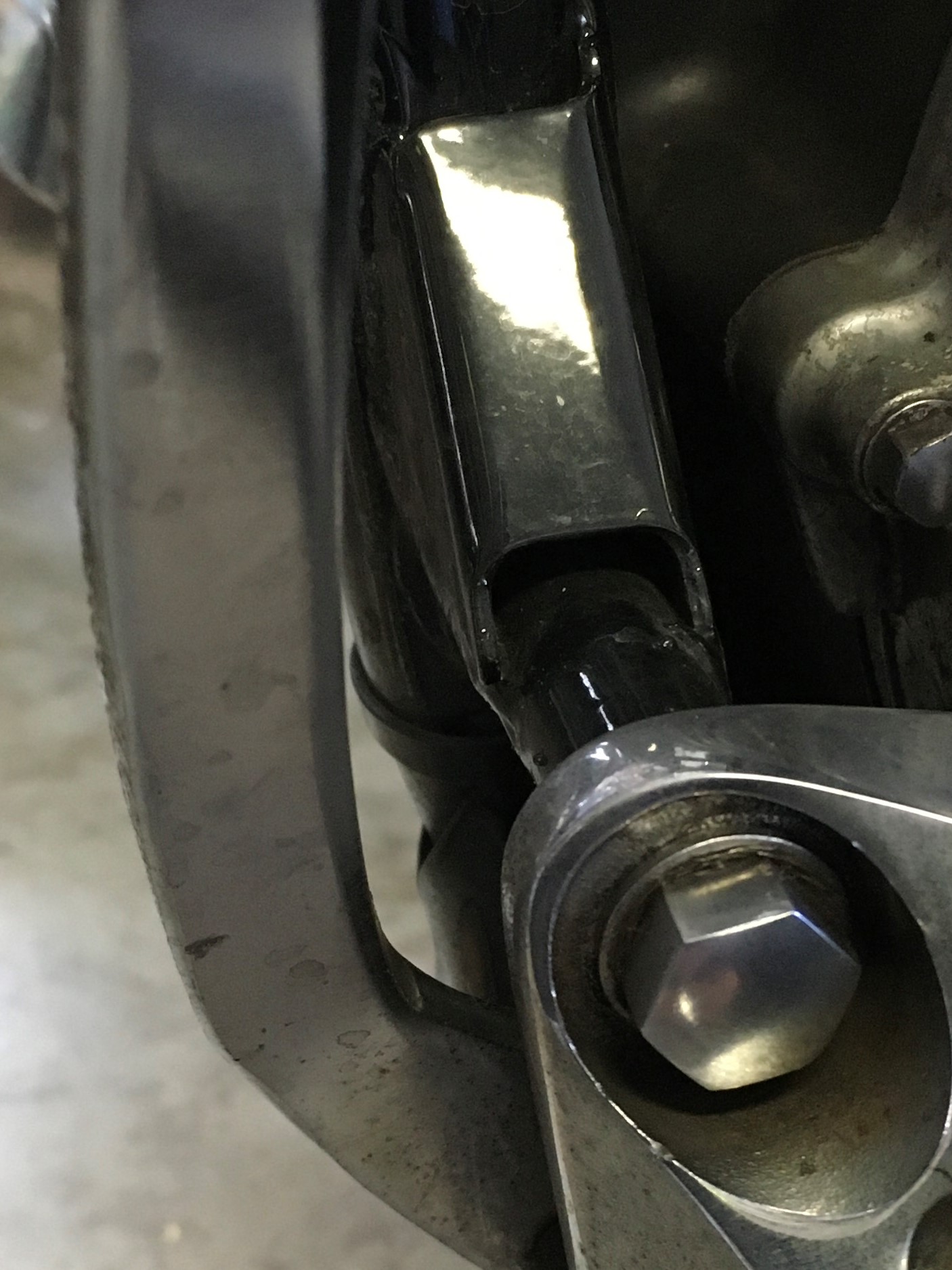

Make sure the shift lever doesn't hit the frame. Same comment, interference here would hinder upshifts.
Back to top
Knowledge is power.
IP Logged
