Running 65mph...motor quit and wont start (Read 143 times)
Slowlane
Junior Member
**
Offline

SuzukiSavage.com
Rocks!

Posts: 65

Running 65mph...motor quit and wont start
02/23/21 at 07:46:47

2009 S40 1233miles. †I have been working on this bike for 3 solid months. †I have a clean gas tank, clean carb (3 times) clean non-eth gas. †It has been running perfectly for the last few weeks but yesterday after about 20 miles....I was doing 65mph and running beautifully and all of a sudden it just quits. †Wont start. †Plenty of battery. †So, loaded it on my truck and brought it home. †Tried to start several times but no fire. †Then some seemingly intermittent fireing but still not cranking. †Charged battery 13.3v and tried cranking again this am. †No crank, no fire. †The bike is practically new 1233miles and everything is stock except for a new battery and new Raptor (oem)petcock. †I stuck a clear tube on the bottom of the carb and loosened the drain screw and clean gas came flowing out.   Any help appreciated. †Thanks †Slowlane
Back to top


  IP Logged
Gary_in_NJ
Serious Thumper
*****
Offline

LS650 Cafe Racer

Posts: 2204
Amongst the Twisty Roads
Re: Running 65mph...motor quit and wont start
Reply #1 - 02/23/21 at 08:14:21

You are going to have to take a systematic approach to trouble shooting this.

- Confirm spark. Remove the spark plug and ground the electrode to the engine case. Crank over the engine and observe a blue spark. If it is red or missing, you have an ignition problem (could be a fouled plug, a bad lead or a coil failure). Please advise.

- Confirm compression. The best method is a leak-down test because the results point to the potential problem for the loss of compression. But at this stage, a simple compression test is needed. Advise test results (psi).

- Confirm fuel flow. You checked the float bowl had fuel, good. But how much? Using that same tube measure the height of the fuel in the float bowl by getting the end of the hose above the carb and opening the drain. Advise the height of the fuel (or distance between the fuel height and the spot there the carb body and body meet).

- Confirm Air. Check the filter to ensure it is clean and not obstructing flow. Check the carb inlet boot for FOD.

Let us know what doesn't check out, and we can guide you through a remedy.

You mention that the engine doesn't crank. Check your battery connections to make sure they haven't come loose. Confirm there isn't any corrosion. Make sure the ground is secure to the engine case (towards the rear of the engine) and that the positive is tight at the starter solenoid. Also do know that a failure mode of a motorcycle battery with a cracked plate is to show normal voltage unloaded, however the voltage will go to zero under load. So check your voltage in a static condition and then while cranking (or attempting to) the engine over. This type of failure commonly turns the bike off like a switch and is difficult to identify unless you know what you are looking for. Now you know.

Also, while it may seem obvious - but sometimes it's not, make sure that the switch on the right control is in the "RUN" position.
Back to top



A life-time student of motorcycling. LS650 Cafe, TS-Z400, FZ6
My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG
  IP Logged
Slowlane
Junior Member
**
Offline

SuzukiSavage.com
Rocks!

Posts: 65

Re: Running 65mph...motor quit and wont start
Reply #2 - 02/23/21 at 08:53:10

Took off the seat and the rt side cover....shot some starting fluid in and it stumbled and stumbled and started and ran but it ran badly.  Backed off the throttle and it quit and smoked up the garage.....gotta be that f'ing carb again.  Thinking about getting Lancer's carb.
Back to top


  IP Logged
Slowlane
Junior Member
**
Offline

SuzukiSavage.com
Rocks!

Posts: 65

Re: Running 65mph...motor quit and wont start
Reply #3 - 02/23/21 at 14:20:58

Gary...looped the clear tubing from the drain upward with drain screw open. †the fuel level stayed just about even with the bottom of the bowl.

Removed the plug and it was black and wet.  cleaned it....spark was regular and blue/white.
Back to top


  IP Logged
Gary_in_NJ
Serious Thumper
*****
Offline

LS650 Cafe Racer

Posts: 2204
Amongst the Twisty Roads
Re: Running 65mph...motor quit and wont start
Reply #4 - 02/23/21 at 14:44:26

Do you still have the OEM petcock? Try it again with the fuel petcock set to prime.
Back to top



A life-time student of motorcycling. LS650 Cafe, TS-Z400, FZ6
My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG
  IP Logged
Slowlane
Junior Member
**
Offline

SuzukiSavage.com
Rocks!

Posts: 65

Re: Running 65mph...motor quit and wont start
Reply #5 - 02/23/21 at 15:01:18

Starting work on putting the oem petcock back in and running oem hose back to the vent. † The Yamaha Raptor I put in was barcoded from Yamaha via Amazon $44.00.

Got OEM petcock back in and the OEM vent hose.  Put it on Prime...checked the fuel level with the clear hose with drain screw open...same...comes right to the bottom of the bowl.   Bike cranks and runs now but really ragged...lot of black smoke and dies at idle.



Air filter clean and air box clean and dry.
Back to top

« Last Edit: 02/23/21 at 16:45:36 by Slowlane »
  IP Logged
Gary_in_NJ
Serious Thumper
*****
Offline

LS650 Cafe Racer

Posts: 2204
Amongst the Twisty Roads
Re: Running 65mph...motor quit and wont start
Reply #6 - 02/23/21 at 17:21:00

Ok, good info. It would appear that the float height is not set at the correct height. The carb neednít come off the bike to adjust the float height, but I find it much easier and precise to make the adjustment on a work bench. Read the FAQ in the technical section on adjusting the tab on the float and measuring with the carb at the right angle (the tab on the float should touch the needle valve, but not compress it). Once adjusted, perform the test with the clear tube again.

While you have the tank off, put that Raptor petcock back on.
Back to top



A life-time student of motorcycling. LS650 Cafe, TS-Z400, FZ6
My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG
  IP Logged
Slowlane
Junior Member
**
Offline

SuzukiSavage.com
Rocks!

Posts: 65

Re: Running 65mph...motor quit and wont start
Reply #7 - 02/23/21 at 17:27:26

Gary....It's gotta have something with the carb and I'll doo all those things tomorow or the next day.  I was doing 65 about 20 miles out on a pleasant ride when it was just like someone turned off the ignition.  Now after all these trys...It is running but very badly.  Thanks for hanging with me.  Slowlane
Back to top


  IP Logged
Gary_in_NJ
Serious Thumper
*****
Offline

LS650 Cafe Racer

Posts: 2204
Amongst the Twisty Roads
Re: Running 65mph...motor quit and wont start
Reply #8 - 02/23/21 at 18:08:37

If the float is set such that the carb bowl doesnít fill, you will consume all of the fuel especially at a large throttle opening to maintain cruise speed - and that will stop the engine. With that said, once the fuel refills the bowl the bike will usually start. This may not be THE problem, but it is one to correct.
Back to top



A life-time student of motorcycling. LS650 Cafe, TS-Z400, FZ6
My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG
  IP Logged
ckahleer
Junior Member
**
Online

SuzukiSavage.com
Rocks!

Posts: 64

Re: Running 65mph...motor quit and wont start
Reply #9 - 02/23/21 at 19:14:04

Verify the kill switch is 100%
With the bike running, jiggle the switch a bit. Not enough to go to the off position, but within the on area.
Back to top


  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 15902
Camp Springs, Kentucky
Gender: male
Re: Running 65mph...motor quit and wont start
Reply #10 - 02/24/21 at 04:53:18

Carb issues seldom show up "instantly" while the engine is running. †Most of the time a carb issue will onset gradually....with lean surges and erratic acceleration if the problem is a lack of fuel, and sluggishness and smoke if the issue is too much fuel.

You describe the issue as occurring quickly - and that sound more like an electrical or ignition issue to me. †Have you changed your spark plug? †Have you checked the battery voltage?

The kickstand safety switch is a known "problem child" - it is down where it gets a lot of water and grit thrown at it and when it fails it can cause problems (but generally only when the bike is in gear).  You can take the connector apart on the frame just above the drive pulley and put a jumper wire on the connector to bypass the switch and confirm it is not the cause of the problem.
Back to top



Someday I will be old......But not today!

  IP Logged
oldNslow
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 2557
Rochester, NY
Gender: male
Re: Running 65mph...motor quit and wont start
Reply #11 - 02/24/21 at 07:22:06

Slowlane,

Take the float bowl off. See if either the main jet or the pilot jet are laying in the bottom of the bowl. If either of them came loose and fell out that could cause a "sudden" carb issue like what you are experiencing.

You said in your first post that you've cleaned the carb 3 times. Maybe the last time you did that  you didn't get one of the jets screwed in tight.
Back to top


  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 50436
East Texas, 1/2 dallas/la.
Re: Running 65mph...motor quit and wont start
Reply #12 - 02/24/21 at 09:33:47

I use ether.

If It runs on ether,
Well, you get the idea
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
Slowlane
Junior Member
**
Offline

SuzukiSavage.com
Rocks!

Posts: 65

Re: Running 65mph...motor quit and wont start
Reply #13 - 02/24/21 at 19:29:33

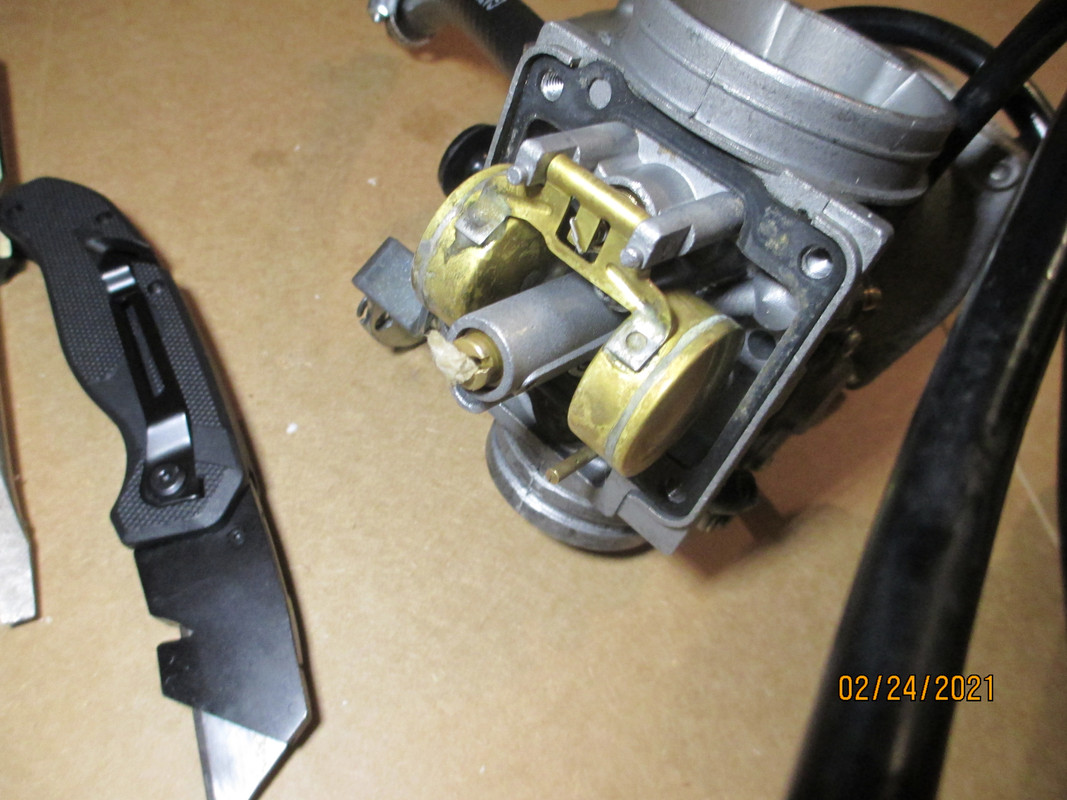

FOUND IT!!!  Pulled the carb and found a piece of Bounty paper towel stuck to the main jet.  Put it back together and it runs perfect.  Embarrassing to say the least.  Thank all of you.  Slowlane " alt="" title="" border="0" />
Back to top


  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 15902
Camp Springs, Kentucky
Gender: male
Re: Running 65mph...motor quit and wont start
Reply #14 - 02/25/21 at 03:06:55

Sound like "The Quicker Picker Upper" was all that was necessary to slow you down!

I am surprised that the bike wouldn't idle normally - as it doesn't look like the pilot jet was blocked.
