Foot heat shield
12/13/20 at 22:41:36
I tend to cruise with the balls on my feet on the pegs
This puts my right heel on the bare part of the exhaust

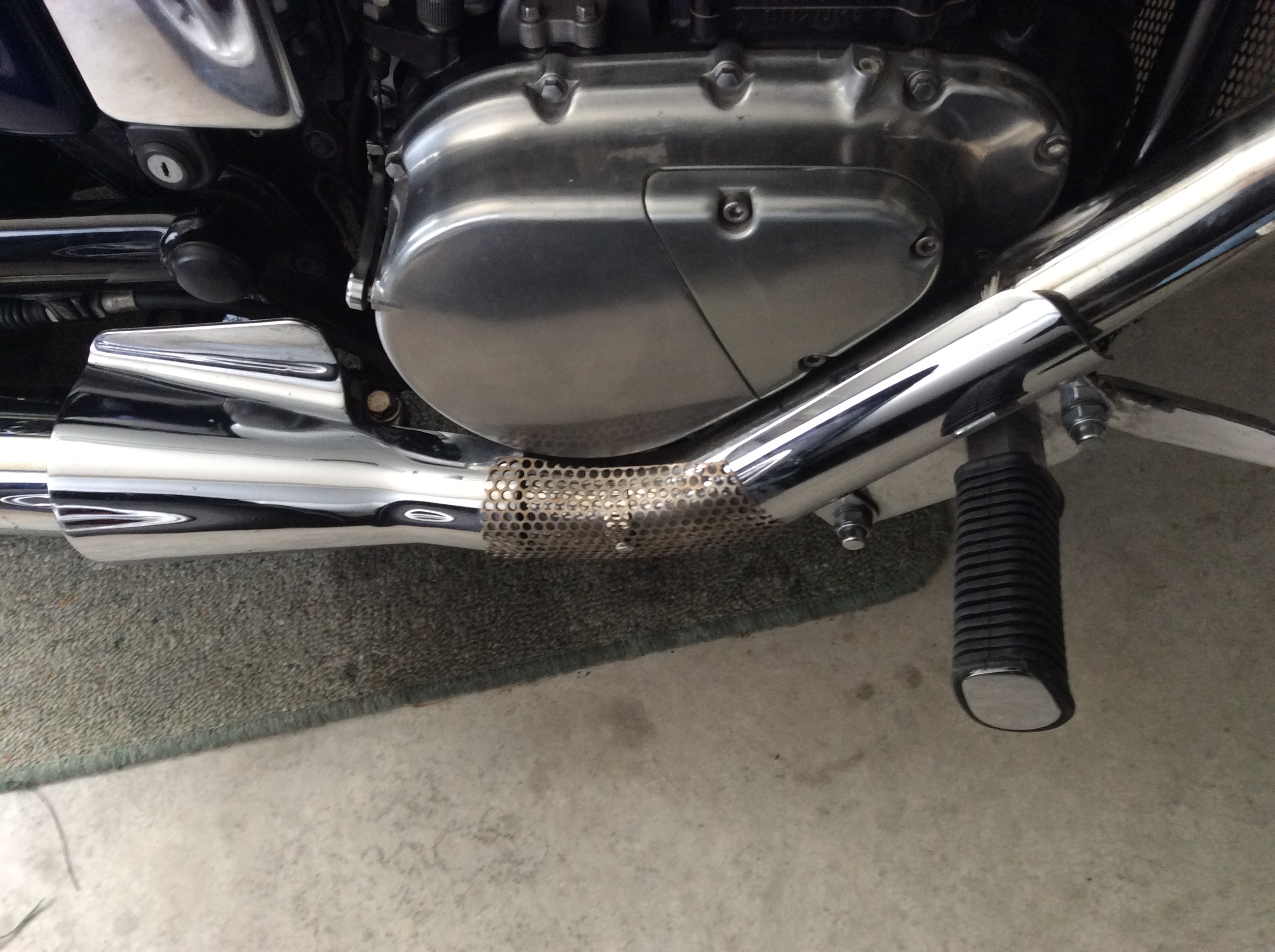

This is the shield I made in a few minutes with some perforated stainless steel and a rivet and hose clamp so far it has worked very well and saved both the pipe and my heel
Back to top
IP Logged
bobert_FSO
Senior Member
Offline
SuzukiSavage.com
Rocks!
Posts: 419
Wichita KS
Gender:
Re: Foot heat shield
Reply #1 -
12/14/20 at 15:35:45
I like it.
Back to top
IP Logged
eau de sauvage
Serious Thumper
Offline
Posts: 2565
Queensland
Gender:
Re: Foot heat shield
Reply #2 -
12/16/20 at 03:13:33
As long as it does the job. I can't lie though, it's not pretty, but it can't make the standard pipe look any worse, so I guess it's all good.
Back to top
MAGA! Make the Assholes Go Away
IP Logged
Edub
Full Member
Offline
SuzukiSavage.com
Rocks!
Posts: 160
Arizona
Gender:
Re: Foot heat shield
Reply #3 -
12/16/20 at 14:25:40
Hiko wrote
on 12/13/20 at 22:41:36:
I tend to cruise with the balls on my feet on the pegs
This puts my right heel on the bare part of the exhaust
This is the shield I made in a few minutes with some perforated stainless steel and a rivet and hose clamp so far it has worked very well and saved both the pipe and my heel
Great idea! I like the way you made this. Where exactly does the rivet attach to the clamp? It's hard to see exactly how you did it, and this idea has me thinking about how to make heat shields to cover a high pipe.
Back to top
IP Logged
justin_o_guy2
Serious Thumper
Offline
What happened?
Posts: 55279
East Texas, 1/2 dallas/la.
Re: Foot heat shield
Reply #4 -
12/16/20 at 16:30:21
I drilled a shallow hole in my boot heel and pounded a 1/2" diameter dowel in..
No melted rubbar.
Only Styxx out about 3/16"..
Back to top
The people never give up their liberties but under some delusion.- Edmund Burke.
IP Logged
Hiko
Senior Member
Offline
SuzukiSavage.com
Rocks!
Posts: 250
Tauranga New Zealand
Gender:
Re: Foot heat shield
Reply #5 -
12/16/20 at 22:04:41
Eau de savauge You are right.... not that pretty
Edub I found a hose clamp that fitted and drilled a hole in the band so that the screw was facing out at the bottom and then riveted the mesh to it in the right place easy peasy and works well Any longer than what I have and you would probably need two clamps The mesh is easy to shape
Jog It never occured to me to do that Good idea!
Now if someone would come up with a practical idea for a stone guard for the belt I would be all attention
Back to top
IP Logged
Mavigogun
Serious Thumper
Offline
We roll farther
together
Posts: 775
Progressive Texas
Re: Foot heat shield
Reply #6 -
12/19/20 at 12:41:58
I dumped both shields off the exhaust, lost all that dead weight, wrapped it, and, despite the Texas heat, have never missed it since.
Back to top
2007 LS650 s40, presently being rebuilt
