Hyper Flashing (Read 133 times)
gtenginerd
Junior Member
**
Offline

SuzukiSavage.com
Rocks!

Posts: 88
MO
Hyper Flashing
11/16/20 at 20:14:17

I bought this after replacing turn signals with LEDs.

https://www.amazon.com/dp/B07D33JGLC

But it's not the same connector. Does anyone know a version that is the same connector, or an adapter, or a simpler solution?
Back to top


  IP Logged
zipidachimp
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 1387
surrey, b.c.
Gender: male
Re: Hyper Flashing
Reply #1 - 11/17/20 at 04:21:35

not the same connector, but works just fine!
cheers!  Cool
Back to top


  IP Logged
gtenginerd
Junior Member
**
Offline

SuzukiSavage.com
Rocks!

Posts: 88
MO
Re: Hyper Flashing
Reply #2 - 11/17/20 at 06:19:02

Maybe I didn't explain thoroughly...
Huh

I'd rather not cut off the existing connector at this point. Is there a solution to avoid that?
Back to top


  IP Logged
verslagen1
YaBB Moderator
ModSquad
*****
Offline

Where there's a
will, I want to be
in it.

Posts: 28755
L.A. California
Gender: male
Re: Hyper Flashing
Reply #3 - 11/17/20 at 07:17:59

Back to top


WWW   IP Logged
MMRanch
Serious Thumper
*****
Offline

Evil flourishes if
Good Men do Nothing.

Posts: 5723
LYNCHBURG TN
Gender: male
Re: Hyper Flashing
Reply #4 - 11/17/20 at 19:58:58

gtenginerd , hind-sight is always 20-20 ,  Roll Eyes don't ask !  Embarrassed

Do you know how to remove the female wire termals from the plastic holder that came with you bike ?

clue :
It involves a small wire or safty pin ... opened up

Wink

no cutting envolved ...  and  ...  you can put the termals back into the plastic later if you want  Smiley
............................

Ok , another clue :

put the small screwdriver/wire/strait pin / what ever - in beside the termal on the side with the spur/knotch/ , the other side will be flat.    Then the wire/w/termal attached will pull out the back side to be clear of the plastic holder.   Then you can see the little spur that holds them in place.   Cool

puting a small amount of inward presure on the wire will help get the spur to release , holding the spur down and gently pull the wire out , easy pea-sey.
.............................................

OK , last clue :

put the empty plastic holder back on the original blinker unit just like it was ... so you can find it ... if you ever need it for anything.
Back to top



I see and feel the Holy Spirit in the world , as does anybody who has eyes to see. How far Man's corruption reaches into Organized Religion , we may never know
WWW MMRanch MMRanch   IP Logged
gtenginerd
Junior Member
**
Offline

SuzukiSavage.com
Rocks!

Posts: 88
MO
Re: Hyper Flashing
Reply #5 - 11/18/20 at 07:20:57

Thanks, I'm gonna give this a try. Will report back.

Edit: See below. I was able to get the pins out, but didn't have the right connectors.
Back to top

« Last Edit: 11/18/20 at 10:19:38 by gtenginerd »
  IP Logged
gtenginerd
Junior Member
**
Offline

SuzukiSavage.com
Rocks!

Posts: 88
MO
Re: Hyper Flashing
Reply #6 - 11/18/20 at 10:12:07

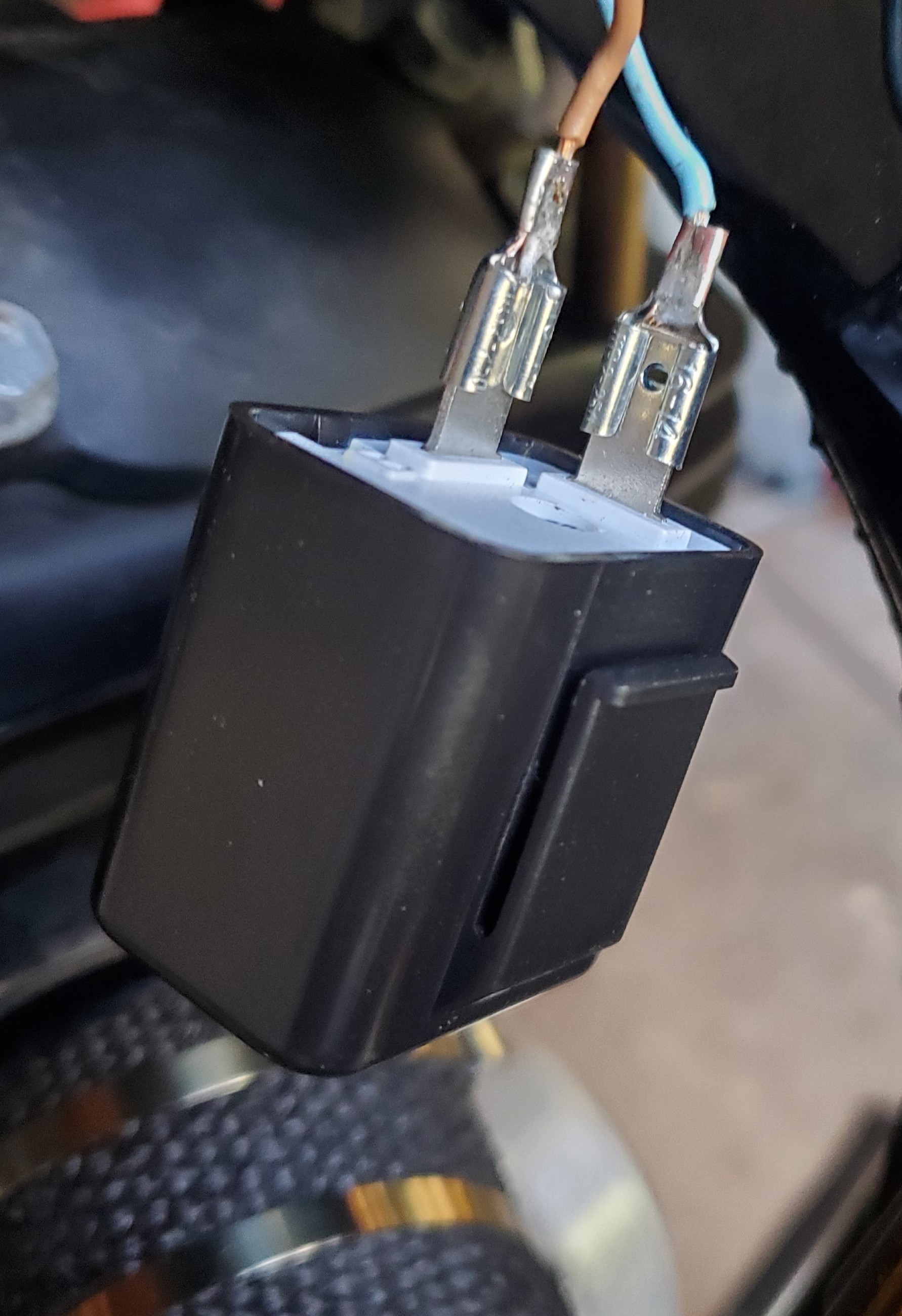

I ended up cutting them since I had my solder stuff out and the blade connectors I needed. Put heat shrink on after the pic and it's working just fine.
Back to top


  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 17806
Camp Springs, Kentucky
Gender: male
Re: Hyper Flashing
Reply #7 - 11/18/20 at 15:33:44

Looks good.....and likely will outlast the bike!
Back to top



Someday I will be old......But not today!

  IP Logged
MMRanch
Serious Thumper
*****
Offline

Evil flourishes if
Good Men do Nothing.

Posts: 5723
LYNCHBURG TN
Gender: male
Re: Hyper Flashing
Reply #8 - 11/18/20 at 21:00:49

I've ordered some LED-FLASHER units (slow boat from China) to fit on another bike (W-650).   So , I'll ask ... Did the new flasher fix the problem ?  Huh
Back to top



I see and feel the Holy Spirit in the world , as does anybody who has eyes to see. How far Man's corruption reaches into Organized Religion , we may never know
WWW MMRanch MMRanch   IP Logged
gtenginerd
Junior Member
**
Offline

SuzukiSavage.com
Rocks!

Posts: 88
MO
Re: Hyper Flashing
Reply #9 - 11/19/20 at 19:24:43

MMR, Yes, worked no problem.
