Crankshaft hold plug (Read 28 times)
kamelryttarn
Senior Member
****
Offline

SuzukiSavage.com
Rocks!

Posts: 262
Sweden
Gender: male
Crankshaft hold plug
07/20/20 at 04:49:55

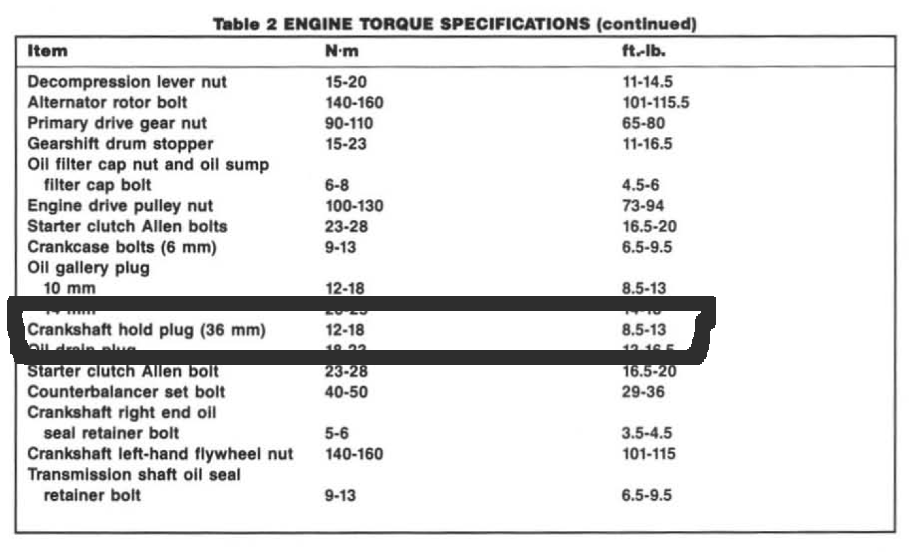

In the process of re-assembling the engine and I am crazy scared of destroying something with over torqueing. The manual mentions a crankshaft hold plug that has kind of low torque specs for such a large nut/plug so I wan't to make sure I have not mistaken some other item for it and apply too much torque. I have tried to search for and figure out what "crankshaft hold plug" is but I can't find any other information besides the torque spec list in the Clymer manual.
Back to top


  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 50088
East Texas, 1/2 dallas/la.
Re: Crankshaft hold plug
Reply #1 - 07/20/20 at 10:11:04

If you're talking about the plug on the left side, the one with the slot, I recommend antisieze on the threads and wherever the aluminum will hit when the rubber is compressed. It really doesn't take a lot to have it jammed in there and a Real bear to get out.
It's a plug.
It doesn't hold the engine together.
Whatever you used getting it out, put it back, you're not gonna wreck the motor if you get it too tight, you're just gonna make the next time you need in there an expensive drama,
Put it in, do it gently
Use a marker and put a line across one part of the circle,, now, if it starts to vibrate loose, you'll see it.
It's not gonna, but if that would make you feel better about not tightening it a lot,, well, there ya go.
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
kamelryttarn
Senior Member
****
Offline

SuzukiSavage.com
Rocks!

Posts: 262
Sweden
Gender: male
Re: Crankshaft hold plug
Reply #2 - 07/20/20 at 11:23:36

It makes sense that it is the "crank case cover plug" but the name in the Clymer manual is very misleading. At least I don't have to worry that I have over tightened what I now believe to be the primary gear drive nut when I torqued it to 25 Nm
Back to top


  IP Logged
norm92de
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 1138
El Paso TX
Gender: male
Re: Crankshaft hold plug
Reply #3 - 07/20/20 at 14:54:39

I have had mine off several times and tighten it finger tight. Never had a leak or coming loose. I do know that if it is over tightened it can be a real bugger to loosen

Don't do it!
Back to top



2014 S40. Raptor. idle mixture adj.Needle raised one notch. 4000' altitude. Stock jets. Shell Rotella synthetic.
