SuzukiSavage.com - Petcock...searched found nothing

Bokobob Junior Member Offline SuzukiSavage.com Rocks! Posts: 96 Gastonia, NC Gender:	Petcock...searched found nothing 03/28/20 at 09:12:44 I have two 650 Thumpers, a 96 and a 2009. Yesterday I tried to set the petcock on one of them to Reserve and had no luck...Then I tried to do the same on the other one and could not move it either... Seeing as both could not be moved, I am wondering if something is wrong or if I do not know how to do it. Please advise me. Thank you...
Back to top	Bob 84 and still riding 2009 S40 650, and Rebel 250 Gastonia, NC IP Logged

Gary_in_NJ Serious Thumper Offline LS650 Cafe Racer Posts: 2625 Amongst the Twisty Roads	Re: Petcock...searched found nothing Reply #1 - 03/28/20 at 09:33:23 Are they both frozen, unable to move, or they move but just not into the Prime position?
Back to top	A life-time student of motorcycling. LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG IP Logged

Bokobob Junior Member Offline SuzukiSavage.com Rocks! Posts: 96 Gastonia, NC Gender:	Re: Petcock...searched found nothing Reply #2 - 03/28/20 at 09:36:08 Both are frozen in place...They both are on the "run" designation...I have only had the bikes for a few months and have never tried to move them before. Thank you.
Back to top	Bob 84 and still riding 2009 S40 650, and Rebel 250 Gastonia, NC IP Logged

SoC

Senior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 498
New Jersey
Gender: male

Re: Petcock...searched found nothing
Reply #3 - 03/28/20 at 10:04:26

Bokobob, First rule of Savages, replace the petcock with one from a Yamaha Raptor. I will add to that one of first rules of riding motorcycles is to set petcock to off position whenever you shut down bike. They teach you that right up front if you take a rider training course and in fact check that you do it during the course.

When getting the raptor petcock, I know there are those who might disagree, but go to your local Yamaha dealer and order an OEM, there are far too many cheap, rip-off copies available online at much less money and they are often crap. Pay for the real thing.

Both my s40's have raptors and in fact when I got the 2011, it had the original petcock and a small hesitation problem on excelleration, new raptor cleaned that right up.

Once you install the raptor please develop the habit of shutting off fuel every time you shut down bike.

Back to top

IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Petcock...searched found nothing Reply #4 - 03/28/20 at 10:54:58 Kroil spray penetrating oil,, let sit an hour lightly tap it pliers at the pivot, not out on the lever gently try No Joy? add penetrating oil, hav another beer tap,tap,tap rotate,, rinse and repeat as needed, ride to the Yamaha shop, spend just ubder thirty buck,, dont buy anything other than genuine Raptor petcock,,
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

zipidachimp Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1387 surrey, b.c. Gender:	Re: Petcock...searched found nothing Reply #5 - 03/28/20 at 11:11:48 +1 for that! First mod I did on my bikes! Don't forget to cap the vacuum port on the carb! https://www.ebay.com/itm/Moroso-41090-Color-Coded-Soft-Plastic-Manifold-Carbu... cheers!
Back to top	IP Logged

Bokobob

Junior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 96
Gastonia, NC
Gender: male

Re: Petcock...searched found nothing
Reply #6 - 03/28/20 at 11:21:11

Ok, thanks for enlightenment to all you.

Two lessons learned:

First if in eighties (as I am), put a lot more muscle into turning petcocks...My Savage petcocks are MUCH harder to turn than other bikes I have owned....Now I have them moving.....Please forgive me for the false alarm..

Second: order a Yamaha raptor petcock at the Yamaha dealer...is that all I need to ask for or is there a part number?

Embarrassed by my error in not realizing how tightly the petcock fits.

Thank you.

Back to top

Bob
84 and still riding
2009 S40 650, and Rebel 250
Gastonia, NC

IP Logged

armchairbiker YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 22	Re: Petcock...searched found nothing Reply #7 - 03/28/20 at 17:14:22 zipidachimp wrote on 03/28/20 at 11:11:48: Don't forget to cap the vacuum port on the carb! What happens if it stays uncapped?
Back to top	IP Logged

IslandRoad Serious Thumper Offline It doesn't vibrate, it purrs! Posts: 1147 The Kiewa Valley, Australia Gender:	Re: Petcock...searched found nothing Reply #8 - 03/28/20 at 17:19:22 armchairbiker wrote on 03/28/20 at 17:14:22: zipidachimp wrote on 03/28/20 at 11:11:48: Don't forget to cap the vacuum port on the carb! What happens if it stays uncapped? Uncapped = a hole in the carb.
Back to top	S40, 2014, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 'Superbars' with custom 40mm risers, modified stock seat, Metzeler tyres. IP Logged

IslandRoad

Serious Thumper

Offline

It doesn't vibrate,
it purrs!

Posts: 1147
The Kiewa Valley, Australia
Gender: male

Re: Petcock...searched found nothing
Reply #9 - 03/28/20 at 17:24:36

Bokobob wrote on 03/28/20 at 11:21:11:

... I need to ask for or is there a part number?

P/N: 5LP-24500-01-00

It's literally a straight swap, just unbolt the old one (with tank off the bike). And bolt the Yammy part in.

Keep in mind, it will reduce the size of your reserve, as the tube on the tap is shorter than ours.

Back to top

S40, 2014, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 'Superbars' with custom 40mm risers, modified stock seat, Metzeler tyres.

IP Logged

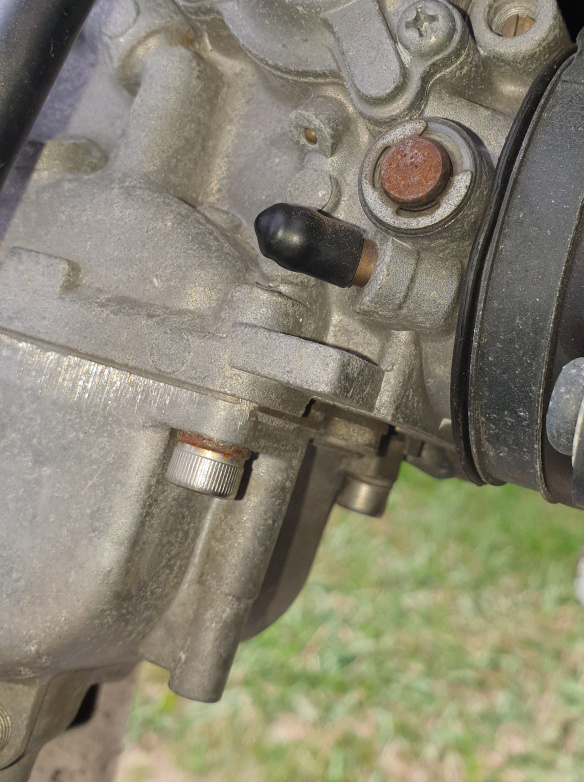

IslandRoad Serious Thumper Offline It doesn't vibrate, it purrs! Posts: 1147 The Kiewa Valley, Australia Gender:	Re: Petcock...searched found nothing Reply #10 - 03/28/20 at 17:35:00 A packet of 'Vac Caps' costs a few bucks at the auto parts store. If I remember correctly, I used a 4mm cap. It just pushes on. You're covering a vacuum port so the pressure pulse is working in your favour in keeping it on.
Back to top	IMG_20200329_113145.jpg S40, 2014, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 'Superbars' with custom 40mm risers, modified stock seat, Metzeler tyres. IP Logged

justin_o_guy2

Serious Thumper

Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.

Re: Petcock...searched found nothing
Reply #11 - 03/29/20 at 10:02:05

IslandRoad wrote on 03/28/20 at 17:24:36:

Bokobob wrote on 03/28/20 at 11:21:11:

... I need to ask for or is there a part number?

P/N: 5LP-24500-01-00

It's literally a straight swap, just unbolt the old one (with tank off the bike). And bolt the Yammy part in.

Keep in mind, it will reduce the size of your reserve, as the tube on the tap is shorter than ours.

ABSOLUTELY a straight swap
Just make sure the rubber seal ring is landing on a clean, smooth surface,
Remove plastic protective sleeves from new petcock

The rubber hose you have with a wooden dowell stuck in it, trimmed to fit, of course,,little zip ties,,yeee haa,,

Back to top

The people never give up their liberties but under some delusion.- Edmund Burke.

IP Logged

Bokobob Junior Member Offline SuzukiSavage.com Rocks! Posts: 96 Gastonia, NC Gender:	Re: Petcock...searched found nothing Reply #12 - 03/29/20 at 10:05:44 Thank you to everyone..I will order the oem part and also get the vacuum seal thingies. So much knowledge her.... Grateful to all of you...
Back to top	Bob 84 and still riding 2009 S40 650, and Rebel 250 Gastonia, NC IP Logged
