SuzukiSavage.com - Any Disadvantage to Snorkel Removal?

d3adrock Full Member Offline Posts: 111	Any Disadvantage to Snorkel Removal? 12/21/19 at 10:35:51 Hi, I'm pretty sure i'd like to remove the snorkel from the airbox filter for improved airflow (I have a delkevic exhaust), as well as the fact that i'll probably be moving my rectifier down there. Are there any disadvantages to removing it I should be aware of? Thanks!
Back to top	IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28780 L.A. California Gender:	Re: Any Disadvantage to Snorkel Removal? Reply #1 - 12/21/19 at 11:09:04 It will make you lean. air flow won't be center of the air filter.
Back to top	Versey's Place Tech Section Index IP Logged

d3adrock Full Member Offline Posts: 111	Re: Any Disadvantage to Snorkel Removal? Reply #2 - 12/21/19 at 11:11:05 I forgot to add that I will be rejecting, or getting the performance mikuni carb (still not clear what benefits one has over the other)
Back to top	IP Logged

batman

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 3806
osceola new york
Gender: male

Re: Any Disadvantage to Snorkel Removal?
Reply #3 - 12/21/19 at 12:28:31

The rectifier /regulator, produces more amps than the bike uses to run, the extra,( two amps ? ) being used to recharge your battery after starting, but once the battery is fully charged ,this power must be shed . That happens by the regulator sending it through the high resistance iron finned body of the R/R ( Changing it to heat) to a negative ground, your metal rear fender, to complete the circuit. If you move the R/R to the air box( Plastic) ,it would be a good idea to mount it on a small metal plate and run a ground wire from the plate to the frame/engine case or the battery ground terminal, to be sure of proper function, or not over charging the battery.

Back to top

my old work mates called me MacGyver

IP Logged

Dennisgb

Full Member

Offline

SuzukiSavage.com
Rocks!

Posts: 176
Maplewood MN
Gender: male

Re: Any Disadvantage to Snorkel Removal?
Reply #4 - 12/21/19 at 12:54:03

batman wrote on 12/21/19 at 12:28:31:

The rectifier /regulator, produces more amps than the bike uses to run, the extra,( two amps ? ) being used to recharge your battery after starting, but once the battery is fully charged ,this power must be shed . That happens by the regulator sending it through the high resistance iron finned body of the R/R ( Changing it to heat) to a negative ground, your metal rear fender, to complete the circuit. If you move the R/R to the air box( Plastic) ,it would be a good idea to mount it on a small metal plate and run a ground wire from the plate to the frame/engine case or the battery ground terminal, to be sure of proper function, or over charging the battery.

And don’t mount it in front of the intake Grin

Back to top

IP Logged

d3adrock Full Member Offline Posts: 111	Re: Any Disadvantage to Snorkel Removal? Reply #5 - 12/21/19 at 15:20:02 Can anyone recommend a better place/ way of mounting the rectifier?
Back to top	IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28780 L.A. California Gender:	Re: Any Disadvantage to Snorkel Removal? Reply #6 - 12/21/19 at 16:51:27 any flat spot you can find. front of the bat box or the side on the side of the fender.
Back to top	Versey's Place Tech Section Index IP Logged

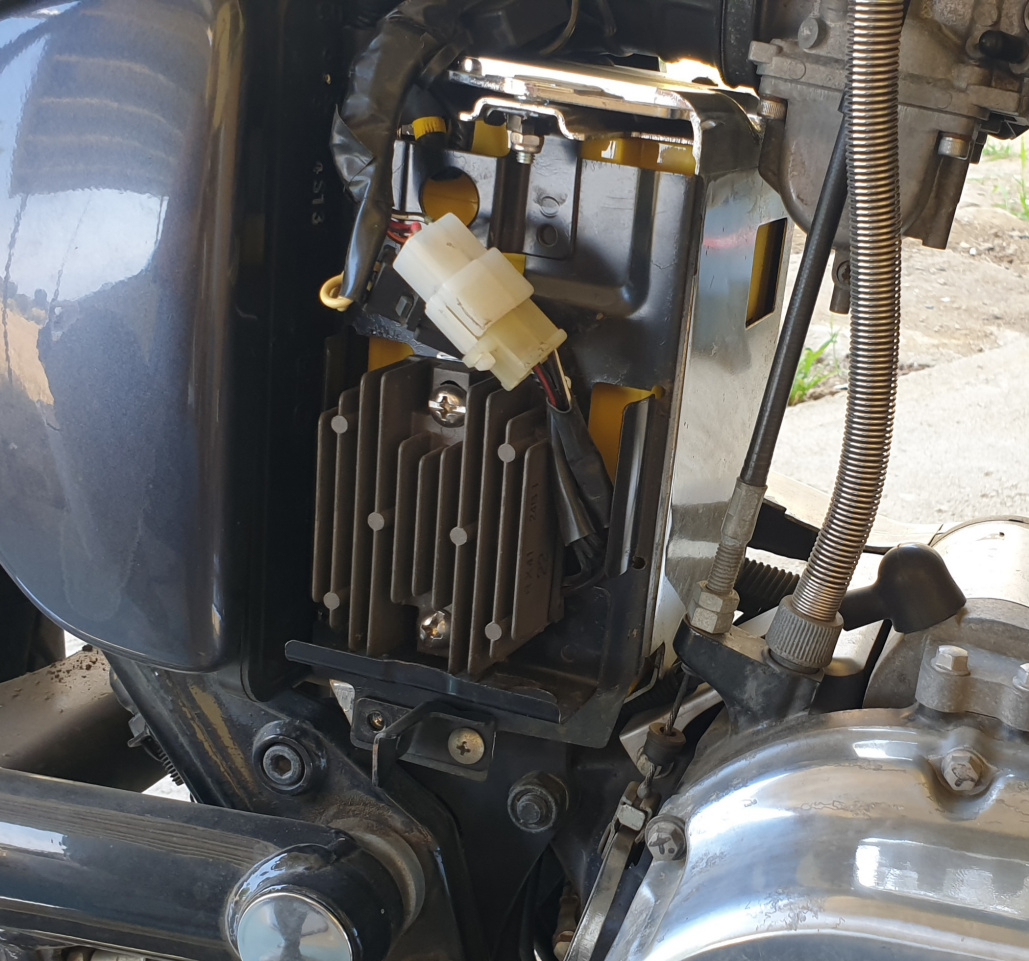

IslandRoad Serious Thumper Offline It doesn't vibrate, it purrs! Posts: 1147 The Kiewa Valley, Australia Gender:	Re: Any Disadvantage to Snorkel Removal? Reply #7 - 12/21/19 at 17:56:19 On to the internal wall of the battery box. If I remember correctly I didn't need to lengthen any wires.
Back to top	IMG_20191222_125450.jpg S40, 2014, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 'Superbars' with custom 40mm risers, modified stock seat, Metzeler tyres. IP Logged

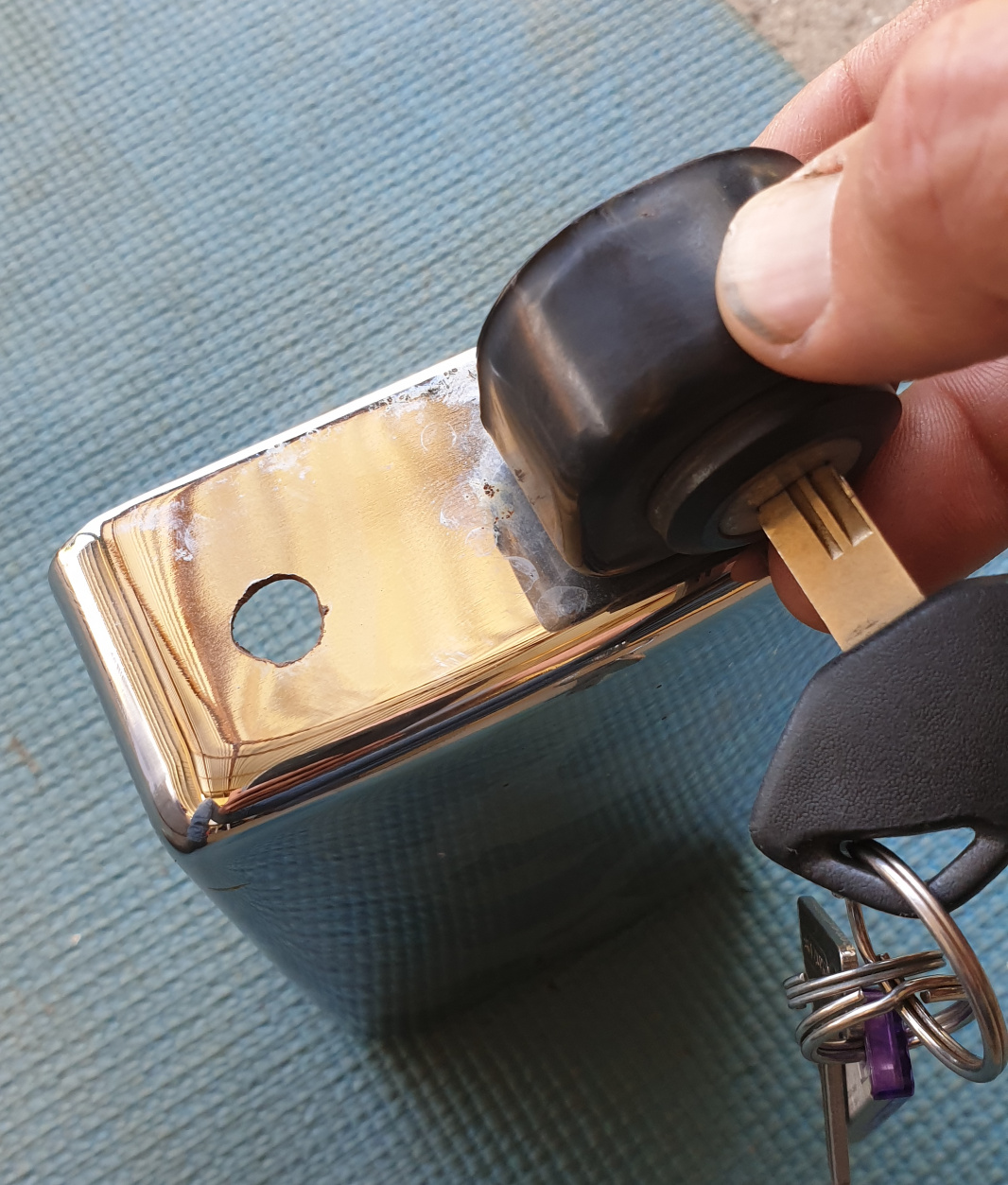

IslandRoad Serious Thumper Offline It doesn't vibrate, it purrs! Posts: 1147 The Kiewa Valley, Australia Gender:	Re: Any Disadvantage to Snorkel Removal? Reply #8 - 12/21/19 at 17:59:00 Hole drilled in the bottom of the cover to allow a bit of ventilation (there's already a gap in the top-left where the wire feed through). Have had it here for over a year with no problems.
Back to top	IMG_20191222_125726.jpg « Last Edit: 12/22/19 at 01:15:50 by IslandRoad » S40, 2014, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 'Superbars' with custom 40mm risers, modified stock seat, Metzeler tyres. IP Logged

d3adrock Full Member Offline Posts: 111	Re: Any Disadvantage to Snorkel Removal? Reply #9 - 12/22/19 at 00:05:59 Awesome this is really helpfull! Thanks a ton, i will be mounting it there instead. Just to recapitulate is it bad to remove the snorkel? Is it bad for the airflow to not line up with the intake? I want more airflow but I only want to use the stock airfilter. Is that a bad way to do it?
Back to top	IP Logged

IslandRoad

Serious Thumper

Offline

It doesn't vibrate,
it purrs!

Posts: 1147
The Kiewa Valley, Australia
Gender: male

Re: Any Disadvantage to Snorkel Removal?
Reply #10 - 12/22/19 at 01:18:22

Some guys will say it's important, others will say it's unnecessary. When I was re-jetting etc I discovered my bike didn't have the snorkel in place. A member on here sent me one. I wanted things to be stock so I knew what I was changing (one thing at a time) and, I figured Suzuki had it in there for a reason.

Honestly, I didn't notice any difference.

It's an easy one to test. Ride with it in, and then with it removed. You should find out what you need to know Grin

Back to top

S40, 2014, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 'Superbars' with custom 40mm risers, modified stock seat, Metzeler tyres.

IP Logged

DragBikeMike Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 4222 Honolulu	Re: Any Disadvantage to Snorkel Removal? Reply #11 - 12/22/19 at 11:53:34 d3adrock, this should give you some ideas for improved airbox performance. http://suzukisavage.com/cgi-bin/YaBB.pl?num=1523302904
Back to top	Knowledge is power. IP Logged

DragBikeMike Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 4222 Honolulu	Re: Any Disadvantage to Snorkel Removal? Reply #12 - 12/22/19 at 11:56:10 And this should provide some useful info on filters. http://suzukisavage.com/cgi-bin/YaBB.pl?num=1543600189 As you will see, there are differing opinions. It's a healthy conversation. You will have to figure out what suits your needs.
Back to top	Knowledge is power. IP Logged

srinath Serious Thumper Offline I love YaBB 1G - SP1! Posts: 5349	Re: Any Disadvantage to Snorkel Removal? Reply #13 - 12/23/19 at 13:20:59 I didn't remove the airbox snorkel, but did put the R/R in the airbox. The airbox takes in a lot of air, so its likely getting nicely air cooled. Cool. Srinath.
Back to top	IP Logged
