Clutch plate order problem (Read 28 times)
NewbieThumperBobber
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 3

Clutch plate order problem
07/01/19 at 02:53:24

Hi all

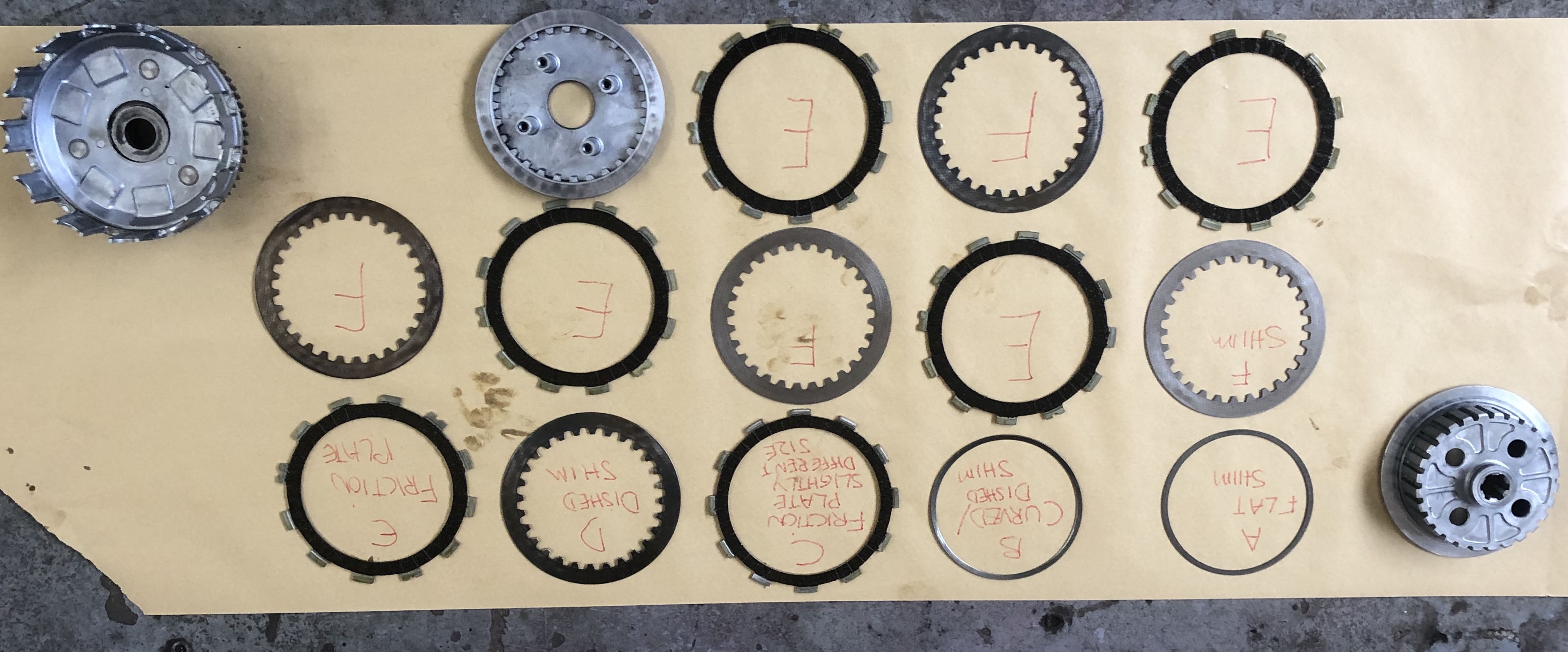

Iím just in the process of finishing my Bobber project but have made a school boy error. I took the clutch apart without taking a photo of the order the friction plates and shims came apart. I was also unaware that 1 friction plate is a slightly different size and that 2 of the little thin shins were dished... if someone has a useful photo or diagram can someone please point me in the right direction. I have attached a photo of the order I had them in when I put it back together. The clutch wonít disengage so I have obviously put something In the wrong way around
Back to top


  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 17799
Camp Springs, Kentucky
Gender: male
Re: Clutch plate order problem
Reply #1 - 07/01/19 at 03:45:45

Go to any online retailer of Suzuki parts, and look at the page for parts....and you can see the correct order

https://www.bikebandit.com/oem-parts/2017-suzuki-boulevard-s40-ls650bl7/o/m15...
Back to top



Someday I will be old......But not today!

  IP Logged
batman
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 3806
osceola new york
Gender: male
Re: Clutch plate order problem
Reply #2 - 07/01/19 at 19:55:23

Or Ron Ayers -site
Back to top



my old work mates called me MacGyver
