Broken head bolts
03/26/18 at 09:00:39

Hello,

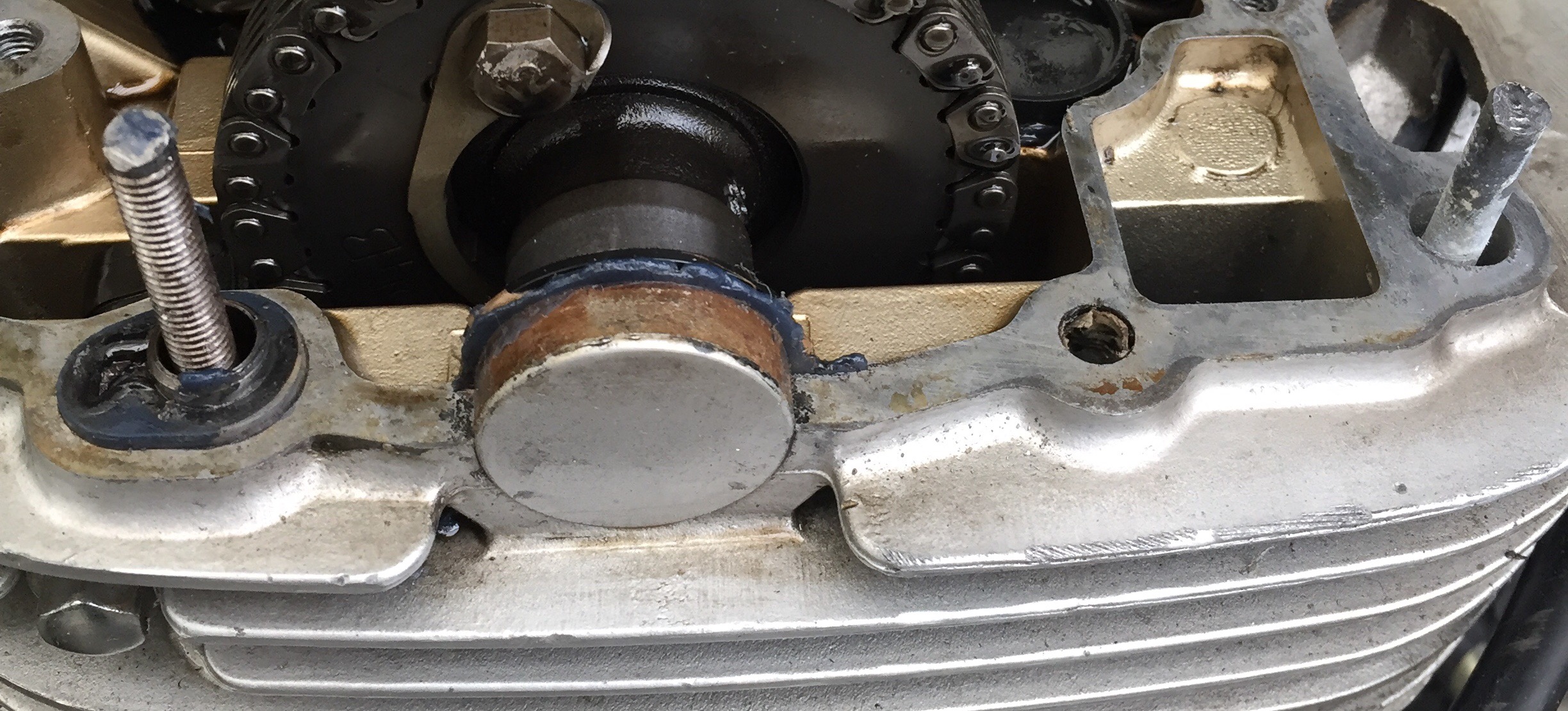

I have savage for three years. the last time I did oil plug fix. It’s started to leak from the head bolt recently due to incorrect washer. Those two bolts are completely frozen. I had to cut them off. I think, I over tighten them. I couldn’t get em out. Is it possible somehow to replace them?  :'(
Back to top


  IP Logged
kojones
Full Member
***
Offline

SuzukiSavage.com
Rocks!

Posts: 223
Finland
Re: Broken head bolts
Reply #1 - 03/26/18 at 09:07:14

I think I helicoiled the same two bolts after the PO had screwed the threads.
Back to top


  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.
Re: Broken head bolts
Reply #2 - 03/26/18 at 09:14:17

Protect everything
Have nuts welded on
Drizzle a Real penetrating oil down the bolts. Let that have a couple of days to soak, keep putting it on..
Us an impact.
Just for a couple of seconds.
If it starts turning, but it's dragging, stop.
Add oil.
Use a wrench
Work it slowly back and forth, .
You don't want to gall the threads.
Might be ahead to take it to a machine shop.

Edit

Don't know how many inches of bolt are sticking up, but it's gonna absorb the jarring kick of the impact somewhat.
You Can use a wrench with a cheater pipe and torque up on it and Spank the cheater pipe where it's covering the end of the wrench. This, done improperly, will hurt your hand. I wear gloves when I have to do this and use a cheater pipe big enough to wiggle freely on the wrench.
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
Frikotr
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 16

Re: Broken head bolts
Reply #3 - 03/26/18 at 15:15:19

Thanks guys. I did as you said and it work just fine.
Back to top


  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 17804
Camp Springs, Kentucky
Gender: male
Re: Broken head bolts
Reply #4 - 03/26/18 at 18:05:26

Frikotr wrote on 03/26/18 at 15:15:19:
Thanks guys. I did as you said and it work just fine.


So soon? Huh

I figured the penetrating oil and welding would take at least a week!
Back to top



Someday I will be old......But not today!

  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.
Re: Broken head bolts
Reply #5 - 03/26/18 at 20:16:22

Pipe wrench?
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
