Bike wont run - bobber project (Read 96 times)
JoophJoobie
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 8
Bike wont run - bobber project
08/18/17 at 19:09:08
Hello everyone. New to the savage's but I feel like ours has become part of our family from working on it so much.

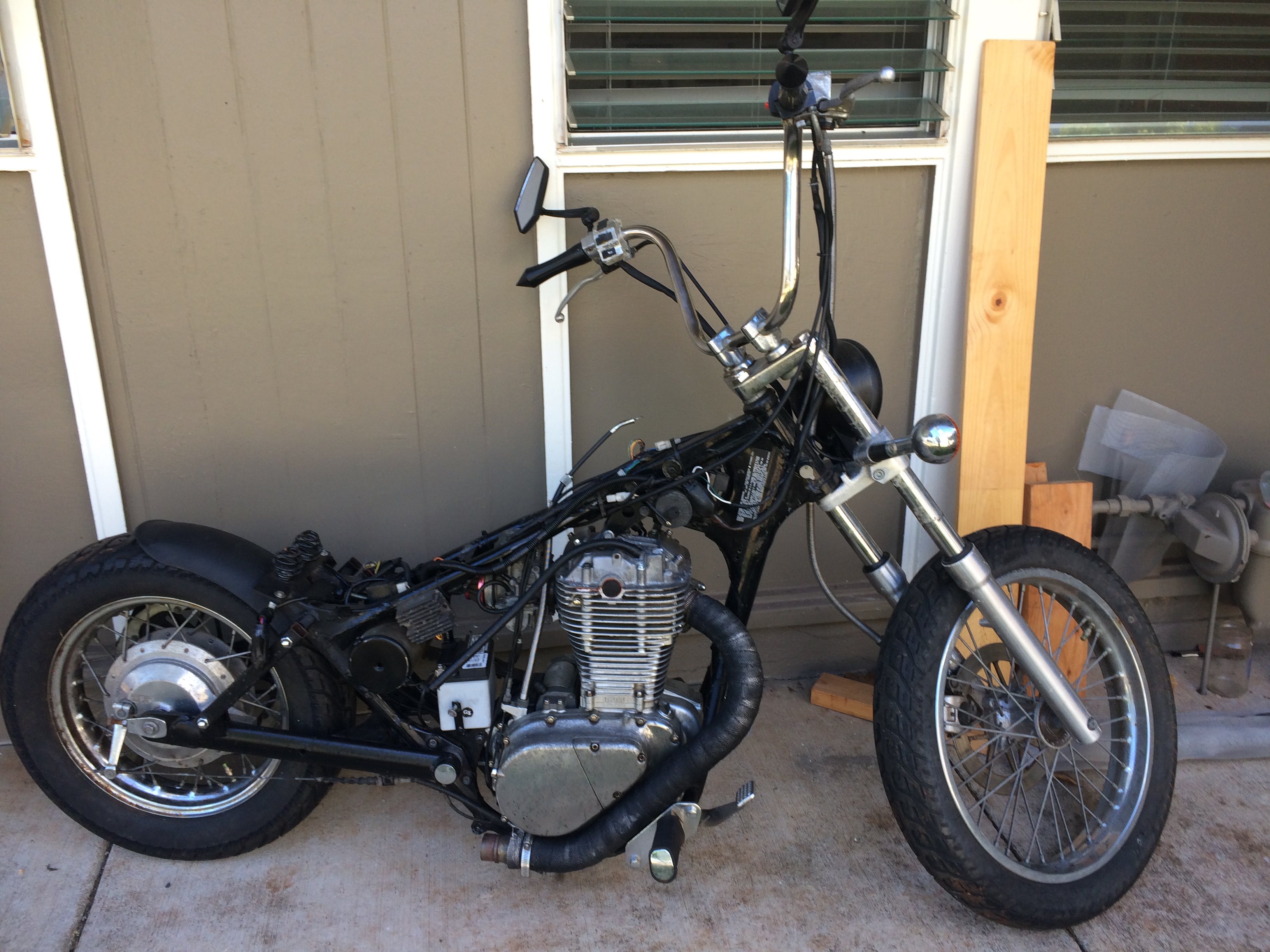

We have a 2000 650 Savage that we bought used and it hasn't ran for a while. When we bought it about a year ago, it wasn't even a complete bike. Since purchasing, we got the bike together and got it running about 6 months ago when we experienced the typical oil plug leak. The bike has a aftermarket cone air filter and carb (attached pictures). Additionally, the bike had the fuel canister (which I think come stock with bikes form Cali) which we have removed. We have since replaced the oil plug and put everything back together but now the bike will not run.
So far we have tried the following to get the bike to run:
- cleaned the carb
- changed out the fuel
- new spark plug
- checked the spark plug for good spark - it has good spark
- ensured fuel was getting into the carb
- tried taking the carb off and getting it to fire with starter fluid, which was unsuccessful
- we have power and all electrical works
It sounds like it has good compression, but I don't have the tools to test it. I can go buy them if anyone thinks that might be the problem? Open to any suggestions. Thanks everyone.
Back to top
IP Logged
IslandRoad
Serious Thumper
Offline
It doesn't vibrate,
it purrs!
Posts: 1147
The Kiewa Valley, Australia
Gender:
Re: Bike wont run - bobber project
Reply #1 -
08/18/17 at 19:45:36
What happens when you try to start it? Any sounds? Clicking? Whirring? Does the engine try to crank etc?
I don't have the experience to help, but I can guarantee that is going to be the next question the experienced guys will ask 😉
Back to top
S40, 2014, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 'Superbars' with custom 40mm risers, modified stock seat, Metzeler tyres.
IP Logged
justin_o_guy2
Serious Thumper
Offline
What happened?
Posts: 55279
East Texas, 1/2 dallas/la.
Re: Bike wont run - bobber project
Reply #2 -
08/18/17 at 20:07:42
How many miles?
How old is the gas?
What is the battery voltage
While the starter is running?
Rare to see compression problem.
Back to top
The people never give up their liberties but under some delusion.- Edmund Burke.
IP Logged
verslagen1
YaBB Moderator
ModSquad
Offline
Where there's a
will, I want to be
in it.
Posts: 28770
L.A. California
Gender:
Re: Bike wont run - bobber project
Reply #3 -
08/18/17 at 20:39:52
where you at?
Back to top
Versey's Place
Tech Section Index
IP Logged
batman
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 3806
osceola new york
Gender:
Re: Bike wont run - bobber project
Reply #4 -
08/18/17 at 22:14:53
WE need more info ,Location or elevation and carb jet sizes, stock or aftermarket ,exhaust,petcock ? how long has it been setting since it ran last?what did you do to vent the gas tank and did you plug the carb fitting for the return line,when you removed the charcoal canister?and the info asked for , Are the valves properly adjusted after replacing the head plug?
Back to top
my old work mates called me MacGyver
IP Logged
JoophJoobie
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 8
Re: Bike wont run - bobber project
Reply #5 -
08/19/17 at 11:24:47
We live in Hawaii. I attached pictures of the carb and petcock. It's been sitting for around 6 months. When starting its goess "wwrr thump, wrrr thump, wrrr thump"
https://www.youtube.com/watch?v=uk2_hMeDO2U
<- sounds like this guys bike.
We've removed the spark plug and let the engine air out to dissipate the gas.
There's supposed to be a tube that connects from the petcock to the carb but there isn't an open port for it on our carb, so the tube isn't connected to anything.
We didn't adjust the valves during or after the head plug leak. Not sure how to do that.
Theres about 11,000 miles on the bike.
Back to top
IP Logged
JoophJoobie
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 8
Re: Bike wont run - bobber project
Reply #6 -
08/19/17 at 11:25:56

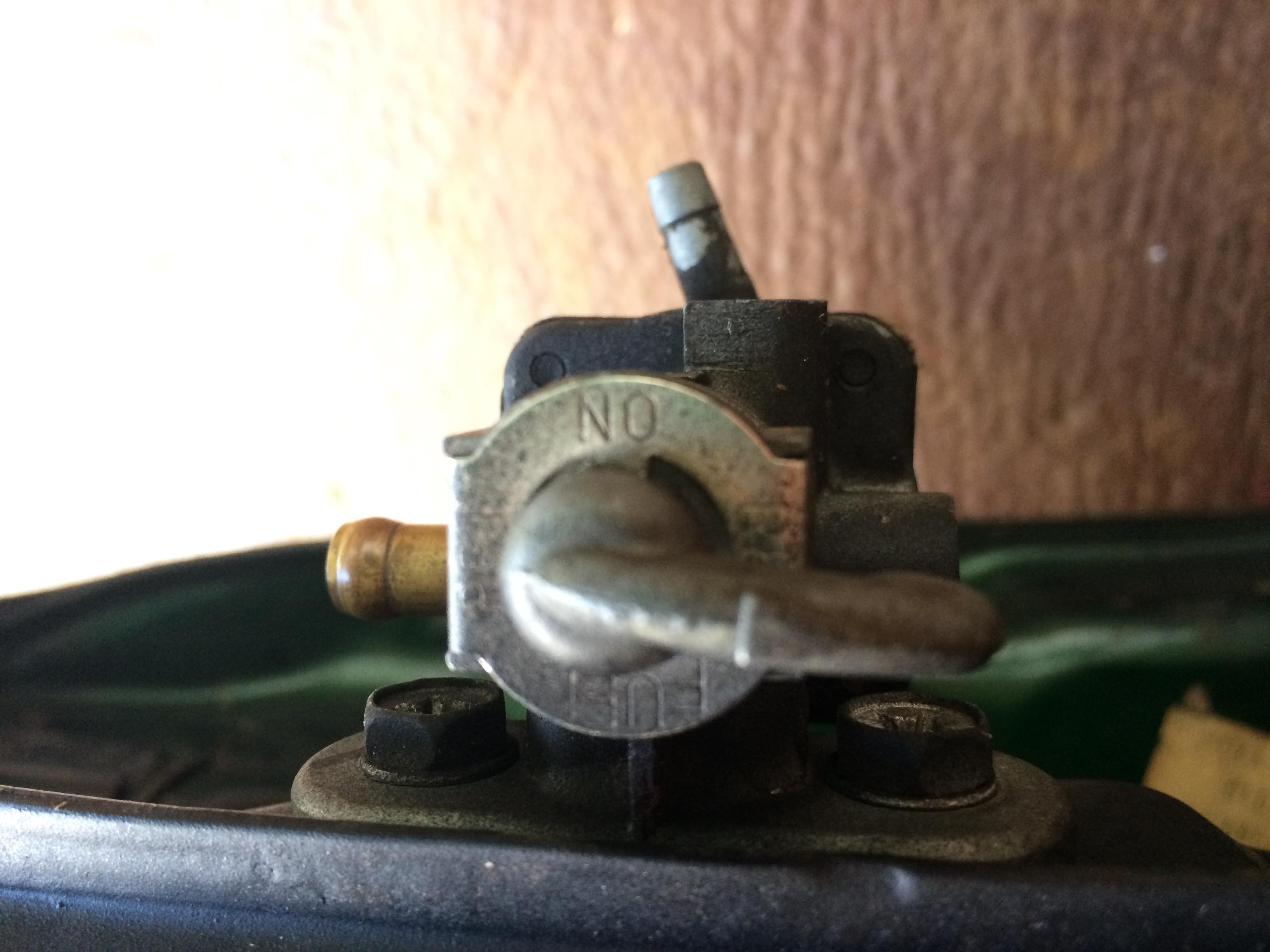

petcock pic
Back to top
IP Logged
JoophJoobie
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 8
Re: Bike wont run - bobber project
Reply #7 -
08/19/17 at 11:26:21

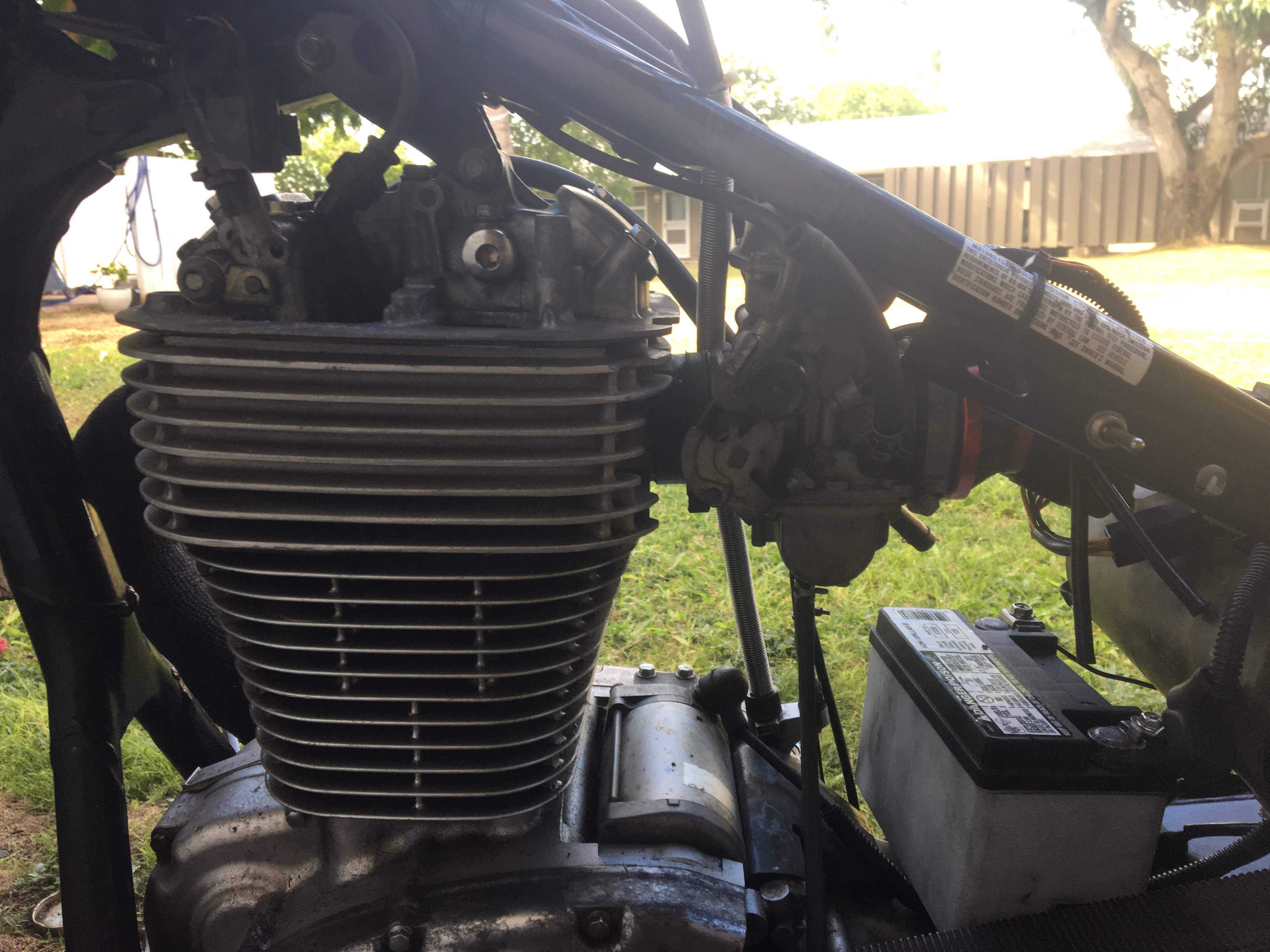

carb model
Back to top
IP Logged
JoophJoobie
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 8
Re: Bike wont run - bobber project
Reply #8 -
08/19/17 at 11:27:40

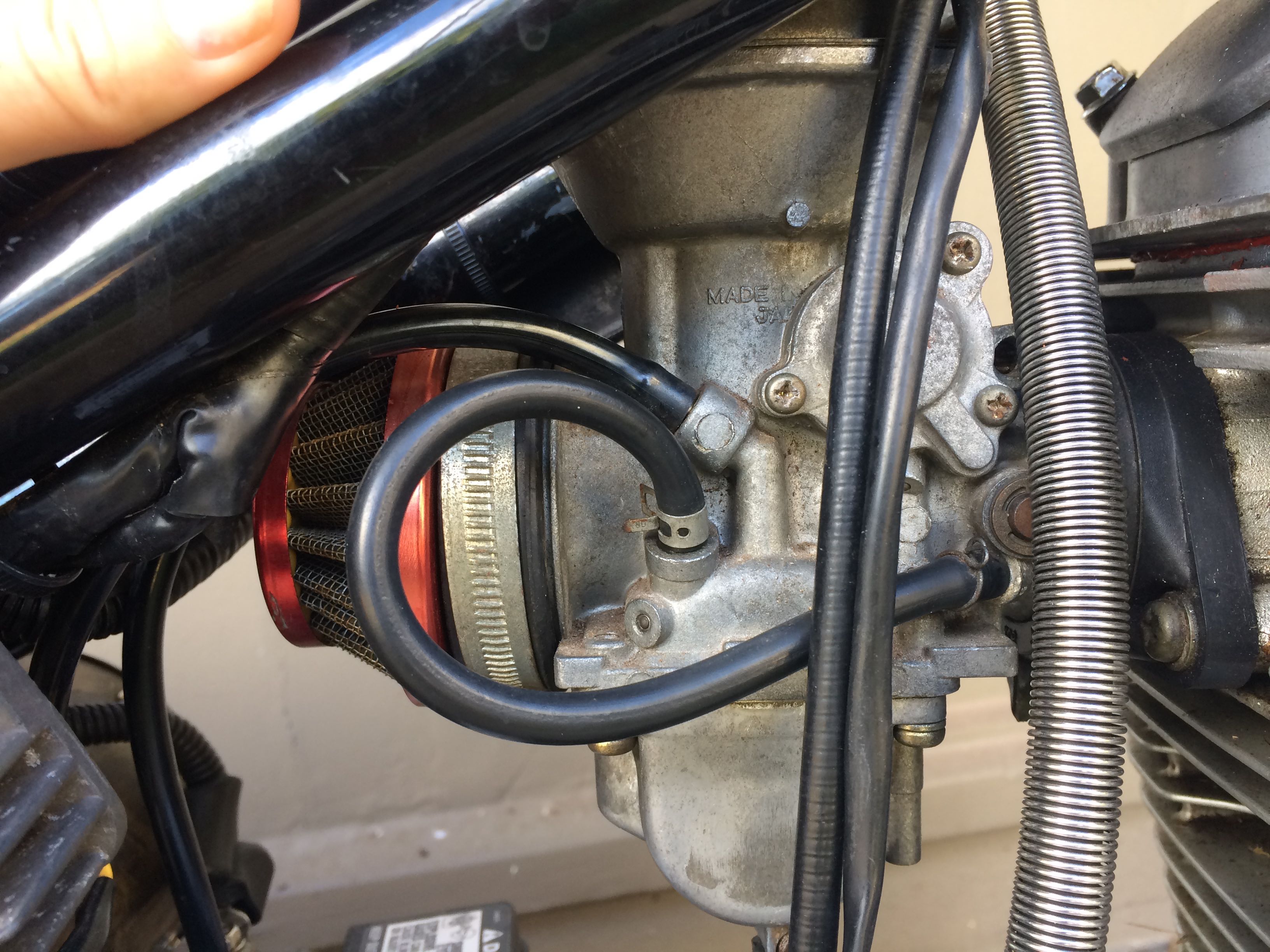

Full carb pic
Back to top
IP Logged
verslagen1
YaBB Moderator
ModSquad
Offline
Where there's a
will, I want to be
in it.
Posts: 28770
L.A. California
Gender:
Re: Bike wont run - bobber project
Reply #9 -
08/19/17 at 11:47:38
well, that's your problem right there.
you got the vac port connected to the carbon canister port.
the one on the right goes to the petcock
plug the little one on the left.
also, verify the pod filter doesn't close off the port at the top of the intake.
looks to me it does.
Back to top
Versey's Place
Tech Section Index
IP Logged
justin_o_guy2
Serious Thumper
Offline
What happened?
Posts: 55279
East Texas, 1/2 dallas/la.
Re: Bike wont run - bobber project
Reply #10 -
08/19/17 at 12:24:44
I'd bet dollars to donuts the battery is low or dead meat.
Check the water, test voltage under load.
Ignition won't fire the plug if it's low.
Back to top
The people never give up their liberties but under some delusion.- Edmund Burke.
IP Logged
JoophJoobie
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 8
Re: Bike wont run - bobber project
Reply #11 -
08/19/17 at 13:01:39
Boom!! It fired right up. Man thank you so much. It runs even better than when we first got it.
Back to top
IP Logged
batman
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 3806
osceola new york
Gender:
Re: Bike wont run - bobber project
Reply #12 -
08/19/17 at 13:41:50
You should also plug the vent line where it ran from the gas tank ,to the charcoal canister ,to prevent fuel from leaking if the tank is really full.
Back to top
my old work mates called me MacGyver
IP Logged
justin_o_guy2
Serious Thumper
Offline
What happened?
Posts: 55279
East Texas, 1/2 dallas/la.
Re: Bike wont run - bobber project
Reply #13 -
08/19/17 at 13:50:55
Where do I ship the Shipleys?
Back to top
The people never give up their liberties but under some delusion.- Edmund Burke.
IP Logged
