Ordered a Lithium Iron battery
07/01/17 at 06:27:33

https://www.amazon.com/gp/product/B00SA63VC0/ref=od_aui_detailpages00?ie=UTF8...

I got this Battery Tender Lithium Iron Phosphate 12V 14AH Battery ordered for the s40 and was wondering if anyone here has any experience with these batteries or other similar different brand lithium iron batteries?

Any issues with maintaining or charging either by the bikes charging system or external charger.

I use a 12V 1.2A Power Wheels charger that came with my kids Power Wheels Jeep as my trickle charger battery maintainer on my lead acid batteries if needed and I am not sure if a special charger is needed or if any charger will be necessary.

I have been wanting to try a battery of this type to try on one of my other bikes but was not in need of a new battery and did not want to spend the cash on something not really necessary.

I will most probably be removing the airbox and battery box and I am not sure yet where items will be relocated.

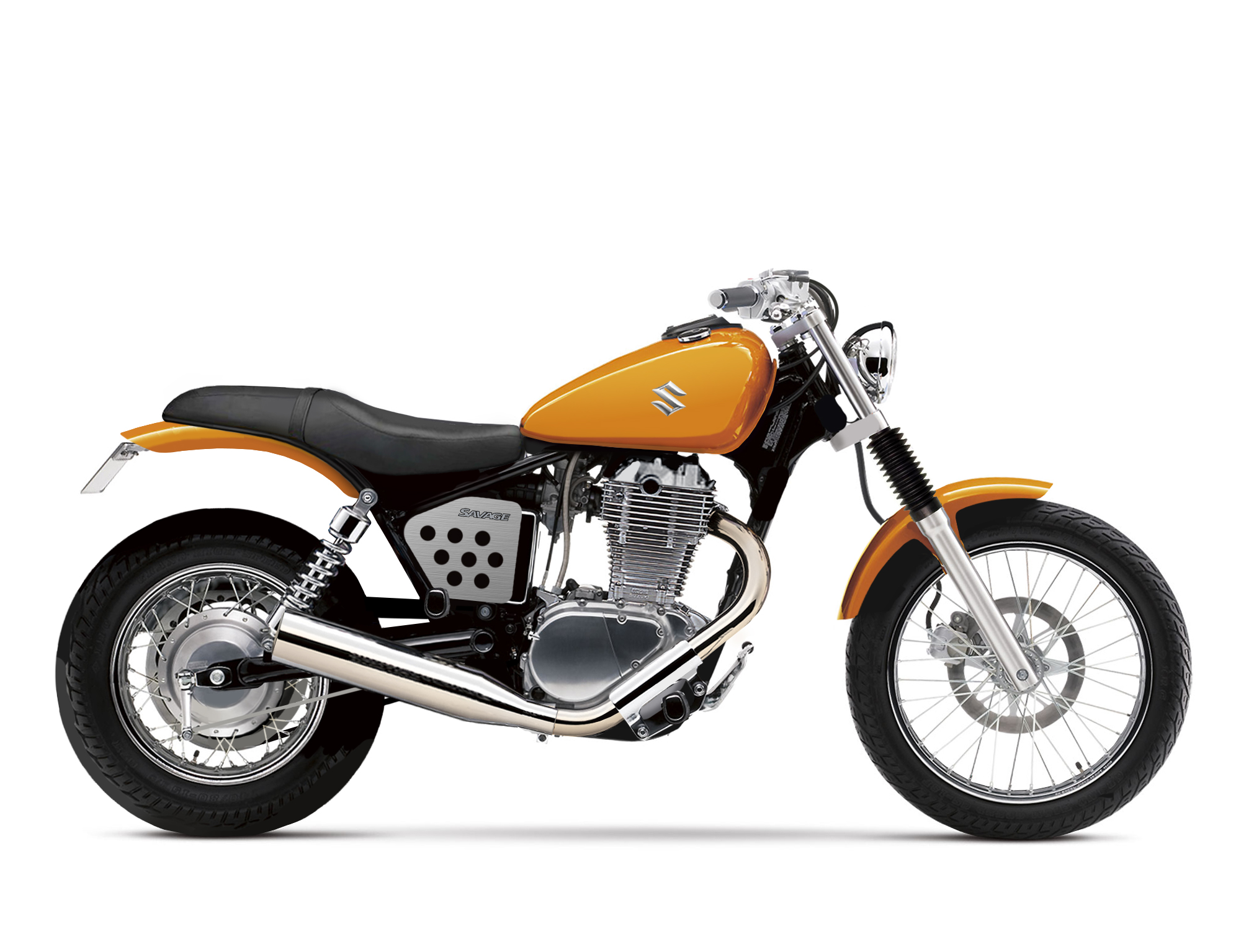

This image is my inspiration,

Back to top


IP Logged

norm92de Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1180 El Paso TX Gender:	Re: Ordered a Lithium Iron battery Reply #1 - 07/01/17 at 08:30:53 I don't know much about lithium ion batteries except that they are very light and compact. The image of the s40 is absolutely marvelous. Who built it. What a job.
Back to top	2014 S40. Raptor. idle mixture adj.Needle raised one notch. 4000' altitude. Stock jets. Shell Rotella synthetic. IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28804 L.A. California Gender:	Re: Ordered a Lithium Iron battery Reply #2 - 07/01/17 at 09:53:35 Quote: Do NOT use lead-acid chargers which employ a high-voltage “antisulfation” routine. Which is about any automatic battery charger.
Back to top	Versey's Place Tech Section Index IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Ordered a Lithium Iron battery Reply #3 - 07/01/17 at 10:19:18 Who figures this stuff Out? Lithium iron phosphate battery The lithium iron phosphate (LiFePO 4) battery, also called LFP battery (with "LFP" standing for "lithium ferrophosphate"), is a type of rechargeable battery, specifically a lithium-ion battery, which uses LiFePO 4 as a cathode material.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

antmanbee Full Member Offline 4 Moto Guzzis and an S40 Posts: 101 NE Florida	Re: Ordered a Lithium Iron battery Reply #4 - 07/01/17 at 10:25:54 The image is someones rendering and not an actual bike. This is the thread with some other pics and info. http://www.dotheton.com/forum/index.php?topic=66958.0
Back to top	IP Logged

Ruttly Serious Thumper Offline Thumpers Rule Posts: 5028 Manteca , CA Gender:	Re: Ordered a Lithium Iron battery Reply #5 - 07/01/17 at 12:20:29 I really like who's ever rendering of that Savage. Very nice shapes & lines !
Back to top	The Topic Terminator IP Logged

antmanbee

Full Member

Offline

4 Moto Guzzis and an
S40

Posts: 101
NE Florida

Re: Ordered a Lithium Iron battery
Reply #6 - 07/01/17 at 16:07:37

The person is a member here but has not been active for more than a year.
He posted this thread that has all of his renderings a couple of years ago.

http://suzukisavage.com/cgi-bin/YaBB.pl?num=1438534942/0

I really like it a lot because it could be done for not that much money unlike a Ryca kit. It uses a lot more of the stock parts than a Ryca yet looks very stylish. I like the overall look better.

Back to top

IP Logged

Armen

Serious Thumper

Offline

Half-Witted
Wrench-Jockey from
Jersey

Posts: 1433

Re: Ordered a Lithium Iron battery
Reply #7 - 07/01/17 at 16:33:01

I used a Battery Tender Lithium battery in a Thruxton build a few years ago.
Flawless.
As noted, the chargers with a 'desulfate' cycle will blow up those batteries.
If you have an early Battery Tender charger, it may not have a high enough maintenance voltage to keep a Lithium happy.
Suzuki used to love crazy high charging voltage. In the 70's and early 80's the bikes ran 15.5 volts at full chat.
Voltage that high with cause many Lithium batteries to explode.
So, throw a meter on your bike and rev it up. See what the max charging rate is.
Figure out if you have the right battery charger.
Those batteries also hate a parasitic load. If the battery goes completely flat, it is hard to bring back.
So, put your meter on DC amps, and put it in series with the ground lead to the battery.
With the key off!
See if there is any drain. If so, fix it.
Have Lithium batteries in all my bikes. Will never buy another boat anchor battery.

Back to top

In theory, theory and reality are the same. In reality, they aren't...

IP Logged

jcstokes Serious Thumper Offline SuzukiSavage.com is very useful Posts: 2119 Mauku New Zealand Gender:	Re: Ordered a Lithium Iron battery Reply #8 - 07/02/17 at 01:09:55 b
Back to top	Completely stock 2010 S40, aftermarket rev counter and back pack, Airhawk seat pad IP Logged

jcstokes Serious Thumper Offline SuzukiSavage.com is very useful Posts: 2119 Mauku New Zealand Gender:	Re: Ordered a Lithium Iron battery Reply #9 - 07/02/17 at 01:12:32 Be careful that any Gel, lithium battery will fit easily into your stock battery box.
Back to top	Completely stock 2010 S40, aftermarket rev counter and back pack, Airhawk seat pad IP Logged

gizzo Serious Thumper Offline SuzukiCabbage. It's Savage. Posts: 1318 Australia	Re: Ordered a Lithium Iron battery Reply #10 - 07/02/17 at 04:54:06 I've been using a lithium battery in my Cabbage and my Enfield for 4 years, no problem at all. Way smaller and lighter than stock. No charging problems. The ones I use have charge and balancing circuitry built in. As should all moto lithiums by now.
Back to top	IP Logged

ohiomoto Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2704 WTF is JOG?	Re: Ordered a Lithium Iron battery Reply #11 - 07/02/17 at 04:56:02 I put an AntiGravity Lithium battery in my bike this year and it's been great so far. I use a Battery Tender Jr. LITHIUM charger, but you really only need it when something bad happens. I left the key on once and the charger did fine. Make sure you treat it right and you'll be a happy camper.
Back to top	IP Logged

antmanbee

Full Member

Offline

4 Moto Guzzis and an
S40

Posts: 101
NE Florida

Re: Ordered a Lithium Iron battery
Reply #12 - 07/02/17 at 05:14:01

Armen wrote on 07/01/17 at 16:33:01:

I used a Battery Tender Lithium battery in a Thruxton build a few years ago.
Flawless.
As noted, the chargers with a 'desulfate' cycle will blow up those batteries.
If you have an early Battery Tender charger, it may not have a high enough maintenance voltage to keep a Lithium happy.
Suzuki used to love crazy high charging voltage. In the 70's and early 80's the bikes ran 15.5 volts at full chat.
Voltage that high with cause many Lithium batteries to explode.
So, throw a meter on your bike and rev it up. See what the max charging rate is.
Figure out if you have the right battery charger.
Those batteries also hate a parasitic load. If the battery goes completely flat, it is hard to bring back.
So, put your meter on DC amps, and put it in series with the ground lead to the battery.
With the key off!
See if there is any drain. If so, fix it.
Have Lithium batteries in all my bikes. Will never buy another boat anchor battery.

Thanks Armen, all good info.
I will check the regulator output and get a MOSFET regulator if necessary.
I put a Shindengen one on my Guzzi.

Back to top

IP Logged

Eegore Serious Thumper Online SuzukiSavage.com Rocks! Posts: 8022	Re: Ordered a Lithium Iron battery Reply #13 - 07/02/17 at 07:33:44 So if I toss in a smaller LIB I just need to make a new bracket, insulate it and make sure I have long enough wires? Nothing else special goes along with this? I'd like to turn my battery box into storage.
Back to top	IP Logged

ohiomoto Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2704 WTF is JOG?	Re: Ordered a Lithium Iron battery Reply #14 - 07/02/17 at 08:46:18 You mean like this?
