Is this a head gasket leak? (Read 59 times)

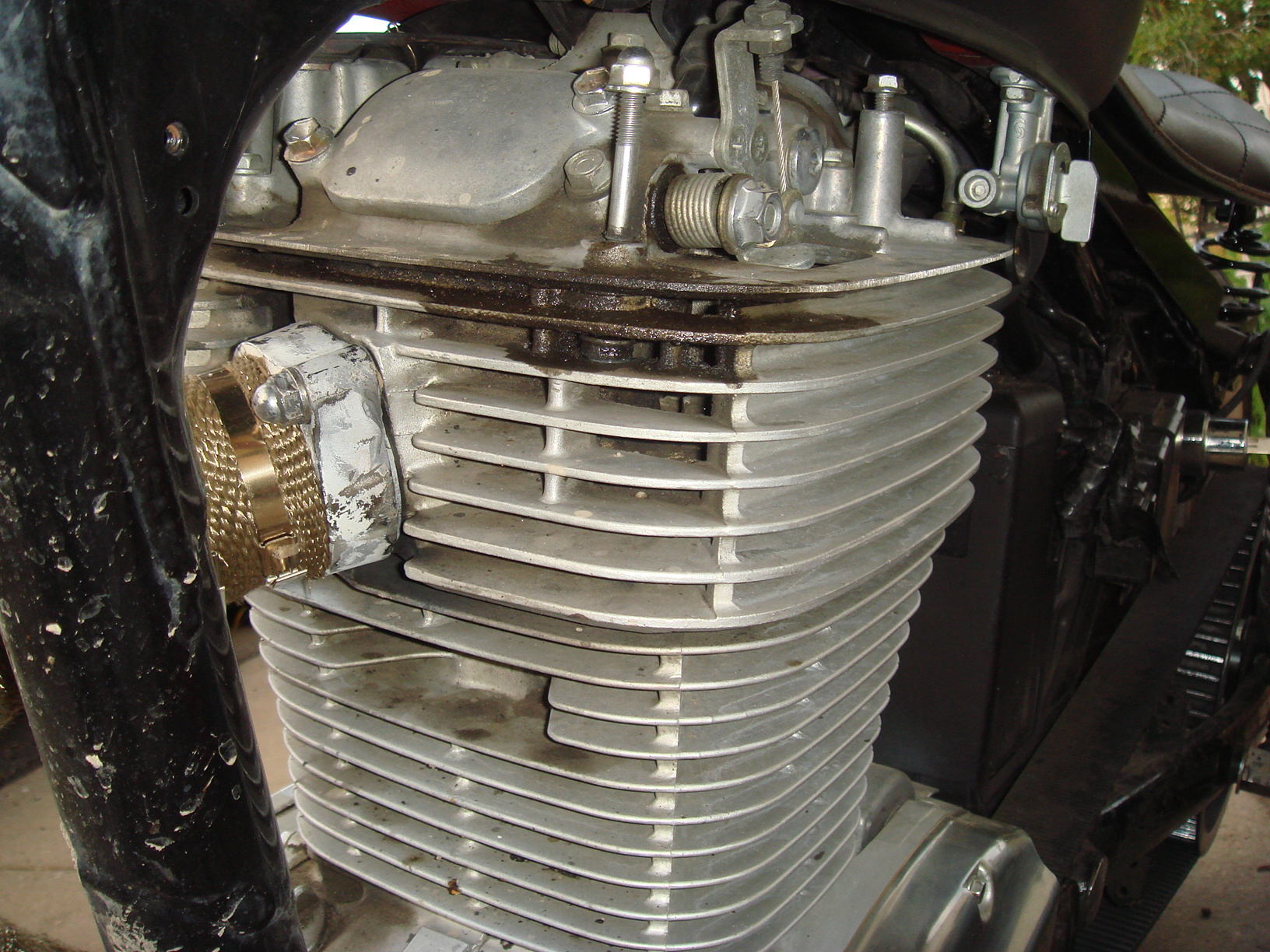

Eegore Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 8057	Is this a head gasket leak? 06/10/17 at 19:32:00 Got some images of the bike today and this oil is new. Happened in the past 800 miles or so. Gasket or more likely head plug maybe?
Back to top	LS650AFrntLEngine3.JPG « Last Edit: 06/11/17 at 08:36:15 by Eegore » IP Logged

Hamman Ex Member	Re: Is this a head gasket leak? Reply #1 - 06/11/17 at 09:10:21 Im gonna go with head gasket/sealant is done. There is no gasket between the rocker cover and the actual head. To me, if it was the plug leak it would be lower and more on the cylinder. It is pretty easy to pop off the cover clean it up, check your plug, re-seal and test ride.
Back to top	IP Logged

Serowbot YaBB Moderator ModSquad Offline OK.... so what's the speed of dark? Posts: 28430 Tucson Az Gender:	Re: Is this a head gasket leak? Reply #2 - 06/11/17 at 09:28:43 That tall bolt, just in front of the Decompression lever, is a sealing bolt for the head cover. It is currently doing nothing. Find a piece of metal tube to slide over the bolt so that the nut can tighten against it. (or a stack of washers) That may cure your leak...
Back to top	Ludicrous Speed !... ... ... IP Logged

Eegore Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 8057	Re: Is this a head gasket leak? Reply #3 - 06/11/17 at 10:17:51 Ahh that explains why its a new thing, there was a cover on it but I mailed it to someone looking for one. Washers for now, new cover later.
Back to top	IP Logged
