Mirror installation technique (Read 113 times)
catfishunter99
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 42
WI
Gender:
Mirror installation technique
06/08/17 at 07:05:28
Ok guys don't beat me up too much for this question, I'm still new to the Savage. I recently picked up a set of stock mirrors (thanks again Hamman) but am having trouble getting the proper orientation. On other bikes I've owned the lower mounting stud and mirror stem were separate but it does not appear to be the case on these. When I spin them on just snug they face about 45° off. Do I just need to use washers under them to get it right or is there a trick?
Back to top
IP Logged
justin_o_guy2
Serious Thumper
Offline
What happened?
Posts: 55279
East Texas, 1/2 dallas/la.
Re: Mirror installation technique
Reply #1 -
06/08/17 at 07:07:53
Get the mirror close to where you want it and turn the part the wrench fits on While you prevent the mirror from moving .
Back to top
The people never give up their liberties but under some delusion.- Edmund Burke.
IP Logged
Dave
YaBB Moderator
ModSquad
Offline
SuzukiSavage.com
Rocks!
Posts: 18112
Camp Springs, Kentucky
Gender:
Re: Mirror installation technique
Reply #2 -
06/08/17 at 07:09:08
The nut is loose (or should be), and it is used to lock the mirror in place once you have it at the correct angle.
The nuts on your mirrors are either corroded into place, or they have been turned onto the shaft so far that they are tight on the area where the threads are not fully formed.
Put the mirror on the bike and use a wrench to turn the hex portion - if you can't get them to move apply some penetrating oil and try again after the oil has had a chance to loosen things up.
Back to top
Someday I will be old......But not today!
IP Logged
catfishunter99
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 42
WI
Gender:
Re: Mirror installation technique
Reply #3 -
06/08/17 at 07:12:46
Thanks! I will give it a go, I just wanted to ask before applying too much force and ruining something.
Back to top
IP Logged
IslandRoad
Serious Thumper
Offline
It doesn't vibrate,
it purrs!
Posts: 1147
The Kiewa Valley, Australia
Gender:
Re: Mirror installation technique
Reply #4 -
06/08/17 at 13:05:39
catfishunter99 wrote
on 06/08/17 at 07:12:46:
Thanks! I will give it a go, I just wanted to ask before applying too much force and ruining something.
☺ I know that feeling. I've looked at many a connector, nut, cap, housing etc on the bike, and thought "I reckon it just needs a bit of force" ... but haven't been game to do it until I'm sure I'm not gonna bust something!
Back to top
S40, 2014, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 'Superbars' with custom 40mm risers, modified stock seat, Metzeler tyres.
IP Logged
catfishunter99
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 42
WI
Gender:
Re: Mirror installation technique
Reply #5 -
06/08/17 at 14:36:00

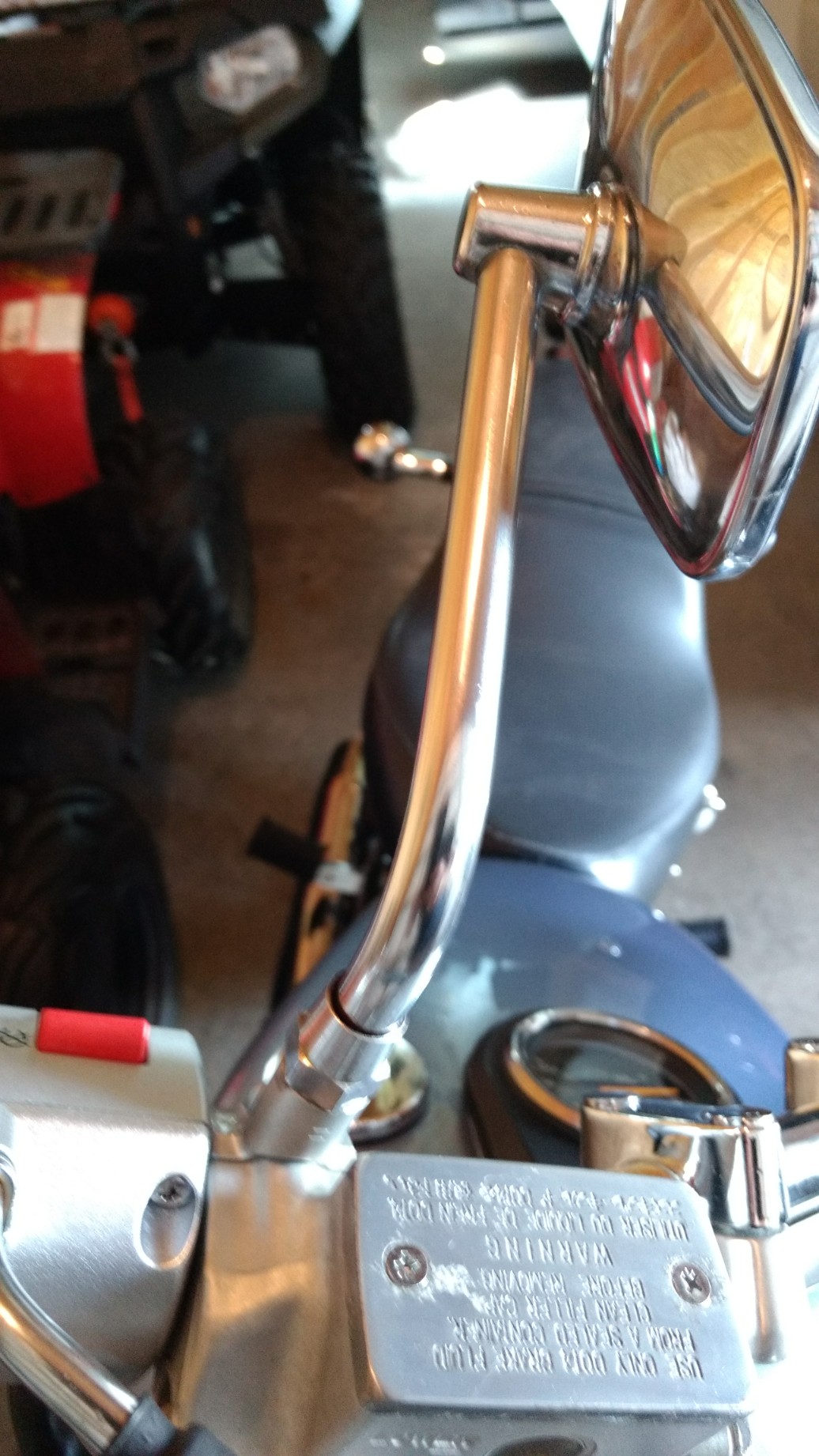

So I gave them as much torque as I was comfortable with and they wouldn't budge. Soaked them down with penetrating oil. Can you guys tell me if these are original mirrors or if the style possibly changed?
Back to top
IP Logged
justin_o_guy2
Serious Thumper
Offline
What happened?
Posts: 55279
East Texas, 1/2 dallas/la.
Re: Mirror installation technique
Reply #6 -
06/08/17 at 14:41:24
The gap between the stalk and the top of the Nut shows it's not one piece. You gotta get that nut spinning.
Screw it Down, rotating it CW, looking down the stalk .
It's as far up the stalk as possible.
Mirror up , threads down, turn the Nut clockwise.
Back to top
The people never give up their liberties but under some delusion.- Edmund Burke.
IP Logged
IslandRoad
Serious Thumper
Offline
It doesn't vibrate,
it purrs!
Posts: 1147
The Kiewa Valley, Australia
Gender:
Re: Mirror installation technique
Reply #7 -
06/08/17 at 15:21:04
Have you unscrewed the stems from the handlebar a turn or so, before trying to tighten the nut?
Once you do that, you have to hold the stem to stop it spinning while wrenching the nut.
Back to top
S40, 2014, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 'Superbars' with custom 40mm risers, modified stock seat, Metzeler tyres.
IP Logged
justin_o_guy2
Serious Thumper
Offline
What happened?
Posts: 55279
East Texas, 1/2 dallas/la.
Re: Mirror installation technique
Reply #8 -
06/08/17 at 15:45:59
justin_o_guy2 wrote
on 06/08/17 at 07:07:53:
Get the mirror close to where you want it and turn the part the wrench fits on While you prevent the mirror from moving .
Back to top
The people never give up their liberties but under some delusion.- Edmund Burke.
IP Logged
catfishunter99
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 42
WI
Gender:
Re: Mirror installation technique
Reply #9 -
06/08/17 at 16:43:48
Good news! After letting the penetrating oil soak in I was able to free up both nuts. The inside was rusted up a bit so they were seized like many of you said. I removed both of them and cleaned up the insides and the threads now they thread on and off by hand. Put them on lined them and tightened them down go to go! One happy biker 😀. Thanks for all the advice!
Back to top
IP Logged
Hamman
Ex Member
Re: Mirror installation technique
Reply #10 -
06/11/17 at 09:12:23
YAHHHHOOOOO! Glad you got the mirrors ok!
