Hand Removable Seat Bolts
05/03/17 at 19:58:55
So, several of us wanted seat pins for a quick release but didn't want to permanently drill through the seat flange nuts and eliminate the threads.

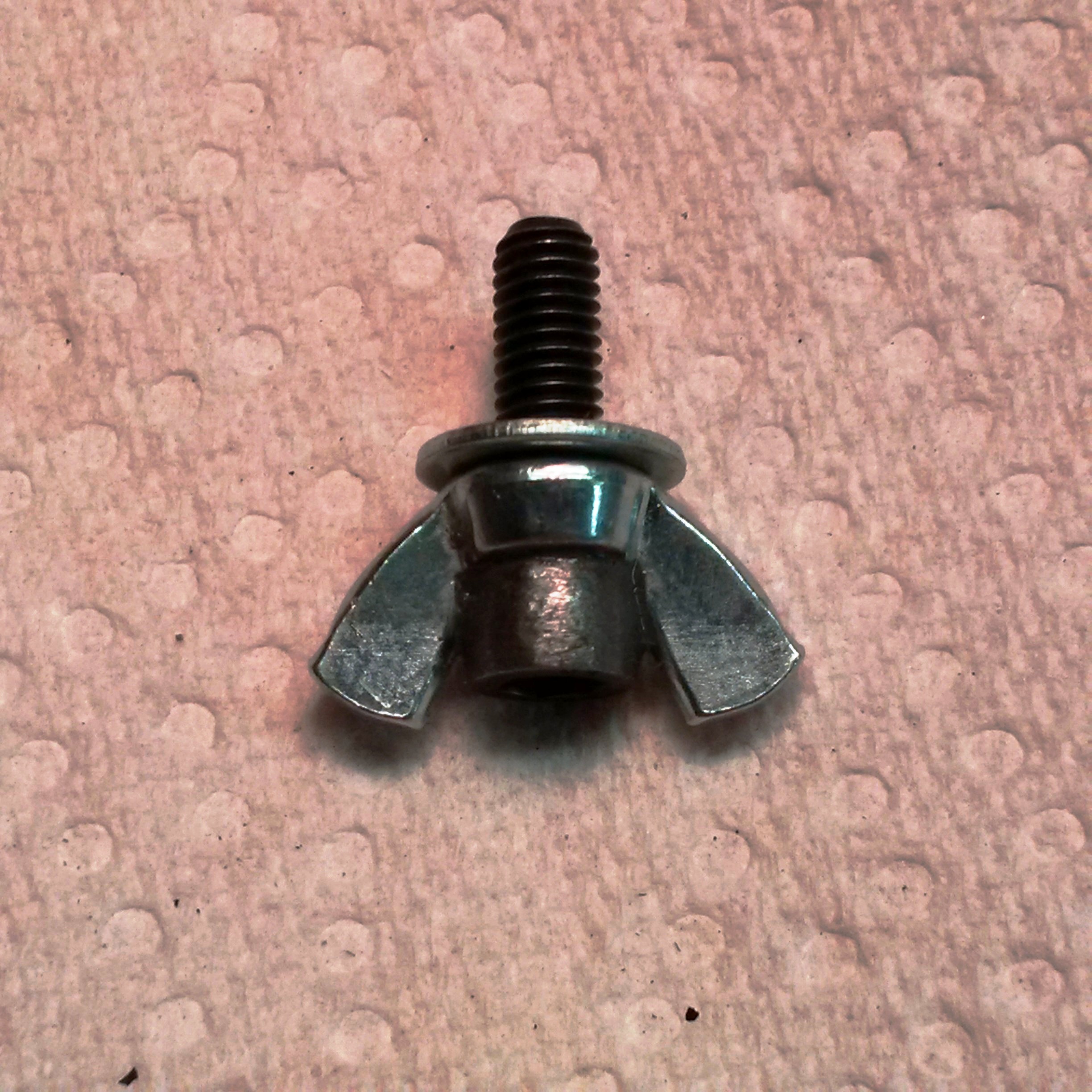

Well, after giving it some thought and wanting a "fairly quick" release that would primarily let me remove the seat by hand in a pinch with no tools or a roadside breakdown, we have this new invention. It uses a wing nut for hand use as well as an allen head for when you have tools available. There is some trimming of the allen head required so it sits flush down into the wing nut (don't trim the wing nut because you will create a stress point and one day it'll break on you), and I as well cleaned the threads of both very well and permanently fused them together with JB Weld and tightened the bolt down very snug into the wing nut so they will permanently act as one in both directions. I will eventually paint it all black, primarily to seal the surface that I had to grind down.
It's a pretty simple job...just an M6x1 allen head bolt and wing nut and a washer and you're in business. Make your own for $1.50 or let me make them for you for $19.95 plus shipping and handling.
Act NOW and get two for the price of one, just pay extra processing
Enjoy. Hope this helps!
Back to top
2008 | 152/52.5–Air Mix 3/4 | Rotella T4 | Seat Lift w/Sheepskin | Speedo Rattle | Rear Pulley Shim | 140/90-15 Rear | Kaw Front Pulley | Relocated Rear Signals
FREEDOM ISN'T FREE!
IP Logged
stewmills
Serious Thumper
Offline
Imagination is more
important than
knowledge
Posts: 2635
Auburn, AL
Gender:
Re: Hand Removable Seat Bolts
Reply #1 -
05/03/17 at 19:59:22

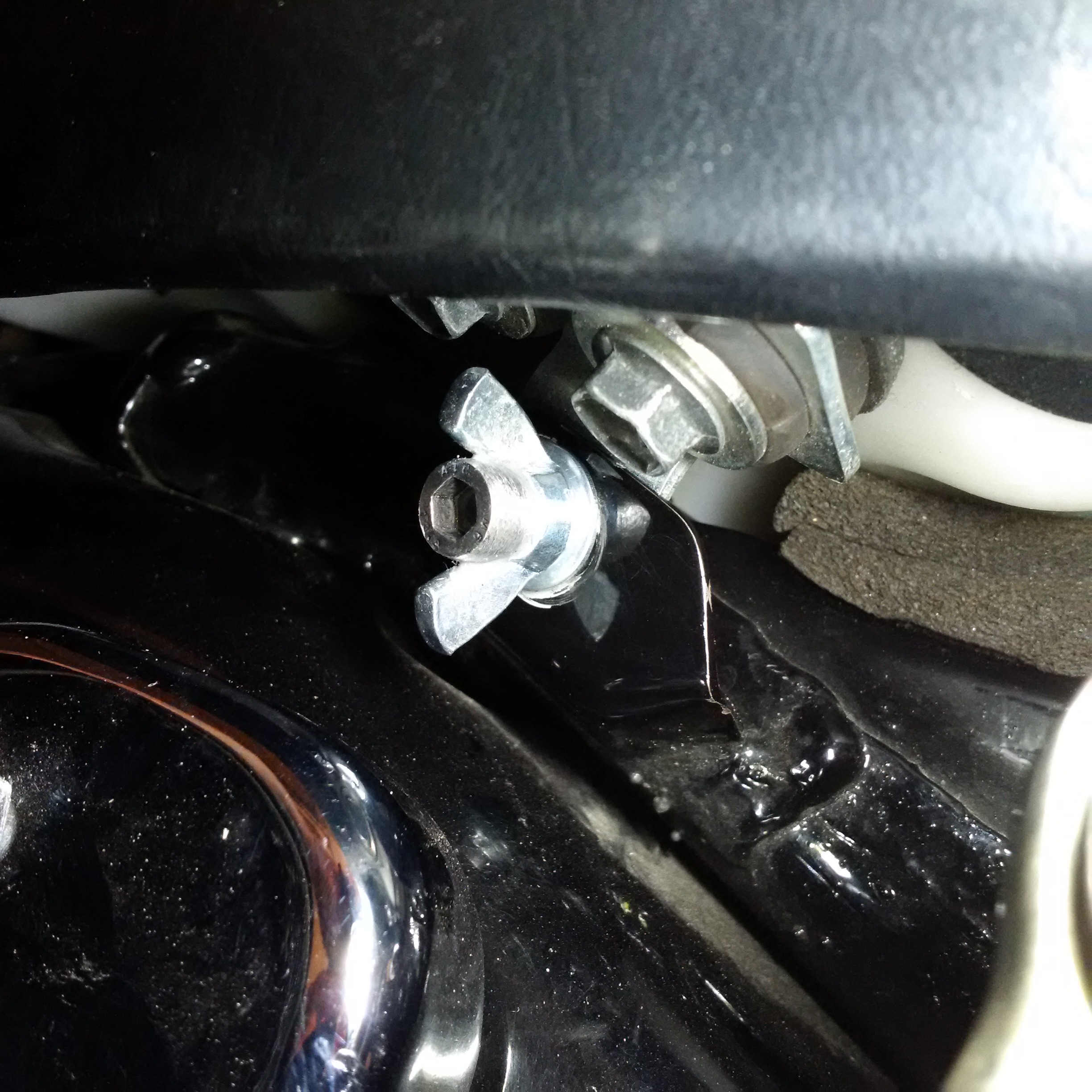

..on the seat.
