Starter self engaged...
09/17/16 at 16:20:59

I started it,.. it was running for about 3 seconds, and the starter re-engaged (all by itself)... (a loud metallic clack, followed by the starter motor running)
... it ran for about 3 or 4 seconds with the engine already running then disengaged.
YIKES!...

I have heard a clank followed by a starter whir, 2 or 3 times in the past few weeks... but, this time the starter really ran...

Sooooo... starter button sticky?,.. relay under seat?... or solenoid?...
Any idears?... Huh

PS// 'till I get it figured out, I have the pet shut off, and have disconnected the power to the starter...
..(I don't want it driving off without me)... Grin

Please don't let it be the starter clutch... ....PLEASE... Huh

Back to top

« Last Edit: 09/17/16 at 17:55:28 by Serowbot »

Ludicrous Speed !... ... Huh

...

IP Logged

oldNslow Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2679 Rochester, NY Gender:	Re: Starter self engaged... Reply #1 - 09/17/16 at 18:01:14 the starter relay gets its + 12V from the decomp controller - failing controller maybe?
Back to top	IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28763 L.A. California Gender:	Re: Starter self engaged... Reply #2 - 09/17/16 at 18:15:07 most likely decomp controller. but if you want to eliminate faulty button, put a 12v led light on the clutch safety either wire, to ground. use an led cause they don't draw much current. anytime you use the starter button, that light will light.
Back to top	Versey's Place Tech Section Index IP Logged

Serowbot YaBB Moderator ModSquad Offline OK.... so what's the speed of dark? Posts: 28375 Tucson Az Gender:	Re: Starter self engaged... Reply #3 - 09/17/16 at 19:39:06 Ooooooohhhh!... Both ideas!,... so cool!... thanx!... I'm officially the idiot Moderator... Don't tell...
Back to top	Ludicrous Speed !... ... ... IP Logged

v-pilot Senior Member Offline Loud bikes rule! Posts: 257 Rexford NY Gender:	Re: Starter self engaged... Reply #4 - 09/18/16 at 18:38:50 We love ya anyway Bot
Back to top	Suzuki DR650, aprilia RSVR, aprilia Falco, Bimota DB4(2x) Moto Guzzi V10, Ducati 900ss, Triumph Trident, Suzuki LS650 Moto Guzzi Le Mans SE(2x), Moto Guzzi V50, Benelli 250, Ducati 250 IP Logged

Serowbot

YaBB Moderator
ModSquad

Offline

OK.... so what's the
speed of dark?

Posts: 28375
Tucson Az
Gender: male

Re: Starter self engaged...
Reply #5 - 09/20/16 at 13:17:41

oldNslow wrote on 09/17/16 at 18:01:14:

the starter relay gets its + 12V from the decomp controller - failing controller maybe?

verslagen1 wrote on 09/17/16 at 18:15:07:

most likely decomp controller.

Considering a temporary bypass of the de-comp,... but...
How would a failing de-comp cause the starter to engage?... (wouldn't it have to receive juice from the starter button?)...

Just askin',.. hope I'm wrong really... Huh

Back to top

Ludicrous Speed !... ... Huh

...

IP Logged

youzguyz Serious Thumper Offline Posts: 2524 San Antonio, Texas Gender:	Re: Starter self engaged... Reply #6 - 09/20/16 at 13:25:18 Starter does not get juice until dcomp controller says it can. Which is why you hear the "CLACK" of the dcomp solenoid before the starter starts starting.
Back to top	2002 - Silver (Thumper) 2000 - Green (Mad Hamish) Most motorcycle problems are caused by the nut between the seat and the handlebars. Make sure yours isn't too tight or too loose. IP Logged

youzguyz

Serious Thumper

Offline

Posts: 2524
San Antonio, Texas
Gender: male

Re: Starter self engaged...
Reply #7 - 09/20/16 at 13:37:15

Clymers shows how to test the dcomp controller on page 245. But, you have an intermittent issue with the dcomp starting the complete cycle on it's own.
Do you remember if the clutch was pulled in at the time it acted goofy?
If so, the starter switch is acting like it is pushed, when it ain't. OR, you have something else that is putting voltage on that line.

Back to top

2002 - Silver (Thumper)
2000 - Green (Mad Hamish)
Most motorcycle problems are caused by the nut between the seat and the handlebars. Make sure yours isn't too tight or too loose.

IP Logged

Serowbot

YaBB Moderator
ModSquad

Offline

OK.... so what's the
speed of dark?

Posts: 28375
Tucson Az
Gender: male

Re: Starter self engaged...
Reply #8 - 09/20/16 at 14:19:23

That's more what I was thinking...
(dcomp wouldn't trigger the starter without juice from the starter button,... and starter relay sticking wouldn't trigger the dcomp, only the starter)...
Clutch cut-out has been bypassed for years...

So,.. I just took the starter switch apart, and cleaned the contacts.
Tested it with the starter hot disconnected, and it seems to trigger the dcomp and starter relay consistently.
I put it all back together, and I guess I'll just have to ride it for while.
...(carrying a 10mm just in case I have to disconnect the starter hot).. Grin

Back to top

Ludicrous Speed !... ... Huh

...

IP Logged

verslagen1

YaBB Moderator
ModSquad

Offline

Where there's a
will, I want to be
in it.

Posts: 28763
L.A. California
Gender: male

Re: Starter self engaged...
Reply #9 - 09/20/16 at 14:36:17

Serowbot wrote on 09/20/16 at 13:17:41:

Considering a temporary bypass of the de-comp,... but...
How would a failing de-comp cause the starter to engage?... (wouldn't it have to receive juice from the starter button?)...

Just askin',.. hope I'm wrong really... Huh

It has happened at least twice. Middle of the night and the savage dreams of riding just like a dog dreaming of chasing squirrels.

Maybe they had a flaky starter button... don't know.
BUT, the decomp controller has power to it all the time.
What I'd do is redo the power wire to the decomp and put it thru the ig switch.

That branch does more than just power the decomp, I'll have to look at it later.

Back to top


Versey's Place
Tech Section Index

IP Logged

Serowbot YaBB Moderator ModSquad Offline OK.... so what's the speed of dark? Posts: 28375 Tucson Az Gender:	Re: Starter self engaged... Reply #10 - 09/20/16 at 16:14:35 Hate the idea of my bike riding off without me... Tempted to go to a manual dcomp...
Back to top	Ludicrous Speed !... ... ... IP Logged

justin_o_guy2

Serious Thumper

Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.

Re: Starter self engaged...
Reply #11 - 09/20/16 at 18:51:18

Standing behind the bike, I wanna say the second wire from the left, you put 12 volts to it and it cranks over, even if the key is in your pocket. Make sure nothing is accidentally doing it.
I put a switch on the hot wire right next to it, and used a membrane switch from a dead dvd player. It's a very low amperage thing. Find out which wire will crank it, then be sure nothing is accidentally doing it.

Back to top

The people never give up their liberties but under some delusion.- Edmund Burke.

IP Logged

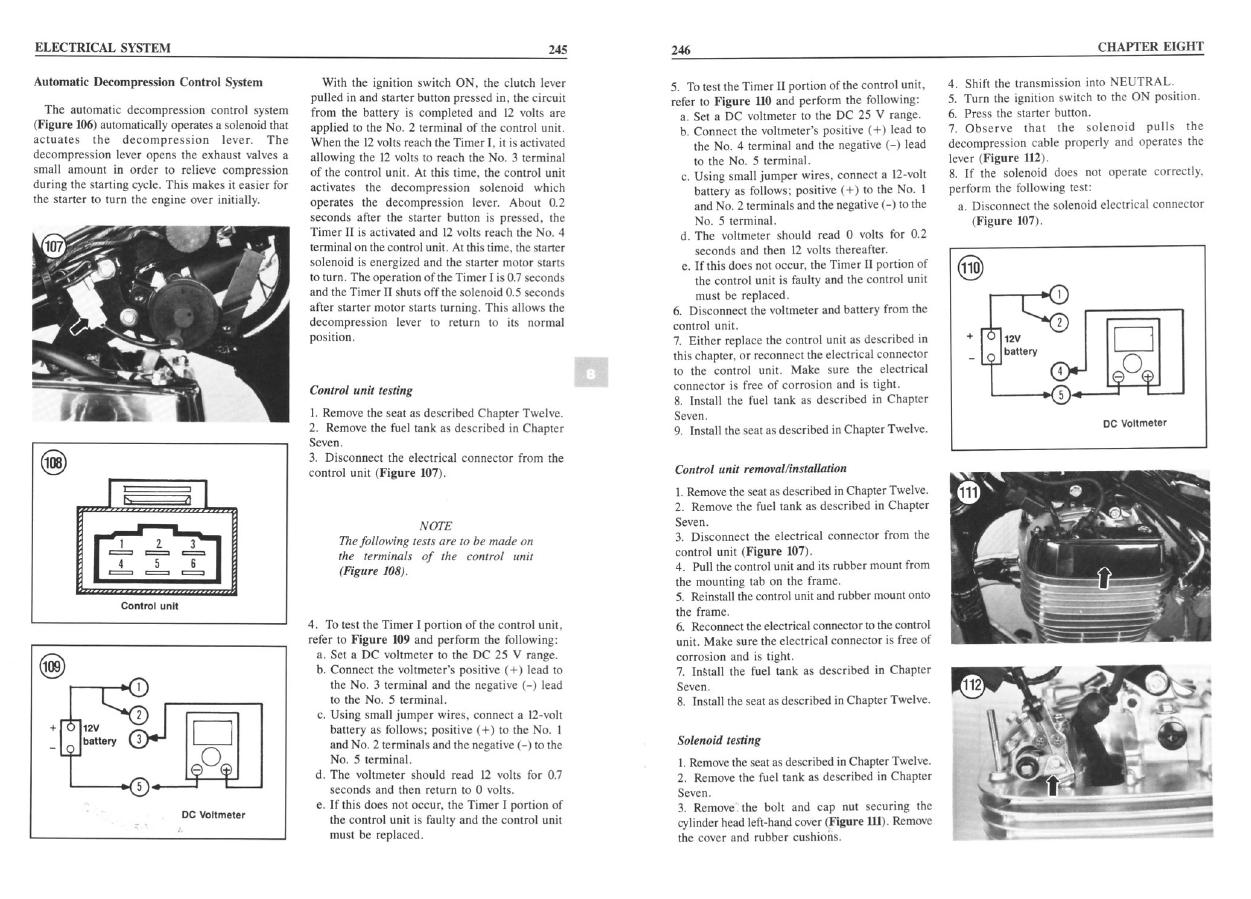

Kris01 Serious Thumper Offline Eat, sleep, RIDE! Posts: 3767 Tennessee Gender:	Re: Starter self engaged... Reply #12 - 09/20/16 at 19:39:53 youzguyz wrote on 09/20/16 at 13:37:15: Clymers shows how to test the dcomp controller on page 245. Pg. 245 and 246
Back to top	Untitled_019.jpg There's no problem that a full tank of gas and a sunny day can't fix! 2008 S40, Rotella T 15W-40 w/ZDDP added, Dyna, 140/90-15, Battery Tender Jr., Seat lift, #52.5/150/3 washers, Raptor IP Logged

justin_o_guy2

Serious Thumper

Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.

Re: Starter self engaged...
Reply #13 - 09/22/16 at 09:24:40

My screen won't let me read the How to test the decompression controller.
All I have to offer is what I posted. Mine, when still pretty new, would just Die, and no matter what I did, it would not spin over.
After ten minutes or so, back in business. Never figured it out, but by putting the switch on the wire on the decompression controller I could make it go again. So I Know there is a wire that spins the starter and the current required to kick it is so minimal that a membrane switch, small enough to sit on the nail on my pinky will handle it. That tiny switch got used quite a few times and never failed. It was slipped into the finger of a rubber glove and tie wrapped up under the frame. There's a red wire, 16/18 gauge with 12 volts Always on it, right next to the controller. Could be your problem if it's laying over and rubbed a bit.

Back to top

The people never give up their liberties but under some delusion.- Edmund Burke.

IP Logged

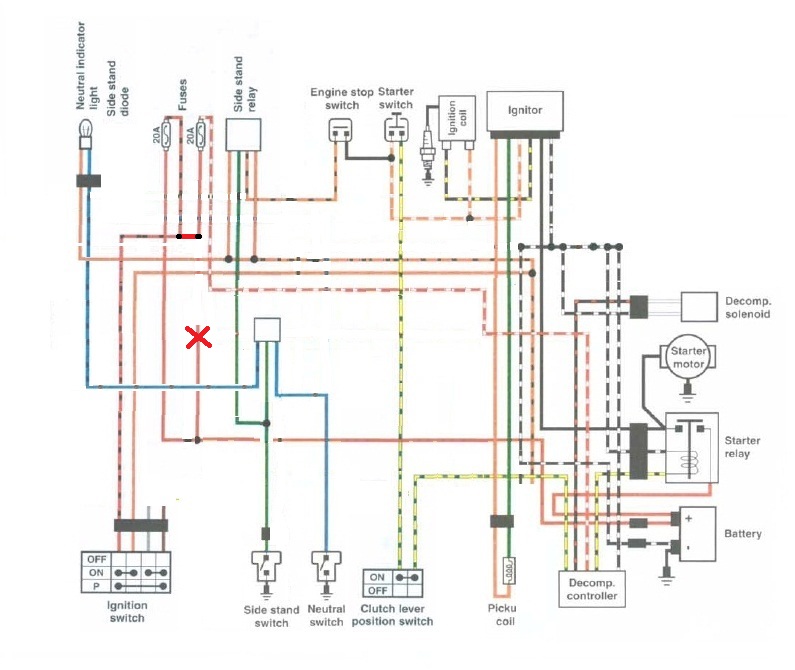

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28763 L.A. California Gender:	Re: Starter self engaged... Reply #14 - 09/22/16 at 14:56:55 Pretty good description of the safety system. I'm planning of removing the decomp controller. So, if you short 2 to 4 on the wiring harness, the starter button activates the starter directly w/out the decomp controller.
Back to top	Versey's Place Tech Section Index IP Logged
