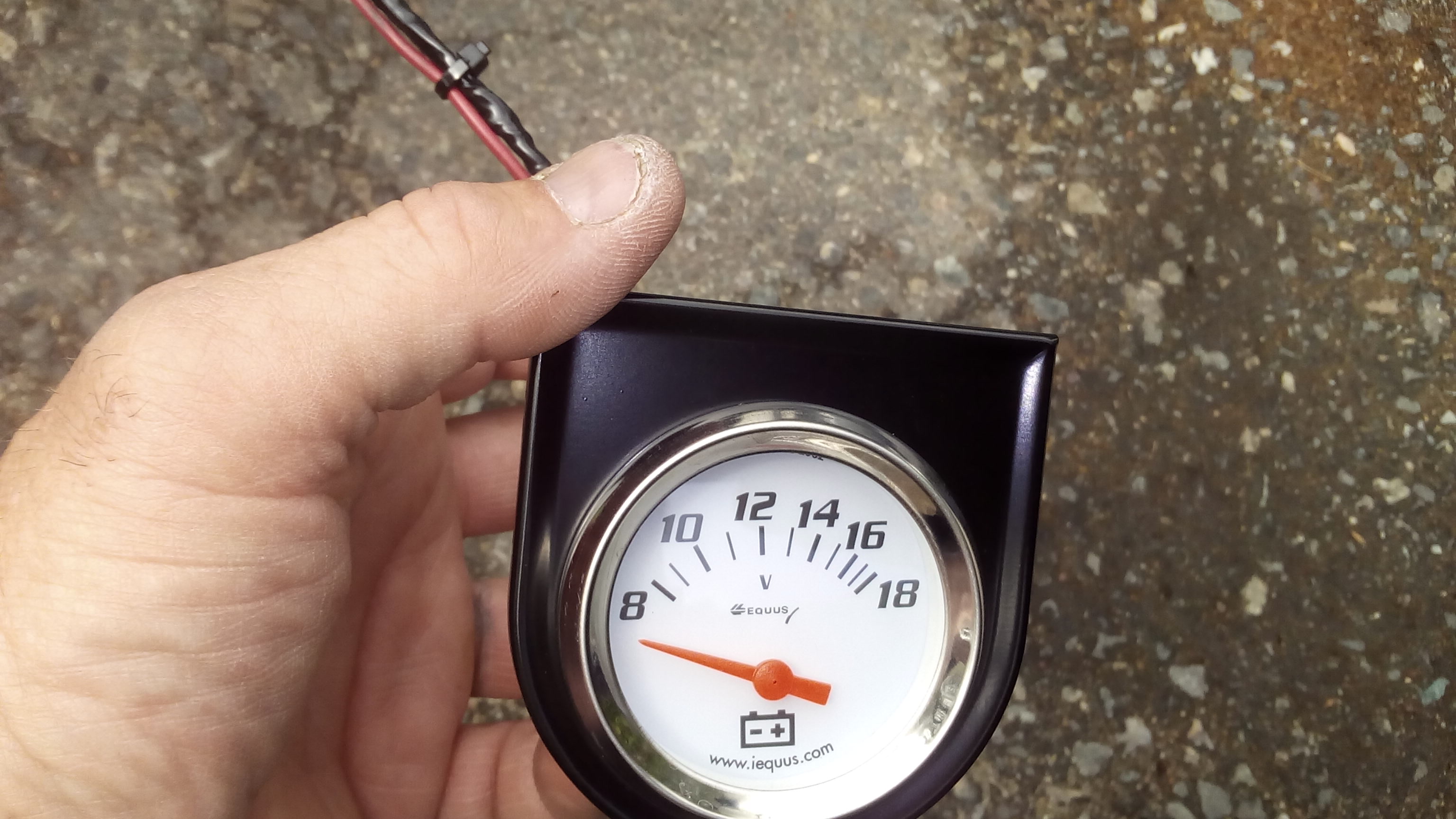

LS650THUMPER Junior Member Offline SuzukiSavage.com Rocks! Posts: 64 Ma Gender:	Re: Battery drain after charging. Reply #15 - 05/31/16 at 08:22:38 Picked up basic volt gauge w/ clips. Connected to battery. Got 12v , hit start dipped to 10v popped back to 12v. Revd engine, and dropped toward 10v .
Back to top	IMG_20160530_143107.jpg IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28886 L.A. California Gender:	Re: Battery drain after charging. Reply #16 - 05/31/16 at 08:40:45 My guess would be rectumfryer. should not be dropping to 10 when you rev it though, did you have it hooked to the battery? and have you checked the open circuit voltage of the stator? each of the three pairs should go to 100v at high revs.
Back to top	Versey's Place Tech Section Index IP Logged

LS650THUMPER Junior Member Offline SuzukiSavage.com Rocks! Posts: 64 Ma Gender:	Re: Battery drain after charging. Reply #17 - 05/31/16 at 10:17:23 Was hooked to battery..did not check stator. Rectumfyer is 205 buzolians at the dealer.. will check all connections with the electrical cleaner just to get those nice.
Back to top	IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18099
Camp Springs, Kentucky
Gender: male

Re: Battery drain after charging.
Reply #18 - 05/31/16 at 10:24:04

Rectifiers are $ 20 more or less on eBay....new or used. Official Factory one is $ 200.

http://www.ebay.com/itm/Suzuki-S40-Boulevard-650-LS-LS650-Used-Regualtor-Rect...

http://www.ebay.com/itm/2000-SUZUKI-LS650-SAVAGE-VOLTAGE-REGULATOR-RECTIFIER-...

http://www.ebay.com/itm/SUZUKI-LS650-SAVAGE-VOLTAGE-REGULATOR-RECTIFIER-86-04...

http://www.ebay.com/itm/NOS-Suzuki-LS650-VS650-Rectifier-Regulator-32800-24B1...

Back to top

Someday I will be old......But not today!

IP Logged

Savageman Senior Member Offline Knowledge is half the battle Posts: 275 Marysville, California Gender:	Re: Battery drain after charging. Reply #19 - 05/31/16 at 10:37:36 Easiest thing at this point since your battery is under warranty. Exchange it for a new one. Check your charging voltage with a good DMM or DVM. Can be purchased at Harbor freight for cheap or free with a coupon. Don't perform Brain Surgery on a hang nail!
Back to top	IP Logged

justin_o_guy2

Serious Thumper

Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.

Re: Battery drain after charging.
Reply #20 - 05/31/16 at 11:37:50

Batteries are fickle beasts. If you have a problem, start with getting it tested. I would rather Not have one tested by the same people who will be replacing it for free, first. IDK if wal mart tests bike batteries, but they took the backhoe battery that I thought was dead meat after I left the key on and resurrected it. It's been around four years ago and it's still kicking. They have a very sophisticated machine that charges a battery as it monitors the thing. They handed me a printout that showed parameters of battery life and function I didn't know existed.
Much more than the tests I'm used to seeing done at the car parts house. They have a charger and a load tester and a volt meter... heck, I have that..

Back to top

The people never give up their liberties but under some delusion.- Edmund Burke.

IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: Battery drain after charging. Reply #21 - 05/31/16 at 12:09:38 if you check the voltage coming from the stator ,you've disconnected it from the rectomfryer so that any two of the three yellow wires should read 100 volts but this is AC volts (hasn't been rectumfryed).
Back to top	my old work mates called me MacGyver IP Logged

Kris01 Serious Thumper Offline Eat, sleep, RIDE! Posts: 3767 Tennessee Gender:	Re: Battery drain after charging. Reply #22 - 05/31/16 at 17:37:26 Wait... the stator produces 100ACV which gets rectified to DCV and the regulator drops it to 12-14V? No wonder it gets so hot!
Back to top	There's no problem that a full tank of gas and a sunny day can't fix! 2008 S40, Rotella T 15W-40 w/ZDDP added, Dyna, 140/90-15, Battery Tender Jr., Seat lift, #52.5/150/3 washers, Raptor IP Logged

Savageman Senior Member Offline Knowledge is half the battle Posts: 275 Marysville, California Gender:	Re: Battery drain after charging. Reply #23 - 05/31/16 at 19:57:42 And be careful because 100VAC will knock you on yer ass.
Back to top	IP Logged

LS650THUMPER Junior Member Offline SuzukiSavage.com Rocks! Posts: 64 Ma Gender:	Re: Battery drain after charging. Reply #24 - 06/19/16 at 11:28:44 Ok replaced rectumfyer..no change.. looks like I will be getting new stator.
Back to top	IP Logged

LS650THUMPER Junior Member Offline SuzukiSavage.com Rocks! Posts: 64 Ma Gender:	Re: Battery drain after charging. Reply #25 - 09/27/16 at 15:14:21 After some time away. Replaced rectumfryer no change, so I'm Ready to tackle stator replacement.. 1st question, any special tools needed. 2. Remove cover and replace.
Back to top	IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28886 L.A. California Gender:	Re: Battery drain after charging. Reply #26 - 09/27/16 at 15:16:53 None that I know of. yes just r&r cover. and note the cover is hard to get off, held on by magnets.
Back to top	Versey's Place Tech Section Index IP Logged

Savageman Senior Member Offline Knowledge is half the battle Posts: 275 Marysville, California Gender:	Re: Battery drain after charging. Reply #27 - 09/27/16 at 17:32:47 I don't think it's the stator. OHM it out and then each wire to ground. Post readings. Right at the large connector at the rectumfrier. Should be 3 yellow wires that come from stator. Usually the stator coils don't burn out unless someone jumped it and left the cables on to long. Check ALL your connections.
Back to top	IP Logged

LS650THUMPER Junior Member Offline SuzukiSavage.com Rocks! Posts: 64 Ma Gender:	Re: Battery drain after charging. Reply #28 - 09/28/16 at 19:31:36 Ty will check w/meter... Not jumped...but do notice possible belt dustyness. could belt dust get in the stator area ??
Back to top	IP Logged

Armen Serious Thumper Offline Half-Witted Wrench-Jockey from Jersey Posts: 1452	Re: Battery drain after charging. Reply #29 - 09/28/16 at 19:37:25 Nope. Stator is under a sealed cover. If dust could get in, oil would be leaking out.
