SUZUKI BOULEVARD S50 VS800 risers/yoke
03/25/16 at 08:05:11

SUZUKI BOULEVARD S50 VS800 risers/yoke, will fit our S40

UPDATE -
Quote:

couple of "adjustments" you need to be aware of:

You will need to adjust your controls, and mirror mounts. The controls are JIS phillips screws (the funky japanese screws) BE CAREFUL, they strip easily if you don't have the JIS screwdrivers.
http://www.amazon.com/Hozan-JIS-4-JIS-Screwdriver-3rd/dp/B00A7WAHTU

The mirror mounts are METRIC allen heads. Easy enough to loosen and adjust the mounts.

Watch the bar centering in the dogbone. You will see the alignment dimple is now a bit wonky and any discoloring from the original mounting should help get it right.

another tip - I used a piece of cardboard box folded in half to give me enough clearance on the controls over the gas cap, right-side.

Back to top

« Last Edit: 04/14/16 at 16:52:55 by DesertRat »

-The silence of indifference makes cowards of men.
- http://www.pipeburn.com/home/category/rat

IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28764 L.A. California Gender:	Re: SUZUKI BOULEVARD S50 VS800 risers/yoke Reply #1 - 03/25/16 at 08:25:16 I think they have a bigger thru bolt. so you'd have to pull the tube that goes thru the rubbers and leave it out or put a bigger tube in.
Back to top	Versey's Place Tech Section Index IP Logged

DesertRat Serious Thumper Offline I love rat bikes! Posts: 1569 Arizona	Re: SUZUKI BOULEVARD S50 VS800 risers/yoke Reply #2 - 03/25/16 at 12:05:18 thanks Verslagen
Back to top	-The silence of indifference makes cowards of men. - http://www.pipeburn.com/home/category/rat IP Logged

DesertRat Serious Thumper Offline I love rat bikes! Posts: 1569 Arizona	Re: SUZUKI BOULEVARD S50 VS800 risers/yoke Reply #3 - 04/08/16 at 21:30:08 1992 - 2004 SUZUKI INTRUDER VS800 HANDLE BAR RISERS fit our bikes.
Back to top	IMG_0737_copy.jpg -The silence of indifference makes cowards of men. - http://www.pipeburn.com/home/category/rat IP Logged

DesertRat Serious Thumper Offline I love rat bikes! Posts: 1569 Arizona	Re: SUZUKI BOULEVARD S50 VS800 risers/yoke Reply #4 - 04/08/16 at 21:31:28
Back to top	IMG_0735_copy.jpg -The silence of indifference makes cowards of men. - http://www.pipeburn.com/home/category/rat IP Logged

DesertRat Serious Thumper Offline I love rat bikes! Posts: 1569 Arizona	Re: SUZUKI BOULEVARD S50 VS800 risers/yoke Reply #5 - 04/08/16 at 21:32:54

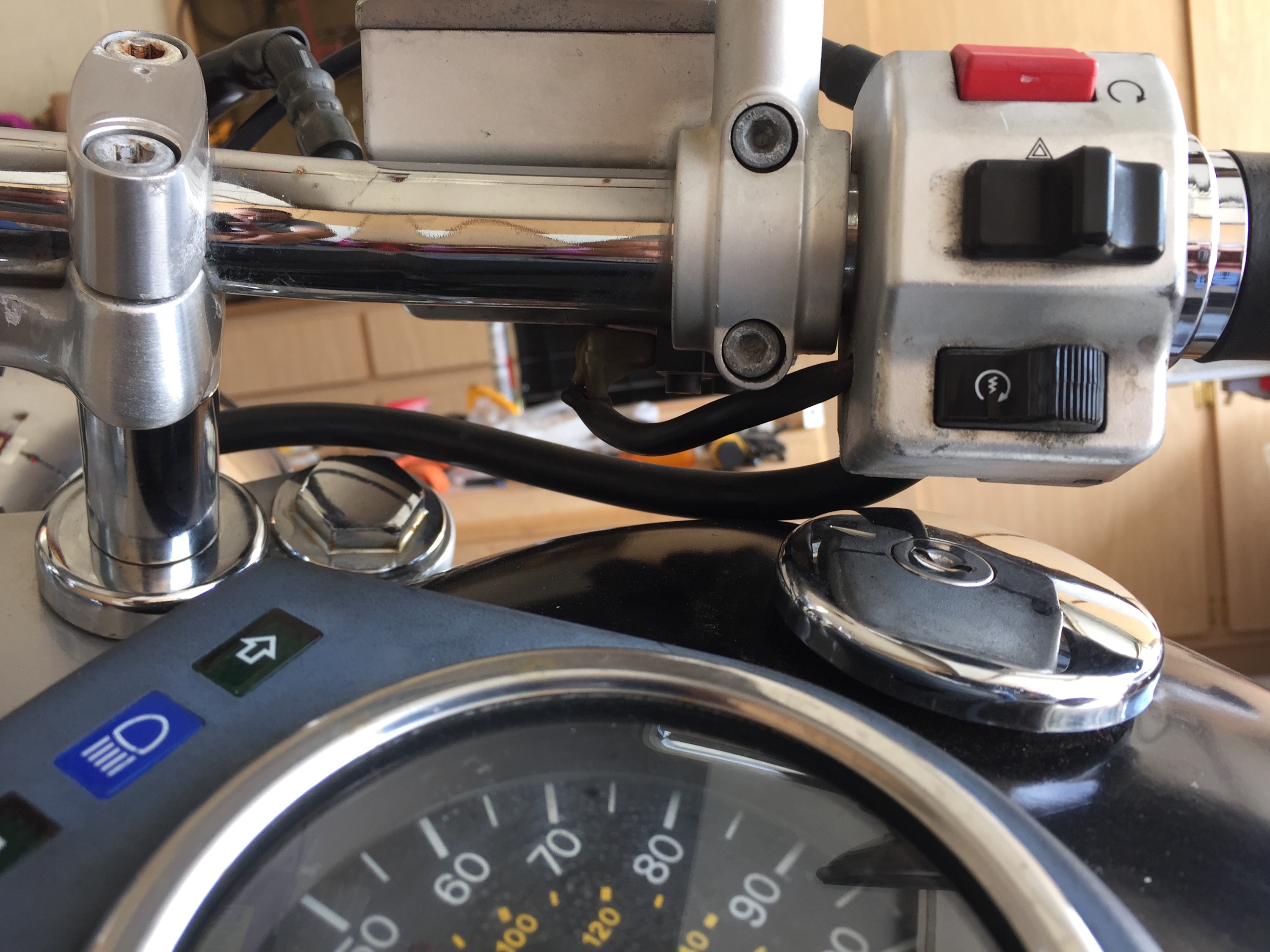

Back to top	IMG_0749_copy.jpg -The silence of indifference makes cowards of men. - http://www.pipeburn.com/home/category/rat IP Logged

DesertRat Serious Thumper Offline I love rat bikes! Posts: 1569 Arizona	Re: SUZUKI BOULEVARD S50 VS800 risers/yoke Reply #6 - 04/08/16 at 21:33:48
Back to top	IMG_0750_copy.jpg -The silence of indifference makes cowards of men. - http://www.pipeburn.com/home/category/rat IP Logged

norm92de Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1180 El Paso TX Gender:	Re: SUZUKI BOULEVARD S50 VS800 risers/yoke Reply #7 - 04/09/16 at 09:14:34 Nice find. Do you have the part#. Better than sockets but knowing Suzuki more expensive. :'(
Back to top	2014 S40. Raptor. idle mixture adj.Needle raised one notch. 4000' altitude. Stock jets. Shell Rotella synthetic. IP Logged

DesertRat

Serious Thumper

Offline

I love rat bikes!

Posts: 1569
Arizona

Re: SUZUKI BOULEVARD S50 VS800 risers/yoke
Reply #8 - 04/09/16 at 11:00:48

norm92de,

I purchased as a set (US $23.95), with everything off eBay. All 1992 - 2004 SUZUKI INTRUDER VS800 VS 800 HANDLE BAR RISERS MOUNTS will fit our bikes.

It takes a LOT of parts to get the complete setup. I wound up using just part #'s 10 & 16-19 from the eBay set and my original DOG BONE and TOP clamps.

Here's the OEM microfiche,

and PRICES from BikeBandit - YOU WILL NEED 2x of every part # here (so it's WAY less expensive if you buy used)

10: STAY HANDLE
1099515 56231-38A50 $39.81 $34.63
16: DAMPER, RUBBER
1099534 56240-38A42 $35.11 $30.55
17: CUSHION,RUBBER,
1099557 56242-39A12 $30.20 $26.27
18: WASHER
1093424 51354-38A40 $6.06 $5.70
19: NUT FINAL GEAR
1024600 09159-10027 $2.41 $2.41

Back to top

-The silence of indifference makes cowards of men.
- http://www.pipeburn.com/home/category/rat

IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: SUZUKI BOULEVARD S50 VS800 risers/yoke Reply #9 - 04/09/16 at 13:52:55 Saved a quick $175.00..
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

norm92de Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1180 El Paso TX Gender:	Re: SUZUKI BOULEVARD S50 VS800 risers/yoke Reply #10 - 04/09/16 at 16:59:40 Desertrat, Thanks for the info. Looking at the drawing it looks like I would only need 2 of part #10. Any bolts etc. would be available from hardware stores. I did something similar on a Triumph and it worked very well using 3/8" bolts. Am I missing something?
Back to top	2014 S40. Raptor. idle mixture adj.Needle raised one notch. 4000' altitude. Stock jets. Shell Rotella synthetic. IP Logged

DesertRat

Serious Thumper

Offline

I love rat bikes!

Posts: 1569
Arizona

Re: SUZUKI BOULEVARD S50 VS800 risers/yoke
Reply #11 - 04/09/16 at 17:31:55

Norm93de,
you MAY need part #'s 16 & 17, if your originals are too small. On ours, there's a metal insert in the rubber, which is removable, but I didn't bother with. Your mileage may vary.

And use some sort of lube (wd40) on the posts and grommets, she doesn't like a DRY insert, and leave the grommets loose, once they're wrenched down you ain't inserting the risers, no way no how.

Back to top

-The silence of indifference makes cowards of men.
- http://www.pipeburn.com/home/category/rat

IP Logged

norm92de Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1180 El Paso TX Gender:	Re: SUZUKI BOULEVARD S50 VS800 risers/yoke Reply #12 - 04/09/16 at 17:57:48 Desertrat, It seems that the #10 part is the riser and the bolt combined into one piece? My S40 risers just slip off if the nuts are removed. There is a spacer in there but I didn't need to remove it.
Back to top	2014 S40. Raptor. idle mixture adj.Needle raised one notch. 4000' altitude. Stock jets. Shell Rotella synthetic. IP Logged

DesertRat Serious Thumper Offline I love rat bikes! Posts: 1569 Arizona	Re: SUZUKI BOULEVARD S50 VS800 risers/yoke Reply #13 - 04/09/16 at 18:08:51 yes, the riser and bolt are one unit on the S50 swap. You will have to remove the spacer in your stock grommets.
Back to top	-The silence of indifference makes cowards of men. - http://www.pipeburn.com/home/category/rat IP Logged

norm92de Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1180 El Paso TX Gender:	Re: SUZUKI BOULEVARD S50 VS800 risers/yoke Reply #14 - 04/09/16 at 20:13:37 I hate it when that happens! :'(
