Slimmer low profile seat mod?
02/28/16 at 12:05:55

Hey guys/gals/other so I've gotten my bike to a place where I'm really digging it... however I was wondering if anyone knows of a relatively easy (not trying to build my own seat from scratch) mod or aftermarket seat that's slimmer and lower profile than the stock seat? I would prefer to keep the passenger seat as well... a king queen would be awesome but I know that's a stretch. any help at all if very much appreciated! thanks. Smiley

"Give a man a match, and he'll be warm for a minute, but set him on fire, and he'll be warm for the rest of his life"

IP Logged

old.indian Serious Thumper Offline Fighting Foreign Terrorism since 1492 Posts: 975 Central New Mexico Gender:	Re: Slimmer low profile seat mod? Reply #1 - 02/28/16 at 13:26:14 I bought a Corbin that sounds like what you are describing. I found mine at an excellent price on "The Marketplace" last October. There are still pictures of it. if you care to look.
Back to top	Lectron carb, modified head, stage 3 cam, Wiseco piston, header and Dyna, Varsi's cam chain adjuster, head plug and drilled rotor, Tkat, 12" shocks and 17/43 chain conversion.EdL's 4"FCs IP Logged

smokin_blue

Serious Thumper

Offline

From Cafes to
Streetfighters! I
build them all!

Posts: 830
St. Paul, MN
Gender: male

Re: Slimmer low profile seat mod?
Reply #2 - 02/28/16 at 17:53:30

not sure exactly what you are looking for but if you haven't take a look at the build I am working on right now at this link.

http://suzukisavage.com/cgi-bin/YaBB.pl?num=1453341892

you can ignore the mod to the front of the seat as that was only needed due to the new tank. The rear mod was to cut down the profile of the seat. I used the stock cover. You don't have to do the full mod that I did where I even modded the pan. I did that only because I was very picky and wanted an exact look.

My website http://street-unique.com

IP Logged

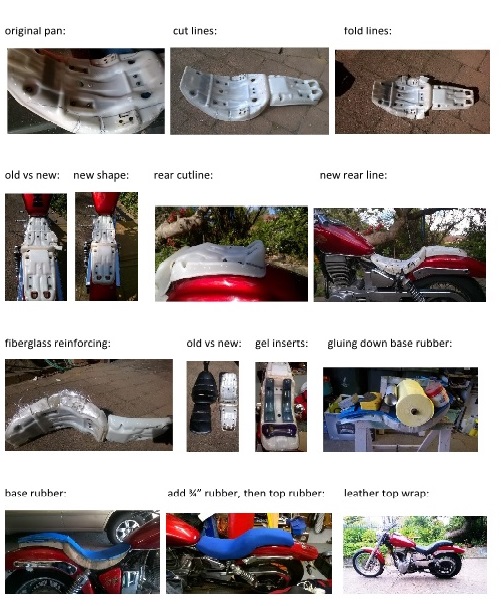

Blade Full Member Offline Posts: 135 Sydney Australia Gender:	Re: Slimmer low profile seat mod? Reply #3 - 02/29/16 at 17:17:24 When my seat cover split I decided to give it a new shape while recovering. I cut the original pan down, added gel inserts and foam then recovered in leather.
Back to top	Savage_seat_mod.jpg IP Logged

Kris01 Serious Thumper Offline Eat, sleep, RIDE! Posts: 3767 Tennessee Gender:	Re: Slimmer low profile seat mod? Reply #4 - 02/29/16 at 19:02:08 Blade, that looks interesting. Can you post bigger pictures?
Back to top	There's no problem that a full tank of gas and a sunny day can't fix! 2008 S40, Rotella T 15W-40 w/ZDDP added, Dyna, 140/90-15, Battery Tender Jr., Seat lift, #52.5/150/3 washers, Raptor IP Logged

Blade Full Member Offline Posts: 135 Sydney Australia Gender:	Re: Slimmer low profile seat mod? Reply #5 - 02/29/16 at 20:14:55 sure-

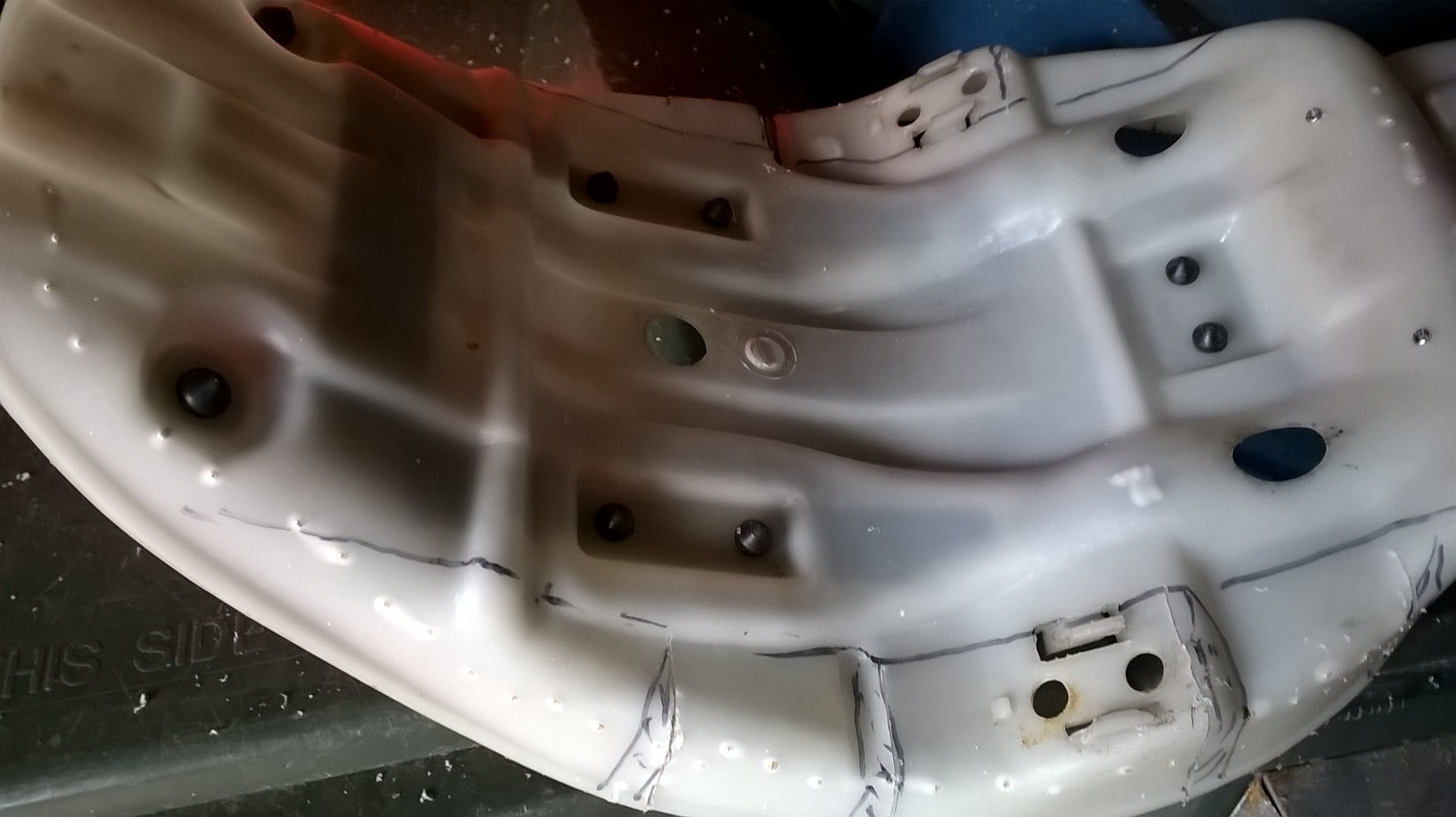

Back to top	1_original_pan.jpg IP Logged

Blade Full Member Offline Posts: 135 Sydney Australia Gender:	Re: Slimmer low profile seat mod? Reply #6 - 02/29/16 at 20:15:41 .

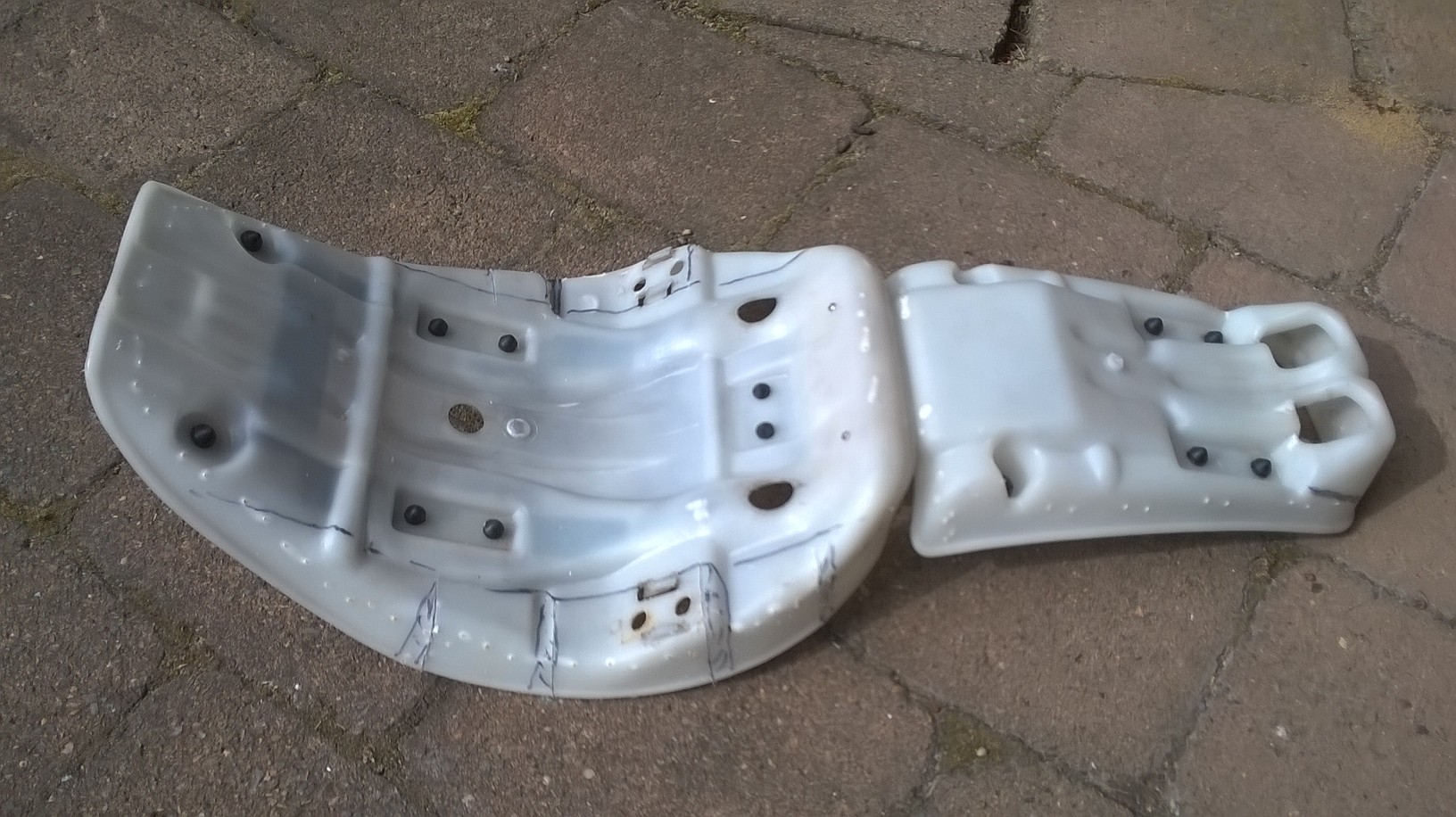

Back to top	2_cutlines.jpg IP Logged

Blade Full Member Offline Posts: 135 Sydney Australia Gender:	Re: Slimmer low profile seat mod? Reply #7 - 02/29/16 at 20:16:43 .

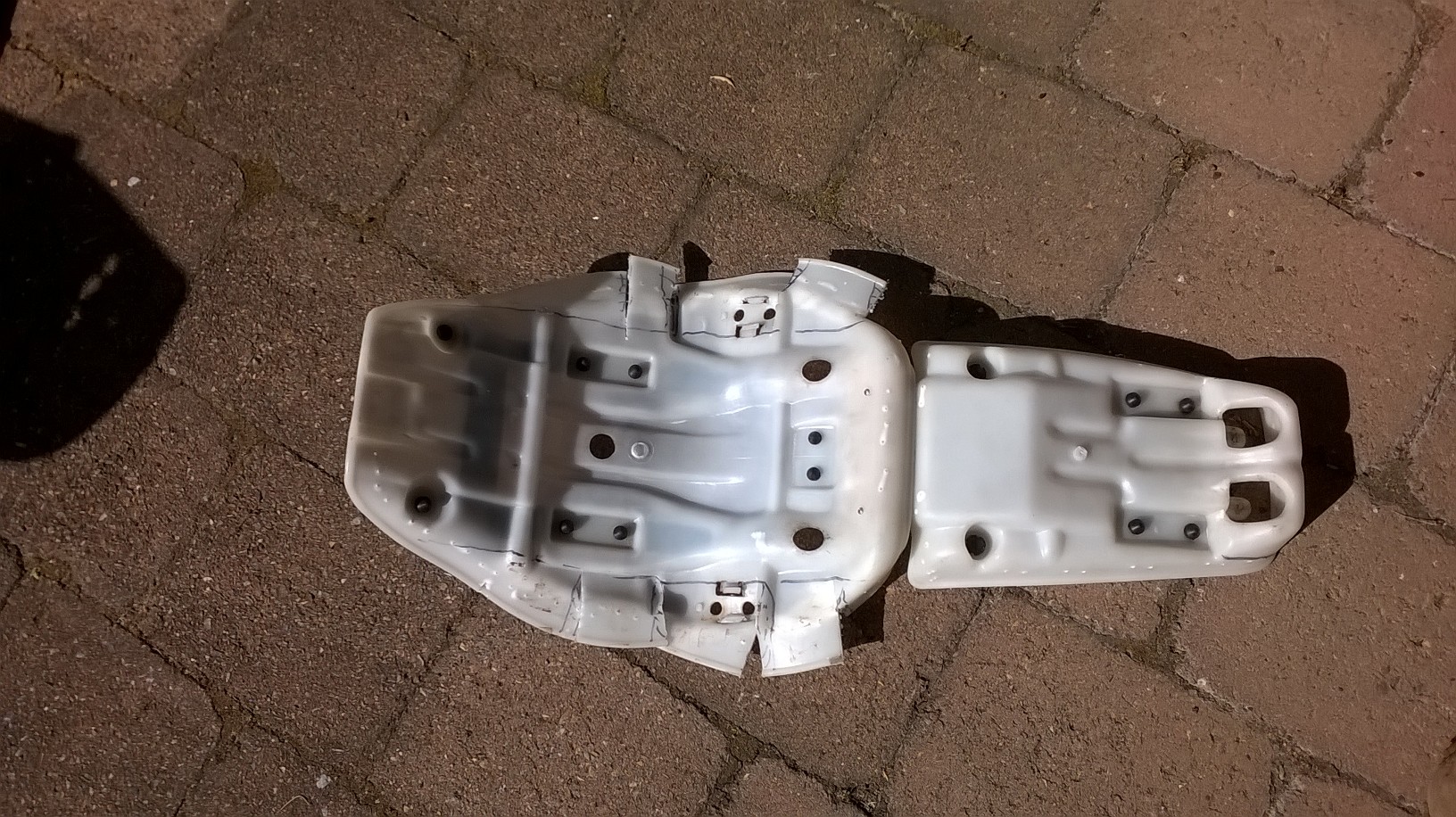

Back to top	3_fold_longlines.jpg IP Logged

Blade Full Member Offline Posts: 135 Sydney Australia Gender:	Re: Slimmer low profile seat mod? Reply #8 - 02/29/16 at 20:18:24 .

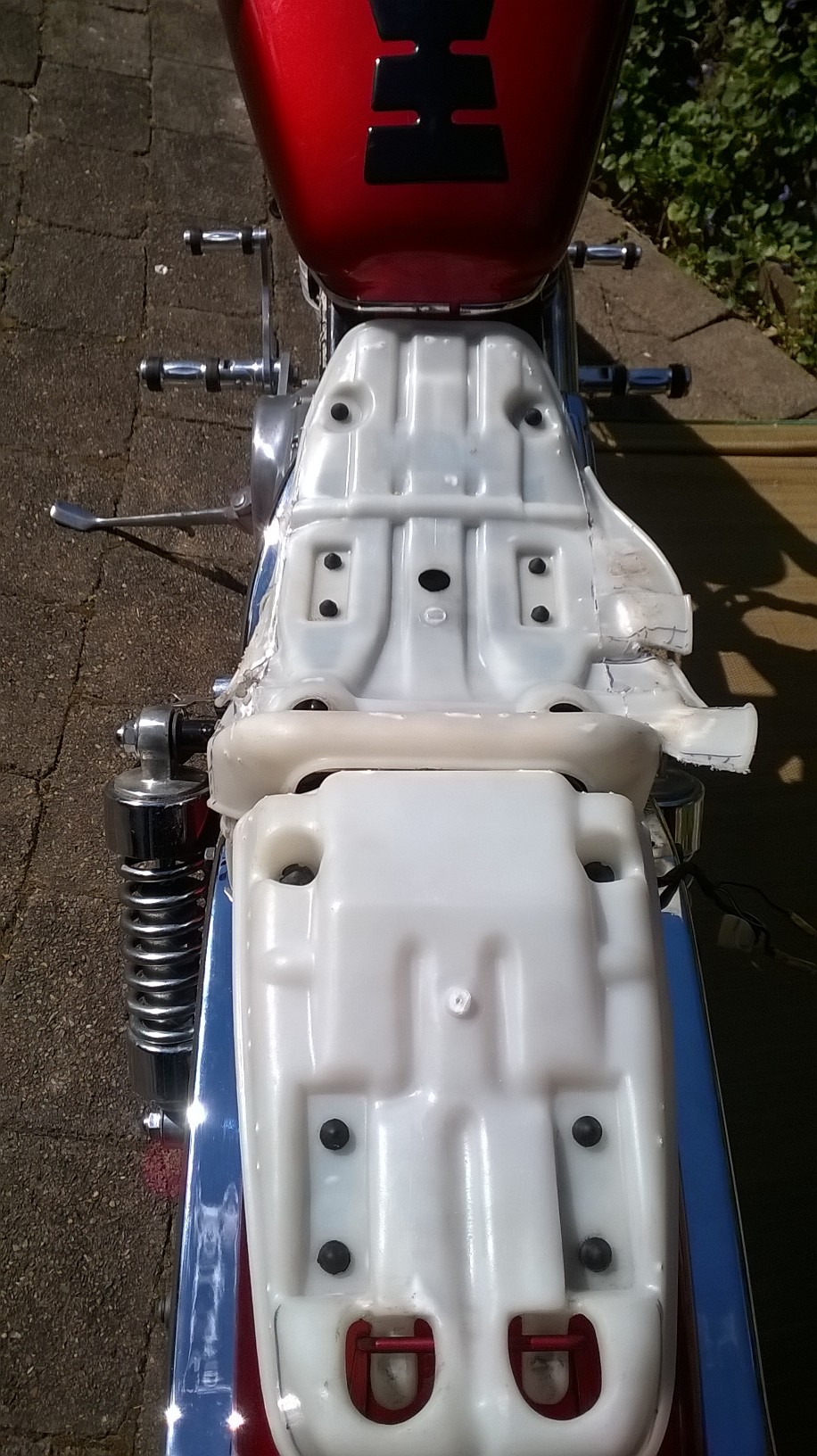

Back to top	4_old_and_new.jpg IP Logged

Blade Full Member Offline Posts: 135 Sydney Australia Gender:	Re: Slimmer low profile seat mod? Reply #9 - 02/29/16 at 20:19:50 .

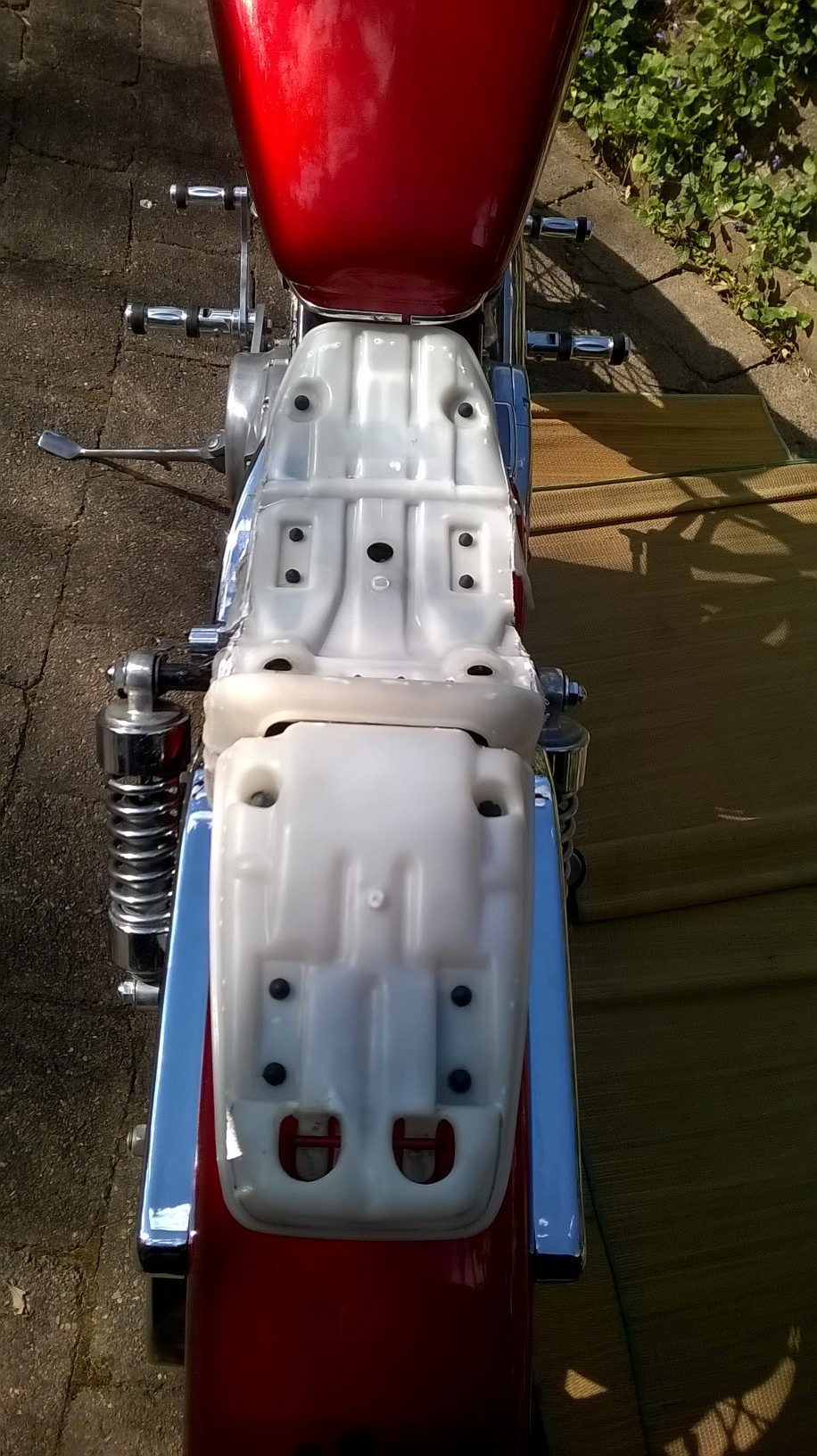

Back to top	5_new__shape.jpg IP Logged

Blade Full Member Offline Posts: 135 Sydney Australia Gender:	Re: Slimmer low profile seat mod? Reply #10 - 02/29/16 at 20:21:28 .

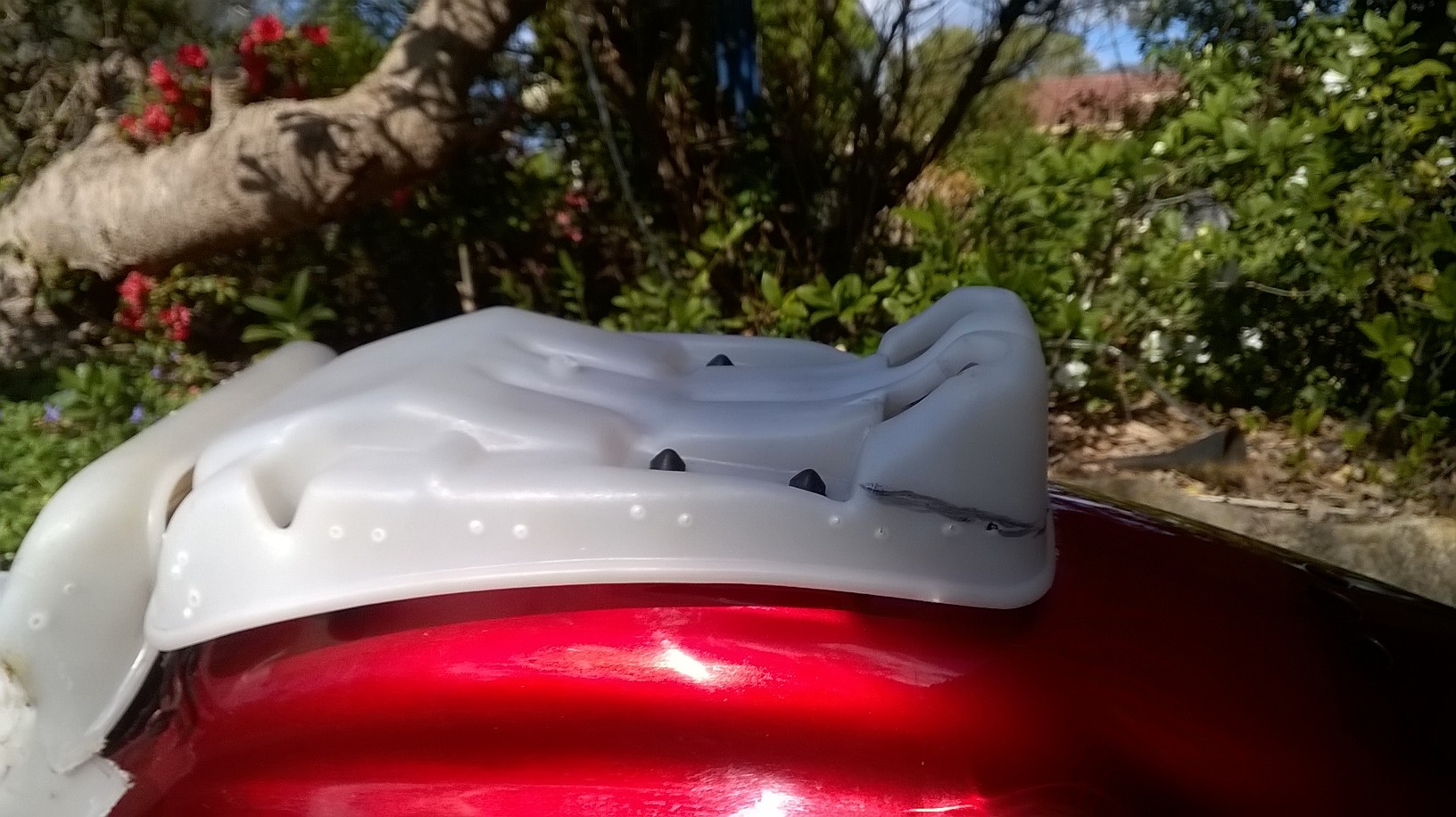

Back to top	6_rear_cut_line.jpg IP Logged

Blade Full Member Offline Posts: 135 Sydney Australia Gender:	Re: Slimmer low profile seat mod? Reply #11 - 02/29/16 at 20:22:30 .

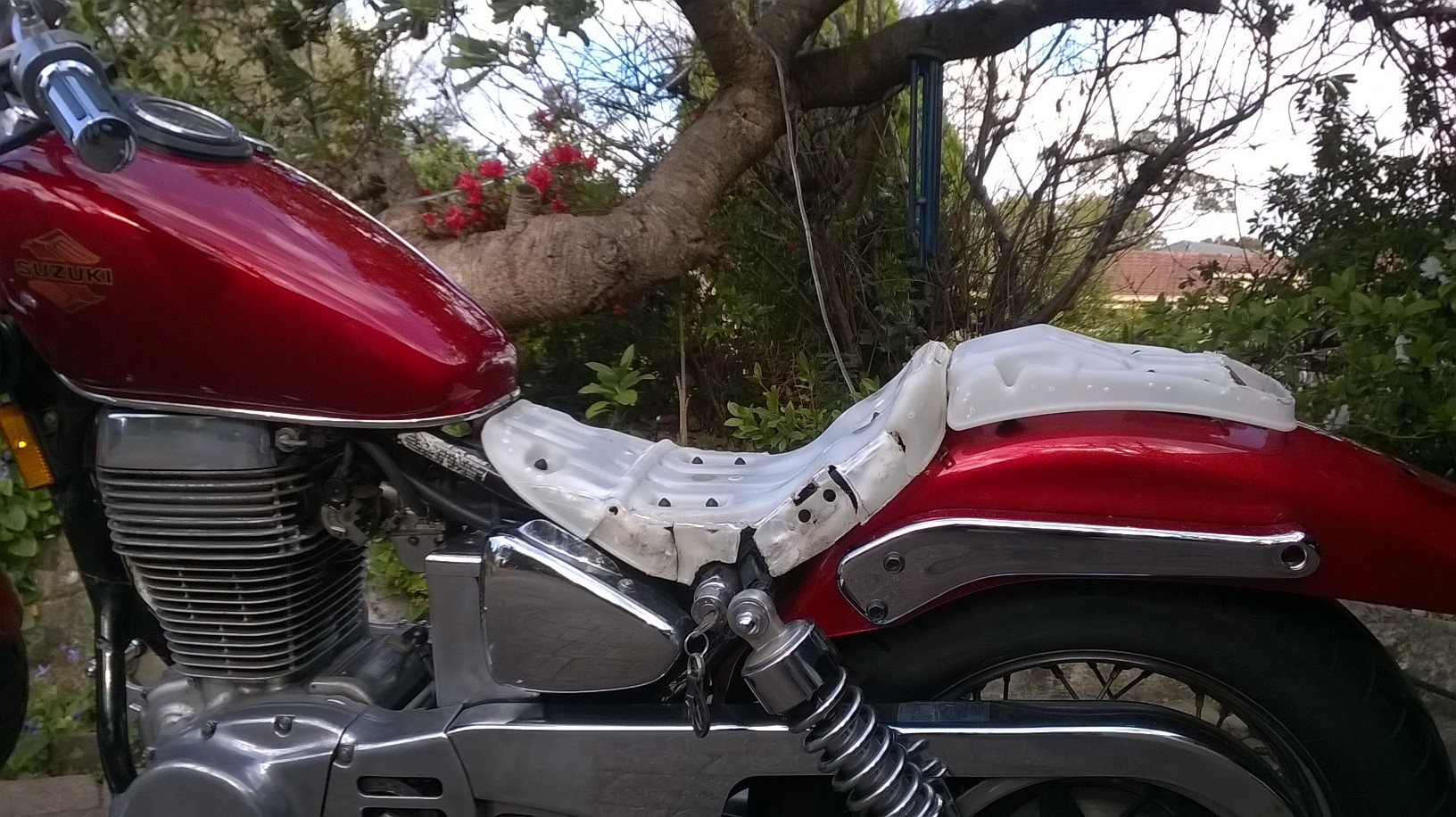

Back to top	7_new_rear_line.jpg IP Logged

Blade Full Member Offline Posts: 135 Sydney Australia Gender:	Re: Slimmer low profile seat mod? Reply #12 - 02/29/16 at 20:23:37 .

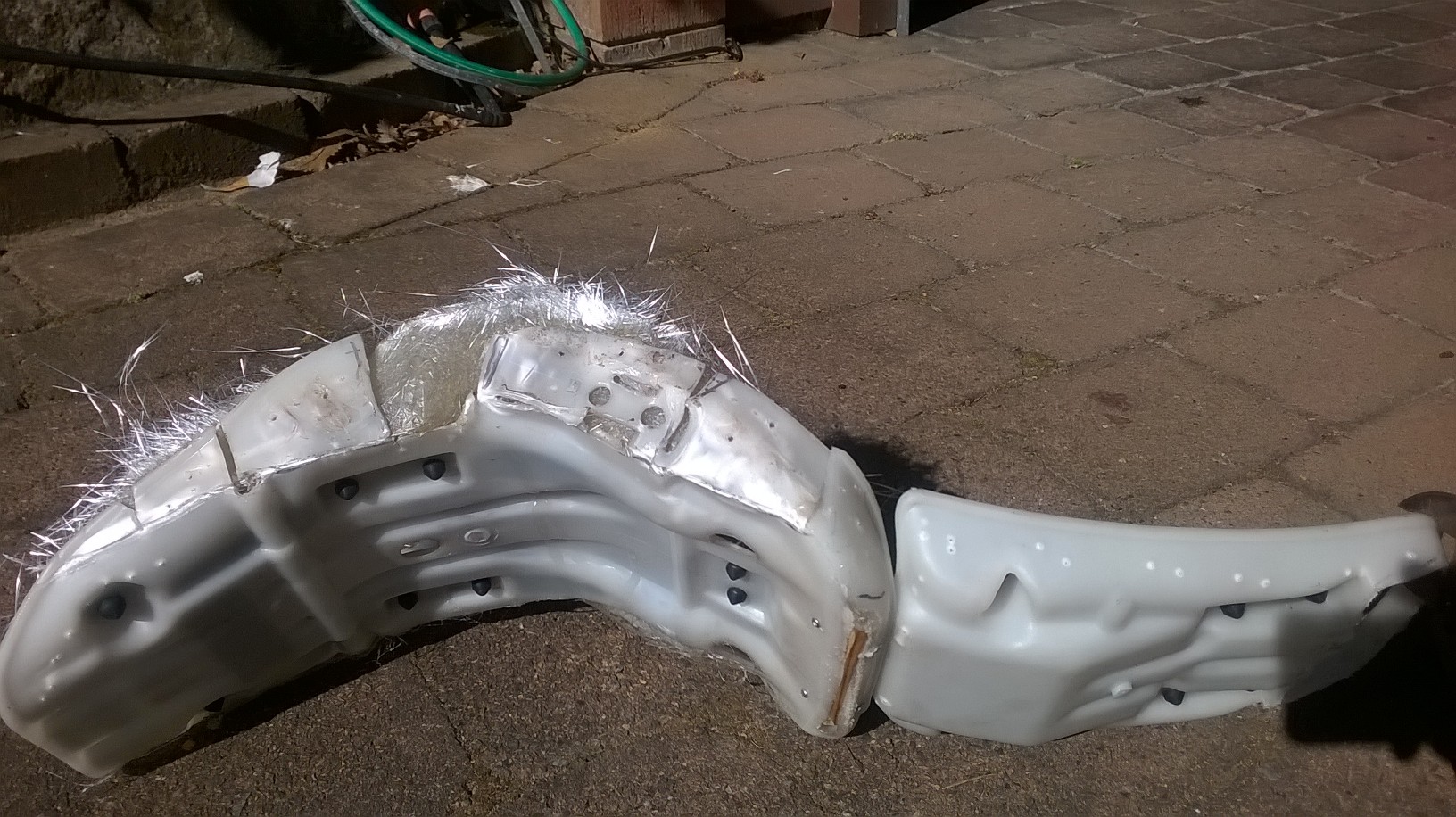

Back to top	8_fiberglass.jpg IP Logged

Blade Full Member Offline Posts: 135 Sydney Australia Gender:	Re: Slimmer low profile seat mod? Reply #13 - 02/29/16 at 20:24:43 .

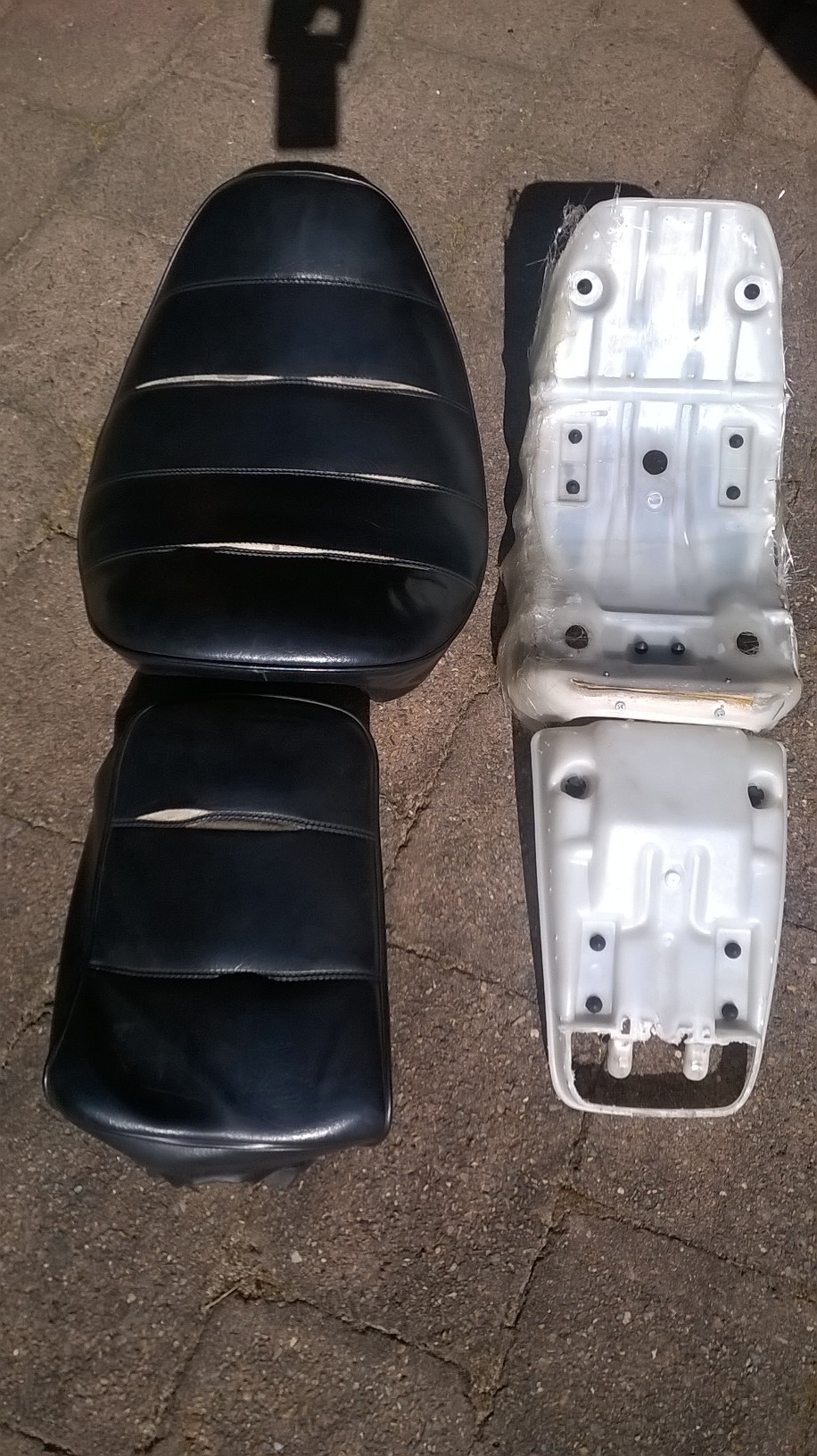

Back to top	9_before_and_after.jpg IP Logged

Blade Full Member Offline Posts: 135 Sydney Australia Gender:	Re: Slimmer low profile seat mod? Reply #14 - 02/29/16 at 20:25:33 .

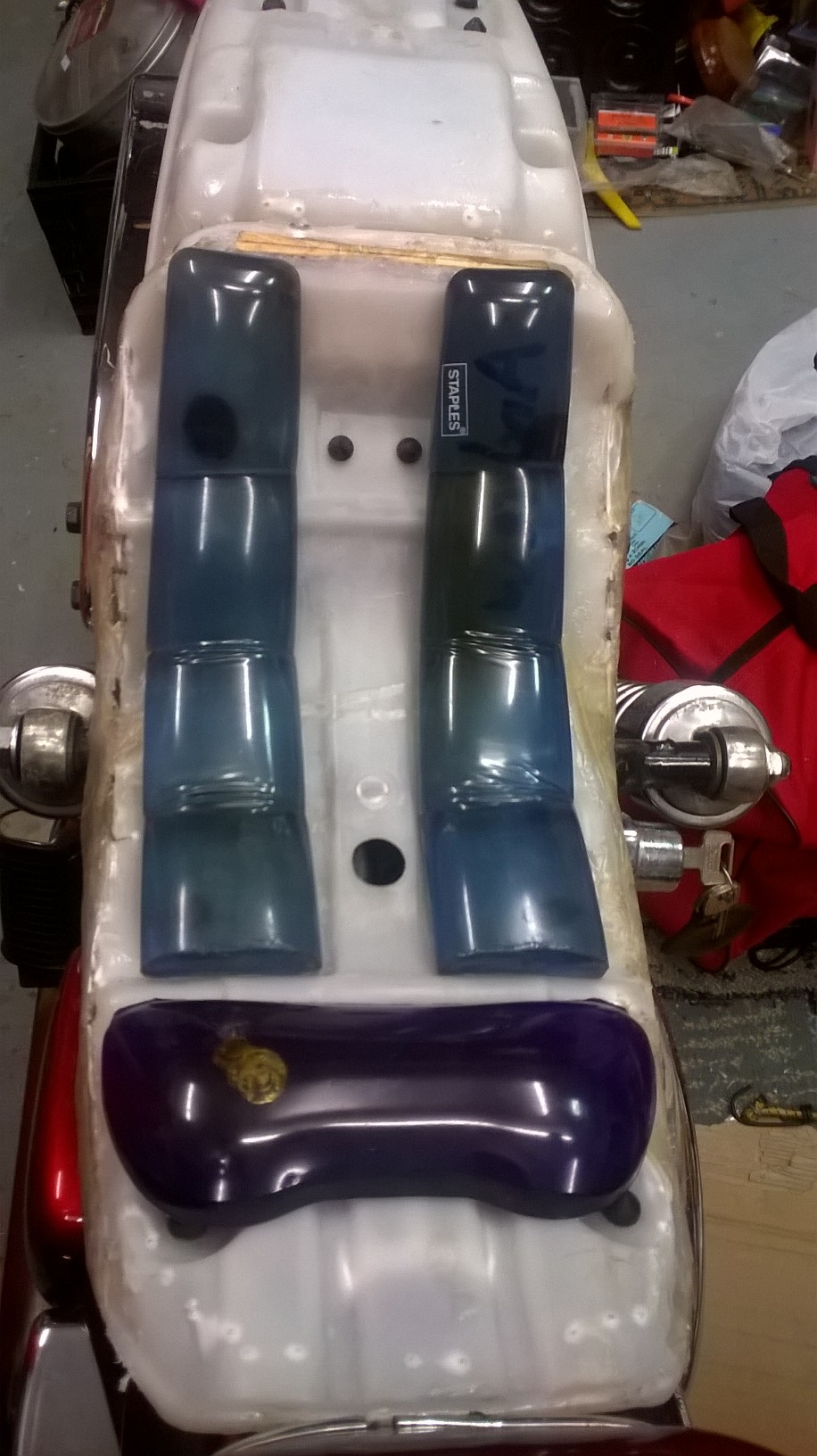

Back to top	10_gel_inerts.jpg IP Logged
