Fork oil amount (Read 226 times)
Michaelmarco
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 4

Fork oil amount
10/05/15 at 00:32:33

Hello i need to change fork oil how much do I put in my bike is a 2005 that was in a accident so I got a used set from eBay but when they shipped them they drained the oil and took out spacers so they could get cheaper shipping the forks seem to be in good shape seals look good so I am thinking just refill from the top and install but I don't know how much the factory recommends
Back to top

« Last Edit: 10/05/15 at 06:17:23 by Michaelmarco »
  IP Logged
Gary_in_NJ
Serious Thumper
*****
Offline

LS650 Cafe Racer

Posts: 2633
Amongst the Twisty Roads
Re: Fork oil amount
Reply #1 - 10/05/15 at 06:41:10

15oz each. With the spring out and the tube at the bottom of the stroke you should be able to measure 75mm between the top of the oil and the top of the fork tube.
Back to top



A life-time student of motorcycling.
LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS
My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG
  IP Logged
verslagen1
YaBB Moderator
ModSquad
*****
Offline

Where there's a
will, I want to be
in it.

Posts: 28885
L.A. California
Gender: male
Re: Fork oil amount
Reply #2 - 10/05/15 at 08:02:43

instruction and volume are in the tech section, look it up in the index.
Back to top


WWW   IP Logged
DesertRat
Serious Thumper
*****
Offline

I love rat bikes!

Posts: 1569
Arizona
Re: Fork oil amount
Reply #3 - 10/17/15 at 12:02:23

pictures would be helpful.

Im lost as how to do this with the forks on the bike, is it even possible or recommended?

Back to top



-The silence of indifference makes cowards of men.
- http://www.pipeburn.com/home/category/rat
  IP Logged
Gary_in_NJ
Serious Thumper
*****
Offline

LS650 Cafe Racer

Posts: 2633
Amongst the Twisty Roads
Re: Fork oil amount
Reply #4 - 10/19/15 at 06:18:11

If you don't care about getting it right, it can be done with the forks attached. If your goal is to get it right...

1) remove the forks.
2) completely drain the forks of the old oil. You will need to pump them (while upside down) to clear the oil from the damping rod.
3) with the fork standing vertical, add the required oil to achieve the recommended 75mm gap.
Back to top



A life-time student of motorcycling.
LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS
My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG
  IP Logged
DesertRat
Serious Thumper
*****
Offline

I love rat bikes!

Posts: 1569
Arizona
Re: Fork oil amount
Reply #5 - 10/19/15 at 06:45:51

Thanks Gary, I was thinking I could pump the oil out while on the bike. Brain Fart I guess, or trying to be LAZY.
Back to top



-The silence of indifference makes cowards of men.
- http://www.pipeburn.com/home/category/rat
  IP Logged
Gary_in_NJ
Serious Thumper
*****
Offline

LS650 Cafe Racer

Posts: 2633
Amongst the Twisty Roads
Re: Fork oil amount
Reply #6 - 10/19/15 at 10:19:07

Fork removal takes just a few minutes. Get a 6x6 and a few 2x4's to make a poor man's bike stand then...

- Remove brake caliper from its mount (don't let it hang by the hose)
- Remove the front wheel
- Loosen the fork cap
- Loosen the lower triple clamp bolt and turn signal mount
- Remove fork cap and wiggle the fork with a down motion until it clears the lower clamp.
Back to top



A life-time student of motorcycling.
LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS
My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG
  IP Logged
DesertRat
Serious Thumper
*****
Offline

I love rat bikes!

Posts: 1569
Arizona
Re: Fork oil amount
Reply #7 - 10/19/15 at 18:21:23

thanks Gary ... sounds easy
Back to top



-The silence of indifference makes cowards of men.
- http://www.pipeburn.com/home/category/rat
  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.
Re: Fork oil amount
Reply #8 - 10/20/15 at 21:59:44

That's a fat screw up under the turn signal.  Not a #2 Philips.
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
DesertRat
Serious Thumper
*****
Offline

I love rat bikes!

Posts: 1569
Arizona
Re: Fork oil amount
Reply #9 - 10/24/15 at 11:13:38

forks off. fork oil is dark as night.
Back to top



-The silence of indifference makes cowards of men.
- http://www.pipeburn.com/home/category/rat
  IP Logged
DesertRat
Serious Thumper
*****
Offline

I love rat bikes!

Posts: 1569
Arizona
Re: Fork oil amount
Reply #10 - 10/24/15 at 11:14:12

again, DARK AS NIGHT.
Back to top



-The silence of indifference makes cowards of men.
- http://www.pipeburn.com/home/category/rat
  IP Logged
Gary_in_NJ
Serious Thumper
*****
Offline

LS650 Cafe Racer

Posts: 2633
Amongst the Twisty Roads
Re: Fork oil amount
Reply #11 - 10/25/15 at 06:30:32

Yes, that does look ugly. I usually see used/worn old oil looking gray - not black.

Pump 'em good to expel the old oil.
Back to top



A life-time student of motorcycling.
LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS
My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG
  IP Logged
DesertRat
Serious Thumper
*****
Offline

I love rat bikes!

Posts: 1569
Arizona
Re: Fork oil amount
Reply #12 - 10/25/15 at 07:06:29

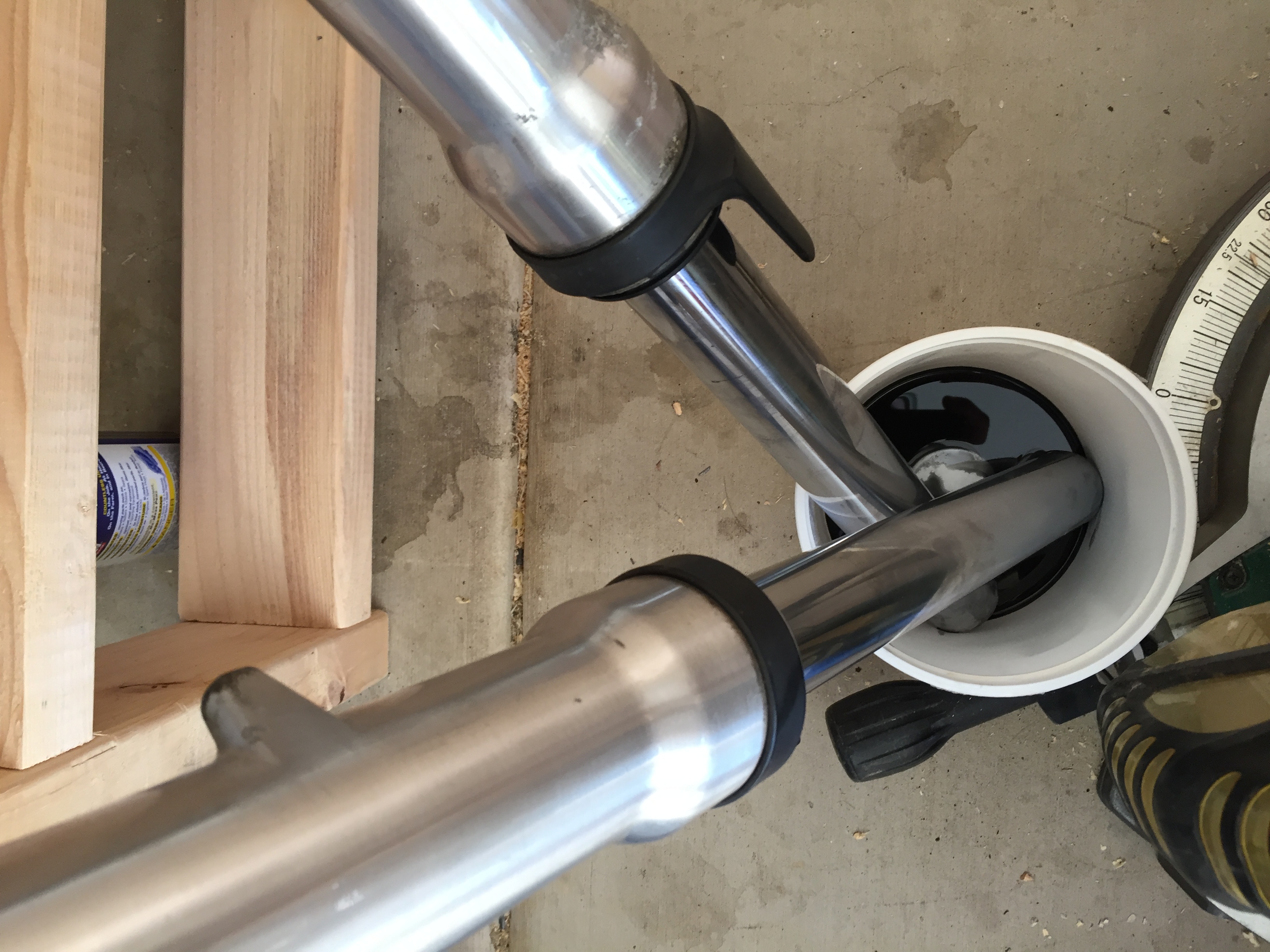

Compressed the shocks for a few minutes to get all I could then let them sit for a few hours upside down.

refilled them and reinstalled. Went for a ride and WOW  Shocked
what a difference.

Thanks all  Smiley
Back to top



-The silence of indifference makes cowards of men.
- http://www.pipeburn.com/home/category/rat
  IP Logged
