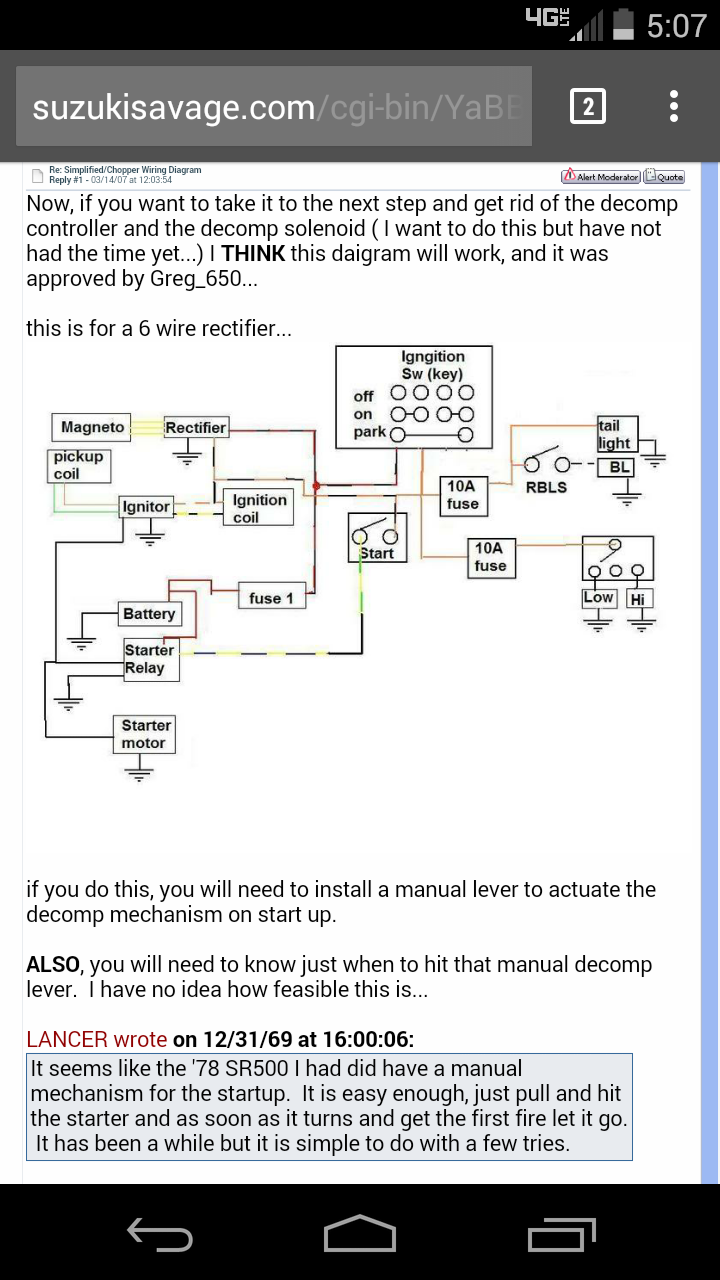

Boogieman Senior Member Offline Bang! Bang! Posts: 284 NORCAL Gender:	wiring? 10/21/14 at 13:57:18 so i wanna use this wiring setup for my but I'm still having problems identifying stuff. for instance: ignitor - is this called something else? RBLS - where and what is this? Where does the magic sh!t box go in this diagram?
Back to top	Screenshot_2014-10-09-17-07-29.png '03 LS 650 bobber - Highly modified...crashed it. IP Logged

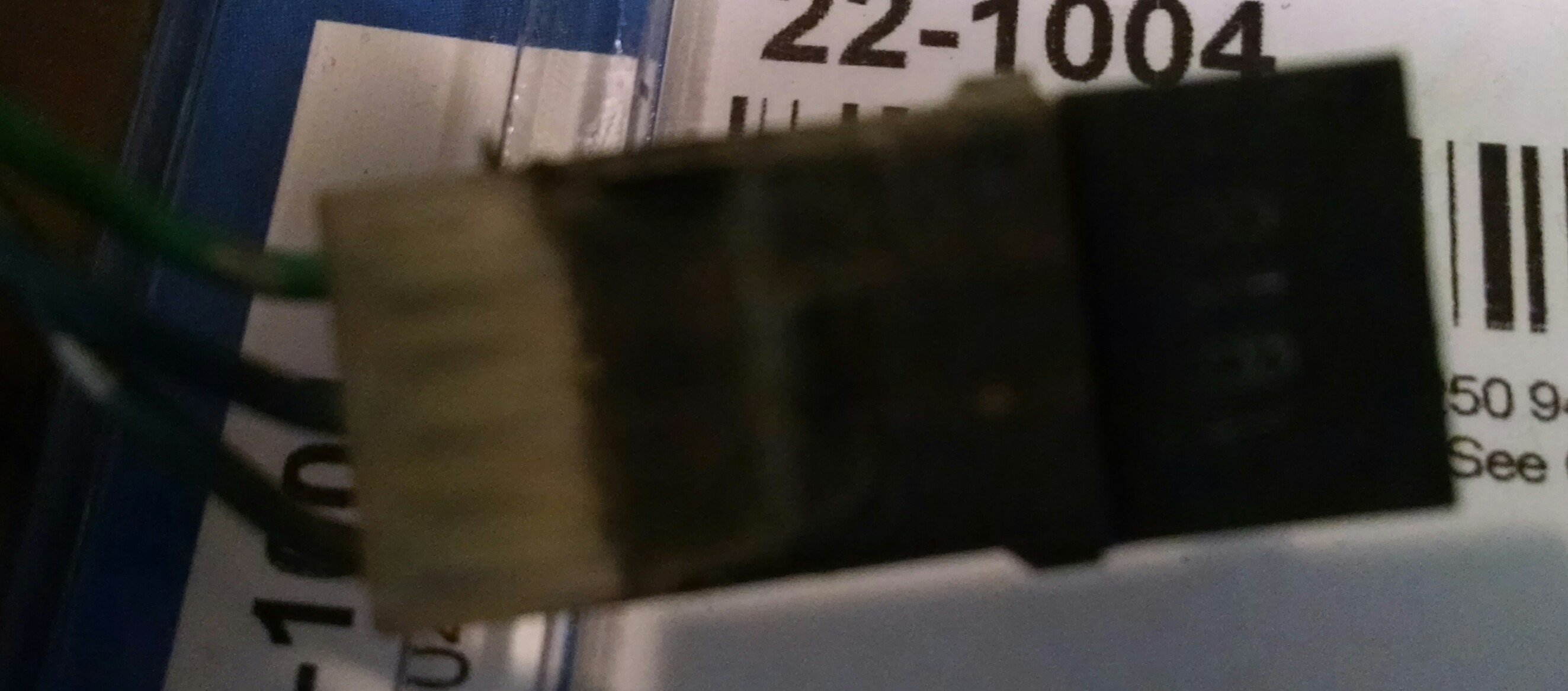

Boogieman Senior Member Offline Bang! Bang! Posts: 284 NORCAL Gender:	Re: wiring? Reply #1 - 10/21/14 at 13:59:22 also what is this and do i need it?
Back to top	IMG_20141021_135933.jpg '03 LS 650 bobber - Highly modified...crashed it. IP Logged

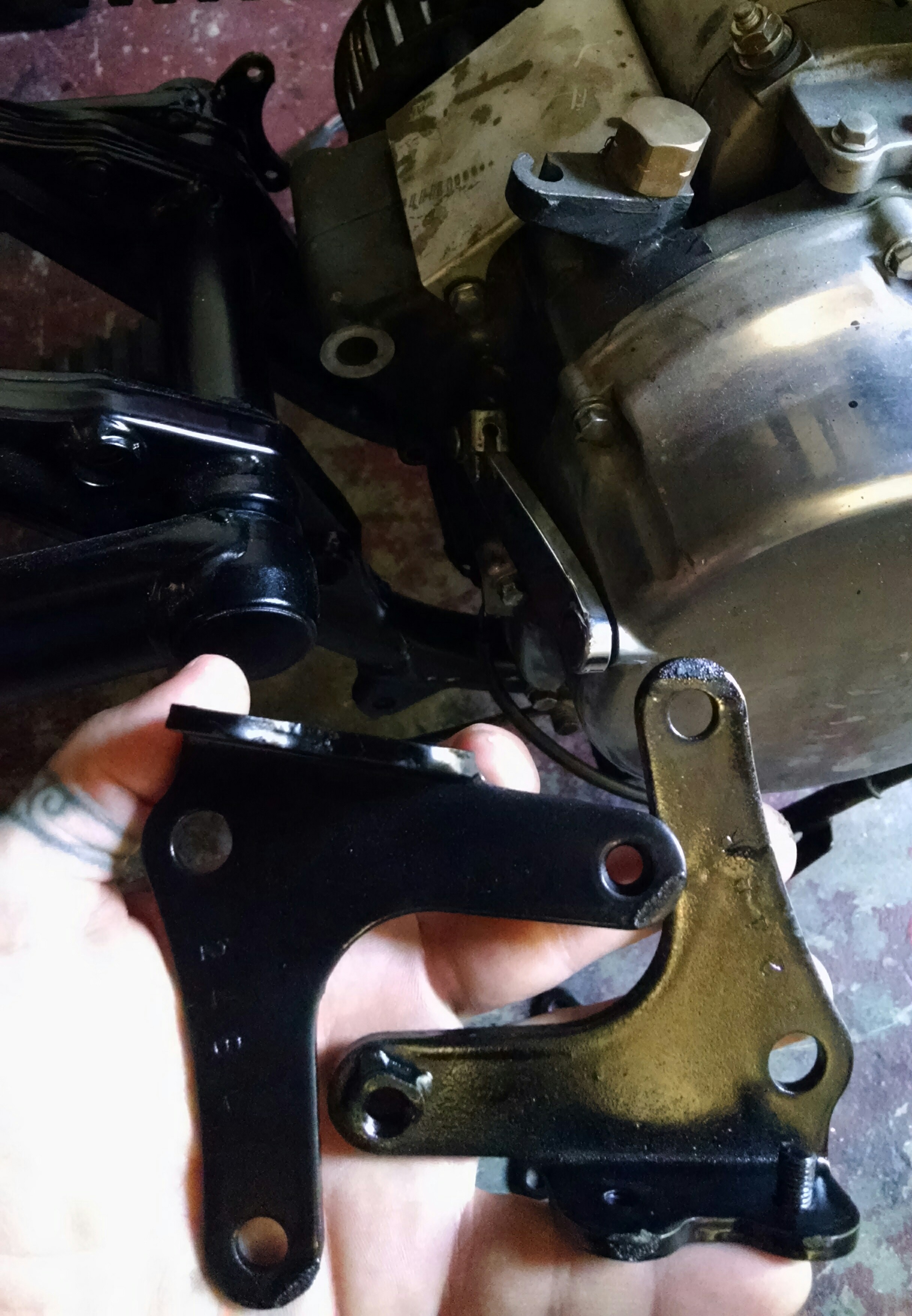

Boogieman Senior Member Offline Bang! Bang! Posts: 284 NORCAL Gender:	Re: wiring? Reply #2 - 10/21/14 at 14:01:36 also is there a diagram showing how this stuff goes back together?
Back to top	IMG_20141020_165547.jpg '03 LS 650 bobber - Highly modified...crashed it. IP Logged

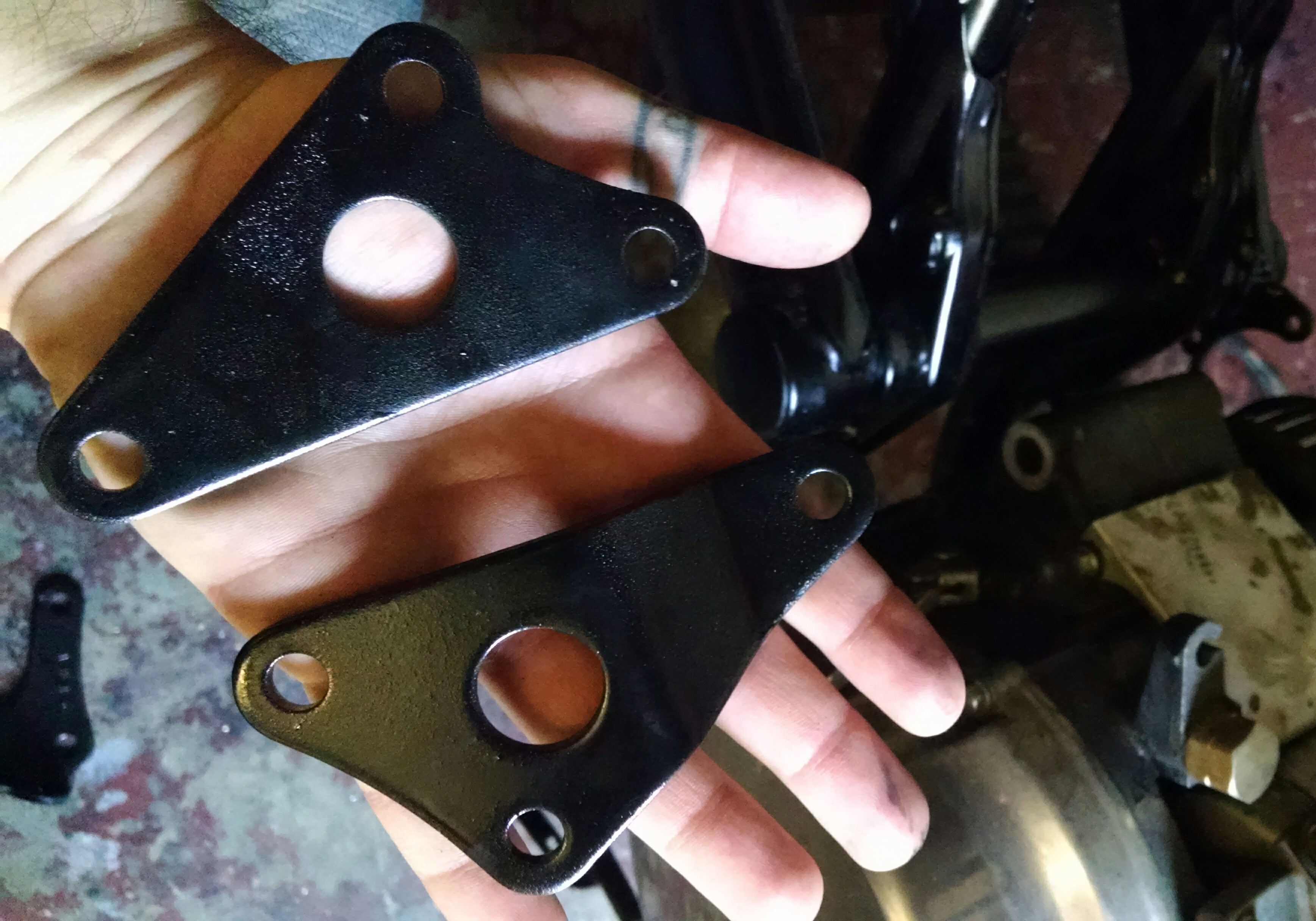

Boogieman Senior Member Offline Bang! Bang! Posts: 284 NORCAL Gender:	Re: wiring? Reply #3 - 10/21/14 at 14:02:21 and this
Back to top	IMG_20141020_165528.jpg '03 LS 650 bobber - Highly modified...crashed it. IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28843 L.A. California Gender:	Re: wiring? Reply #4 - 10/21/14 at 14:09:18 Boogieman wrote on 10/21/14 at 13:57:18: so i wanna use this wiring setup for my but I'm still having problems identifying stuff. for instance: ignitor - is this called something else? AKA magic sh!t box RBLS - where and what is this? AKA rear brake light switch Where does the magic sh!t box go in this diagram? Mahalo
Back to top	Versey's Place Tech Section Index IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28843 L.A. California Gender:	Re: wiring? Reply #5 - 10/21/14 at 14:10:28 Boogieman wrote on 10/21/14 at 13:59:22: also what is this and do i need it? double ended diode, it's for the kickstand and neutral switch.
Back to top	Versey's Place Tech Section Index IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28843 L.A. California Gender:	Re: wiring? Reply #6 - 10/21/14 at 14:11:35 Boogieman wrote on 10/21/14 at 14:01:36: also is there a diagram showing how this stuff goes back together? it's a puzzle... only goes together 1 way (don't trim the corners)
Back to top	Versey's Place Tech Section Index IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28843 L.A. California Gender:	Re: wiring? Reply #7 - 10/21/14 at 14:12:15 Boogieman wrote on 10/21/14 at 14:02:21: and this goes between the head and frame.
Back to top	Versey's Place Tech Section Index IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: wiring? Reply #8 - 10/22/14 at 02:14:21 If you took it apart, then,next project, spend time planning how to organise parts. Put bolts back in holes,taped to parts, whatever it takes to make going back together Not a puzzle.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

Boogieman

Senior Member

Offline

Bang! Bang!

Posts: 284
NORCAL
Gender: male

Re: wiring?
Reply #9 - 10/22/14 at 08:12:17

jog2 - too late for labeling man, that goes in the beginning. i disassemble the entire bike very maliciously chasing a gremlin. there r only so many parts and im learning all about 'em right now. it'll b rad when she's done. no saftey sh!t, no signals... the real deal is gonna b getting a sissy bar on back. my dummy brother hacked the back of the bike off. i gotta bend one long solid piece of 5/8th steel bar a bunch of different ways and make the open ends fit to the inside of the main tubes under the seat. gotta cut out them cross pieces and weld in new ones with the sissy bar.

Versy - thnx! i new that thing was some sort of diode but didnt know what for. jst needed a reminder on them other parts.

Back to top

'03 LS 650 bobber - Highly modified...crashed it.

IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: wiring? Reply #10 - 10/22/14 at 19:46:36 Heads up,, get a length of heavy wire, mock up the shape. A piece of square tubing with bolts thru it makes a,bending jig. If you don't have a cutting torch, a MAPPers torch would have to be the next best tool,, unless you have a forge,, some charcoal and a breeze,,, HOT metal.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

Boogieman Senior Member Offline Bang! Bang! Posts: 284 NORCAL Gender:	Re: wiring? Reply #11 - 10/22/14 at 22:58:11 lol im all blacksmithing in my backyard. you're right on about the mock up, very helpful indeed. i did one initially with some 12ga solid core but i need something sturdier. my brother bent a piece of 5/8ths with a torch and vice to put as a temp behind my seat so i wudnt fly off. looks pretty rad. not easy to bend.
Back to top	'03 LS 650 bobber - Highly modified...crashed it. IP Logged
