Lets talk "Air Filter Mods"
06/21/14 at 16:01:12

I see a bunch of you have gone with a K&N 1250 Cone filter.
I like that and I'm sure that it's a well noted improvement.
What I am curious about is not only what filters have been used but also visual improvements.

I thought I has seen someone with a cone filter sort of extended out and downward and sticking out of the side of the bike a bit. How is that done? Are there some sort of extensions that can be purchased? Is it a total custom job?

Has anyone used a Pancake side mount type filter?

What if any pit falls are there to air flowing through angles in an enclosed pipe to the carb?

Other thoughts and ideas are welcome.

Thanks again all.

~Nathan

Back to top

Boldly going forward cause I can't find reverse!

IP Logged

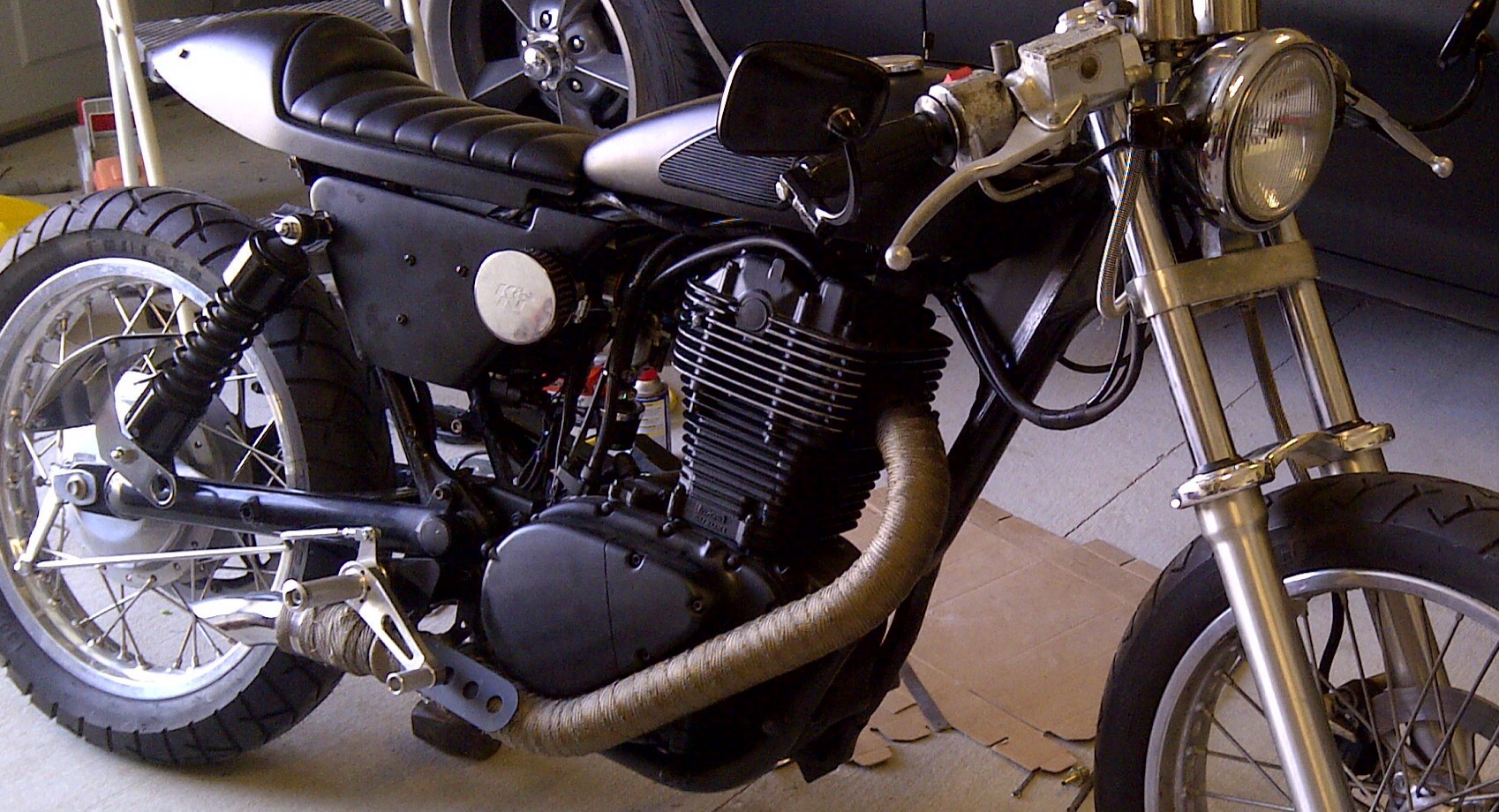

copterdoc Full Member Offline SuzukiSavage.com Rocks! Posts: 103 South of North. Gender:	Re: Lets talk "Air Filter Mods" Reply #1 - 06/21/14 at 17:32:18 Here is my side mount pancake.
Back to top	image_162.jpg 2000 S40 RYCA conversion built in 2011. IP Logged

thumperclone Serious Thumper Alliance Member Offline PGR rider riding with respect Posts: 5817 Grand Junction Colorado Gender:	Re: Lets talk "Air Filter Mods" Reply #2 - 06/21/14 at 18:34:56 de snorkeled air box and a k&n drop in
Back to top	standing for those who stood for US IP Logged

PuffsPlus Junior Member Offline SuzukiSavage.com Rocks! Posts: 64	Re: Lets talk "Air Filter Mods" Reply #3 - 06/21/14 at 18:44:19 @Copterdoc How do you get that 90 degree angle from the Carb? What are the parts called? @Thumperclone By desnorkeled you you mean that you remove the feeder tube that previously went to the air box and just pop the filter right on to the carb?
Back to top	Boldly going forward cause I can't find reverse! IP Logged

PuffsPlus Junior Member Offline SuzukiSavage.com Rocks! Posts: 64	Re: Lets talk "Air Filter Mods" Reply #4 - 06/23/14 at 13:46:28 Has anyone use the Dime city or Ryca K&N "Style" Pod filters?
Back to top	Boldly going forward cause I can't find reverse! IP Logged

HondaLavis

Senior Member

Offline

It's nothing
personal; the other
one came first.

Posts: 451
Plano, TX

Re: Lets talk "Air Filter Mods"
Reply #5 - 06/23/14 at 14:48:33

I read in a thread somewhere on hear that having some kind of straight path before entering the head was good to optimize flow. I ultimately modified the stock intake throat so that I could clamp my K&N to it. It seems to work well, plus the position gives it a little protection from water on the road.

I like the aesthetics of it, and that's what counts. Wink

Back to top

"You ride a single cylinder motorcycle??"

"When you're good, one is all you need." Wink

I guess that means I'm no good anymore; I've got 4 more cylinders! '08 Yamaha FJR1300 and still '01 Savage

IP Logged

clearush Senior Member Offline SuzukiSavage.com Rocks! Posts: 261 Deer Park,TX Gender:	Re: Lets talk "Air Filter Mods" Reply #6 - 06/23/14 at 21:48:52 I'm running one of these Uni Pod filter 57mm
Back to top	IP Logged

WD Serious Thumper 2005 No Login Offline Professional "scooter trash". Posts: 5207 Rosemark TN Gender:	Re: Lets talk "Air Filter Mods" Reply #7 - 06/24/14 at 08:25:13 Desnorkled is the rubber top chunk pulled out of the airbox upper section. The rest of the box is left stock, with a factory style fit K&N flat filter. "K&N-esque" cone filters from any source are garbage. Even properly oiled they let large debris into the carburetor.
Back to top	EMGOFILTERPOD_zps8b61cec7_001.jpg On 2 wheels since 7/87 Black and Chrome 2003 1950s style custom IP Logged

BalingWire Full Member Offline "The savage in man is never quite eradicated." HDT Posts: 238 Wauseon, Ohio Gender:	Re: Lets talk "Air Filter Mods" Reply #8 - 06/24/14 at 09:24:45 I went K&N. Now I'm contemplating where and how to reinstall the battery and the wiring rats nest into something creative. I might put it in a 5L mini-keg, an oak barrel, or even a bird cage. Cuckoo!
Back to top	"The satisfactions of manifesting oneself concretely in the world through manual competence have been known to make a man quiet and easy." Shop Class as Soulcraft: An Inquiry Into the Value of Work IP Logged

justin_o_guy2

Serious Thumper

Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.

Re: Lets talk "Air Filter Mods"
Reply #9 - 06/24/14 at 09:31:01

My experience. First, read a bit on intake theory, unless this is about looks more than high-performance. I learned the volume between filter surface and carb should be equal or greater than the jug volume. Also,in my opinion, the cost and all considered, the k/n just wasn't all that great. It's okay, but borderline worth it.I modified the air box to increase the volume.good luck, whichever way you go.

Back to top

The people never give up their liberties but under some delusion.- Edmund Burke.

IP Logged

YoungSavage

Junior Member

Offline

everyone knows I'm
home by the KA-POW!

Posts: 89
Monterey, California
Gender: male

Re: Lets talk "Air Filter Mods"
Reply #10 - 06/25/14 at 09:12:12

justin_o_guy2 wrote on 06/24/14 at 09:31:01:

My experience. First, read a bit on intake theory, unless this is about looks more than high-performance. I learned the volume between filter surface and carb should be equal or greater than the jug volume. Also,in my opinion, the cost and all considered, the k/n just wasn't all that great. It's okay, but borderline worth it.I modified the air box to increase the volume.good luck, whichever way you go.

Justin by chance did you document this process? This sounds like a good option to go towards. Do you feel that the bike became more responsive or anything there of?

Back to top

1988 Stock, mixture screw out 2 turns, seat lift mod, elevation= sea level, main jet=155 pilot jet=55

IP Logged

PuffsPlus

Junior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 64

Re: Lets talk "Air Filter Mods"
Reply #11 - 06/25/14 at 17:16:12

I had first considered drilling holes in the side of the box in the plastic removable cover. Then I was going to just drop in a k&n.

AS far as being High performance. There's no LS650 drag circuit here Shocked

So I guess it's for looks and a bit more power. I'm not going to Dyno test it or anything like that.

I was wondering if there was any major pit falls that I needed to avoid while doing this.

I have a vision. I don't know how it ends. But I'm psyched about the journey. Grin

Oh, one more question... what is the Jug volume? Is that the displacement?

Back to top

Boldly going forward cause I can't find reverse!

IP Logged

HovisPresley

Serious Thumper

Offline

Good Vibrations!

Posts: 991
Midlands, UK
Gender: male

Re: Lets talk "Air Filter Mods"
Reply #12 - 06/25/14 at 20:12:13

Hi, I also have a 'vision' as regards the Savage , sadly unlike yourself i haven't managed to find one at the right price/locality (in UK) but this forum is great for allsorts of tried and tested info, this bike has a bit of a cult following as it seems to be so easy to modify to personal needs. Take a few evenings to read through this helpful forum and associated links and absorb, while i still try and envisage that dream...

Jug volume is 652cc as standard, this is the displacement of the cylinder

Back to top

'96 Bobbobbobber

IP Logged

copterdoc Full Member Offline SuzukiSavage.com Rocks! Posts: 103 South of North. Gender:	Re: Lets talk "Air Filter Mods" Reply #13 - 06/28/14 at 20:36:12 I used an elbow from the RYCA store.
Back to top	image_166.jpg 2000 S40 RYCA conversion built in 2011. IP Logged

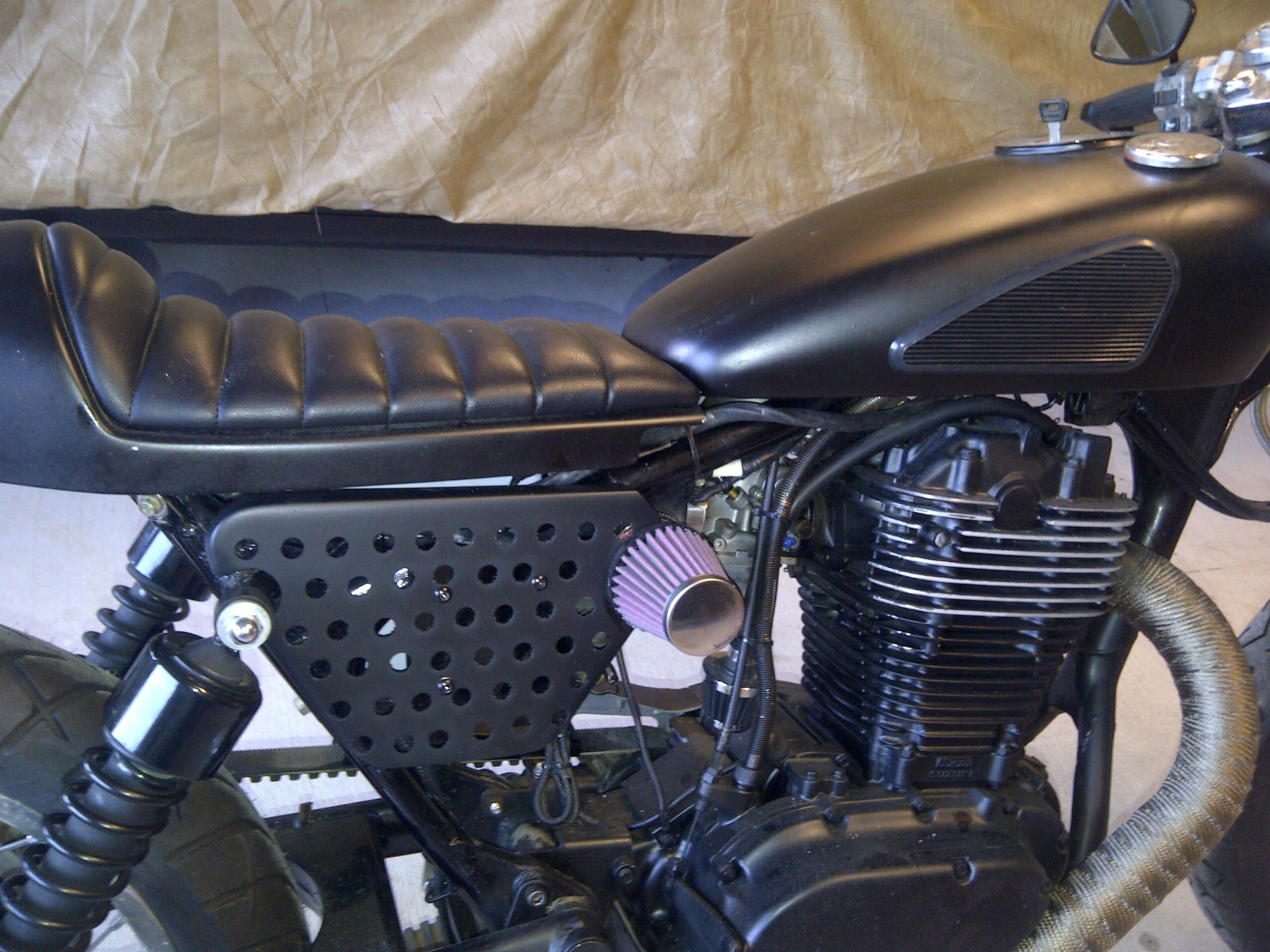

copterdoc Full Member Offline SuzukiSavage.com Rocks! Posts: 103 South of North. Gender:	Re: Lets talk "Air Filter Mods" Reply #14 - 06/28/14 at 20:38:00 I keep tinkering. Here is the latest.
Back to top	image_167.jpg 2000 S40 RYCA conversion built in 2011. IP Logged
