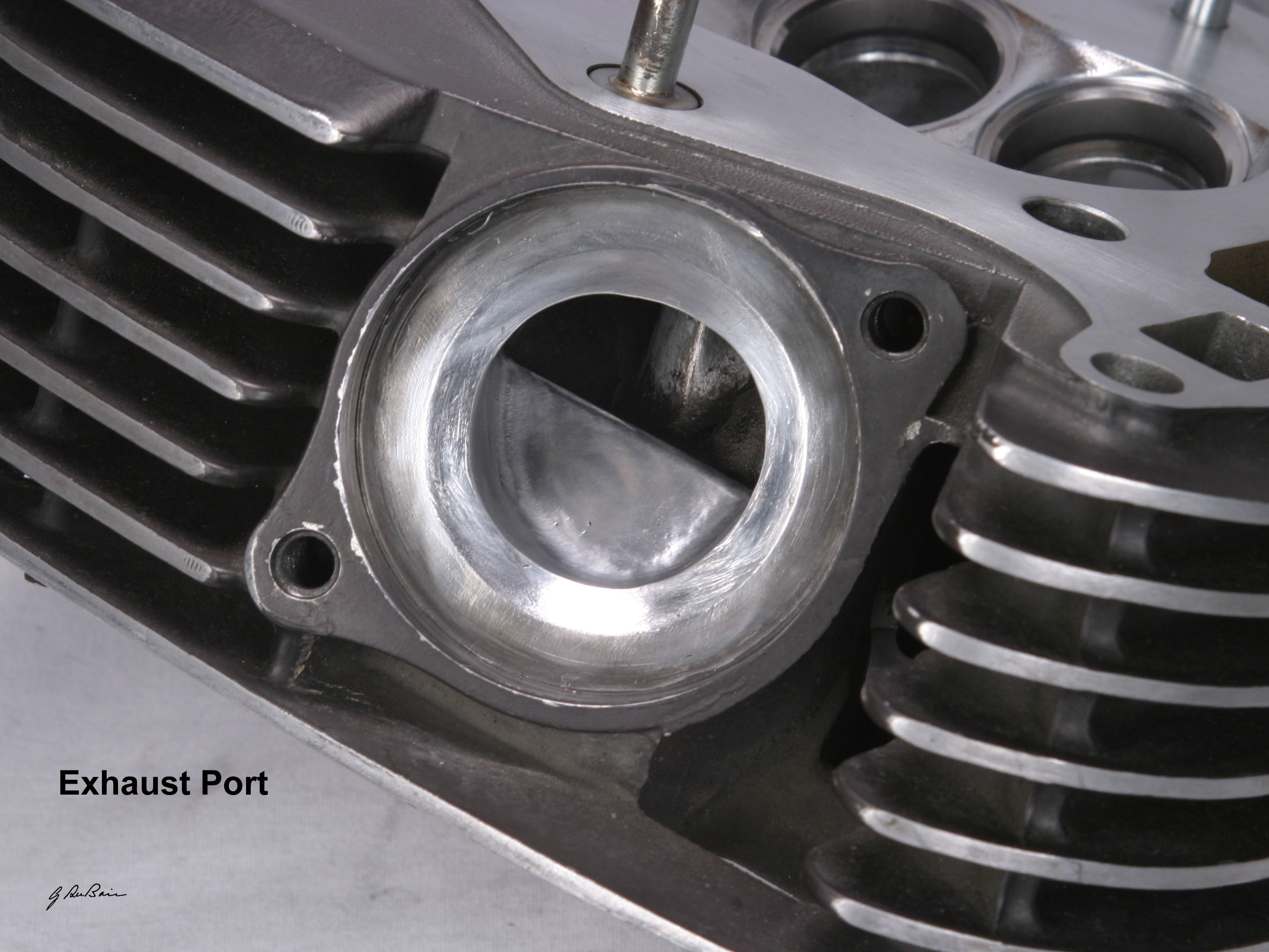

paulmarshall Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1268 Carterton,New Zealand Gender:	Port and Polish 04/23/13 at 23:31:22 Has anyone ever done a port and polish on a Savage cylinder head? And if so how much can I take out of the cylinder head exhaust port. I got this photo from "The Savage combination photo CD", Anyone else done this mod?
Back to top	Exhaust_Port_2.jpg IP Logged

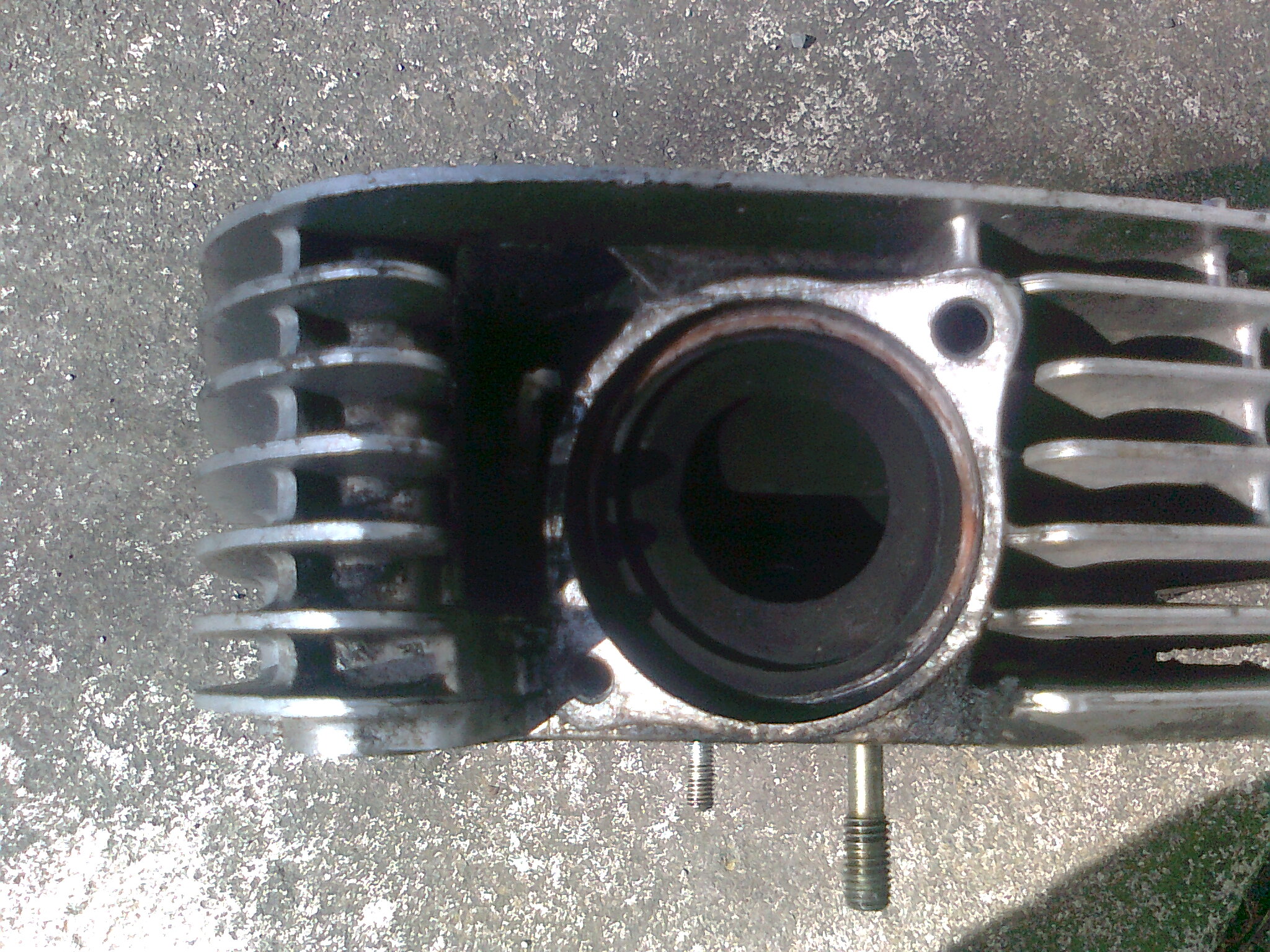

paulmarshall Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1268 Carterton,New Zealand Gender:	Re: Port and Polish Reply #1 - 04/23/13 at 23:34:06 This is currently the state of mine.
Back to top	036.jpg IP Logged

Gyrobob Serious Thumper Offline Posers ain't motorcyclists Posts: 2571 Newnan, GA Gender:	Re: Port and Polish Reply #2 - 04/24/13 at 03:39:36 I'd rather use extrude hone.
Back to top	If you think there's good in everyone, you haven't met everyone. IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 17804
Camp Springs, Kentucky
Gender: male

Re: Port and Polish
Reply #3 - 04/24/13 at 04:39:08

Paul:

You seem like the "do-it yourself" kind of guy......
Is this something you will do yourself, or hire done?

GYROBOB:

That extrude honing looks slick - have you ever had it done?

I spent about 20 minutes looking at the web and I could not find any prices listed for doing a single cylinder engine. Most of the websites I found catered to V-8 engines, and the prices for doing those were more than an entire used Savage engine costs!

Back to top

« Last Edit: 04/24/13 at 09:55:02 by Dave »

Someday I will be old......But not today!

IP Logged

paulmarshall

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 1268
Carterton,New Zealand
Gender: male

Re: Port and Polish
Reply #4 - 04/24/13 at 11:20:37

I will do it myself.
I too can only find youtube clips showing how to port and polish V8s and other multi cylinder engines. The principle is the same.
The photo shows a ported exhaust port from The Companion photo CD. The red area I cant touch other than a polish. But the blue area I would like to remove that lip.Sorry for the shaky hands It is 630am and I am on my second coffee.Could I take out more than what's in the photo? It looks like a small lip still needs to come off.
Anyone done this?

Back to top


IP Logged

Serowbot

YaBB Moderator
ModSquad

Offline

OK.... so what's the
speed of dark?

Posts: 28367
Tucson Az
Gender: male

Re: Port and Polish
Reply #5 - 04/24/13 at 12:06:44

I actually thought these pics were mine... ( I did exactly the same)...
...But,.. these are Truckinduc's...
... before...

... after...

I opened up the outlet some,... smoothed the passage as much as I could, and slightly rounded that "torque hump" that runs horizontal across the top... Don't take too much off that... I don't know what's under it...
... as far as intake goes... don't port or smooth anything... There is a head bolt that partly enters the intake manifold chamber,... you can smooth that flat if you like, but don't smooth the passage...

Back to top

Ludicrous Speed !... ... Huh

...

IP Logged

paulmarshall Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1268 Carterton,New Zealand Gender:	Re: Port and Polish Reply #6 - 04/24/13 at 12:18:20 OK thanks Serowbot, Why can't I polish the intake?
Back to top	IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 17804
Camp Springs, Kentucky
Gender: male

Re: Port and Polish
Reply #7 - 04/24/13 at 12:18:48

I know what is under that hump.....the base of the valve springs! That flat humpy area is not very thick and it lies directly under the exhaust valve springs.

OK.....I will fess up......I have also done some work on my head.

I opened up the exhaust ring a bit, smoothed out the rough castings, and sharpened up the divider between the runners.

Back to top

Someday I will be old......But not today!

IP Logged

paulmarshall Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1268 Carterton,New Zealand Gender:	Re: Port and Polish Reply #8 - 04/24/13 at 12:25:14 What grade sand bits did you use on your bremel?
Back to top	IP Logged

Serowbot

YaBB Moderator
ModSquad

Offline

OK.... so what's the
speed of dark?

Posts: 28367
Tucson Az
Gender: male

Re: Port and Polish
Reply #9 - 04/24/13 at 12:25:42

paulmarshall wrote on 04/24/13 at 12:18:20:

OK thanks Serowbot,
Why can't I polish the intake?

You can polish it if you want... it's just that, it doesn't do much good, and it can reduce performance instead of improve it...
Some texturing along intake passes, are said to help with fuel atomization...
At least,.. that's what I've read ... Huh

...

Back to top

Ludicrous Speed !... ... Huh

...

IP Logged

paulmarshall

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 1268
Carterton,New Zealand
Gender: male

Re: Port and Polish
Reply #10 - 04/24/13 at 12:27:29

Serowbot wrote on 04/24/13 at 12:25:42:

paulmarshall wrote on 04/24/13 at 12:18:20:

OK thanks Serowbot,
Why can't I polish the intake?

You can polish it if you want... it's just that, it doesn't do much good, and it can reduce performance instead of improve it...
Some texturing along intake passes, are said to help with fuel atomization...
At least,.. that's what I've read ... Huh

...

Thank You Serowbot I will take your advise on board.

Back to top

IP Logged

Gyrobob

Serious Thumper

Offline

Posers ain't
motorcyclists

Posts: 2571
Newnan, GA
Gender: male

Re: Port and Polish
Reply #11 - 04/24/13 at 15:22:13

Dave wrote on 04/24/13 at 04:39:08:

Paul:

You seem like the "do-it yourself" kind of guy......
Is this something you will do yourself, or hire done?

GYROBOB:

That extrude honing looks slick - have you ever had it done?

I spent about 20 minutes looking at the web and I could not find any prices listed for doing a single cylinder engine. Most of the websites I found catered to V-8 engines, and the prices for doing those were more than an entire used Savage engine costs!

I have not done it myself. I have seen the result of the work on aircraft cylinders and it looks quite impressive. I like the way it is so nicely smoothed up, but without a lot of metal hogged out of the passages.

It would probably cost around $250.

Contact info:

Rick Miller
Kennametal
T 724.864.8438
T 800.613.1065
M 724-396-1512
F 724-863-8759

Kennametal Extrude Hone | 235 Industry Blvd | Irwin PA 15642 | www.extrudehone.com

Back to top

If you think there's good in everyone, you haven't met everyone.

IP Logged

ZAR

Serious Thumper

Offline

Rock this town! Rock
it inside out!

Posts: 961
Kentucky, USA
Gender: male

Re: Port and Polish
Reply #12 - 04/24/13 at 20:19:31

Serowbot wrote on 04/24/13 at 12:25:42:

paulmarshall wrote on 04/24/13 at 12:18:20:

OK thanks Serowbot,
Why can't I polish the intake?

You can polish it if you want... it's just that, it doesn't do much good, and it can reduce performance instead of improve it...
Some texturing along intake passes, are said to help with fuel atomization...
At least,.. that's what I've read ... Huh

...

Exactly Sero. While I don't claim to know all the science behind it, I've worked with enough combustion equipment to understand the principal behind this. The more the fuel droplets are broken up(atomized)the better and more complete mixing with air and better burning of the fuel.. This equals better performance and better economy. Now if you can smooth out the path of the air/fuel flow and then recreate a roughened surface of the intake............ Grin

. Then you've got some kick!

Back to top

Yellow 1996 Jetted and Dunstall exhaust. Dakota Chubby Bags, Memphis Slim shield,Tank Bib from?? Seat riser mod. More to come!

IP Logged

paulmarshall Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1268 Carterton,New Zealand Gender:	Re: Port and Polish Reply #13 - 04/25/13 at 13:33:59 paulmarshall wrote on 04/24/13 at 12:25:14: What grade sand bits did you use on your bremel? Its ok I found this from eastwood that answers this question. http://www.youtube.com/watch?v=9_PfzOIgzT8
