quick carb question (Read 70 times)

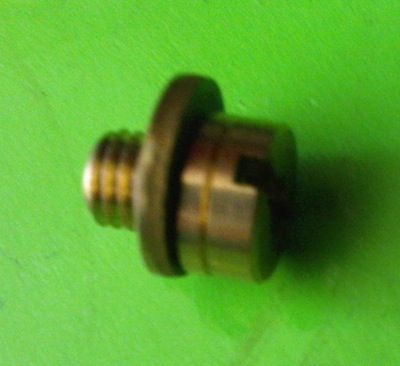

strang Senior Member Offline Posts: 387 london Gender:	quick carb question 11/08/12 at 04:40:20 Am about to replace my main jet - taking the stock one out I notice it has a brass washer that is a bit too big for purpose and may have been added on by PO or mechanic. Is this washer necessary? My new jet didn't come with one so just wondered whether this is someone's attempt to stop it backfiring
Back to top	IMG-20121108-00415.jpg scrambler build: http://suzukisavage.com/cgi-bin/YaBB.pl?num=1420917964/15 IP Logged

misterbbq Full Member Offline newbie Posts: 157 Acworth, GA Gender:	Re: quick carb question Reply #1 - 11/08/12 at 05:02:26 'a' washer is necessary from what i've read....something looks rather wonky with that config though.
Back to top	IP Logged

Routy

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 2280
Winston Oregon
Gender: male

Re: quick carb question
Reply #2 - 11/08/12 at 05:06:46

misterbbq wrote on 11/08/12 at 05:02:26:

'a' washer is necessary from what i've read....something looks rather wonky with that config though.

A washer is OEM in many cases, but mine does not have one.
So it is not necessary,......considering my bike runs fantastically Wink

What does the washer do ? Does it change the flow rate....even worth mentioning ? I believe the washer is for the same purpose of most any other washer,....to elliminate the chance of either surface galling, and to making removal easier,...same thing.

I remember that my washerless main jet was very tight !

Rich
'07 S40 Blvd stocker, except drilled OEM exhaust and white spacer mod...1/2 (.055)

IP Logged

misterbbq

Full Member

Offline

newbie

Posts: 157
Acworth, GA
Gender: male

Re: quick carb question
Reply #3 - 11/08/12 at 06:05:19

interesting. i remember reading a few threads of poor running bikes after jetting and the first question was always 'did you put the washer underneath the new main jet'.

sometimes they 'stick' in the channel where the jet comes out of so folks don't even know they're there.

in any case....since it's not too tough to get to it, i'd say run without it for a bit and then put it back in there (assuming that one fits into the channel) and see what the difference, if any, is.

and report back to us lol.

IP Logged

verslagen1 YaBB Moderator ModSquad Online Where there's a will, I want to be in it. Posts: 28787 L.A. California Gender:	Re: quick carb question Reply #4 - 11/08/12 at 07:14:34 As I understand it, the jet is not big enough to engage the main tube and keep the emulsifier from sliding up. Hence the oversized washer. leave out the washer and you sometimes get flooding problems if your emulsifier fits loose. Usually, they're pretty tight.
Back to top	Versey's Place Tech Section Index IP Logged

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 17835 Camp Springs, Kentucky Gender:	Re: quick carb question Reply #5 - 11/08/12 at 07:32:43 The emulsion tube slides up for removal.....the washer is necessary to keep it held down in carb body. If the emulsion tube starts to move up, it will run lean as the slide needle is tapered and less fuel will flow.
Back to top	Someday I will be old......But not today! IP Logged
