Mathmatic ideals for header/tail pipe dimensions (Read 232 times)
Rohko
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 5

Mathmatic ideals for header/tail pipe dimensions
06/20/12 at 19:14:03

Found this awhile back and thought it might be interesting.

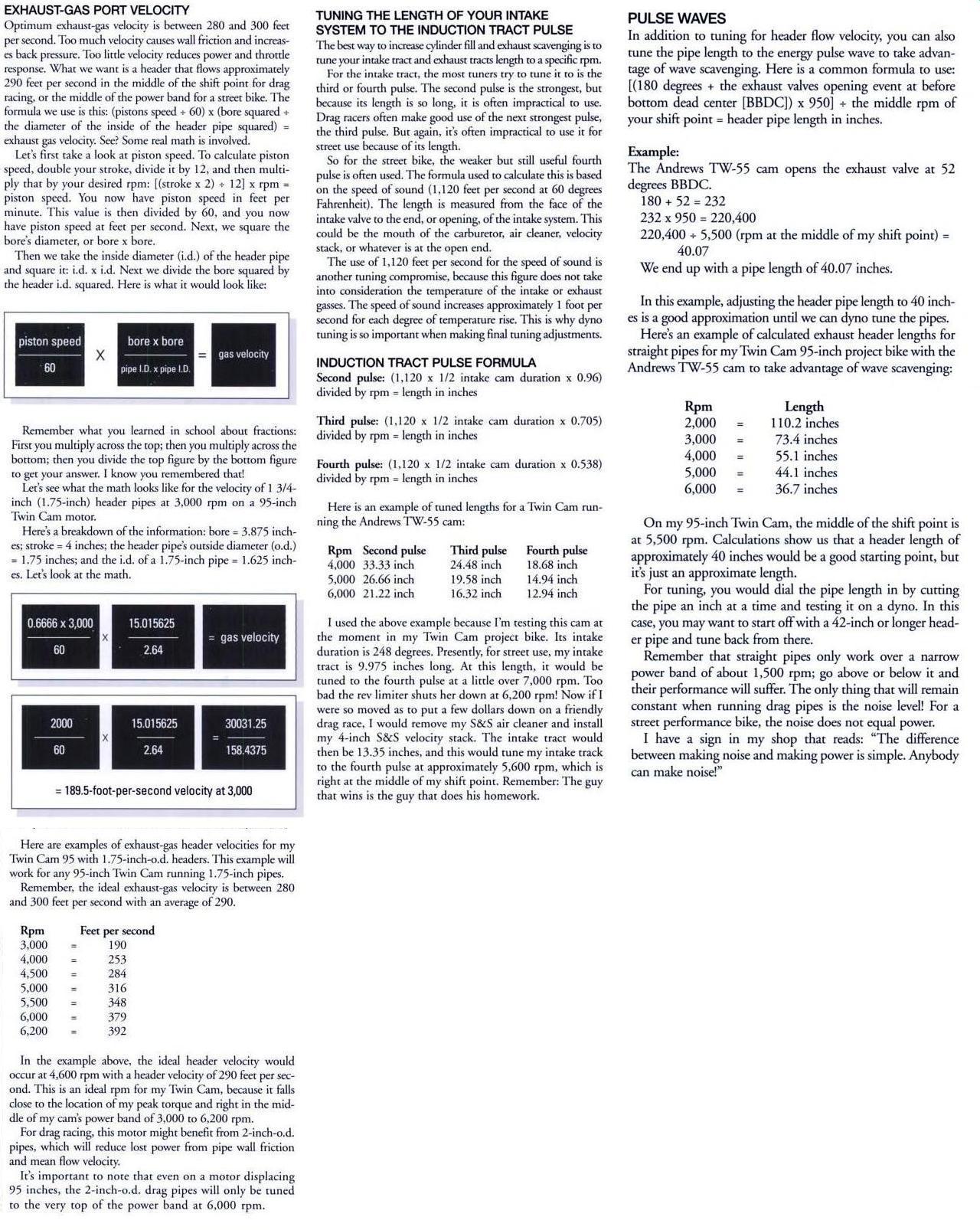

Got the information in the attached picture from the online preview of this book:
http://books.google.com/books?id=aSKzZIqCk54C&printsec=frontcover&dq=how+to+b...
I think I managed to get all the really useful information from the preview and compact it into that image, but there is probably something good from the part that I can't see in the preview.
Back to top


  IP Logged
verslagen1
YaBB Moderator
ModSquad
*****
Online

Where there's a
will, I want to be
in it.

Posts: 27630
L.A. California
Gender: male
Re: Mathmatic ideals for header/tail pipe dimensio
Reply #1 - 06/20/12 at 19:53:57

gas velocity = piston speed x bore ^2 / pipe ID ^2
96.08 = piston speed x 3.7008 ^2 / 0.125 ^2, rpm = 2000
144.11 = piston speed x 3.7008 ^2 / 0.125 ^2, rpm = 3000
192.15 = piston speed x 3.7008 ^2 / 0.125 ^2, rpm = 4000
240.19 = piston speed x 3.7008 ^2 / 0.125 ^2, rpm = 5000
288.23 = piston speed x 3.7008 ^2 / 0.125 ^2, rpm = 6000

and a cool pic
klx650sm2002 wrote on 09/28/10 at 09:10:48:
This is what happens at the end of a pipe.
And this at a transition (diameter change)
Clive W Smiley




Back to top



WWW   IP Logged
verslagen1
YaBB Moderator
ModSquad
*****
Online

Where there's a
will, I want to be
in it.

Posts: 27630
L.A. California
Gender: male
Re: Mathmatic ideals for header/tail pipe dimensio
Reply #2 - 06/20/12 at 20:05:54

And let's not forget these...

ebonysresearch wrote on 09/27/10 at 10:28:34:
I found some of my old engine building formulas.   I was taught the same concept but different.  we go over this at work with customers wanting shorty drag pipes...they dont realize that it pushes their power band over their red line and they will never see the power.   Even on the dyno with the EGA readings it is such a pain to get it right but with open pipes there is always a dead spot in the lower RPMS

Exhaust Header Length  *L = Pipe Length
Thermal 1st wave: L=(1380 x (180 Degrees + Exhaust Valve Opening)) / RPM Desired.

Sonic 2nd wave:L=950 x (180 degrees + Exhaust Valve Opening)) / RPM Desired

Intake Track tuning with known pipe length:
2nd pulse: (1100x 1/2 Intake cam duration x .96) /RPM =Length

3rd pulse: (1100 x 1/2 Intake cam duration x .705) / RPM = Length

4th pulse: (1100 x 1/2 Intake cam duration x .538) / RPM = Length

So now I am looking up the cam specs and will get back.  Of course I am lazy and a dumb ol Harley technician and would love for someone to check my math.  I am thinking about cherry bombing my exhaust which will pass inspection in WV as an open baffle(must have baffles to pass in WV)  but I am thinking about making a custom intake.  In school the dyno teacher turns off the lights and we started a carberated  bike and shined a flashlight a few inches out of the carb to watch the air fuel mixture...reversion is what it is called.  then we changed all sorts of exhaust and intakes to watch the changes.  Dynos dont lie...people do.

http://suzukisavage.com/cgi-bin/YaBB.pl?num=1285523233/8#8
Back to top



WWW   IP Logged
verslagen1
YaBB Moderator
ModSquad
*****
Online

Where there's a
will, I want to be
in it.

Posts: 27630
L.A. California
Gender: male
Re: Mathmatic ideals for header/tail pipe dimensio
Reply #3 - 06/20/12 at 20:06:40

verslagen1 wrote on 09/27/10 at 11:31:44:
From lancer's ebay page...

Stock Cam Lift:  0.254" In / 0.244" Ex

Stock Cam Duration:  224 deg @ 0.050" lift

Back to top



WWW   IP Logged
verslagen1
YaBB Moderator
ModSquad
*****
Online

Where there's a
will, I want to be
in it.

Posts: 27630
L.A. California
Gender: male
Re: Mathmatic ideals for header/tail pipe dimensio
Reply #4 - 06/20/12 at 20:08:02

And while we're at it...

Jockesavage wrote on 09/26/11 at 08:20:14:
How far from the engine can you place the carb?


http://suzukisavage.com/cgi-bin/YaBB.pl?num=1317050414
Back to top



WWW   IP Logged
Paraquat
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 2206

Re: Mathmatic ideals for header/tail pipe dimensio
Reply #5 - 07/02/12 at 09:29:33

The math for the carb that I was able to come up, based off the math from my exhaust size thread, was 3" valve including the runner.


--Steve
Back to top


  IP Logged
Paraquat
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 2206

Re: Mathmatic ideals for header/tail pipe dimensio
Reply #6 - 07/02/12 at 11:35:34

http://suzukisavage.com/cgi-bin/YaBB.pl?num=1336587954
It's been requested that I provide a link so here's the math for the exhaust diameter and length.

Following the same text that cat provided for exhaust size I was able to solve for intake.
http://www.bgideas.demon.co.uk/tmanual/Tm_Ch2.pdf

I'd post the math but my break is over.


--Steve
