Re: Pod filter and breather hose
Reply #15 - 07/30/24 at 09:19:53

This is what the breather box looks like. It was made from thinwall square tubing with metal ends welded on, and it also has studs welded on for mounting. The holes on the right side is connected to a metal tube that goes about 2/3rd the way into the breather box and it is connected to the breather tube on top of the engine. The tube on the left is connected to a short pipe that terminates high in the breather box and the tube goes to the carb intake. The yellow cap on the bottom came from the stock airbox and is removed to drain the box.

(Excuse the mud splashed on the bike.....there was a water main break on our street and I had to ride through it to get home).

Back to top


Someday I will be old......But not today!

IP Logged

Dave YaBB Moderator ModSquad Online SuzukiSavage.com Rocks! Posts: 18092 Camp Springs, Kentucky Gender:	Re: Pod filter and breather hose Reply #16 - 07/30/24 at 09:24:07 The breather box is filled with stainless steel scrubby material that was pulled to loosen it up and make it fit a rectangular box (I may have used a couple of them).
Back to top	IMG_3734.JPG Someday I will be old......But not today! IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28884 L.A. California Gender:	Re: Pod filter and breather hose Reply #17 - 07/30/24 at 11:12:45 http://suzukisavage.com/cgi-bin/YaBB.pl?num=1662153993
Back to top	Versey's Place Tech Section Index IP Logged

DragBikeMike

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 4395
Honolulu

Re: Pod filter and breather hose
Reply #18 - 07/30/24 at 16:25:35

Paul, you are misunderstanding what I am saying. When you don't have a filter on the end of the breather tube, dirt gets sucked up the breather tube when the piston goes up. That dirt ends up in your oil system. You stated that you have the breather tube hooked up to the nipple on your airbox and that you have removed the flat panel filter and plastic side cover. As such, there is no filtration for the breather tube. Yes, oil coming out will end up in the bottom of the airbox, but nothing prevents dirt from being sucked up your breather tube and into the engine. The breather flows "out" when the piston comes down, but it flows "in" when the piston goes up.

Versy, have you tried that catch can yet? It looks mighty fine, and I was hopin that you would try it and possibly take some manometer readings. The umbrella valve is a lot bigger than mine, and you have significantly more perforations below the umbrella. I'm curious if it will improve crankcase vacuum.

Back to top

Knowledge is power.

IP Logged

ThumperPaul

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 1665
Houston, Texas
Gender: male

Re: Pod filter and breather hose
Reply #19 - 07/30/24 at 16:40:17

Mike, I don't think I totally misunderstood. Yes, I was only talking about when it pukes out and not when it sucks in.

It is the stock design. So, Suzuki wasn't too worried about dirt getting sucked into the tube inside and at the top of the air box and then getting pulled into the head cover. And/or the stainless steel wad filter in the head cover is working both ways - when it breathes in and out. I'm not going to lose any sleep over it. I'll just have to skip off-road riding.

Back to top

IP Logged

DragBikeMike

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 4395
Honolulu

Re: Pod filter and breather hose
Reply #20 - 07/30/24 at 17:25:22

What you are missing is that the stock system places the breather port in the airbox downstream of the air filter element. The air available to the breather is "filtered" air. When you remove the stock air filter element, you provide "unfiltered" air to the breather port. All manner of trash is gonna get sucked into the engine, especially with the plastic side cover removed too. At least put the flat panel filter back in. It won't affect your pod filter performance and it will help keep trash out of your crankcase ventilation system.

Back to top

Knowledge is power.

IP Logged

verslagen1

YaBB Moderator
ModSquad

Offline

Where there's a
will, I want to be
in it.

Posts: 28884
L.A. California
Gender: male

Re: Pod filter and breather hose
Reply #21 - 07/30/24 at 22:01:56

DragBikeMike wrote on 07/30/24 at 16:25:35:

Versy, have you tried that catch can yet? It looks mighty fine, and I was hopin that you would try it and possibly take some manometer readings. The umbrella valve is a lot bigger than mine, and you have significantly more perforations below the umbrella. I'm curious if it will improve crankcase vacuum.

yes I installed it before our last texas ride. 1 thing is for sure, didn't use much oil.
I'll have to revisit your thread to see how you set up the meters.

Back to top

Versey's Place
Tech Section Index

IP Logged

ThumperPaul

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 1665
Houston, Texas
Gender: male

Re: Pod filter and breather hose
Reply #22 - 07/31/24 at 05:21:31

Thanks Mike. I see your point. But it would be a crazy path for debris to find its way to the breather hose in the air box. The most likely offender around here would be dry grass clippings in the road.

I’ll put the stock air panel filter back in there (especially since I have a brand new still in the box). You make a valid point that I really hadn’t taken very seriously up until now. Thanks for putting up with my banter!

Back to top

IP Logged

Fast 650 Senior Member Offline SuzukiSavage.com Rocks! Posts: 405 Valrico, FL Gender:	Re: Pod filter and breather hose Reply #23 - 07/31/24 at 20:24:54 What about a check valve in that hose? Lets air out but closes when it tries to suck air in. There is bound to be a pcv valve that fits that hose.
Back to top	IP Logged

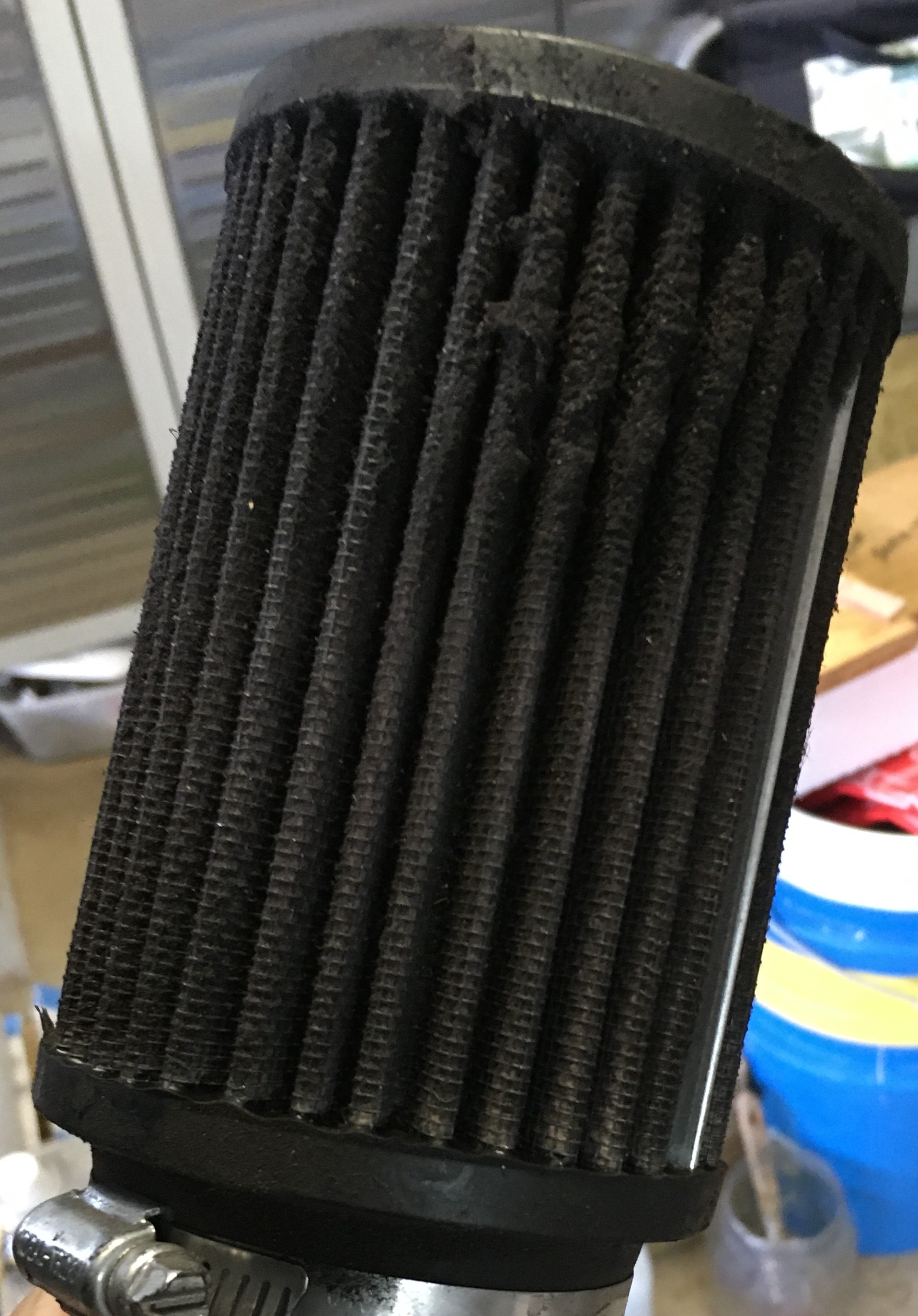

DragBikeMike Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 4395 Honolulu	Re: Pod filter and breather hose Reply #24 - 08/01/24 at 00:20:41 This is an example of what sort of crud is flying around in that airbox. My K&N at the 10,000-mile cleaning interval. There is a lot of trash floatin around in that airbox. I confine my riding to paved roads. I don't think my Savage has ever been off a paved city road or freeway.
Back to top	Dirty_Filter.jpg Knowledge is power. IP Logged

ThumperPaul Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1665 Houston, Texas Gender:	Re: Pod filter and breather hose Reply #25 - 08/01/24 at 05:44:34 That’s definitely an ugly filter, Mike. I’m shocked you, of all people, would let it get that bad! Maybe that big dirty vacuum sucks away any grim that the little breather hose vacuum might try to suck…. The big piggy ain’t letting the little piggy eat trash.
Back to top	IP Logged

ohiomoto Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2768	Re: Pod filter and breather hose Reply #26 - 08/01/24 at 17:18:48 Mike, I'm amazed at how much you ride your bike!! I know you are blessed with nice weather in HI but early on I assumed you spent most of your time tinkering. I was pleasantly surprised when I realized you rack up the miles too. #extrarespect
Back to top	IP Logged

DragBikeMike

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 4395
Honolulu

Re: Pod filter and breather hose
Reply #27 - 08/01/24 at 23:14:30

The interesting thing about air filters is that the dirtier they get the better they filter. As they get filled up with dirt, they trap even more dirt. You don't have to be concerned about a dirty air filter letting dirt get into your engine. They filter better as the crud builds up. On the other hand, flow is diminished. That cruddy filter was flowin just fine, but if I kept goin without cleaning the critter, I would have started to see a decrease in performance as the dirty filter choked off the air. Oil filters are not as forgiving. You keep fillin an oil filter with crud and pretty soon the bypass relief lifts and lets the unfiltered sludge run all through your motor.

I have two of those K&N cylindrical air filters. When the one on the bike gets dirty enough (about 10K), I remove it and install a pre-cleaned and oiled spare. Then over the next 10K miles I find the time to clean up the dirty filter, oil it, and store it for the next filter swap. The filters look terrible after 10K miles, but there is never any dirt in my induction system.

Ohio, thanks for the kudos. The first few years I was a member of the forum, I was all wrapped up in trying new mods and engine combos. Testing those only required several thousand miles at most. Gradually, as I zeroed in on what I thought was the best and most reliable combination, I transitioned into long-term testing. Once I figured out how to make really good power, and keep the engine & trans in one-piece, I focused on proving the combo with bona fide long-term tests (minimum 10K). This island is a very small place, but it is drop-dead gorgeous, and the weather is almost always favorable. Testing requires riding. Riding is fun. So even if I see the same scenery over & over, it's always fun. Being a member of this forum is the best motorcycling experience I have ever had (been on 2 wheels since 1968). It don't get any better than SuzukiSavage.com. Always something to learn; always something to share.

BTW, I love your standard setup. My back wishes I had done that mod.

Back to top

Knowledge is power.

IP Logged

JOG

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 565
Longview, Texas
Gender: male

Re: Pod filter and breather hose
Reply #28 - 08/03/24 at 14:59:09

You don't have to be concerned about a dirty air filter letting dirt get into your engine

I'm gonna pretend I'm Snopse and put up my imaginary Truthiness gauge and label that Possibly true,, and point out that as it gets dirtier and more restrictive the crud starts to experience a stronger sukkshion from the intake stroke. Couple that with the effects of heat and vibration on the old crud, potentially breaking it into finer particles that can pass through the filter, I'd tend to lean towards a Reasonably maintained air filter.
A dirty filter filters better, up to a point, discovering that point scientifically would take some time and effort. An airbox with two filters, separated by a few inches, would show how much the first one allowed past. New,clean filters are not perfect, I suspect. There are some variables to figure out, but I'm leaning towards
Blow it out every other oil change.
If you have vehicles and you don't have a battery charger and a compressor,, you are not doing it right. If all you have budget and room for is a pancake compressor, then do that.
How bad would it suck to have a tire low enough that you don't want to drive on it,but, no compressor? Just pump Fix-A-Flat in it and have someone deal with it? Nasty..
Sometimes tires need air,, pretty much Every winter the TPM on the car declares I have a low tire. Even a pancake compressor will fire off a 1/2" impact for a few seconds. Enough to break a lugnut. Stop when it turns on. The duty cycle on those things isn't great. Ya gotta let it catch up or it won't last. And it needs its highest pressures to make the impact Impactful..

Back to top

IP Logged

ThumperPaul Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1665 Houston, Texas Gender:	Re: Pod filter and breather hose Reply #29 - 08/03/24 at 16:07:16 This all sounds like my logic for only washing my truck a few times a year. The dirt acts as a UV blocker (SPF 80) and protects the paint. The paint looks marvelous when I do finally wash and wax my 12 year old truck. Pounding Houston rains are my free go-between car washes.
