Has anyone done a successful fuse box conversion? If so would you mind sharing your wiring diagram. I have a 2000 Savage that i am trying to convert to a small fuse box wiring but am having problems now getting it to fire off. It was running before the conversion so i dont believe i have any bad part(i also bench tested everything that i could). I have another post on here asking for wiring help that has my wiring diagram attached. Any help would be sooooo greatly appreciated,i am pulling my hair out trying to figure this one out. Thank you for your time👏🏻🤞🏻👏🏻

IDK if the coil polarity matters since I've only done stock wiring.

but you must have a good ground connection to get spark.
I assume you could touch the spark plug to the frame of the coil to test for spark.

you seem to have enough connections, but you have to assume a lot to conclude it's correct.

and yet it doesn't work means you get a failing grade for your work.

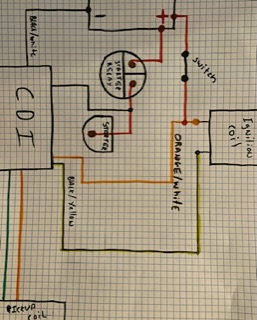

Thank you Justin...i did pull the ignition coil off the bike and upon closer examination did find that one of the terminals was slightly smaller than the other...and if u look real hard(i got a magnifying glass)at the base of where the terminals are you can see a + and a - mark in the plastic...i did have them wired correctly as well...the black wire with yellow stripe from the cdi supplies the ground and orange with white stripe supplies the positive(it has a 12v feed wire attached...im not sure why but the picture i attached doesnt show the full wiring diagram unless you click on the link...you were talking about something should tell it when to spark,the pickup coil(i think) is what is supposed to do that(but u cant see it in the picture unless u click on it)...again thank you so much for taking time to try and help me out it is very much appreciated! As far as moving forward,i have no clue,i am completely lost at this point...I am hoping someone maybe has done the fuse box conversion and has a working diagram or maybe can point out something i have wired incorrectly...Thanks again for any help you can offer and for your time!

Hey SpamyToo...i'm sorry but i'm not sure what you mean by permissives since you said something about the sidestand though i think what youre talking about is like the side stand safety switch and neutral safety switch etc etc...before i did this rewire i had already removed an bypassed all the safety switches(i didnt know they were called permissives)...and this diagram doesnt include the lights or the brake light,horn etc...all that seems to be working correctly...since its just and ignition problem that system is all i included...i think on another post i did include the charging system but it was a separate drawing altogether...there is nothing that i can tell that would be prohibiting fire since the components in the diagram are all the components...no outside switches or per-missives(thank you for giving them a name for me)are in the system at all...i even removed the ignition key the whole thing is set up with a knife switch to kill power to the entire bike...thank you so much for your time and knowledge it is very much appreciated

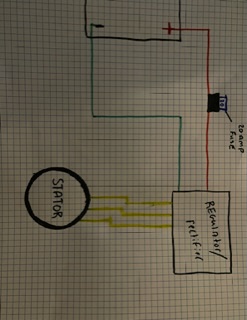

Hey Justin,i really appreciate all your help...a little backstory...the bike was running fine...had just put a new mikuni carb on and sounded great... it had been leaking oil from around the cylinder head and that little rubber plug that they thought was actually going to stop oil leaking(lol)...well i was out riding and to be honest i am not sure what happened but it blew oil all over me and the bike...at this point i had already removed all of the safety switches and the only kill switch in the system at all was the key switch itself...so i went ahead and did the cylinder head and bought the upgraded rubber plug...stabbed it all back together and as soon as i hooked the battery up it tried to crank without the switch being on...it was a bad starter relay...it had soaked with oil so i decided at this point why not go ahead and do the fuse box conversion i had been wanting to do...I basically stripped all and i mean all of the wiring out of the bike at this point alll 5000 miles of it(lol)...i had found a wiring diagram on here and followed it but there were a few things i was unclear on...mainly the wiring for the cdi...now of course when i wired it all now i am getting no spark...my wiring diagram doesnt show the push button for the starter or the lights,didnt see a real need to include those...if you look there is only one switch in the whole diagram that kills and connects power to the whole bike and all its systems so all the safetys and diodes and whatnot are no longer and issue...i have seen a couple of diagrams since then and they seem to pretty much be the same as mine...i am truly at a loss...one thought i had was if the timing were far enough out could it cause a no spark? Though i was extremely careful and have checked the timing since i put the bike back together and it lines up tdc on the compression according to the timing mark. i have also wondered if the other cdi i had was bad??? Maybe if the original was ruined by oil and then my spare was bad? i ordered it off ebay so cant be 100% that it worked even though it looked to be new old stock...So here i sit pulling my hair out,lol...
