SuzukiSavage.com - Small pin found after removing clutch and cover.

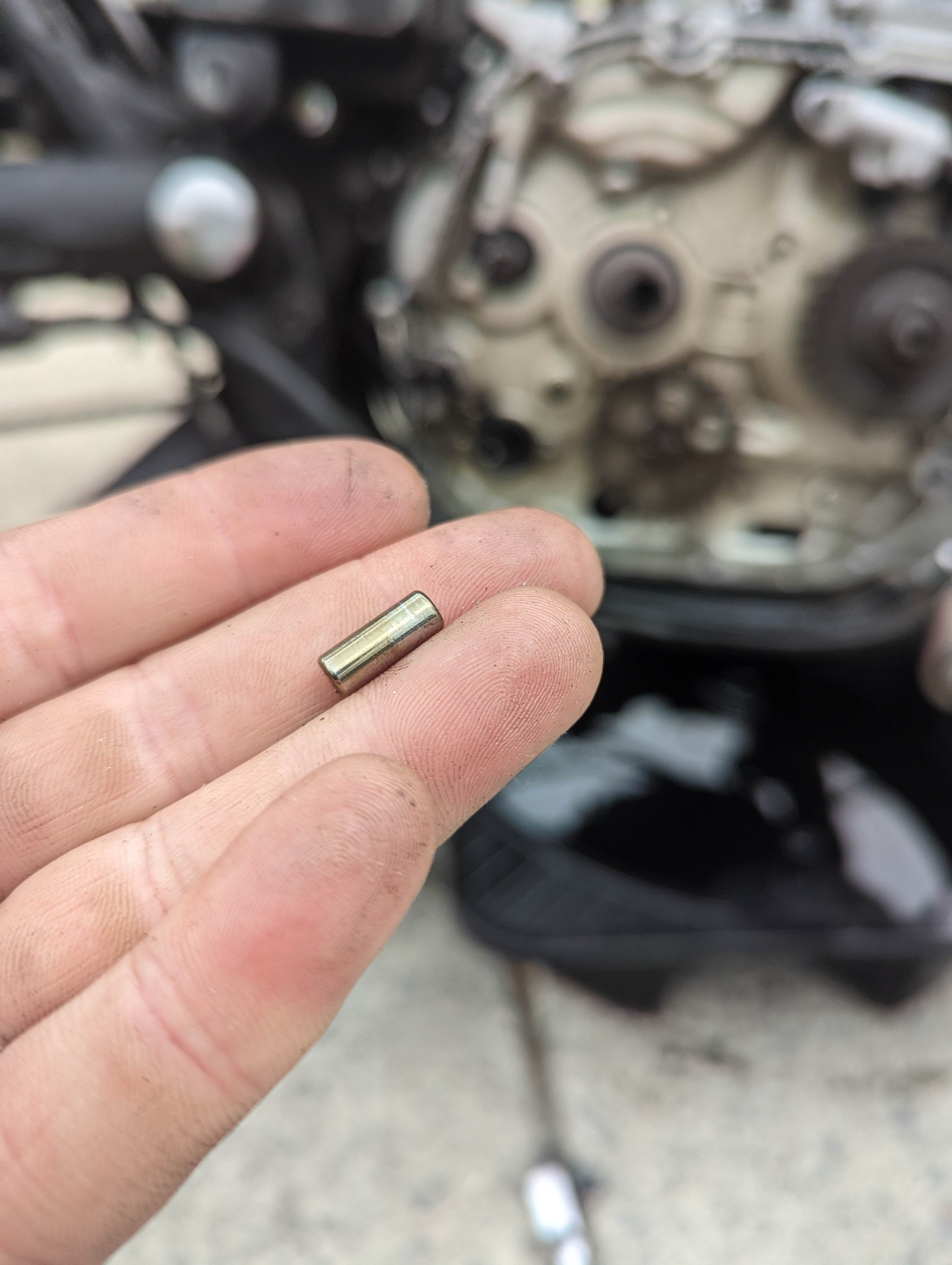

Moarpower Senior Member Offline SuzukiSavage.com Rocks! Posts: 331	Small pin found after removing clutch and cover. 09/14/22 at 23:52:34 Hey guys. I found this small pin on the ground after I removed the utch cover and clutch and I can't find where it goes. I don't believe it to be part of the clutch as I was very careful to account for everything.
Back to top	PXL_20220915_060628095.jpg IP Logged

zipidachimp Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1393 surrey, b.c. Gender:	Re: Small pin found after removing clutch and cove Reply #1 - 09/15/22 at 00:17:33 check your clutch lever, likely has zero tension. looks like the push rod for the clutch. Start over! Cheers!
Back to top	IP Logged

Moarpower Senior Member Offline SuzukiSavage.com Rocks! Posts: 331	Re: Small pin found after removing clutch and cove Reply #2 - 09/15/22 at 00:23:04 Thanks mate. Could definitely be. I haven't put it back together yet. Waiting on gaskets and have some starter gear teeath to flush out.
Back to top	IP Logged

Moarpower Senior Member Offline SuzukiSavage.com Rocks! Posts: 331	Re: Small pin found after removing clutch and cove Reply #3 - 09/15/22 at 00:25:25 zipidachimp wrote on 09/15/22 at 00:17:33: check your clutch lever, likely has zero tension. looks like the push rod for the clutch. Start over! Cheers! If you mean the push rod in the middle of the clutch assemble its not that. And this one is much smaller than that
Back to top	IP Logged

zipidachimp Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1393 surrey, b.c. Gender:	Re: Small pin found after removing clutch and cove Reply #4 - 09/15/22 at 00:32:10 that's what I meant. now I'm puzzled? Cheers!
Back to top	IP Logged

Moarpower

Senior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 331

Re: Small pin found after removing clutch and cove
Reply #5 - 09/15/22 at 01:01:04

It may have fallen off elsewhere from the bike. Is there anywhere external like the clutch lever or something that may had it there? This has me stumped.

I did blow out some of the engine with a small blower, not high pressure, to loosen up the metal teeth I'm searching for.

Surely it hasn't come from here

Back to top


IP Logged

Moarpower Senior Member Offline SuzukiSavage.com Rocks! Posts: 331	Re: Small pin found after removing clutch and cove Reply #6 - 09/15/22 at 03:04:25 Not going to lie this has me pretty scared and stressed out. It's not off the oil pump gear on the back of the clutch basket. It's not the clutch push rod. Please help lol
Back to top	IP Logged

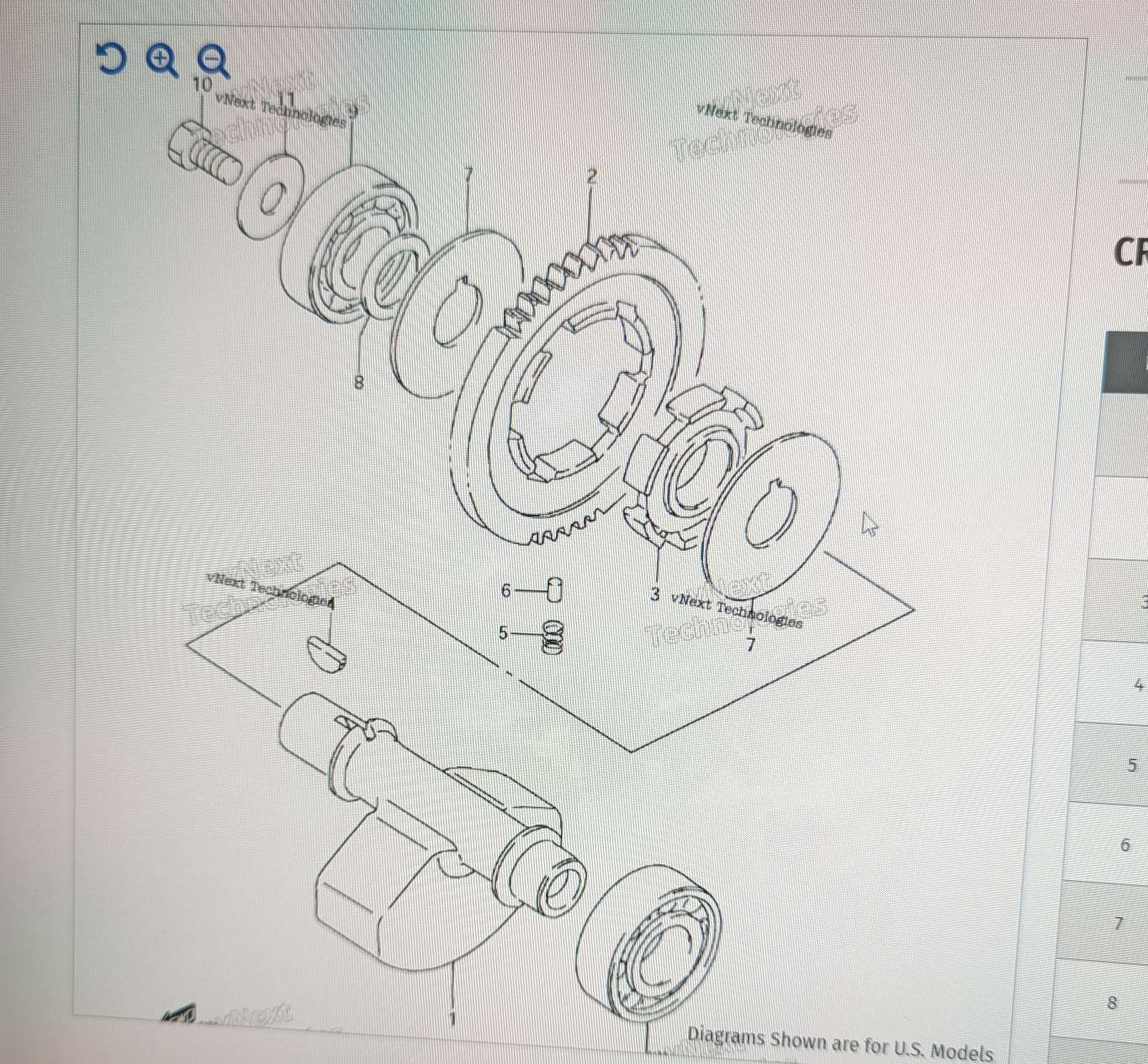

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28782 L.A. California Gender:	Re: Small pin found after removing clutch and cove Reply #7 - 09/15/22 at 06:50:43 the parts list describes that pin in the balancer as 4.5 in diameter by 9.5 long. what are the dimension of your pin.
Back to top	Versey's Place Tech Section Index IP Logged

Scottwerty Full Member Offline It's not a Gang! It's a Club! Posts: 118 Mass Gender:	Re: Small pin found after removing clutch and cove Reply #8 - 09/15/22 at 12:29:58 Just a guess but it could be part of the clutch basket. Part# 09261-06002
Back to top	IP Logged

Moarpower Senior Member Offline SuzukiSavage.com Rocks! Posts: 331	Re: Small pin found after removing clutch and cove Reply #9 - 09/15/22 at 14:52:05 verslagen1 wrote on 09/15/22 at 06:50:43: the parts list describes that pin in the balancer as 4.5 in diameter by 9.5 long. what are the dimension of your pin. Definitely smaller diameter
Back to top	IP Logged

Moarpower

Senior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 331

Re: Small pin found after removing clutch and cove
Reply #10 - 09/15/22 at 14:54:29

Scottwerty wrote on 09/15/22 at 12:29:58:

Just a guess but it could be part of the clutch basket.

Part# 09261-06002

I thought so too mut that pin is still in place.
The previous owner did the timing chain so could it have been from that?

Could it also be from the oil pump? I've ridden the bike about 500 kms with no issue if it's from the pump or timing

Back to top

IP Logged

justin_o_guy2

Serious Thumper

Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.

Re: Small pin found after removing clutch and cove
Reply #11 - 09/15/22 at 15:06:38

You don't want the oil pump gear in backwards and it is easy to do, so pay attention, pull the gear and see if the pin in your hand will go in the oil pump. Maybe someone thought they lost that pin,replaced it and it was floating around in there waiting to get between things?
YaKnow, they sell an oil drain plug that has a magnet in it.
IDK for fact that the oil pump Has a pin that comes out.

Back to top

The people never give up their liberties but under some delusion.- Edmund Burke.

IP Logged

Moarpower

Senior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 331

Re: Small pin found after removing clutch and cove
Reply #12 - 09/15/22 at 15:23:34

justin_o_guy2 wrote on 09/15/22 at 15:06:38:

You don't want the oil pump gear in backwards and it is easy to do, so pay attention, pull the gear and see if the pin in your hand will go in the oil pump. Maybe someone thought they lost that pin,replaced it and it was floating around in there waiting to get between things?
YaKnow, they sell an oil drain plug that has a magnet in it.
IDK for fact that the oil pump Has a pin that comes out.

Do I have to pull the engine out to get to it?

Back to top

IP Logged

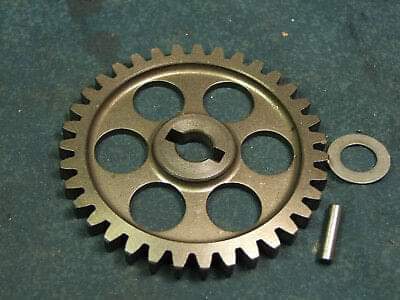

Moarpower Senior Member Offline SuzukiSavage.com Rocks! Posts: 331	Re: Small pin found after removing clutch and cove Reply #13 - 09/15/22 at 15:26:14 justin_o_guy2 wrote on 09/15/22 at 15:06:38: You don't want the oil pump gear in backwards and it is easy to do, so pay attention, pull the gear and see if the pin in your hand will go in the oil pump Is this the part you are referring to? The pin I found is a bit shorter
Back to top	FB_IMG_1663280735128.jpg IP Logged

Moarpower Senior Member Offline SuzukiSavage.com Rocks! Posts: 331	Re: Small pin found after removing clutch and cove Reply #14 - 09/15/22 at 16:17:19 Could it have been the cam chain sprocket locating pin? Or could it be from somewhere else besides the motor
