Changed engine, rewiring question (Read 20 times)
TomasDK
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 2
Changed engine, rewiring question
04/30/22 at 12:46:51
Hi. Me and a biker buddy changed and rewired my bike.
The 'new' engine is a 1998 model and had different wiring than the old 1992 model.

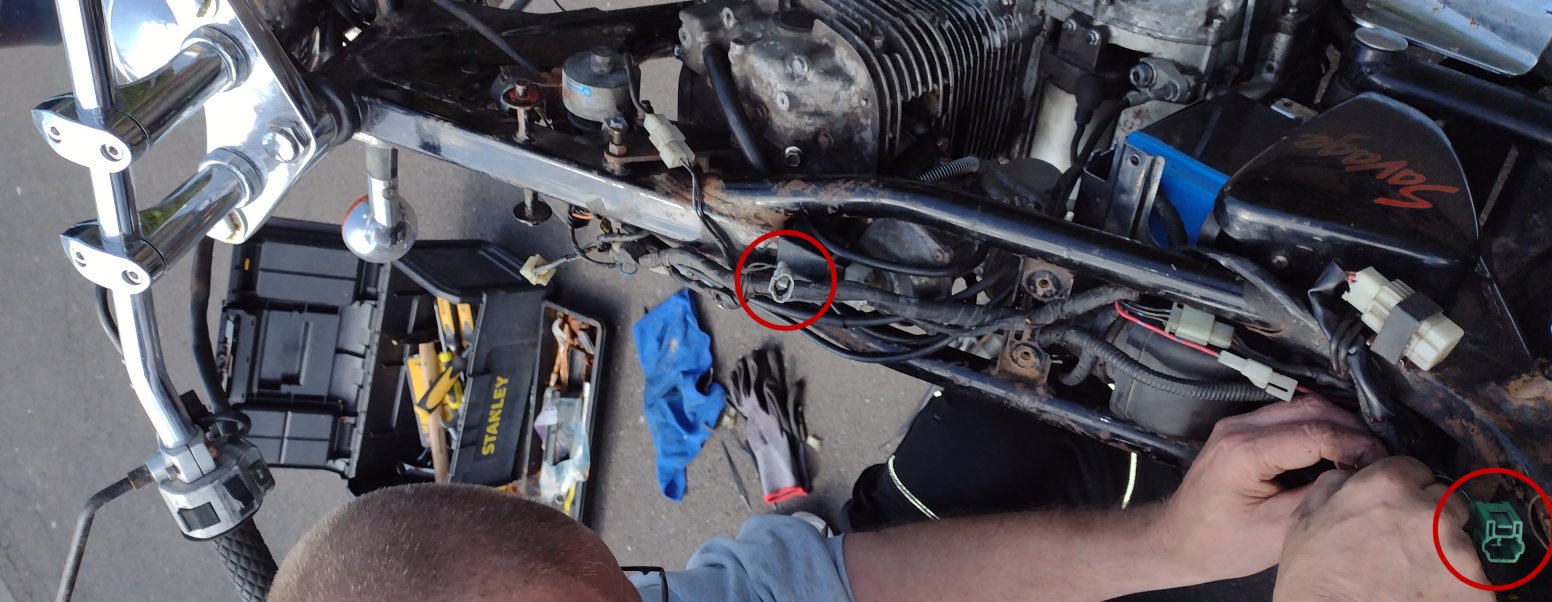

We got almost everything connected exept the 2 in the picture. White and green, circled with red. We looked at the scematic, but could not figure out what those wires are for.
Bike is not assemled yet as we are not sure if it will fire up without these connected to something.
The donorbike was a crashed bike with a good engine. The old engine, a mechanic assembled incorrectly and it died. (It will be renovated later.
Back to top
IP Logged
verslagen1
YaBB Moderator
ModSquad
Offline
Where there's a
will, I want to be
in it.
Posts: 28890
L.A. California
Gender:
Re: Changed engine, rewiring question
Reply #1 -
04/30/22 at 18:12:48
the big green one is the ignition switch
little green is kick stand safety.
it won't start w/out either one.
