SuzukiSavage.com - 1987 Savage Street Tracker build

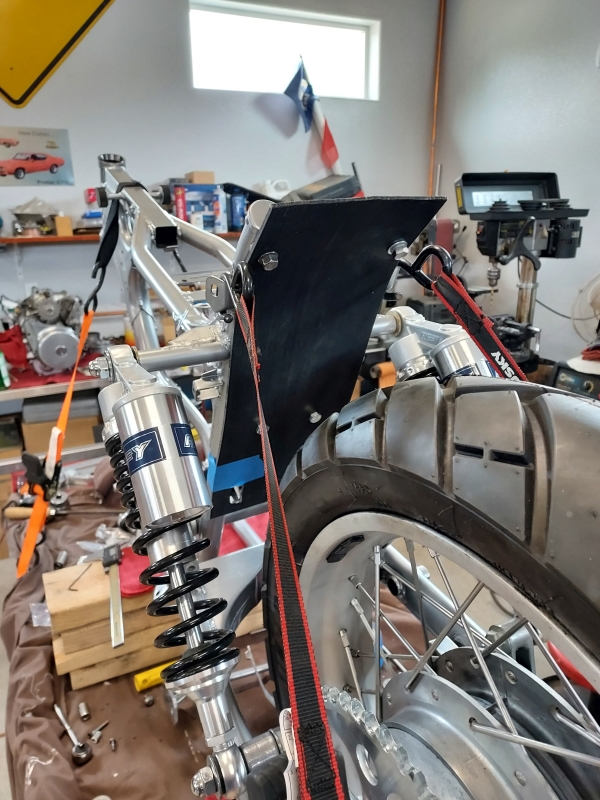

TheSneeze Serious Thumper Offline Posts: 1210 Northern Nevada Gender:	Re: 1987 Savage Street Tracker build Reply #690 - 06/20/22 at 15:49:17 rear view
Back to top	20220620_1226151.jpg Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribute IP Logged

TheSneeze

Serious Thumper

Offline

Posts: 1210
Northern Nevada
Gender: male

Re: 1987 Savage Street Tracker build
Reply #691 - 06/20/22 at 15:53:09

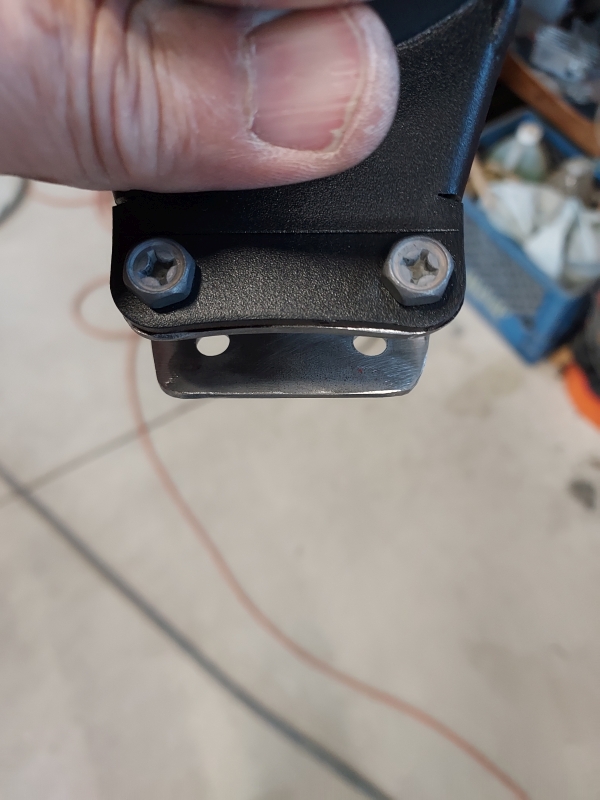

I had a squirrel moment (happens a lot!), and switched gears. I had to adapt from a 30mm bolt spacing to a 40mm spacing going from the upper triple clamp holes (used to be a stock lower) to the DC Motive gage mount. The mount didn't have as much angle to it that I prefer, so that needed to be dealt with as well. I cut a section out of some 1" x 2" rectangular tubing and started grinding and drilling. This is what it ended up looking like. Just a prototype at this point, but I may use it in the final assembly.

Back to top


Every twenty minute job is a stripped thread away from being a three day ordeal.

'87 LS650h Savage Street Tracker
'86 LS650g Savage (parts bike)
'81 Kawasaki KZ750e ELR tribute

IP Logged

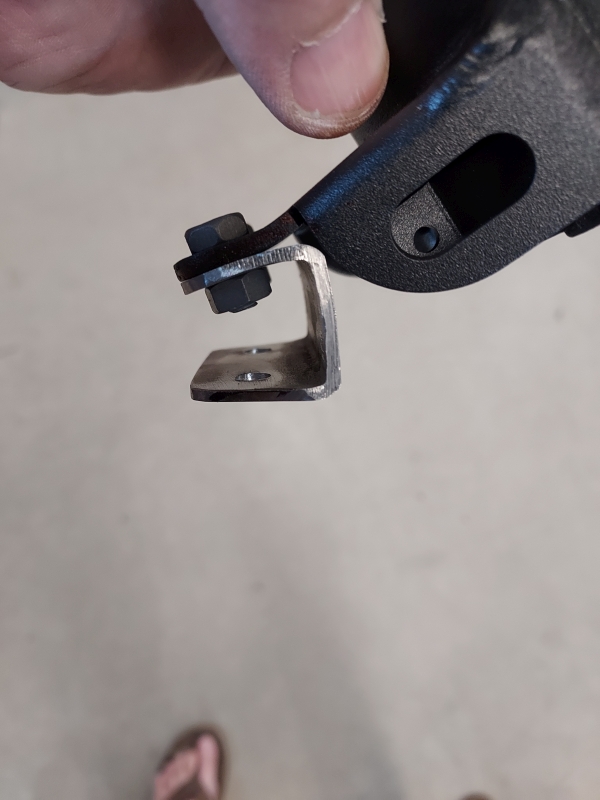

TheSneeze Serious Thumper Offline Posts: 1210 Northern Nevada Gender:	Re: 1987 Savage Street Tracker build Reply #692 - 06/20/22 at 15:53:44 side view with increased angle
Back to top	20220620_1541361.jpg Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribute IP Logged

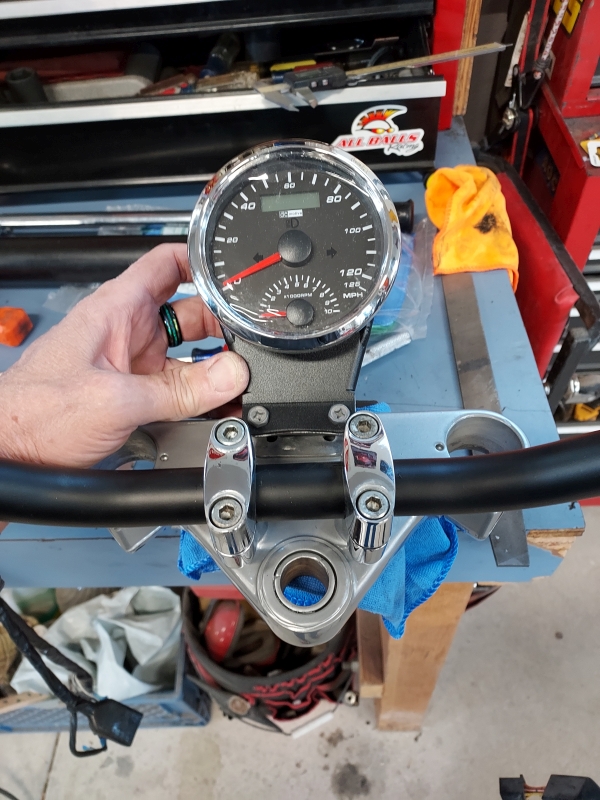

TheSneeze Serious Thumper Offline Posts: 1210 Northern Nevada Gender:	Re: 1987 Savage Street Tracker build Reply #693 - 06/20/22 at 15:54:19 cockpit view
Back to top	20220620_1542041.jpg Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribute IP Logged

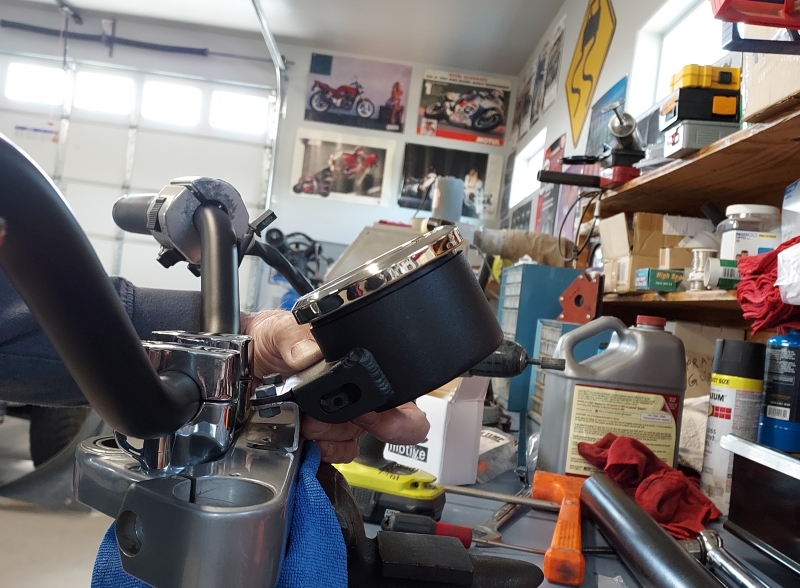

TheSneeze Serious Thumper Offline Posts: 1210 Northern Nevada Gender:	Re: 1987 Savage Street Tracker build Reply #694 - 06/20/22 at 15:54:56 side view in position
Back to top	20220620_1542171.jpg Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribute IP Logged

TheSneeze Serious Thumper Offline Posts: 1210 Northern Nevada Gender:	Re: 1987 Savage Street Tracker build Reply #695 - 06/20/22 at 15:56:23 None of the hardware will be used - these bolts/screws are mock up only. I will use new hardware for final assembly.
Back to top	Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribute IP Logged

TheSneeze Serious Thumper Offline Posts: 1210 Northern Nevada Gender:	Re: 1987 Savage Street Tracker build Reply #696 - 06/20/22 at 21:33:01 I am thinking about welding in a gusset to fight vibration on the rear opening of this bracket...
Back to top	20220620_1541361_001.jpg Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribute IP Logged

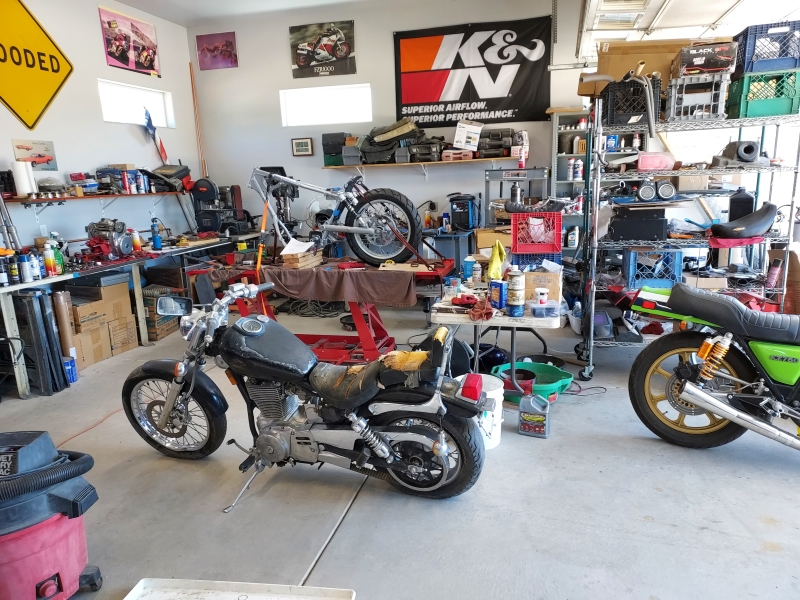

TheSneeze Serious Thumper Offline Posts: 1210 Northern Nevada Gender:	Re: 1987 Savage Street Tracker build Reply #697 - 06/21/22 at 12:04:40 My wife is starting to think I need an intervention. And here I haven't really gotten started yet!
Back to top	20220621_1202181.jpg Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribute IP Logged

LANCER Serious Thumper Alliance Member Online Savage Beast Performance Parts Posts: 10620 Oklahoma Gender:	Re: 1987 Savage Street Tracker build Reply #698 - 06/21/22 at 17:15:48 Intervention ? Nawwww.
Back to top	IP Logged

Ruttly Serious Thumper Online Thumpers Rule Posts: 5042 Manteca , CA Gender:	Re: 1987 Savage Street Tracker build Reply #699 - 06/21/22 at 19:02:19 Lmmfao Someone want to tell him ? You got the the sickness for there is no cure You’ll be sick till it’s finished , then it starts again( next build )
Back to top	The Topic Terminator IP Logged

TheSneeze Serious Thumper Offline Posts: 1210 Northern Nevada Gender:	Re: 1987 Savage Street Tracker build Reply #700 - 06/21/22 at 21:31:48 I knew there was something I liked about you, Ruttly... now I just need you to explain it to my wife... When I told her I want to buy at C5 Z06 Corvette, she said "come back and talk to me when both motorcycles are sold". SAY WHAT???...
Back to top	Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribute IP Logged

Ruttly

Serious Thumper

Online

Thumpers Rule

Posts: 5042
Manteca , CA
Gender: male

Re: 1987 Savage Street Tracker build
Reply #701 - 06/22/22 at 11:18:36

So sorry already have a wife I answer to. Give you some game , every so often I have to remind her that when I’m in the garage you know where I’m at and what I’m doing , if I’m not in the garage who knows what kind of trouble I can find , bar , booze , drugs , women or drag home some of my friends from low places !

Hence , the garage is a good place to be !

Your Welcome. Grin

Back to top

The Topic Terminator

IP Logged

Ruttly Serious Thumper Online Thumpers Rule Posts: 5042 Manteca , CA Gender:	Re: 1987 Savage Street Tracker build Reply #702 - 06/22/22 at 11:21:30 The Corvette , your on your own Remember only pick the battles you can win !
Back to top	The Topic Terminator IP Logged

TheSneeze Serious Thumper Offline Posts: 1210 Northern Nevada Gender:	Re: 1987 Savage Street Tracker build Reply #703 - 06/22/22 at 11:38:48 I have a suspicion this tracker is going to end up being too much fun to sell. Just sayin'...
Back to top	Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribute IP Logged

TheSneeze

Serious Thumper

Offline

Posts: 1210
Northern Nevada
Gender: male

Re: 1987 Savage Street Tracker build
Reply #704 - 06/22/22 at 14:55:37

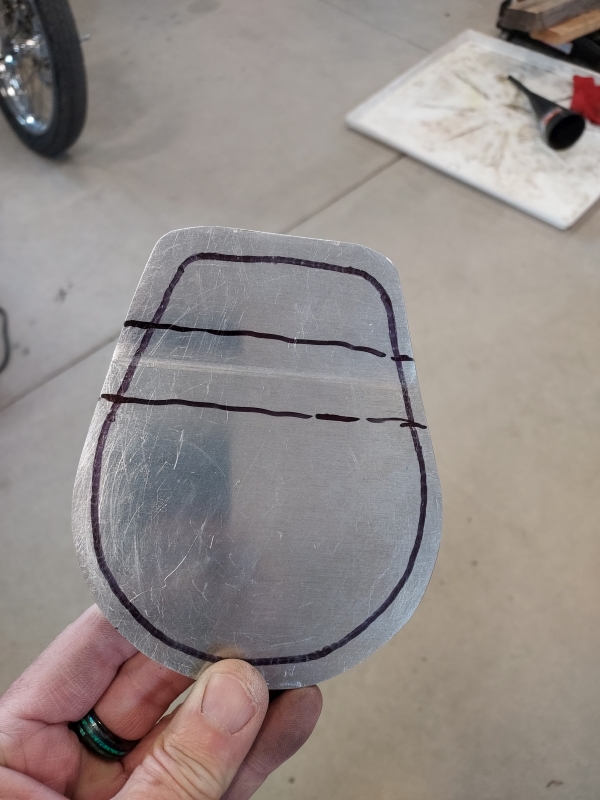

Today I decided to start playing around with a cover for that God awful location for the stock speedometer. I really don't know what Suzuki was thinking when they designed the gage location on these bikes. I guess trying to emulate Harleys. After measuring the height of the weld seam around the hole, I picked up a piece of 1/4" thick aluminum. I made a cardboard template of the stock cover first. After transferring it to the aluminum, I placed the template over the weld seams on the tank. Using a deadblow hammer, I tapped all the way around leaving an impression. After trimming the template to the impression, I used it to mark where the groove will be. The lines across the part represented where the direction change needed to be to fit the tank curve.

Back to top


Every twenty minute job is a stripped thread away from being a three day ordeal.

'87 LS650h Savage Street Tracker
'86 LS650g Savage (parts bike)
'81 Kawasaki KZ750e ELR tribute

IP Logged
