Engine drive pulley (Read 48 times)

Theduderino Full Member Offline The dude abides… Posts: 216 Looziana Gender:	Engine drive pulley 09/26/21 at 19:45:55 good evening everybody, I was wondering about a post from 04 from Ver. It’s a zip file of all the savage torque specs. On the left there’s newton meters and on the right no foot pounds. But there’s two sets of numbers under each of these, are these ranges?
Back to top	2000 Savage LS650P. Bobber kit, PWK CARB, air box mod. Rear bearing/spacer mod.. Do not fear mistakes, there are none. IP Logged

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 17807 Camp Springs, Kentucky Gender:	Re: Engine drive pulley Reply #1 - 09/27/21 at 05:24:34 Yep, it is a range. I always clean the threads on the nut and shaft, and install thread locker in addition to bending over 2 or 3 of corners of the "new" locking washer I install. (A loose pulley nut can result in the output shaft being ruined - I want to be sure the pulley nut stays tight).
Back to top	Someday I will be old......But not today! IP Logged

Theduderino

Full Member

Offline

The dude abides…

Posts: 216
Looziana
Gender: male

Re: Engine drive pulley
Reply #2 - 09/27/21 at 08:39:54

Yeah I rode her yesterday for about 30 miles. When I came out from the establishment I was at I noticed about a 50 Cent peace spot of oil underneath. I removed the front cover, which also I can’t seem to figure out which spacer in which the screw goes in one of the three holes! But it didn’t look like it was coming out of the output shaft I think maybe the transmission cover bolts or the stater cover. And I was reading my manual and said there’s three special washers that need to go back in place.

2000 Savage LS650P. Bobber kit, PWK CARB, air box mod. Rear bearing/spacer mod..

Do not fear mistakes, there are none.

IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Engine drive pulley Reply #3 - 09/27/21 at 09:44:00 Cardboard Draw the shape of the clutch cover Slot for every bolt Poke the bolts, with washer in the respective slot. No assembly puzzles The head cover job is much easier that way too
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

Theduderino Full Member Offline The dude abides… Posts: 216 Looziana Gender:	Re: Engine drive pulley Reply #4 - 09/27/21 at 13:39:42 Oh yes I’m keen on the cardboard usage. Short term memory loss LOL. I’m talking about the drive pulley cover. They have the spacers and the rubber grommets. I forget which spacer goes where.
Back to top	2000 Savage LS650P. Bobber kit, PWK CARB, air box mod. Rear bearing/spacer mod.. Do not fear mistakes, there are none. IP Logged

badwolf

Serious Thumper

Offline

Ridin' my Lil'
Bagger - 153k miles
so far

Posts: 793
Palm Beach County, FL
Gender: male

Re: Engine drive pulley
Reply #5 - 09/27/21 at 14:13:13

Oil leakage in that area can be coming from the rubber gromet with the 3 wires coming from the stator and the trigger wires for the ignitor.
You can try cleaning it real well with brake cleaner and rtv'ing everything over. Or you will have to pull the left side cover to do a good job of sealing it. Don't pull the side cover off without a new gasket in hand and a exploded parts diagram of that side. There is a little washer that normaly falls out and you must put it back on the right shaft or the starter won't work. Be prepared for the stator magnet to pull things around also, it is very strong. Also that case is WET, meaning you will have to drain the oil first.

IP Logged

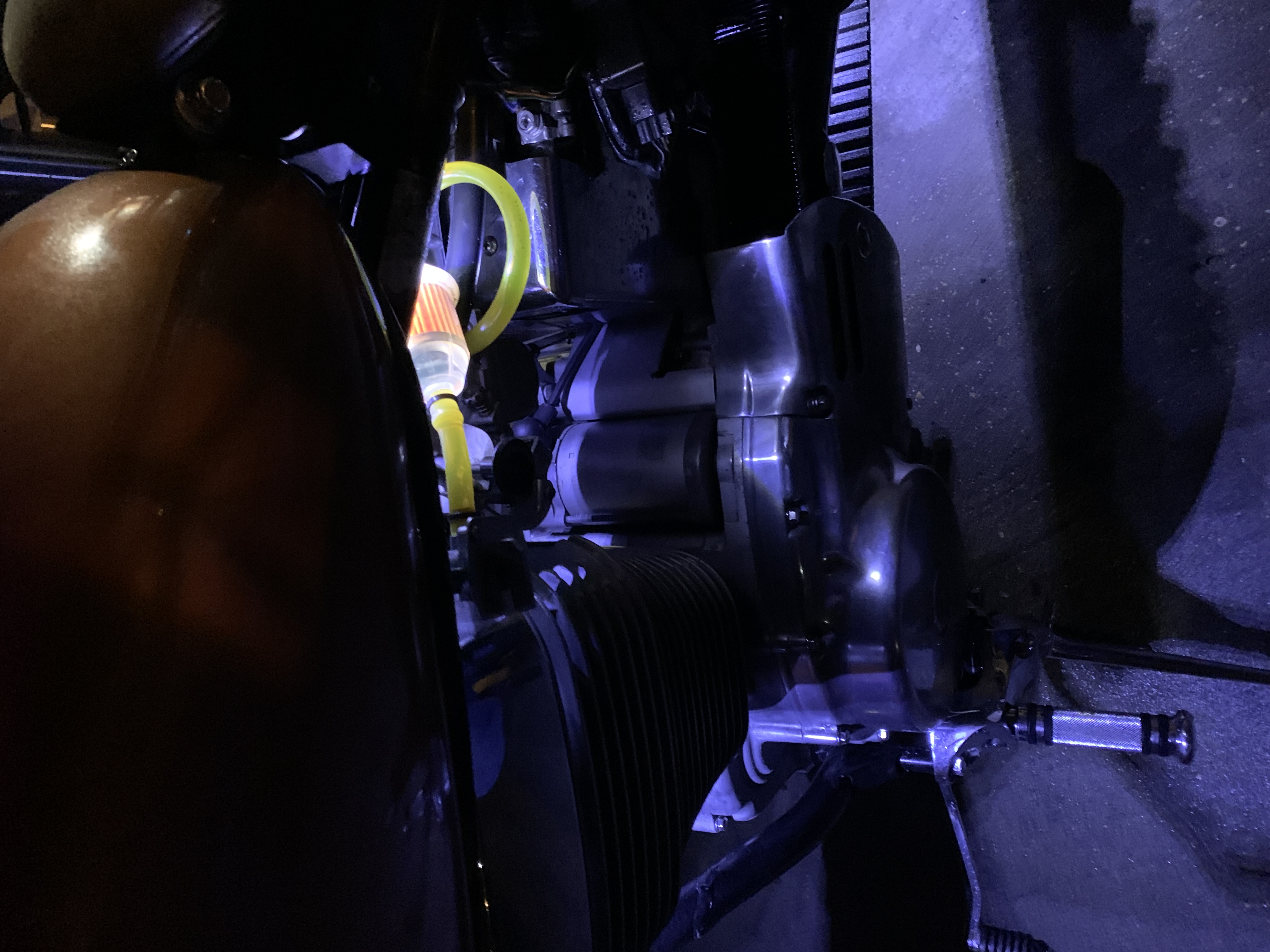

Theduderino Full Member Offline The dude abides… Posts: 216 Looziana Gender:	Re: Engine drive pulley Reply #6 - 09/27/21 at 17:55:22 LEDs
Back to top	3F5C237D-22CE-4E3F-8F4A-676A6FC3E91D.jpeg 2000 Savage LS650P. Bobber kit, PWK CARB, air box mod. Rear bearing/spacer mod.. Do not fear mistakes, there are none. IP Logged
