Mystery Right Side Crank Case Cover Spring
08/10/21 at 16:49:29
Hey All,

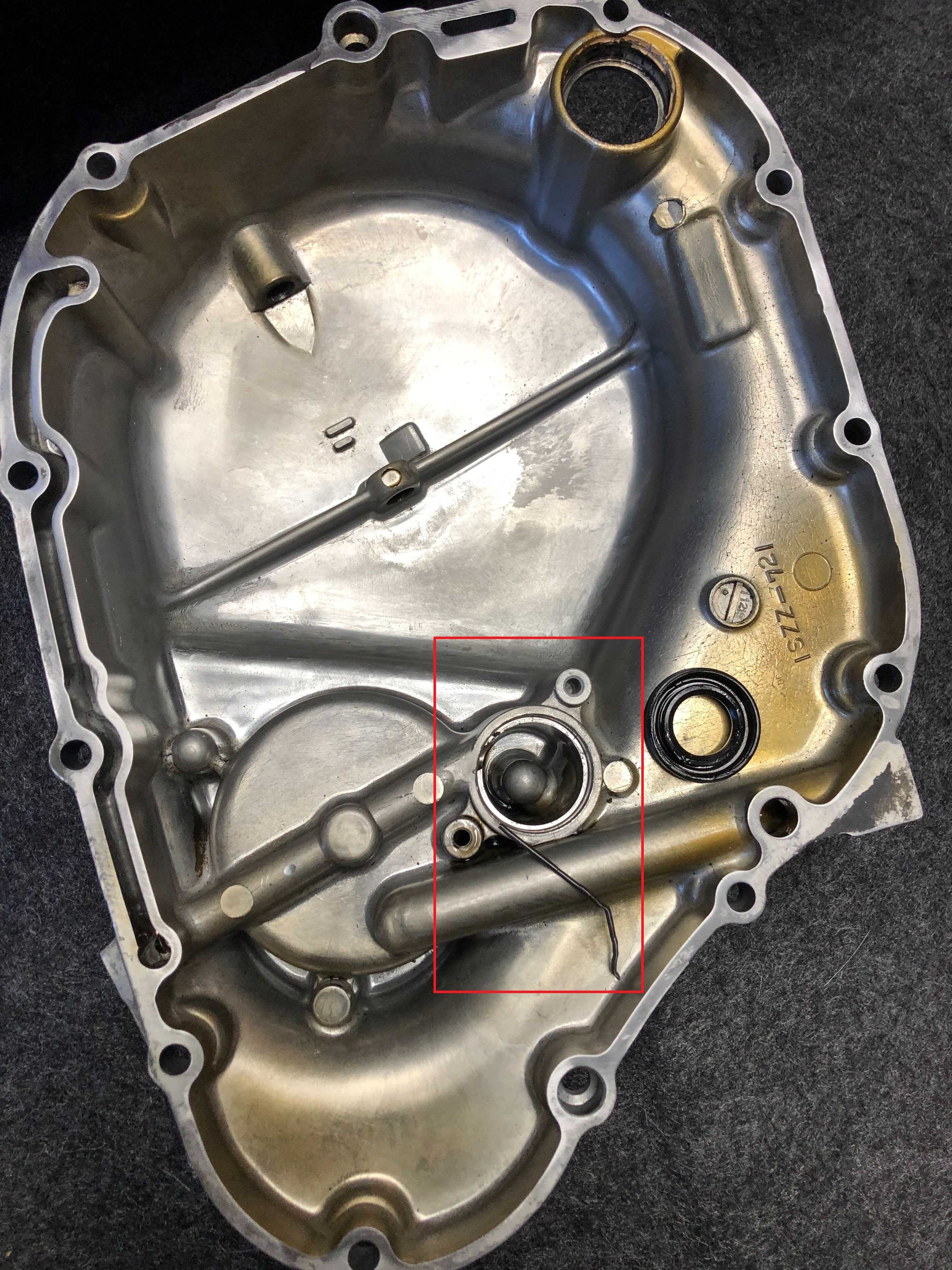

I removed the engine covers to get them powder coated for my custom build and I noticed a long spring popped out when I removed the rubber grommet that goes to the oil filter, pictures below.
I can't seem to find any documentation on it in the Clymer or on diagrams, can anyone tell me what it does and how to put it back when I get my case back?
Thanks!
Back to top
IP Logged
verslagen1
YaBB Moderator
ModSquad
Offline
Where there's a
will, I want to be
in it.
Posts: 28770
L.A. California
Gender:
Re: Mystery Right Side Crank Case Cover Spring
Reply #1 -
08/10/21 at 18:47:35
As far as I know, that doesn't belong in the engine.
There should be a compression spring between the cover and the filter.
Back to top
Versey's Place
Tech Section Index
IP Logged
Ferris
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 4
Re: Mystery Right Side Crank Case Cover Spring
Reply #2 -
08/10/21 at 19:20:07
Thanks for the reply Verslagen.
To clarify, the spring came out out the inside of the crank case on the other side of the oil filter. Inside the crank case cover, there is a rubber grommet, when I removed it the spring flew out and I have no idea where it came from.
Posted another picture to clarify what grommet and location of the case I am talking about!
Back to top
IP Logged
ohiomoto
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 2690
WTF is JOG?
Re: Mystery Right Side Crank Case Cover Spring
Reply #3 -
08/10/21 at 19:41:47
Back to top
IP Logged
Ferris
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 4
Re: Mystery Right Side Crank Case Cover Spring
Reply #4 -
08/10/21 at 19:51:49
Mystery solved! Thank you Ohiomoto, what exactly does the spring do?
Do I need a new one based on the condition of mine or can I reuse?
Back to top
IP Logged
ohiomoto
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 2690
WTF is JOG?
Re: Mystery Right Side Crank Case Cover Spring
Reply #5 -
08/10/21 at 19:54:38
The spring keeps tension on the seal to help the seal seal.
The seal should be replaced.
Back to top
IP Logged
Ferris
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 4
Re: Mystery Right Side Crank Case Cover Spring
Reply #6 -
08/10/21 at 19:56:10
Makes sense. Do you have the part number for the item?
Does the spring come with the seal?
Back to top
IP Logged
ohiomoto
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 2690
WTF is JOG?
Re: Mystery Right Side Crank Case Cover Spring
Reply #7 -
08/11/21 at 18:48:23
Go to partzilla or some other OEM realtailer and look for it online based on year of your bike. Probably located on the clutch cover or crank case diagram.
Back to top
IP Logged
Dave
YaBB Moderator
ModSquad
Offline
SuzukiSavage.com
Rocks!
Posts: 17823
Camp Springs, Kentucky
Gender:
Re: Mystery Right Side Crank Case Cover Spring
Reply #8 -
08/12/21 at 03:45:55
ohiomoto wrote
on 08/11/21 at 18:48:23:
Go to partzilla or some other OEM realtailer and look for it online based on year of your bike. Probably located on the clutch cover or crank case diagram.
Or got to your dealer.......Hopefully you will have better luck than I have had getting Suzuki parts. The Covid pandemic has made it very difficult to get some factory parts. It took me several months to get a decompression shaft seal for the Savage from Suzuki.
