Broken swingarm! (Read 99 times)

badwolf

Serious Thumper

Offline

Ridin' my Lil'
Bagger - 153k miles
so far

Posts: 793
Palm Beach County, FL
Gender: male

Broken swingarm!
06/22/21 at 15:13:48

Doing some stuff on the bike getting ready for a trip over the 4th, and saw the swingarm is cracked more than halfway around just behind the rear footpeg mount hole on the left side!
Has anyone else broken a swingarm, or heard of someone who has?
Looks like the quick fix is to swap it with the one off my 06'.
Guess I'll be turning wrenches for a while this week.

IP Logged

Gary_in_NJ Serious Thumper Offline LS650 Cafe Racer Posts: 2629 Amongst the Twisty Roads	Re: Broken swingarm! Reply #1 - 06/22/21 at 17:49:01 That’s an unusual failure for sure. Luckily it’s a fast swap. Be sure to grease the bearings and pivot bolt on reassembly.
Back to top	A life-time student of motorcycling. LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG IP Logged

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 17835 Camp Springs, Kentucky Gender:	Re: Broken swingarm! Reply #2 - 06/22/21 at 18:12:25 I have never heard of a broken swingarm on the Savage before this one. Even Youzguyz with 212,000 miles riding across cattle guards has not broken a swingarm!
Back to top	Someday I will be old......But not today! IP Logged

verslagen1 YaBB Moderator ModSquad Online Where there's a will, I want to be in it. Posts: 28790 L.A. California Gender:	Re: Broken swingarm! Reply #3 - 06/22/21 at 19:05:08 I've only heard of one... on a sidecar rig.
Back to top	Versey's Place Tech Section Index IP Logged

Eegore Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 8017	Re: Broken swingarm! Reply #4 - 06/23/21 at 08:20:42 I cracked one in the same spot but on the right side. This bike was an 86 and went through hell, I rode it over a lot of dirt and bumps. None of my other bikes ever had this issue, but I do check now just in case.
Back to top	IP Logged

badwolf

Serious Thumper

Offline

Ridin' my Lil'
Bagger - 153k miles
so far

Posts: 793
Palm Beach County, FL
Gender: male

Re: Broken swingarm!
Reply #5 - 07/11/21 at 15:04:25

I swaped the swingarm for one off a 13'. ($30 w/shipping - ebay)

I rubbed a lumber crayon in the crack to make it show. Starts at the weld for the rear footpeg mount and goes up and around the top, and the same around the bottom. The backside was all that was holding!
Glad I spotted and fixed it BEFORE my trip to the KSL over the 4th. Don't want to think about it breaking 700 miles from home, or 7 miles either!
As compared to most other major parts it was a pretty painless fix.

IP Logged

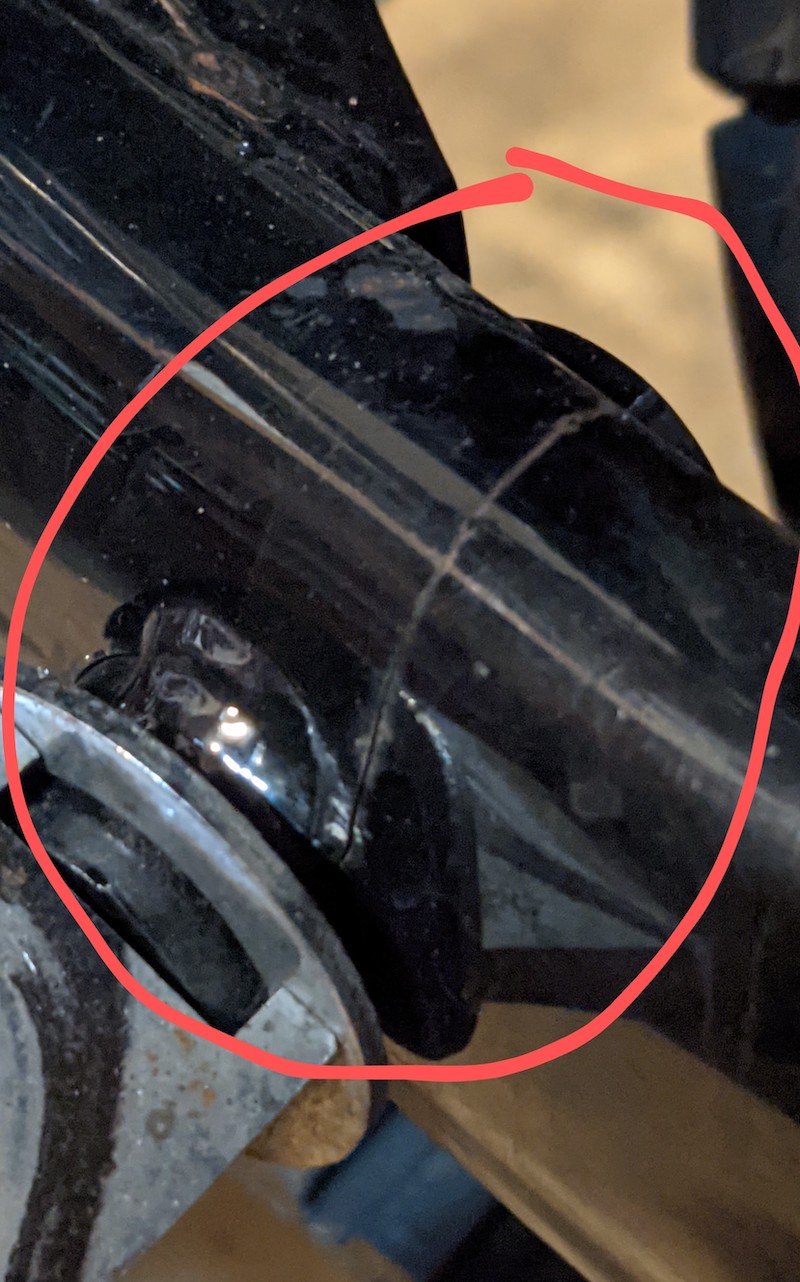

ohiomoto Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2697 WTF is JOG?	Re: Broken swingarm! Reply #6 - 07/14/21 at 18:23:52 I was testing out a hitch carrier that I put on the back of my van. As I was strapping the bike down I noticed this:
Back to top	PXL_20210715_012141240_2.jpg IP Logged

badwolf

Serious Thumper

Offline

Ridin' my Lil'
Bagger - 153k miles
so far

Posts: 793
Palm Beach County, FL
Gender: male

Re: Broken swingarm!
Reply #7 - 07/14/21 at 19:37:00

I think we have something more for ALL of us to check for once and a while!

How many miles on yours? ( mine is 129k )
Mine is solo only, strictly pavement.
Do you ride solo or double most of the time? Off road Moto?

(I will skip the fat chick joke.)

Seems odd it would break there, not near the shock mount. Do we need a engineer to analyze it?
Dave, are you listening?

IP Logged

ohiomoto

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 2697
WTF is JOG?

Re: Broken swingarm!
Reply #8 - 07/14/21 at 21:02:46

Solo, 250lbs, no off road, maybe a tiny RR track jump or two, and I've lost track of my speedos, but I should be around 20k-25k. 30k max but the more I think about it I should be closer to 20k. It was a really clean 96 with ~3500 miles on it when I got it. (Unless the previous owner disconnected or swapped the speedo.)

Luckily, I have a spare.

IP Logged
