Rear Heat Shield & Rear Brake Line Clearance (Read 117 times)
craigq
Junior Member
Alliance Member
Offline
SuzukiSavage.com
Rocks!
Posts: 80
Ottawa, ON
Gender:
Rear Heat Shield & Rear Brake Line Clearance
06/29/08 at 06:26:23
Hi,
How much clearance do you have between the rear heat shield and the rear brake line. I was looking my new ride over yesterday, and noticed that the rear brake line is rubbing/melting on the rear heat shield. I'm tempted to remove the shield, or go back to the dealership and look at the other LS650's to see if it's a feature on all of them... Page 162 Image 62 of the Clymer makes it look like it's a feature...
Here's a couple of pictures:
http://www.geocities.com/craigquenneville/s40/images/IMG_0498.jpg
http://www.geocities.com/craigquenneville/s40/images/IMG_0500.jpg
http://www.geocities.com/craigquenneville/s40/images/IMG_0507.jpg
TIA!
EDIT: Added another Macro picture...
Back to top
2009 WR250R/X
IP Logged
Mr. Hyde
Serious Thumper
Alliance Member
Offline
SuzukiSavage.com
Rocks!
Posts: 565
Kingston, Ontario, Canada
Gender:
Re: Rear Heat Shield & Rear Brake Line Clearan
Reply #1 -
06/29/08 at 08:42:38
On my '07 the brake cable is a good 1/2" away from the heat shield. No sign of any heat problems and I've got 4000 kms on the bike.
Take it back to the dealer.
Back to top
FREE RIDER - Whatever blows your hair back.
IP Logged
Jayhob
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 8
Re: Rear Heat Shield & Rear Brake Line Clearan
Reply #2 -
07/11/21 at 11:20:05
Has this issue been resolved? I just noticed my rear brake cable is rubbed just about half way through. 2014 with 1000 miles on it.
Ok, simple, loosen clamp on heatshield and rotate away from brake cable. Nope, after a little investigating it appears that the whole muffler needs to rotate.
Back to top
«
Last Edit: 07/13/21 at 05:28:11 by Jayhob
»
2014 S40
IP Logged
Jayhob
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 8
Re: Rear Heat Shield & Rear Brake Line Clearance
Reply #3 -
07/13/21 at 09:39:30

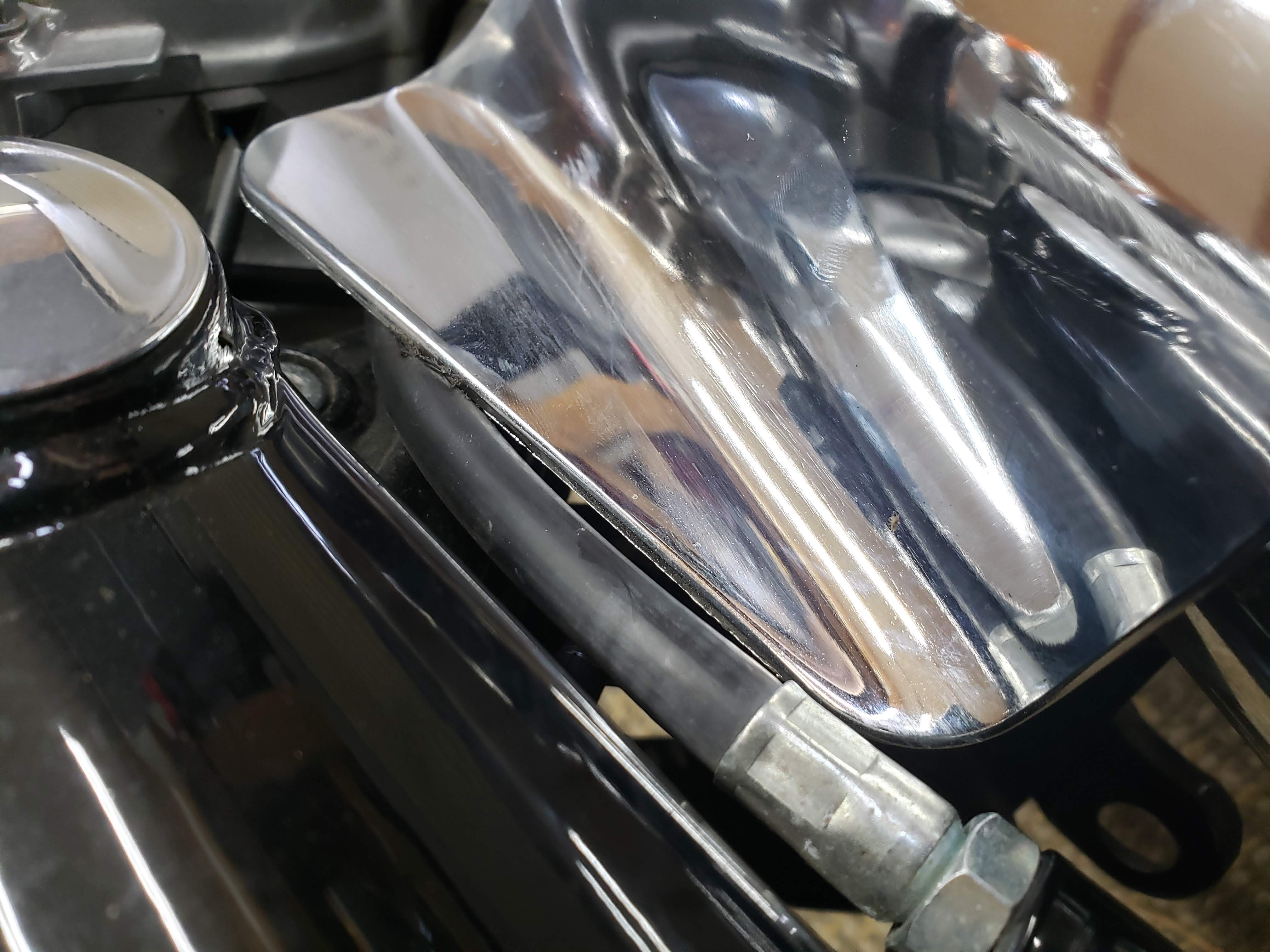

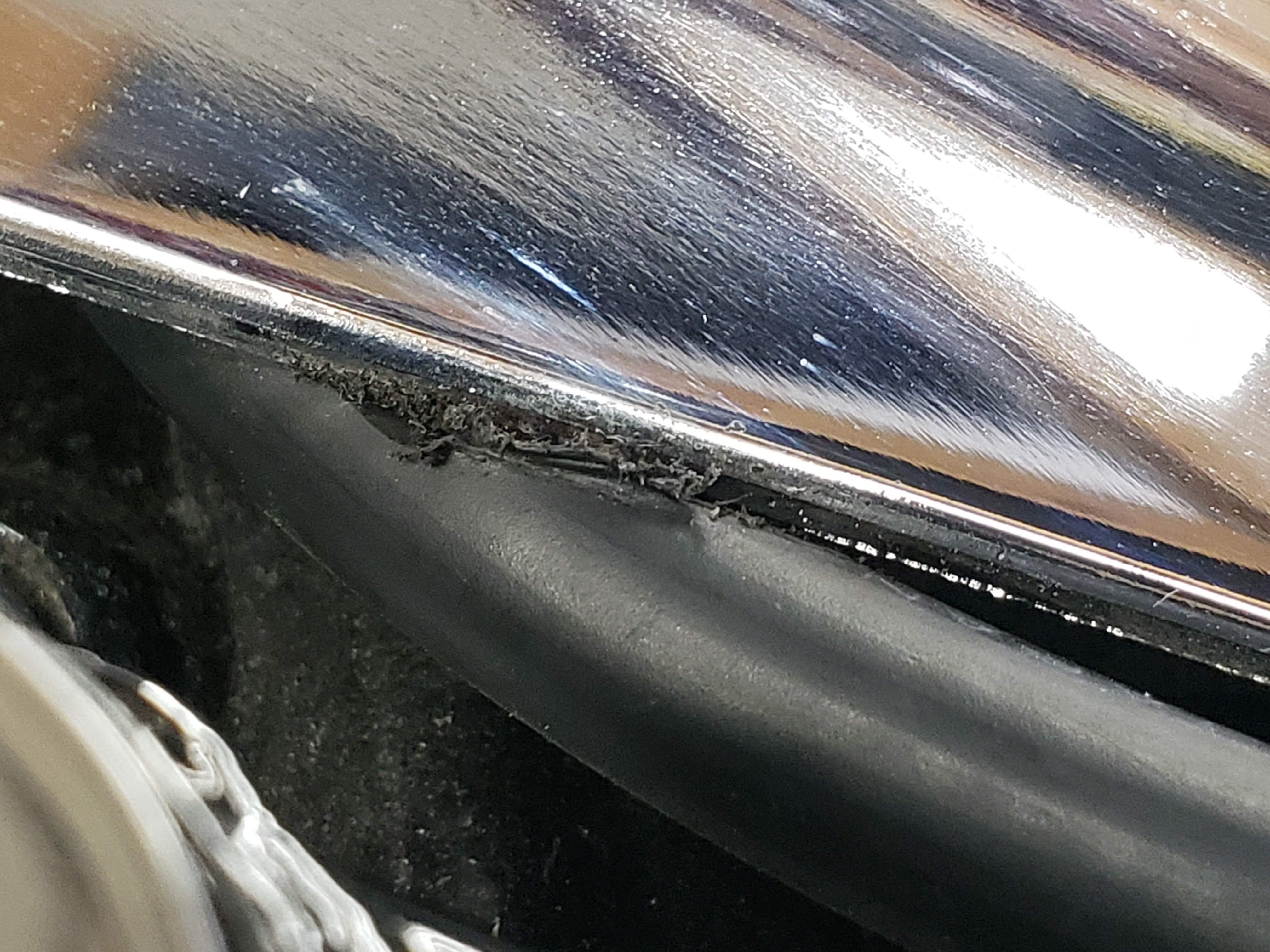

You can see where the interference is.
Back to top
2014 S40
IP Logged
Hiko
Senior Member
Offline
SuzukiSavage.com
Rocks!
Posts: 250
Tauranga New Zealand
Gender:
Re: Rear Heat Shield & Rear Brake Line Clearan
Reply #4 -
07/13/21 at 18:57:59
my 06 brake cable goes under the crankcase and then up and under the swingarm to the rear drum lever There is at least one inch of clearance between cable and any exhaust fittings
Something wrong with your setup methinks
Back to top
IP Logged
Jayhob
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 8
Re: Rear Heat Shield & Rear Brake Line Clearance
Reply #5 -
07/14/21 at 09:59:04
Mine does the same thing but the top of the heatshield is against it
Back to top
2014 S40
IP Logged
Jayhob
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 8
Re: Rear Heat Shield & Rear Brake Line Clearance
Reply #6 -
07/16/21 at 05:40:06
Maybe this is a sign to upgrade to a dyna muffler
Back to top
2014 S40
IP Logged
Jayhob
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 8
Re: Rear Heat Shield & Rear Brake Line Clearance
Reply #7 -
07/16/21 at 12:08:33

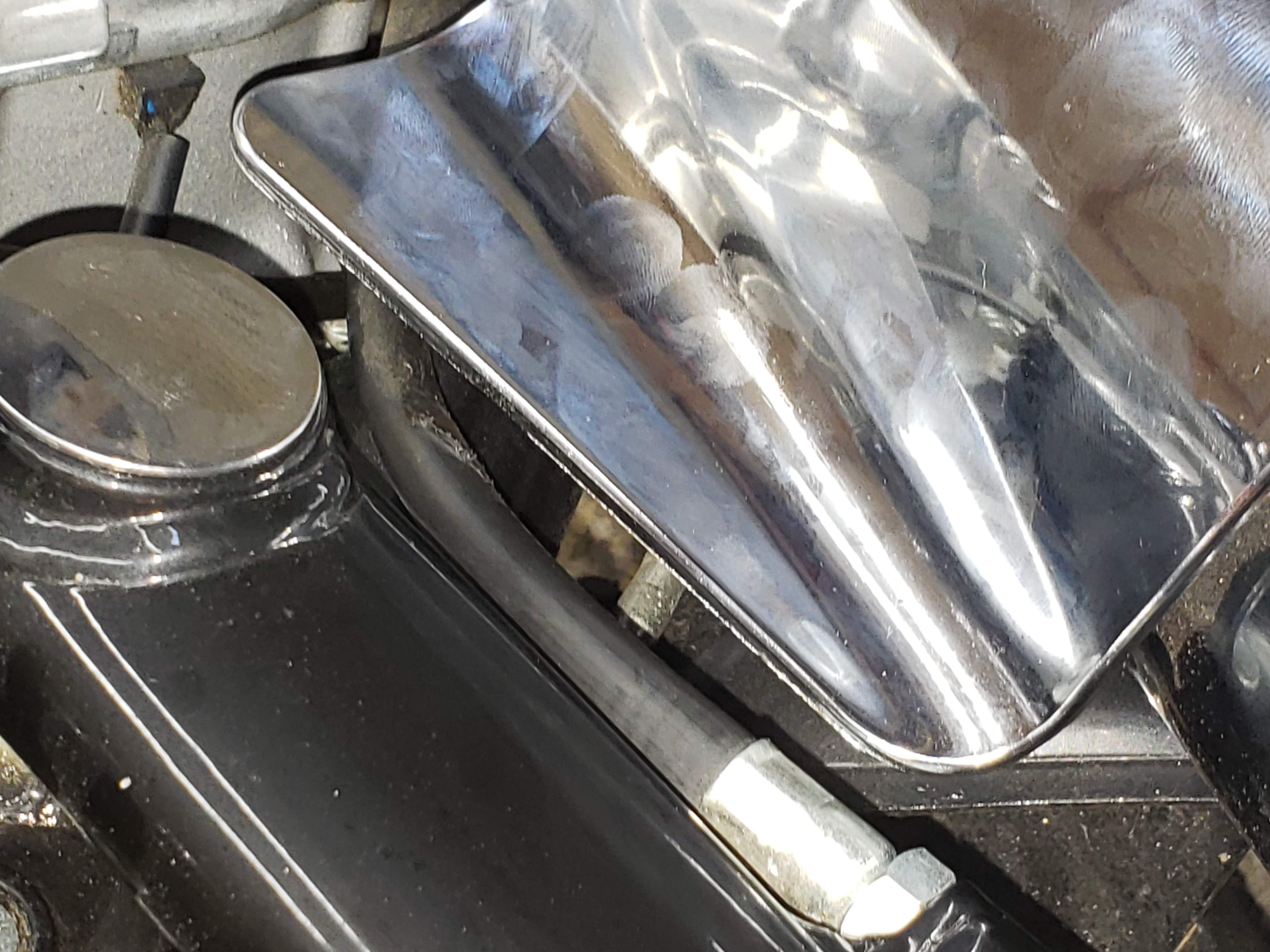

Problem solved, just needed to rotate the muffler which moved the heat shield away from the brake cable.

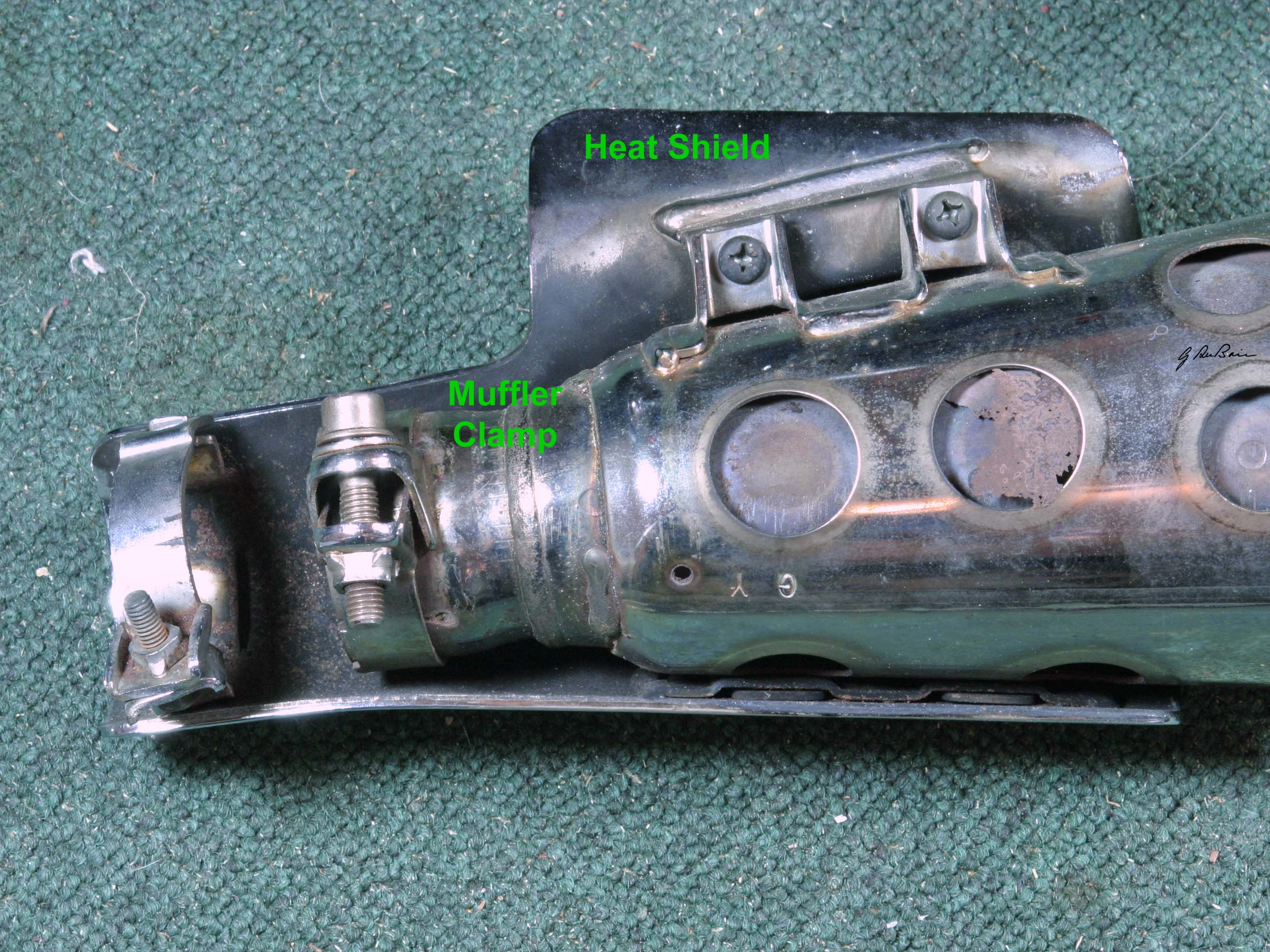

I pulled the whole system apart so I could rotate the muffler clamp thanks to DragBikeMike's tip
"Tip 1: The muffler clamp bolt is really humbug to access when the head of the bolt faces up. Turn the clamp over so the bolt head faces down. Then you can easily access from underneath the muffler. You will have to bend an orientation tab flat but it’s very easy to do."
The brake cable is worn down steel core to it but I probably wont swap it out until it starts to get rusty
Back to top
2014 S40
IP Logged
