Bike Blunders.....A Repair Tale.
06/05/21 at 03:04:19

I got a call from a local Savage owner who wanted some repairs done.  The bike had been sitting outside for a couple of years and needed repairs to get it going again.  The battery needed replacement, the fuel tank was better than I suspected but it had a little rust and a lot of stinky fuel, the carb would need cleaning.......and the engine was coated in oil from a head plug leak.  It also would need tires - but we agreed to get it running first.  The owner is not mechanically inclined and bought the bike used - they had it to a Honda dealer once to get some "tuneup" work done.  As I pushed the bike to the trailer I heard the belt making some noise that wasn't normal - it sounded like the belt teeth were rubbing on something.

The first thing the bike got was a bath to clean off the dirt and oil, then it got a thorough "blow dry" and was pushed into the sun to dry.

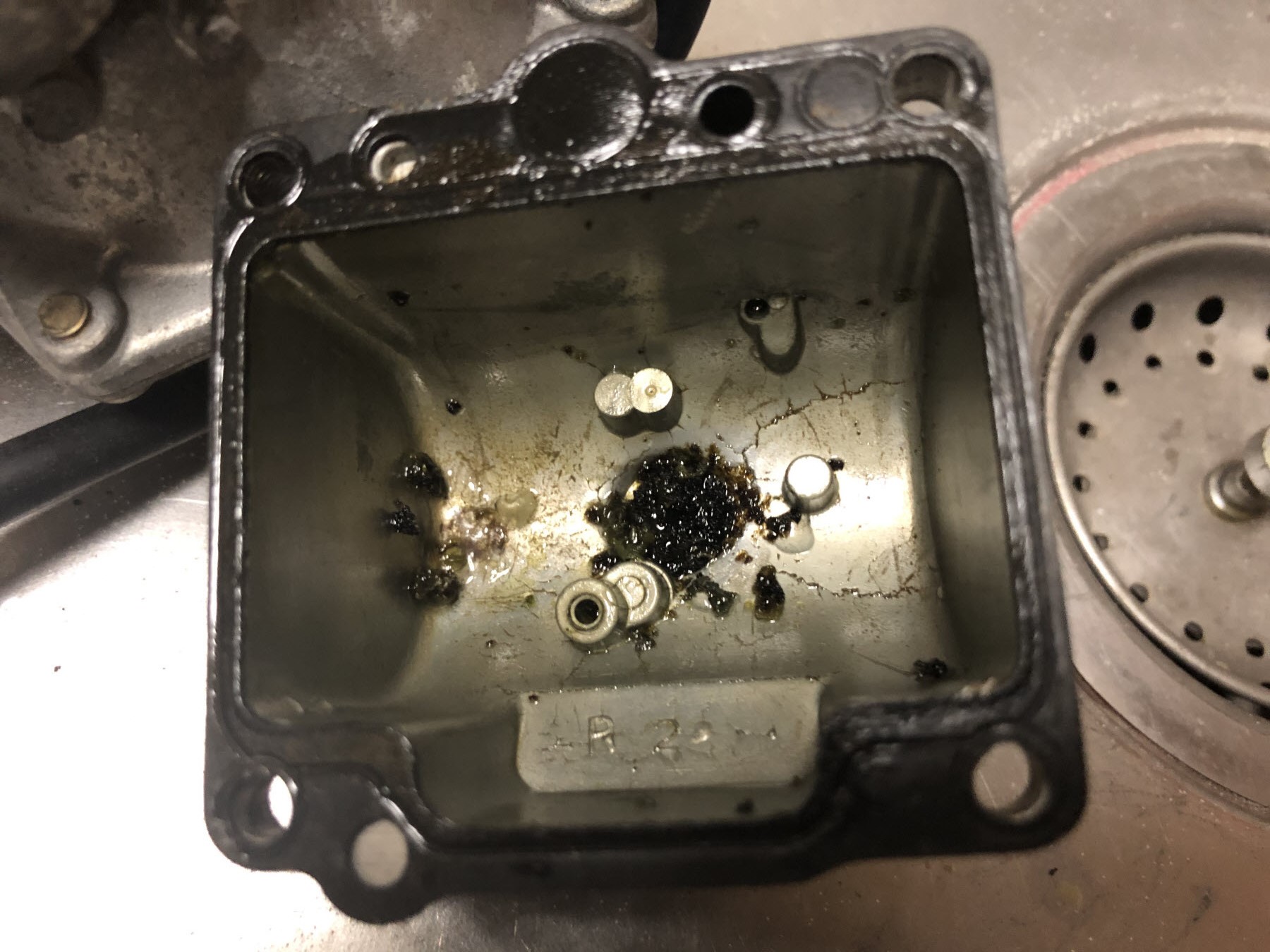

I started on the carb cleaning......it had pretty typical gunk in the float bowl.

Back to top



Someday I will be old......But not today!

  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 17831
Camp Springs, Kentucky
Gender: male
Re: Bike Blunders.....A Repair Tale.
Reply #1 - 06/05/21 at 03:05:44

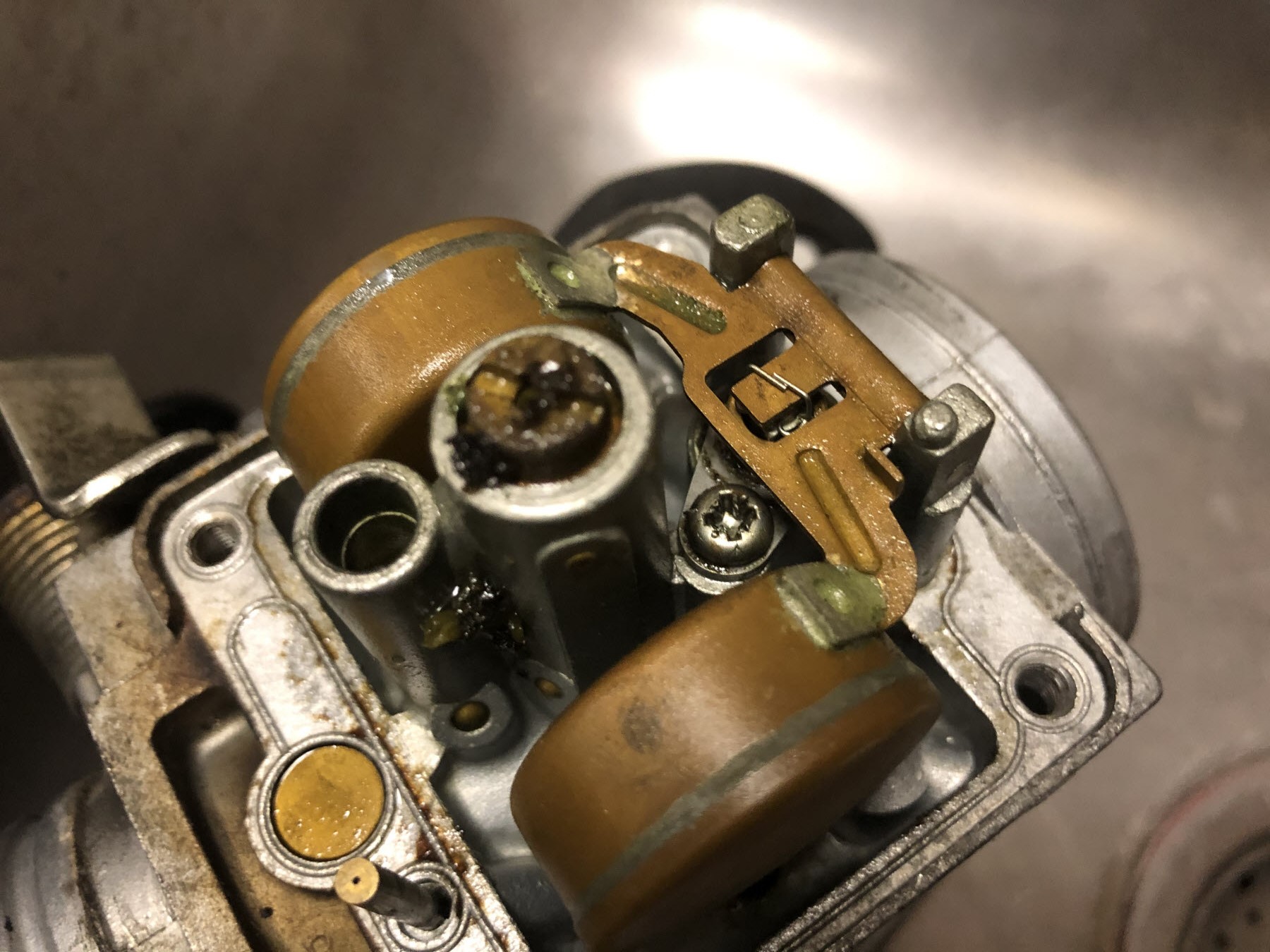

The juts were equally as cruddy.

The slide and/or needle was glued into position and I soaked the carb with penetrating oil to get things softened up....eventually it came free.
Back to top



Someday I will be old......But not today!

  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 17831
Camp Springs, Kentucky
Gender: male
Re: Bike Blunders.....A Repair Tale.
Reply #2 - 06/05/21 at 03:07:13

As the carb parts were in the ultrasonic cleaner - I started on the work to replace the leaky head plug.

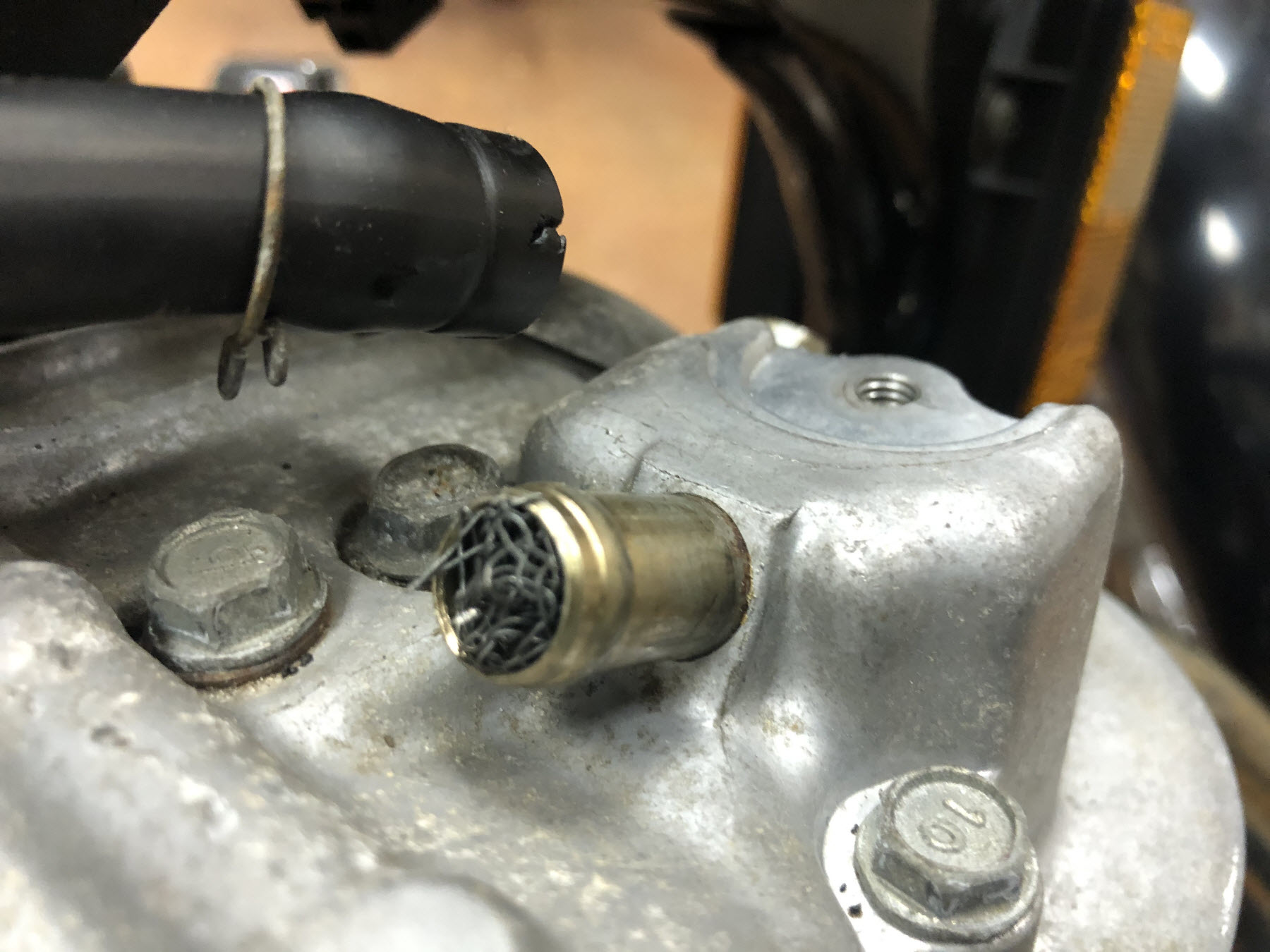

As I removed the breather hose.....I saw this steel wool sticking out of the breather pipe.
Back to top



Someday I will be old......But not today!

  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 17831
Camp Springs, Kentucky
Gender: male
Re: Bike Blunders.....A Repair Tale.
Reply #3 - 06/05/21 at 03:08:52

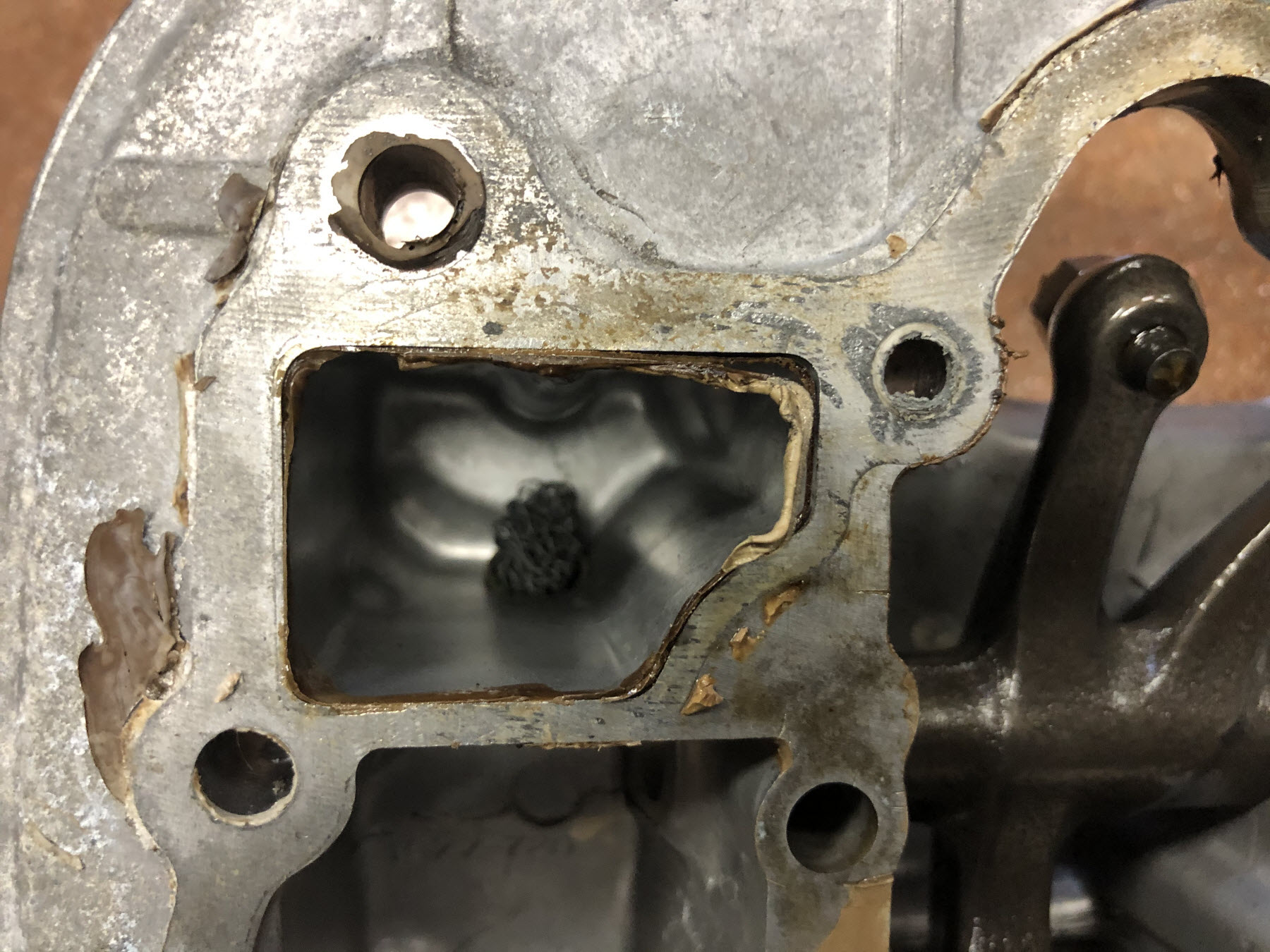

When I got the head cover off it became obvious what had happened - they put the head cover on without the oil screen.

The steel wool evidently as an attempt to fix the issue without removing the head cover again.
Back to top



Someday I will be old......But not today!

  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 17831
Camp Springs, Kentucky
Gender: male
Re: Bike Blunders.....A Repair Tale.
Reply #4 - 06/05/21 at 03:11:56

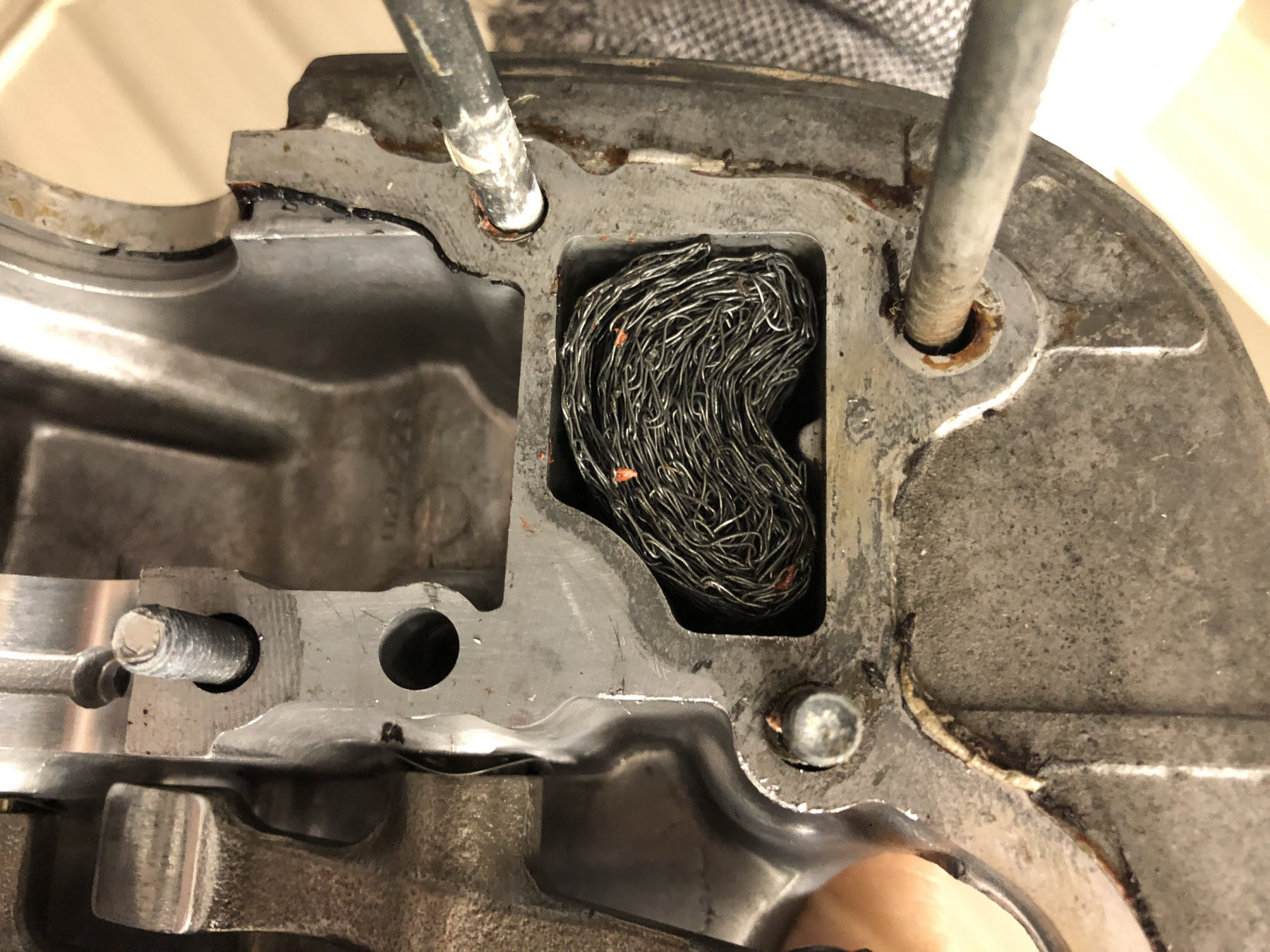

For those member who don't know what the oil screen looks like - here is what the "proper" factory screen looks like.  (I had a used one and put in in the proper place for the photo - this is before the head cover was cleaned up).
Back to top



Someday I will be old......But not today!

  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 17831
Camp Springs, Kentucky
Gender: male
Re: Bike Blunders.....A Repair Tale.
Reply #5 - 06/05/21 at 03:13:41

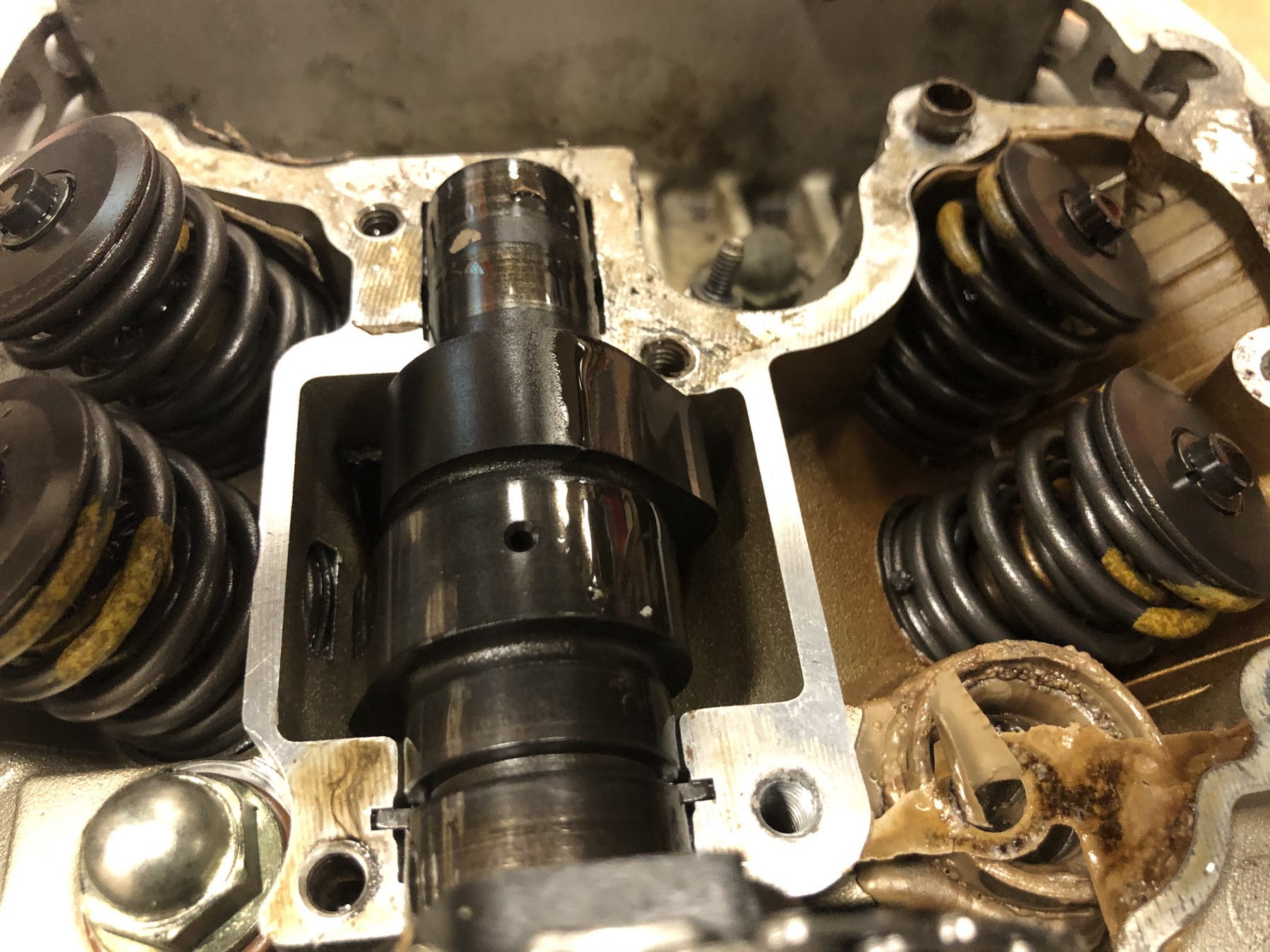

The next surprise was the head plug.

The last "mechanic" that was inside this engine attempted to "seal" the headplug with mass quantities of sealant.
Back to top
« Last Edit: 06/05/21 at 14:54:27 by Dave »


Someday I will be old......But not today!

  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 17831
Camp Springs, Kentucky
Gender: male
Re: Bike Blunders.....A Repair Tale.
Reply #6 - 06/05/21 at 03:14:13

Another sealant shot.
Back to top



Someday I will be old......But not today!

  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 17831
Camp Springs, Kentucky
Gender: male
Re: Bike Blunders.....A Repair Tale.
Reply #7 - 06/05/21 at 03:14:57

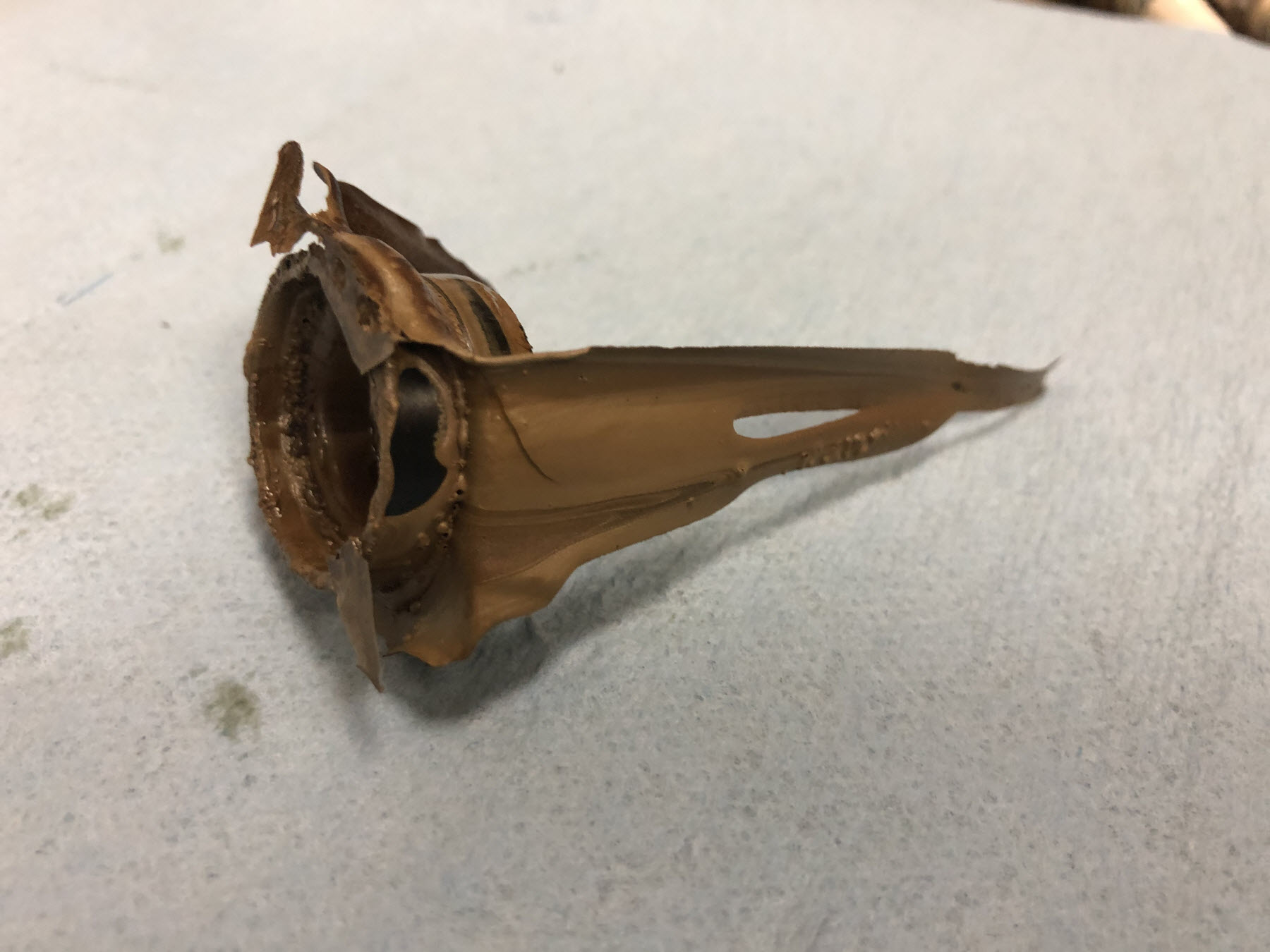

Here is the head plug = there was so much sealant it ran down the side of the cam chain housing.
Back to top



Someday I will be old......But not today!

  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 17831
Camp Springs, Kentucky
Gender: male
Re: Bike Blunders.....A Repair Tale.
Reply #8 - 06/05/21 at 03:15:46

All cleaned up with a new "Verslagen" head plug installed.
Back to top



Someday I will be old......But not today!

  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 17831
Camp Springs, Kentucky
Gender: male
Re: Bike Blunders.....A Repair Tale.
Reply #9 - 06/05/21 at 03:17:50

The head cover was replaced and the valves were adjusted - and while the Suzukibond sealant was setting up I decided to find out why the belt was making noise.

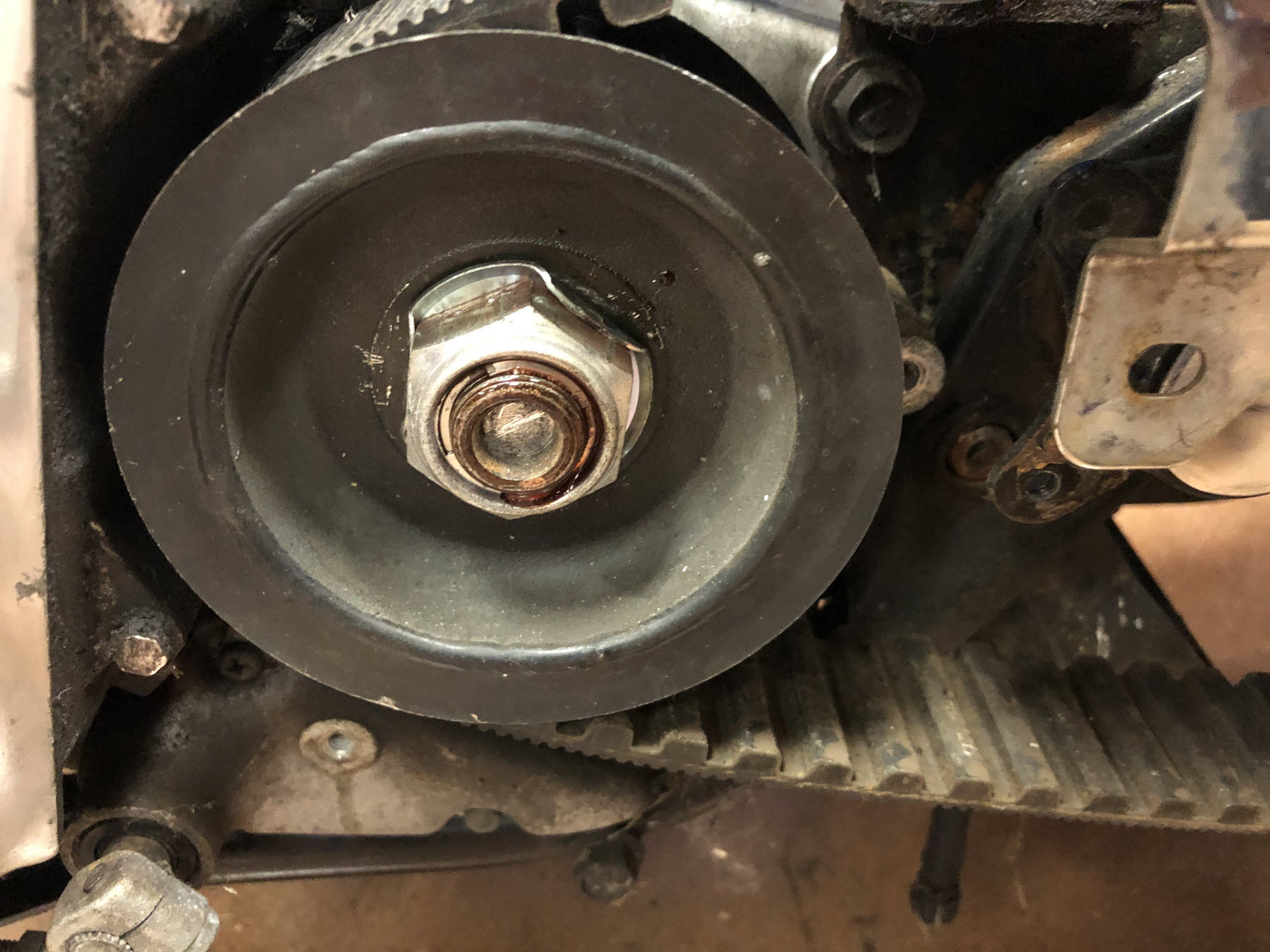

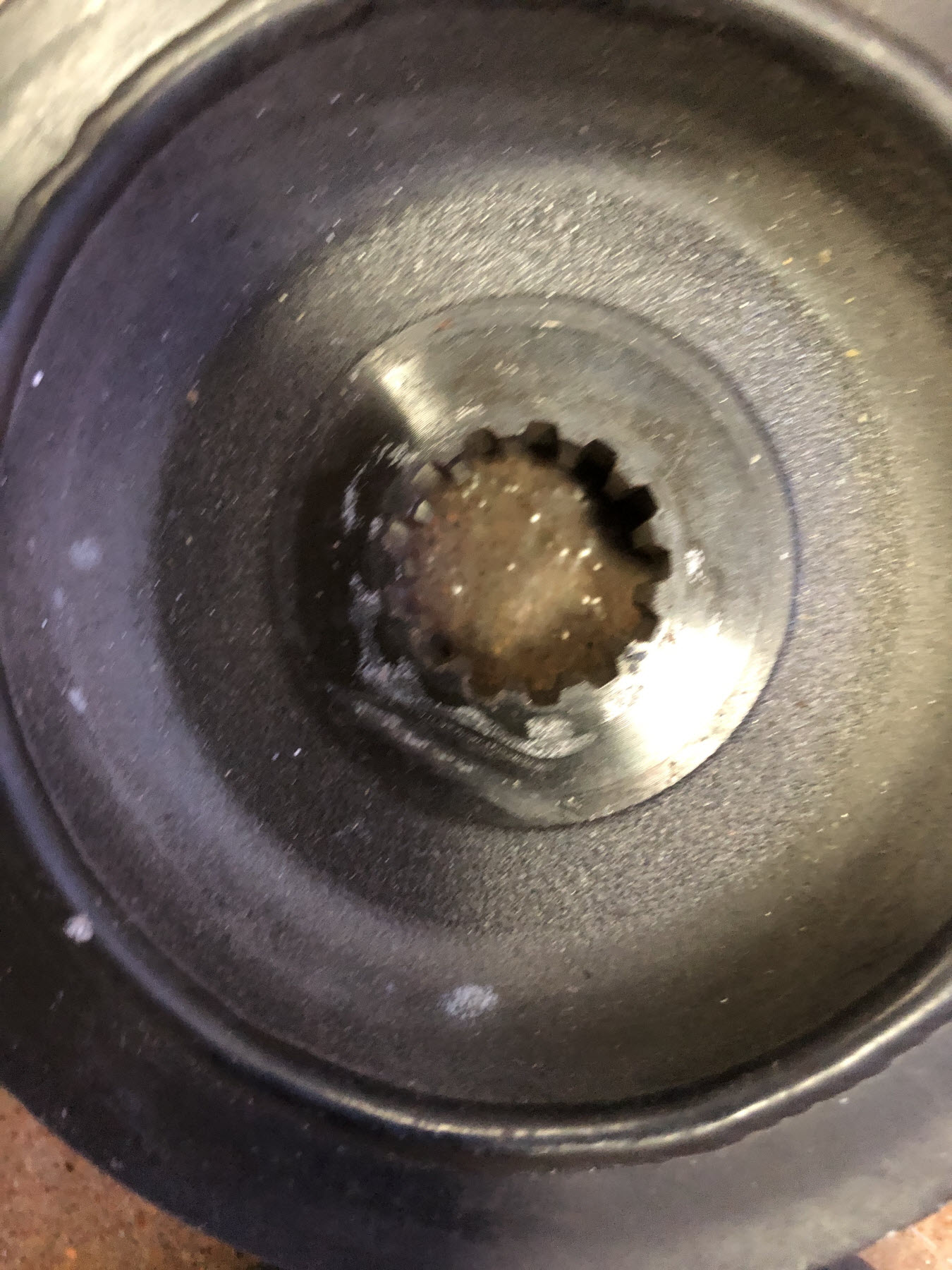

I discovered the pulley was loose.  The pulley splines were damaged, and the shaft has a little wear as well.
Back to top



Someday I will be old......But not today!

  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 17831
Camp Springs, Kentucky
Gender: male
Re: Bike Blunders.....A Repair Tale.
Reply #10 - 06/05/21 at 03:19:31

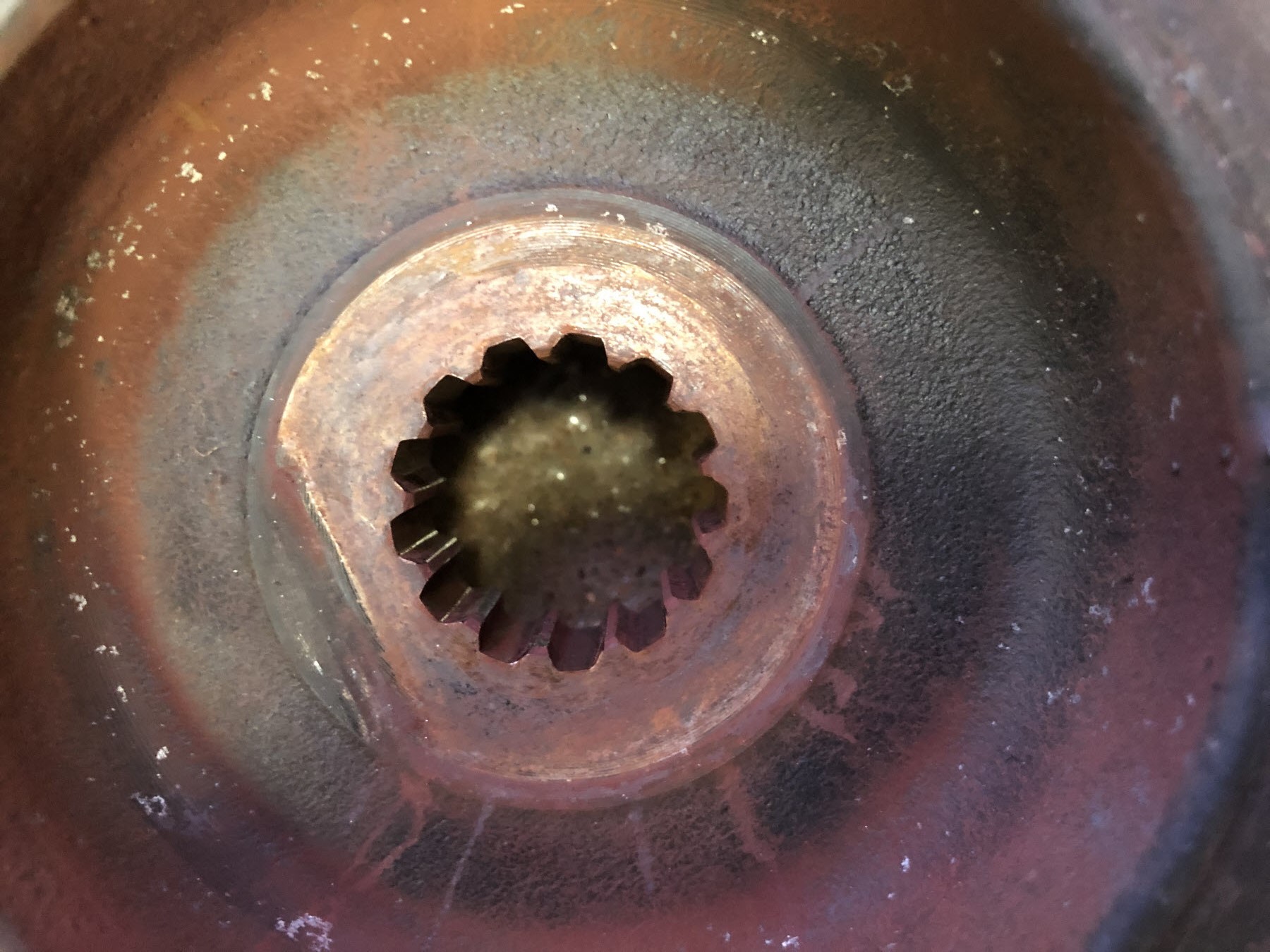

I put on a good used pulley that fit much better on the splined shaft.
Back to top



Someday I will be old......But not today!

  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 17831
Camp Springs, Kentucky
Gender: male
Re: Bike Blunders.....A Repair Tale.
Reply #11 - 06/05/21 at 03:20:51

Red thread locker and a new locking tab with "3" corners bent up.....it should stay in place now!
Back to top



Someday I will be old......But not today!

  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 17831
Camp Springs, Kentucky
Gender: male
Re: Bike Blunders.....A Repair Tale.
Reply #12 - 06/05/21 at 03:23:43

The battery is installed and everything but the fuel tank and seat are back on the bike.

The remaining work to be done is cleaning the fuel tank and petcock, installing new fuel line, and firing up the bike and adjusting the idle air/fuel screw.  After the engine is fired up and running - then an oil and filter change.

Once the bike is running and proven to be worthy - it will get new tires and the front brake fluid will be changed.
Back to top



Someday I will be old......But not today!

  IP Logged
Ruttly
Serious Thumper
*****
Offline

Thumpers Rule

Posts: 5008
Manteca , CA
Gender: male
Re: Bike Blunders.....A Repair Tale.
Reply #13 - 06/05/21 at 11:47:01

Super Dave’s Savage Restoration

Don’t forget the before and after pics

Bring another back to life , that’s a good hobby
Back to top



The Topic Terminator
  IP Logged
Gary_in_NJ
Serious Thumper
*****
Offline

LS650 Cafe Racer

Posts: 2629
Amongst the Twisty Roads
Re: Bike Blunders.....A Repair Tale.
Reply #14 - 06/05/21 at 18:21:22

Thumbs up Dave.
