rear white wall 150/90 vs 150/80
11/17/20 at 09:06:45

So I want to put some white walls on the savage and I don't see a lot of options for the 140/90 15 (which is what's on the bike now). I have found the shinko 777 white wall in 150/90 15 and 150/80 15.

since the 150/80's ratio would be smaller than the 150/90's would it be a better fit? or should I go with the 150/90's? or should I not mount either of those tires?

Back to top

IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 17834
Camp Springs, Kentucky
Gender: male

Re: rear white wall 150/90 vs 150/80
Reply #1 - 11/17/20 at 10:38:12

I believe the 150/90 is just too big to fit in the Savage - it will likely rub the swingarm cross member, and also the bolts that hold the side rails onto the fender.

There are some folks that have mounted the 150/80 - you still may have some rubbing issues to correct....the bolts under the fender will rub unless you install some with low profile heads.

Back to top

Someday I will be old......But not today!

IP Logged

Eegore

Serious Thumper

Online

SuzukiSavage.com
Rocks!

Posts: 8017

Re: rear white wall 150/90 vs 150/80
Reply #2 - 11/17/20 at 13:20:23

Same topic here as well:

http://suzukisavage.com/cgi-bin/YaBB.pl?num=1567028054/2#2

This bike was modified to take white-walls:

http://suzukisavage.com/cgi-bin/YaBB.pl?num=1546135783/15

I have the 150/90 and had to modify my bike to fit. No rear fender at all and the shocks are now straight bars with a springer seat as the tire will impact the frame on bumps even with the shocks fully stiffened and I weigh 165lbs maybe 175 with gear.

Back to top

IP Logged

MMRanch

Serious Thumper

Offline

Evil flourishes if
Good Men do Nothing.

Posts: 5739
LYNCHBURG TN
Gender: male

Re: rear white wall 150/90 vs 150/80
Reply #3 - 11/17/20 at 21:09:51

https://www.ebay.com/itm/Suzuki-gs450-gs-450-Set-Front-19-Rear-16-Rim-Wheels-...

go to tubless 16" then you can use a 130/90-16

The brake shoes fit right in , but ask Versey to be sure ?

I believe 1982 is tubeless ? The round inside is tubed and the squair inside is tubeless
.........................

This is tubeless : https://www.ebay.com/itm/Suzuki-gs450-gs-450-Rear-Rim-Wheel-Assembly/19362364...

Wow ! This one is 17"

Back to top


I see and feel the Holy Spirit in the world , as does anybody who has eyes to see. How far Man's corruption reaches into Organized Religion , we may never know

IP Logged

verslagen1

YaBB Moderator
ModSquad

Offline

Where there's a
will, I want to be
in it.

Posts: 28787
L.A. California
Gender: male

Re: rear white wall 150/90 vs 150/80
Reply #4 - 11/17/20 at 21:54:03

MMRanch wrote on 11/17/20 at 21:09:51:

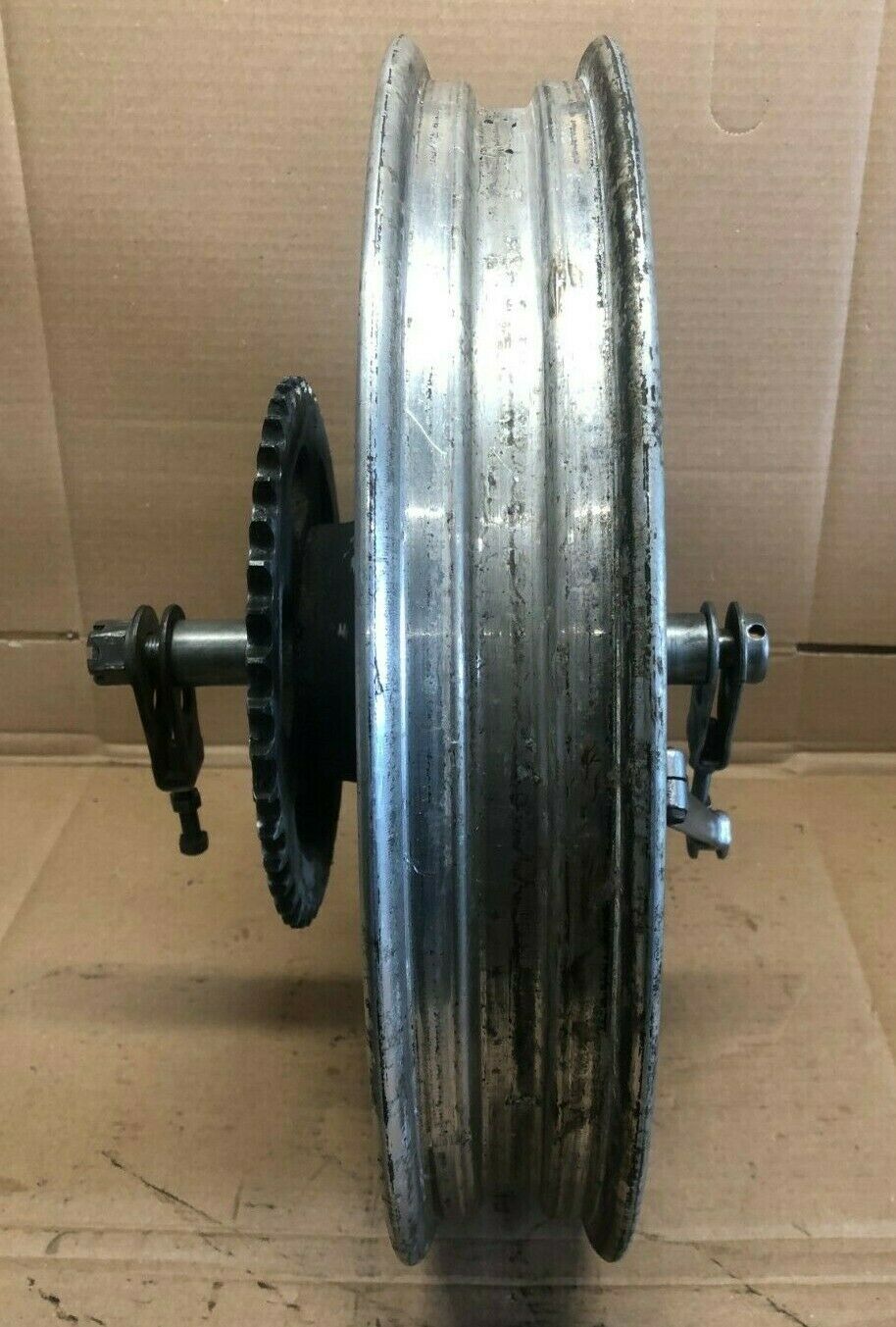

This is tubeless : https://www.ebay.com/itm/Suzuki-gs450-gs-450-Rear-Rim-Wheel-Assembly/19362364...

this is not tubeless, there are no safety beads to hold the tire on the rim.
if it is tubeless, it will say so on the rim.

this is an example. look at the 2nd picture.

https://www.ebay.com/itm/80-82-Suzuki-GS450-19x1-85-Front-Wheel-Rim-Hub-54111...

here's another, look at the 4th pic

https://www.ebay.com/itm/1982-Suzuki-GS450L-GS-450-L-S385-front-wheel-rim-19i...

As far as the hub goes, check the max diameter listed on the rim.
if it's the same, then you got a good chance.

Back to top

Versey's Place
Tech Section Index

IP Logged

zipidachimp Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1393 surrey, b.c. Gender:	Re: rear white wall 150/90 vs 150/80 Reply #5 - 11/17/20 at 22:14:44 I used the '84-85 gs550L tubeless wheel, fits like a glove, $40 ebay, 120/90-16, works great! cheers!
Back to top	IP Logged

Adellemoto YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 10 Daphne, Al Gender:	Re: rear white wall 150/90 vs 150/80 Reply #6 - 11/18/20 at 08:03:28 thanks for all the info guys. I really appreciate it.
Back to top	IP Logged

Zepp

Full Member

Offline

SuzukiSavage.com
Rocks!

Posts: 220

Re: rear white wall 150/90 vs 150/80
Reply #7 - 11/18/20 at 09:55:45

I got 150/80 on my bike, it fits all right in. (no white walls)
In any case I read a lot on this forum.. some guys (bobber builders?) want even wider tyres, then the tires altso rises in hight!

Then it seems that its the back fender and the uper frame that put this in question!
At least the back fender.. not the fender it self, but the nuts and bolts that protrude inward to the tire.

Soo.. 150/80 is working on my bike, a lot of space to the svingarm.

Back to top

IP Logged

badwolf

Serious Thumper

Offline

Ridin' my Lil'
Bagger - 153k miles
so far

Posts: 793
Palm Beach County, FL
Gender: male

Re: rear white wall 150/90 vs 150/80
Reply #8 - 11/18/20 at 11:59:53

When looking at rear wheels, if you want to use the stock rear brake make sure it says ''160 mm'' inside the brake drum. If it says ''180 mm'' you will need to get the brake off that bike and make a torque arm of some type.
When changing front wheels, you will have to mess with the front brake rotor. You can have the rotor cut down to the same dia. as the S40's. (I did that once and ended up selling it to MMRanch). Or you can make a new bracket for the stock caliper. As long as you are making a new bracket, you can upgrade to a SV650 dual piston caliper and along with the bigger rotor you will have a LOT more front brake.(a good thing)
