cast wheels & tubeless (Read 65 times)

badwolf

Serious Thumper

Offline

Ridin' my Lil'
Bagger - 153k miles
so far

Posts: 793
Palm Beach County, FL
Gender: male

cast wheels & tubeless
08/14/20 at 18:36:40

I hate m/c tubes!!! Last weekend I had a slow leak in my front tire, put in some fix a flat (NOT RECOMENDED) and made it home (850 miles) with 2 blow ups. Turned out to be a fold in the tube formed a crack, AFTER 20,000 MILES!
So I decided to go full tubeless. Bought a front wheel on ebay from a 82' gs850 19 1.85" to match my rear 16 2.50" both "tubeless tire applicable".
So with both wheels in hand I will show the difference.

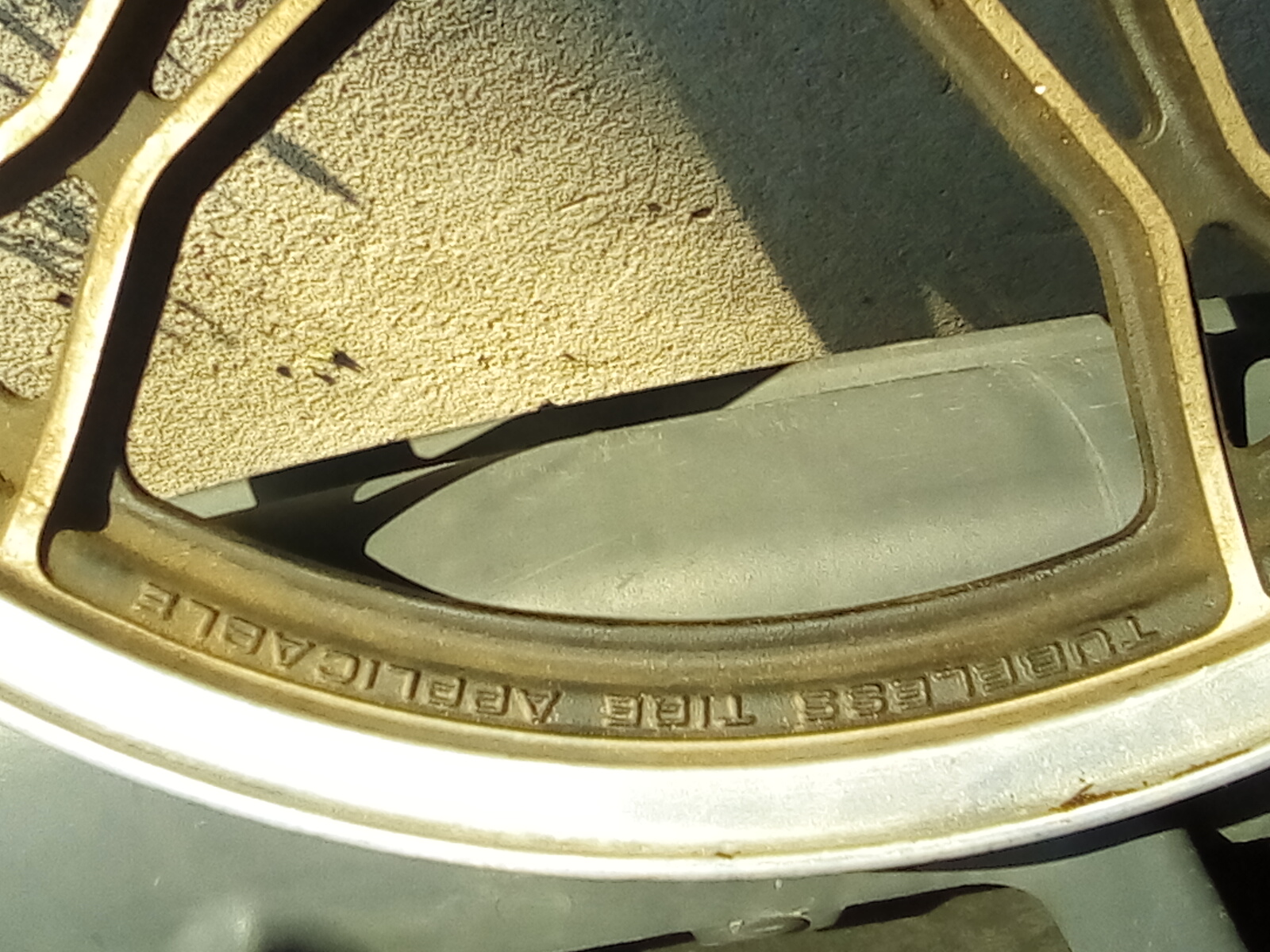

First the rim says "tubeless tire applicable* DUH!


« Last Edit: 08/15/20 at 09:23:33 by badwolf »

IP Logged

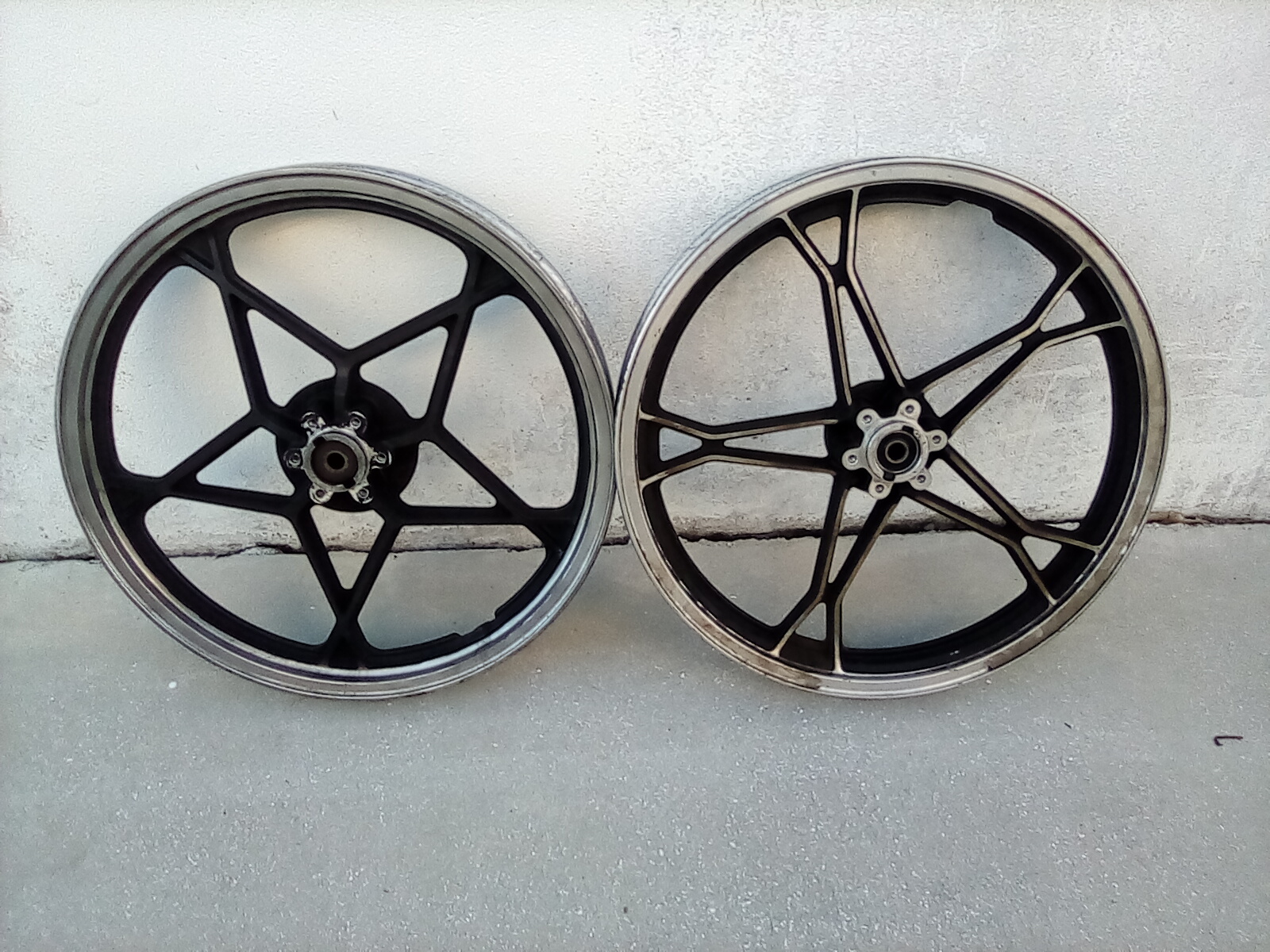

badwolf Serious Thumper Offline Ridin' my Lil' Bagger - 153k miles so far Posts: 793 Palm Beach County, FL Gender:	Re: cast wheels & tubeless Reply #1 - 08/14/20 at 18:41:39 Now here are the two rims, the gs850 rim is on the right, the other is from a early 80's Suzuki 450. They look almost the same, but the 450's rim is NOT made to go tubeless,
Back to top	two_wheels.jpg « Last Edit: 08/15/20 at 09:21:17 by badwolf » IP Logged

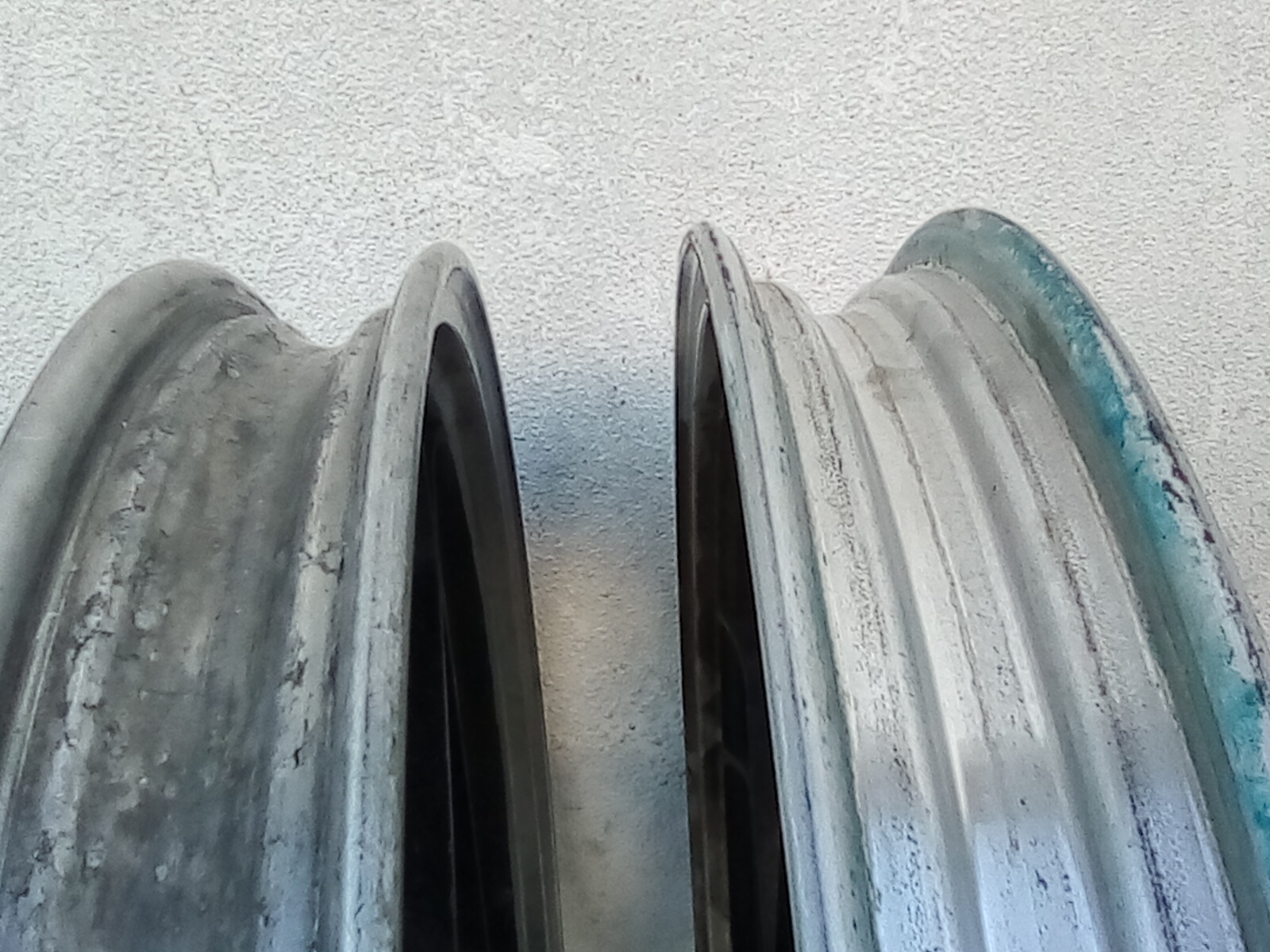

badwolf Serious Thumper Offline Ridin' my Lil' Bagger - 153k miles so far Posts: 793 Palm Beach County, FL Gender:	Re: cast wheels & tubeless Reply #2 - 08/14/20 at 18:44:10 Here are the two profiles side by side. Tubeless on the right.
Back to top	drop_centers.jpg IP Logged

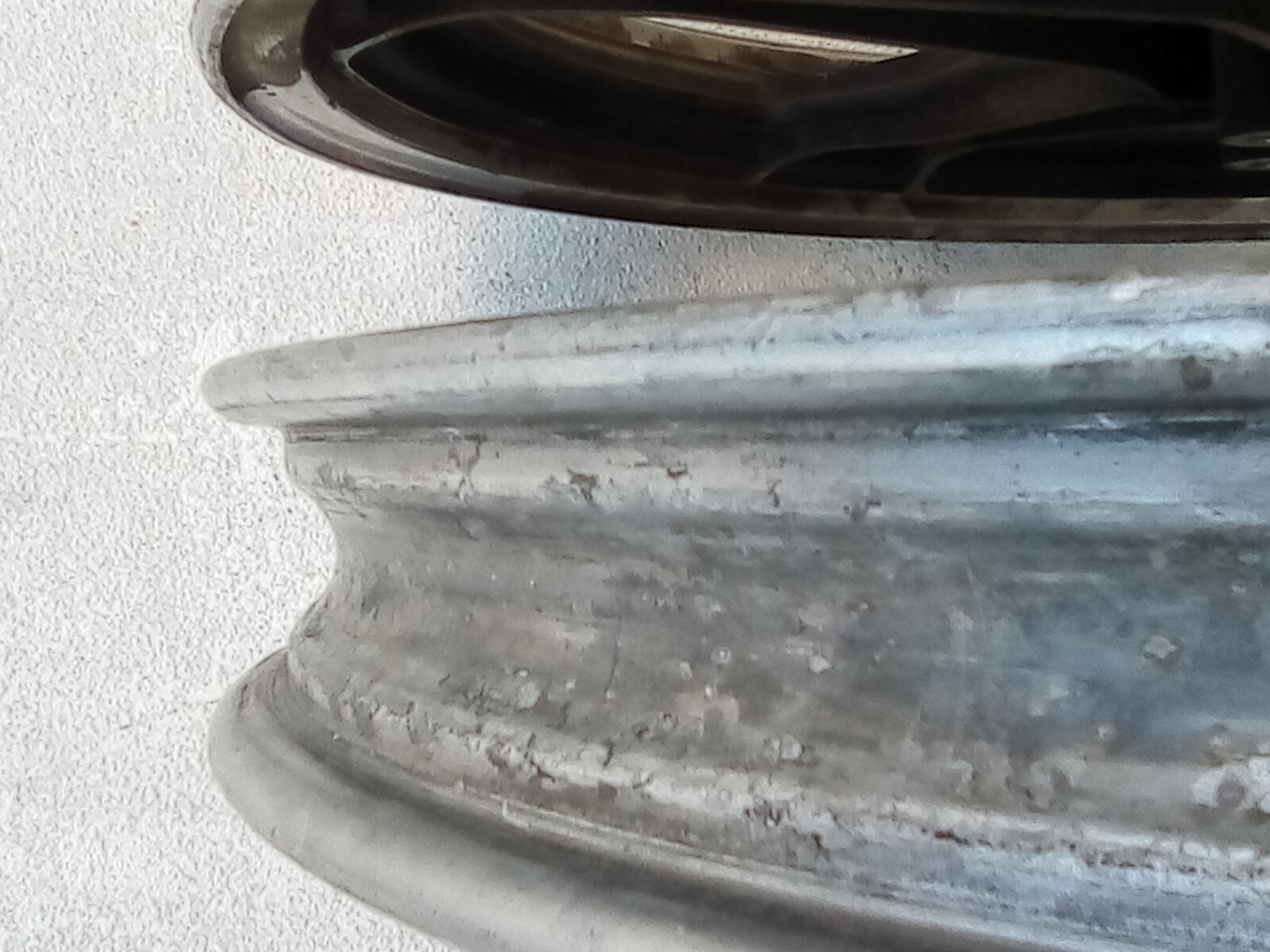

badwolf Serious Thumper Offline Ridin' my Lil' Bagger - 153k miles so far Posts: 793 Palm Beach County, FL Gender:	Re: cast wheels & tubeless Reply #3 - 08/14/20 at 18:46:46 This is the tube type, notice the narrow shoulders to seat the bead and rounded center channel
Back to top	tube_type.jpg IP Logged

badwolf

Serious Thumper

Offline

Ridin' my Lil'
Bagger - 153k miles
so far

Posts: 793
Palm Beach County, FL
Gender: male

Re: cast wheels & tubeless
Reply #4 - 08/14/20 at 18:49:03

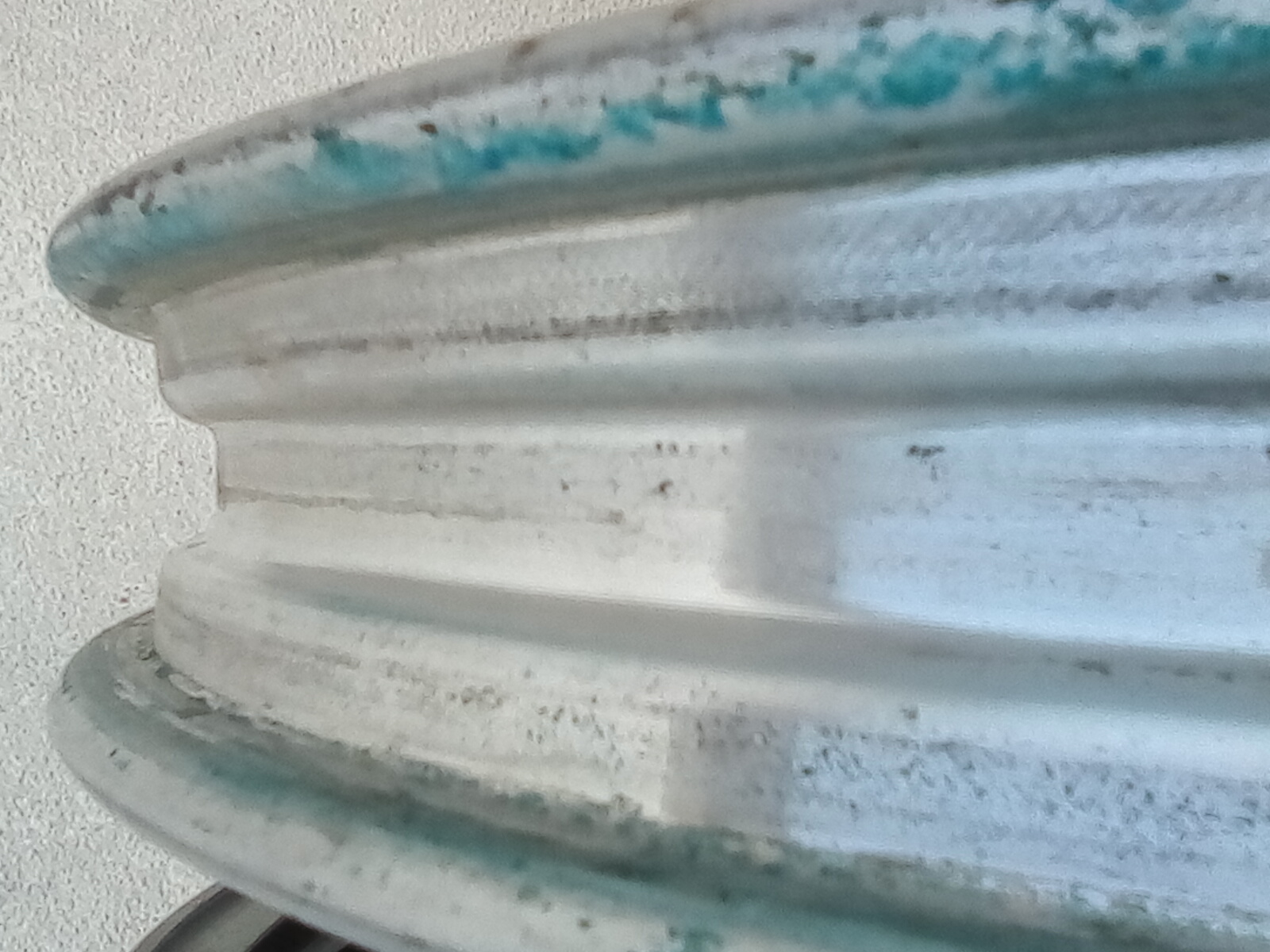

This is the tubeless profile, wider shoulders for the bead to seat, and a squared off channel.
So if you want to go tubeless, now you know what to look for. If the listing does not show the writing on the rim, look at the profile.
The 82' gs850 rear wheel is a match for the drive hub and the brake, you might have to adjust the spacers thou.
The front, again you might need to adjust the spacers, BUT, the brake disc is different! So you WILL have to make a adapter plate for the caliper.


IP Logged

MMRanch Serious Thumper Offline Evil flourishes if Good Men do Nothing. Posts: 5727 LYNCHBURG TN Gender:	Re: cast wheels & tubeless Reply #5 - 08/14/20 at 22:52:30 That's the GS650 or 850 ? Thanks for the Write-up . I might be using the "Round profile" and living dangerously ??? I'll have to check .
Back to top	I see and feel the Holy Spirit in the world , as does anybody who has eyes to see. How far Man's corruption reaches into Organized Religion , we may never know IP Logged

badwolf Serious Thumper Offline Ridin' my Lil' Bagger - 153k miles so far Posts: 793 Palm Beach County, FL Gender:	Re: cast wheels & tubeless Reply #6 - 08/15/20 at 09:22:48 Mike, Thanks for pointing that out, man I'm getting old! Fixed.
Back to top	IP Logged

zipidachimp Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1387 surrey, b.c. Gender:	Re: cast wheels & tubeless Reply #7 - 08/15/20 at 11:09:15 I have the same wheels, from an "83-85 GS550L. Rear is a direct slip-on, 5 minutes tops. Also, 120/90-16 is all the rear tire anyone needs, almost same diameter as stock. Cheers!
Back to top	IP Logged

engineer Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 872 Gender:	Re: cast wheels & tubeless Reply #8 - 08/15/20 at 11:18:30 Thanks for posting this information. I have been thinking about going tubeless but was uncertain as to which wheels I should purchase.
Back to top	2005 S40, Intruder shocks, Dyna, 52.5/150, 3 washers, 2 turns, modified seat, Raptor IP Logged

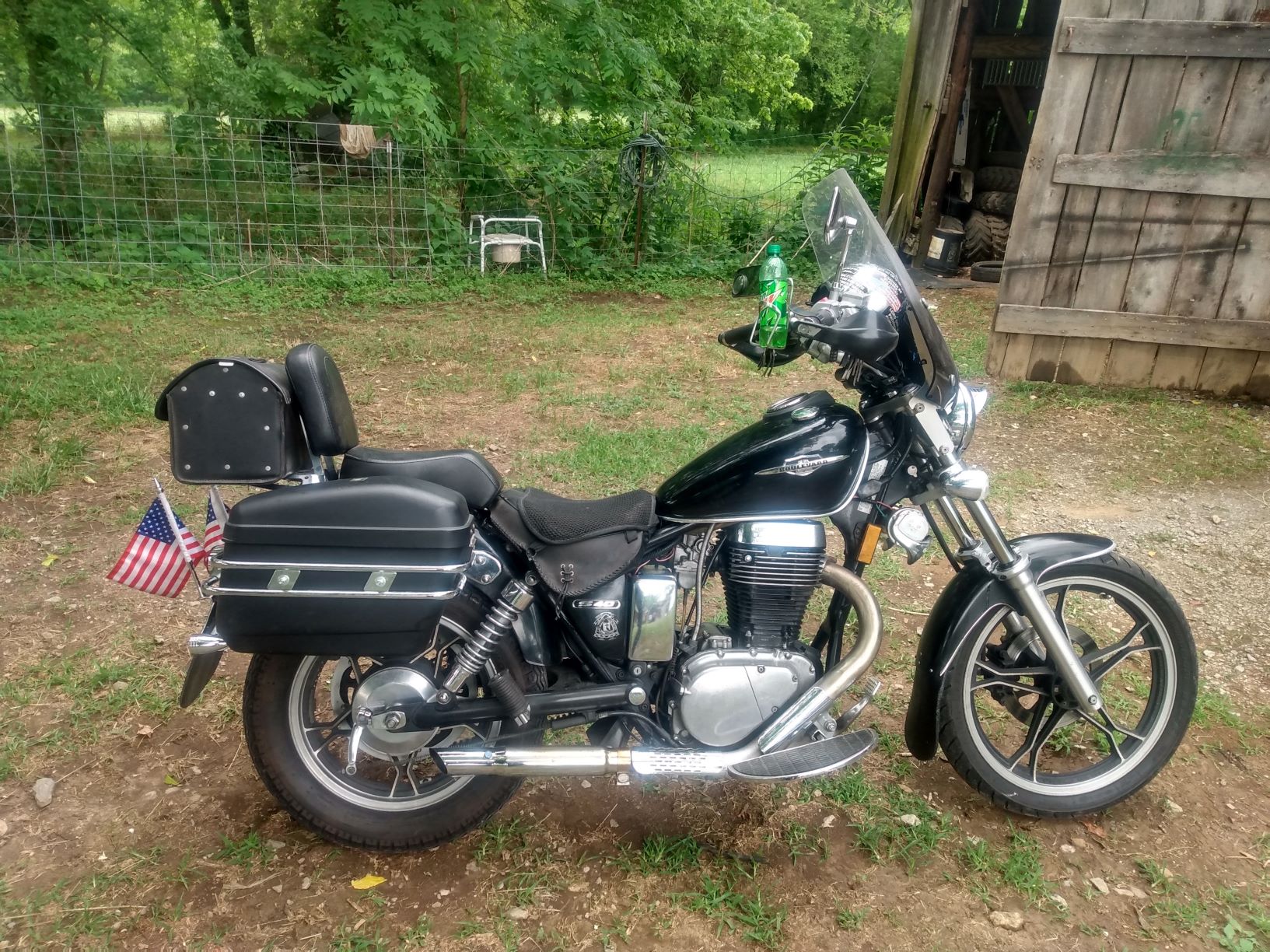

MMRanch Serious Thumper Offline Evil flourishes if Good Men do Nothing. Posts: 5727 LYNCHBURG TN Gender:	Re: cast wheels & tubeless Reply #9 - 08/15/20 at 12:02:32 I checked mine. They are tubeless , .
Back to top	HardBags2mp_003.jpg I see and feel the Holy Spirit in the world , as does anybody who has eyes to see. How far Man's corruption reaches into Organized Religion , we may never know IP Logged
