Mystery connector (Read 54 times)

Keifer

Junior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 66
Canada

Mystery connector
06/26/20 at 11:12:51

I have taken a look at the clymers wiring diagrams, and I'm not seeing it. I have this mystery connector with 3-wires, just above the starter relay. The previous owner has it just taped off. Should it be plugged into anything? Everything is working however...

Also, where is the engine electrical ground that everyone posts about. I would like to clean it off and I couldn't see it (unless it's buried beside the airbox somewhere). Thanks


93 Savage - 21K miles

IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Mystery connector Reply #1 - 06/26/20 at 11:19:40 Cant help with the connector, but that ground is on the clutch arm side, and below the rear motor mount, under (I think, an 8 MM head), chrome bolt.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

Gary_in_NJ Serious Thumper Offline LS650 Cafe Racer Posts: 2629 Amongst the Twisty Roads	Re: Mystery connector Reply #2 - 06/26/20 at 12:34:23 Could you remove the tape from the connector? Also, it looks like that is a green braided wire, a blue braided wire and a black wire with some type of mark. Please confirm or correct. Those are the colors in the side stand diode.
Back to top	A life-time student of motorcycling. LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG IP Logged

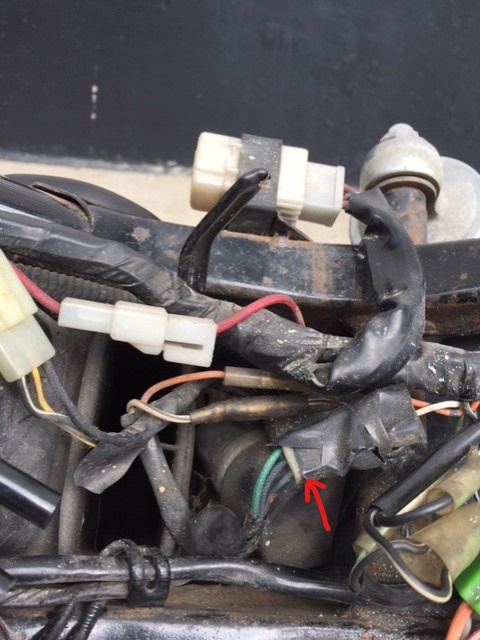

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Mystery connector Reply #3 - 06/26/20 at 13:03:55 The picture is taller than that, Dave. I thot the same thing, till I dragged the blue thing down. He has an arrow pointing to his Mystery Connector,,
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

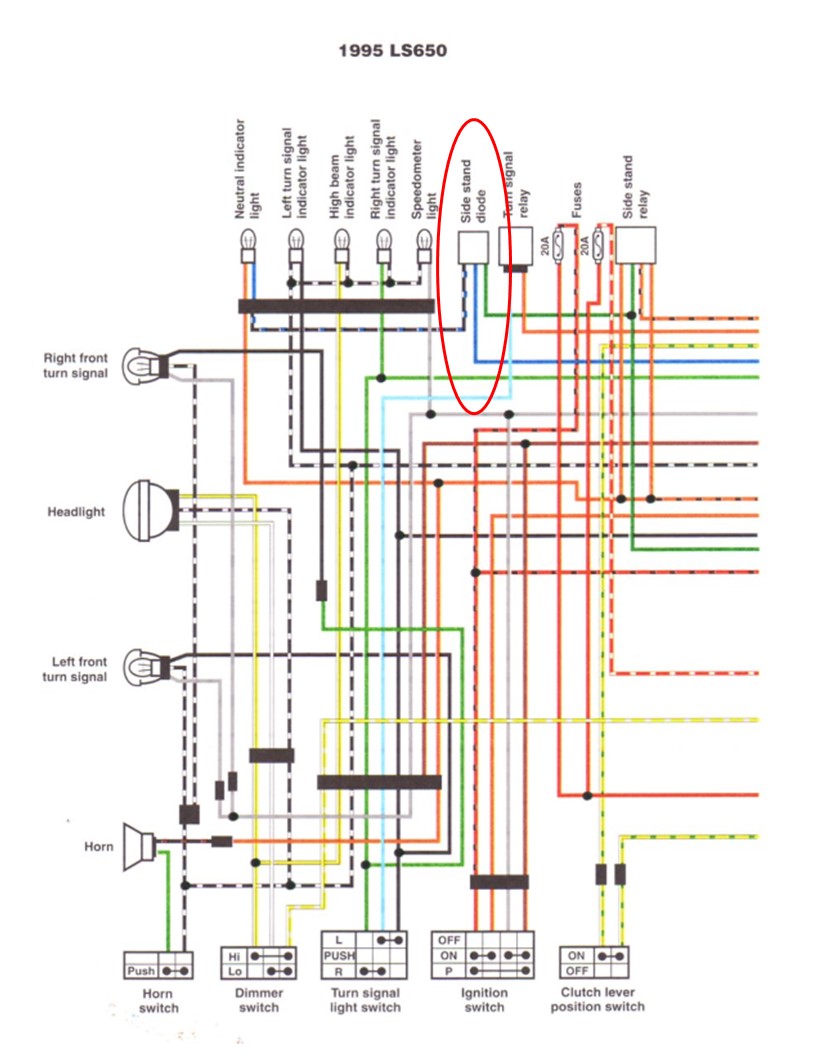

Gary_in_NJ Serious Thumper Offline LS650 Cafe Racer Posts: 2629 Amongst the Twisty Roads	Re: Mystery connector Reply #4 - 06/26/20 at 13:23:16 Here you go...Green, Blue & Black with a marking.
Back to top	Diode.jpg A life-time student of motorcycling. LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG IP Logged

Keifer Junior Member Offline SuzukiSavage.com Rocks! Posts: 66 Canada	Re: Mystery connector Reply #5 - 06/26/20 at 15:54:12 Ah thanks so much, I should've seen that...
Back to top	93 Savage - 21K miles IP Logged
