Where did this flat rubber washer come from?
05/16/20 at 15:09:43
Hi all and firstly Kia Ora from New Zealand.
Apologies, this is not the most stimulating of first questions...
I'm working my way through a RYCA conversion - all gone reasonably well so far but I have a spare part I cant find a home for!

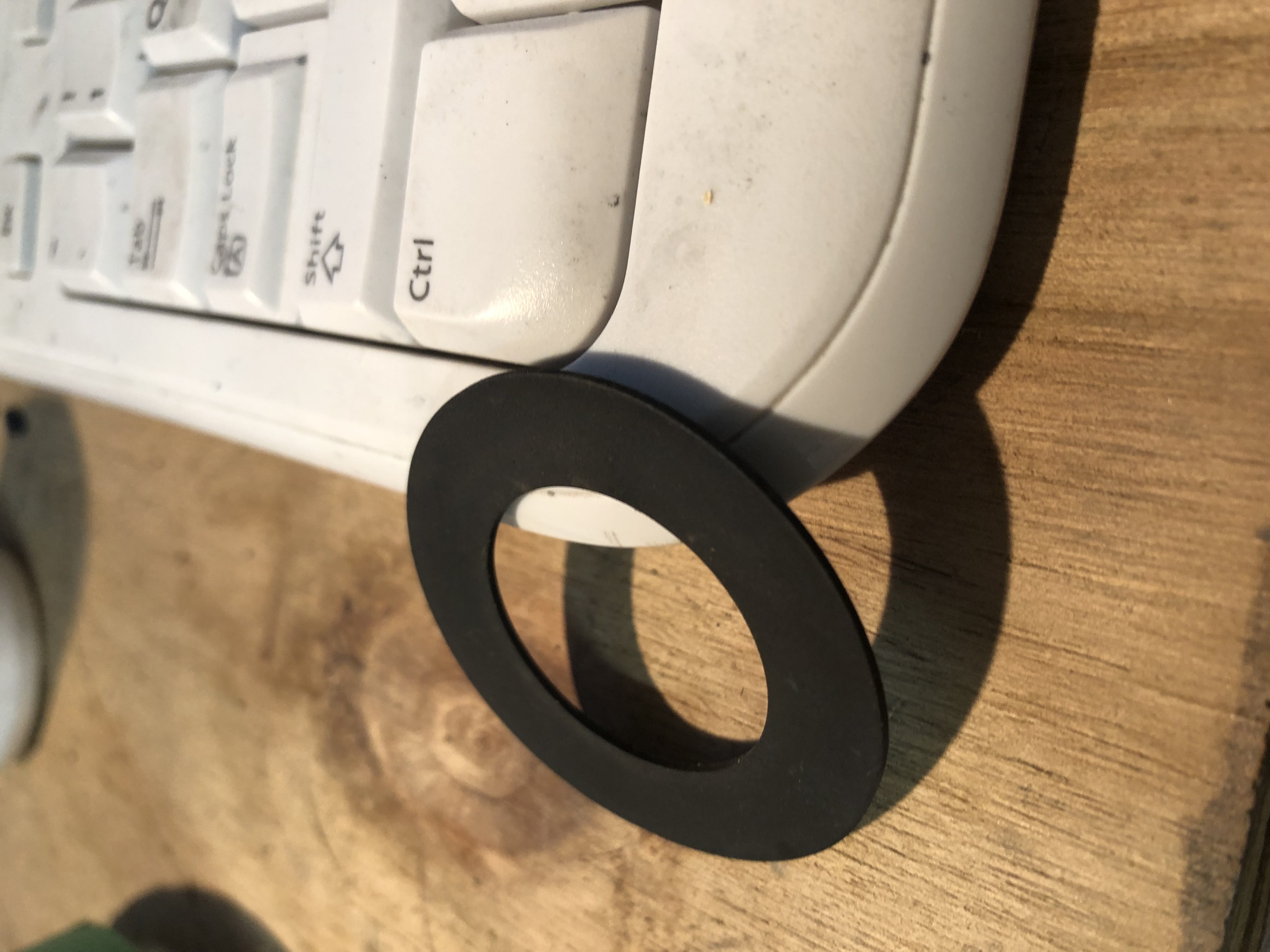

It's a flat rubber washer exactly 1"ID, 1.75" OD and 1mm thick. Found it lying on the floor under the front of the bike at some point. See attached picture if it helps.
Given the 1" ID does it belong inside one of the handle bar controls, has it come from elsewhere on the bike or am I just unlucky and it's arrived from the back of my workshop somehow
Cheers
Tony
Back to top
IP Logged
Gary_in_NJ
Serious Thumper
Offline
LS650 Cafe Racer
Posts: 2626
Amongst the Twisty Roads
Re: Where did this flat rubber washer come from?
Reply #1 -
05/16/20 at 15:27:06
Hey Tony, welcome.
Do you think it came from the bike or the RYCA kit? I can’t specifically remember that part, but it has been 6 years since I started my conversion. Take a look at the on-line parts list and see if something similar to that is listed. The only rubber washer I can remember is for the rear tank mount, but it does not have a 1” ID.
Back to top
A life-time student of motorcycling.
LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS
My LS650=>
http://suzukisavage.com/yabb2.2/Attachments/Left.JPG
IP Logged
TonyNZ
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 5
Re: Where did this flat rubber washer come from?
Reply #2 -
05/16/20 at 15:34:10
Hey Gary, if it came from somewhere it came off the bike rather than in the RYCA kit. I wondered if it came from within the throttle control to stop the twist grip rattling around inside its slot within the control...but frankly I'm making this stuff up as i go along!!!
Back to top
IP Logged
DragBikeMike
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 4194
Honolulu
Re: Where did this flat rubber washer come from?
Reply #3 -
05/16/20 at 15:42:30
Tony, I believe that is the rubber cushion that goes between the armature & coil on the decompression solenoid. Probably helps to keep it from clacking and rattling.
Back to top
Knowledge is power.
IP Logged
TonyNZ
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 5
Re: Where did this flat rubber washer come from?
Reply #4 -
05/16/20 at 16:01:47
Hi Mike,

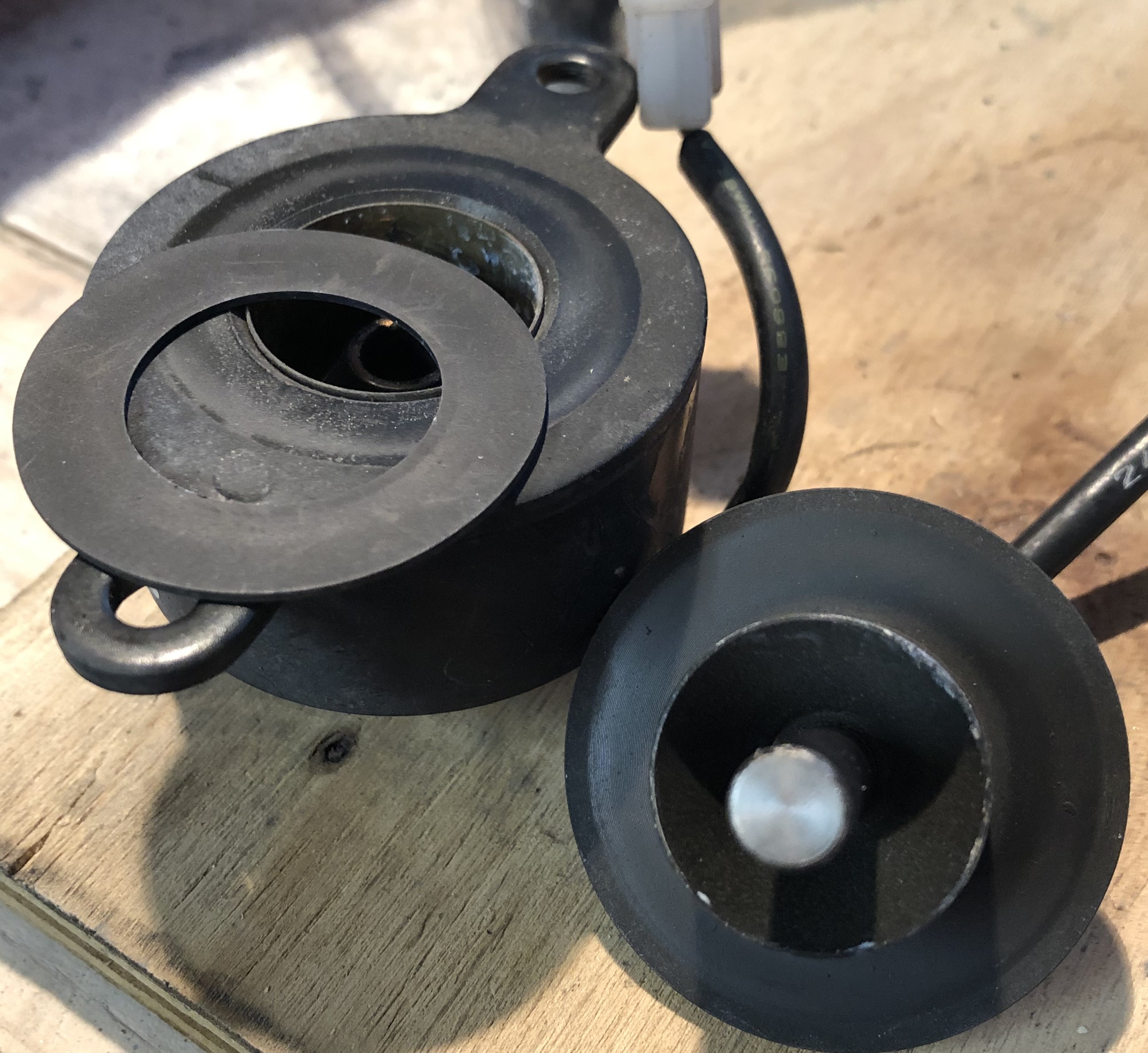

Thanks for that, I think you're absolutely right. I pulled the solenoid out of my spare parts bin and looks like its a 100% fit - mystery solved. Wont be fitting the solenoid back given I'm using the little RYCA Lever so hopefully it can go to a new home somewhere else in NZ complete with its washer
