another chain tensioner pic (Read 278 times)
philthymike
Serious Thumper
*****
Offline

Wallowing in my own
crapulence

Posts: 1413
Philadelphia Area
Gender: male
Re: another chain tensioner pic
Reply #15 - 05/09/20 at 08:45:19

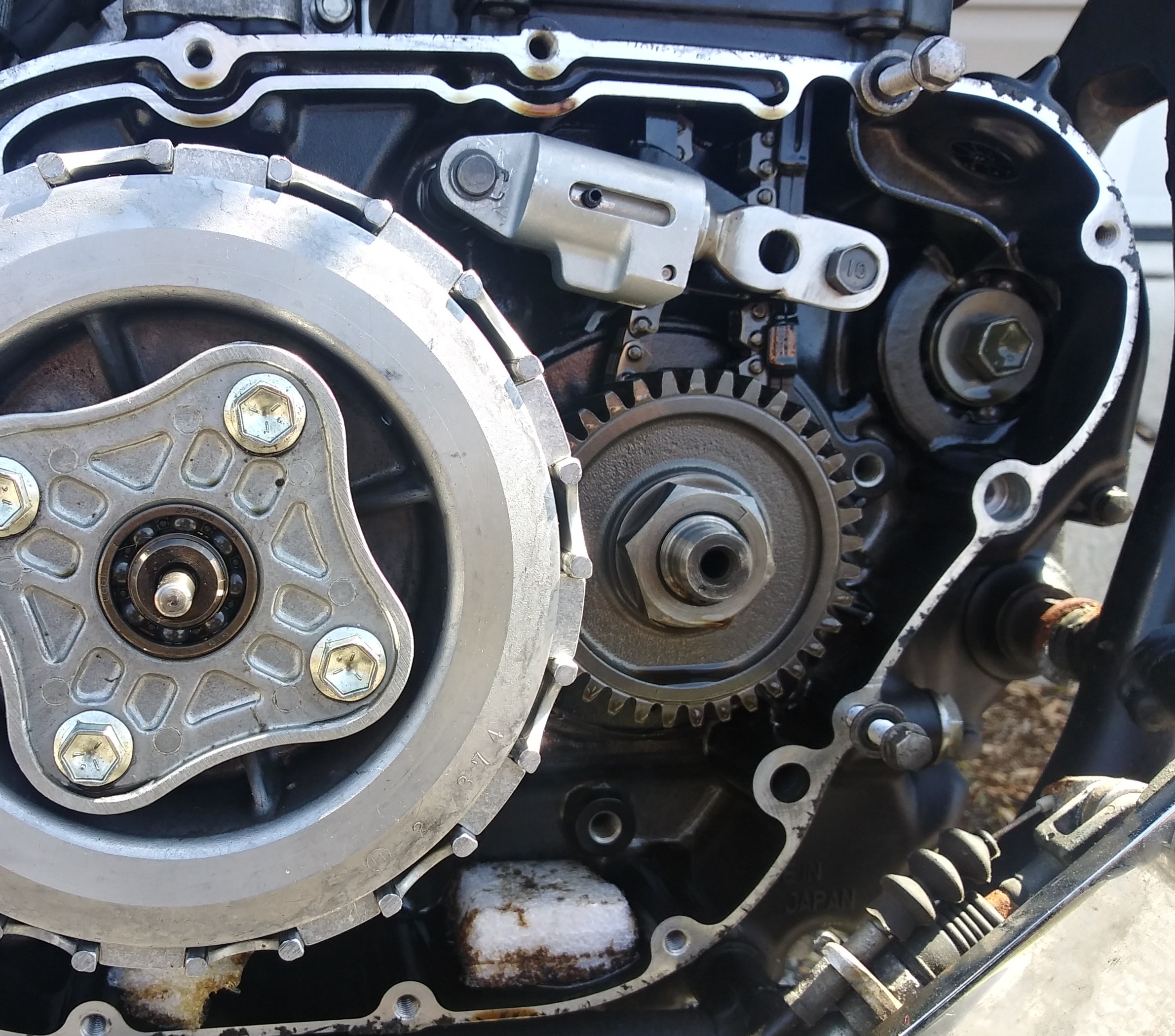

After.
Back to top



07 S40 (Thumpy): 666cc big bore, stage 2 webcam, dyna muffler, 412 shocks, Barnett clutch, Kawasaki ZL900 FE
  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.
Re: another chain tensioner pic
Reply #16 - 05/09/20 at 12:07:29

I thiink trials have shown that removing the pawl has no ill effects and Seriously extends the life of the chain.
When the engine gets taller from heat, it pulls on the chain. IF that Pawl has just grabbed a new tooth, it will NOT give, and when the engine heats up, it gets taller, and strains the chain more..
There are several ways around that, but the most direct is, ditch the pawl,,
I think it is Batman who did it first.
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
batman
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 3806
osceola new york
Gender: male
Re: another chain tensioner pic
Reply #17 - 05/09/20 at 13:26:06

Guilty as charged, having never rode my bike gently , but I believe that the quality of cam chain has changed over time. My 95 didn't need an extension of the tensioner until 19,000 miles but since then has shown little to no further stretch by removing the paw and it's spring . Current mileage on the original chain is 39,000 miles (-starting it's sixth season - that 's if it wasn't 32F and snowing today  Roll Eyes
Back to top



my old work mates called me MacGyver
  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4278
Honolulu
Re: another chain tensioner pic
Reply #18 - 05/09/20 at 14:56:45

Hey Mike, I'm lovin your cleanliness plugs.  What are they made from?  They look like they fit just right.
Back to top



Knowledge is power.
  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.
Re: another chain tensioner pic
Reply #19 - 05/10/20 at 22:41:36

Batman...
You ditched the spring, too?
I wonder what the chain is doing as rpm change,,
I can track with ditching the Pawl,,
But I'm confused about being gutsy enough to toss the spring.
I know you have plenty of miles on it to prove it. I know it works..
I just don't understand how..
And Since it works
Why do manufacturers build these things with such self destructive tensioners?
Cam chain issues are common on lots of bikes, and apparently, needlessly.
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
batman
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 3806
osceola new york
Gender: male
Re: another chain tensioner pic
Reply #20 - 05/11/20 at 06:00:37

JOG , I went to a shorter and heavier spring  , with the stock spring and the piston being pushed back into the body ,I was afraid because of the continued movement that it might bind or fail. Use of a shorter , stiffer spring with more open coils allowed more movement and slightly more pressure .  There are two times when timing is retarded ,at cold startup and when the TDI reaches it's max advance (5000 rpm) ,the constant pressure I apply to the guide aids during both. Outside of a tuned air intake and a stock H-D muffler my bike is completely stock from the carb(highly tuned) to the exhaust header  yet a WOT run a week ago produced a top speed of 94mph. I run 70 on highways with a healthy reserve for passing.
Back to top



my old work mates called me MacGyver
  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.
Re: another chain tensioner pic
Reply #21 - 05/11/20 at 08:21:59

YOur answer to the tensioner issues is a really good one..
You could toss me all the right goodies to choose from amongst options and I would never get a carb Top Notch,, Im an 80% er,, at best.
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
philthymike
Serious Thumper
*****
Offline

Wallowing in my own
crapulence

Posts: 1413
Philadelphia Area
Gender: male
Re: another chain tensioner pic
Reply #22 - 05/11/20 at 08:31:33

DragBikeMike wrote on 05/09/20 at 14:56:45:
Hey Mike, I'm lovin your cleanliness plugs.  What are they made from?  They look like they fit just right.


Those are hunks of plastic foam used for shipping fragile stuff like electronics items. I just ripped the foam to fit after testing it to see if engine oil would dissolve it. I tore the pieces a little big so they had to be squished into the mouse holes. The tension kept them from falling inside.
Back to top



07 S40 (Thumpy): 666cc big bore, stage 2 webcam, dyna muffler, 412 shocks, Barnett clutch, Kawasaki ZL900 FE
