Rectifier Placement Safety
02/01/20 at 18:04:29

Hi, I just installed some saddlebags and the rectifier was in the way, so I unscrewed it and moved it a little further down the rear fender to where it was just between the two frame tubes that join onto the fender. I don't really want to move it anywhere else. I haven't screwed it down or anything but I could drill some new holes if I had to, although I'd rather not. My question is, is it safe where it is? It makes contact with the rear fender but is not totally flat against it as it was in its original position. Is it safe not screwed down? Is it safe lower on the fender where it doesn't sit flat? Any advice is much appreciated.

Back to top

IP Logged

Ruttly Serious Thumper Offline Thumpers Rule Posts: 4997 Manteca , CA Gender:	Re: Rectifier Placement Safety Reply #1 - 02/01/20 at 19:30:14 Velcro tape. It may need to be grounded too. But maybe not. But I would add a ground wire anyways. The advantage of bolting it down it will dissipate heat better but if it gets hot you got other problems.
Back to top	The Topic Terminator IP Logged

Juliana

Junior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 50

Re: Rectifier Placement Safety
Reply #2 - 02/02/20 at 02:00:56

Thats a coincidence, I was wondering exactly the same thing about the rectifier placement.

The previous owner of my bike used saddle bags too ( that i now have ) and the broad strap completely covered the rectifer,,,and then of course the seat on top of the whole lot.

I noted the rectfier is deeply finned to presumably dissipate heat and wondered too if i should move it or is it ok being closely covered? The previous owner had no issues but the bikes only covered 3000km. Any thoughts?

Back to top

IP Logged

batman

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 3806
osceola new york
Gender: male

Re: Rectifier Placement Safety
Reply #3 - 02/02/20 at 08:32:08

The reg/rec handles the alternator 's output which exceeds what the bike uses, the excess is used to recharge the battery and then is shed through the body and fins as heat . I would move it to a place where air flow over the fin s is not restricted , and it should be grounded to a metal surface either by bolting or use of a ground wire to complete that circuit . ( the body being of a cast metal resists electric flow thus turning it to heat , the fins having more surface area sheds the heat ,not unlike the fins on the motor head and cylinder, but there's no path of flow if the body isn't grounded.)

Back to top

my old work mates called me MacGyver

IP Logged

d3adrock

Full Member

Offline

Posts: 111

Re: Rectifier Placement Safety
Reply #4 - 02/02/20 at 08:35:51

Does it necesarrily have to be bolted to a flat surface like that ugly flat spot on the rear fender? Or is moving it up to further down the fender and bolting it to the round part even though it's not perfectly flat ok? I imagine it will still be getting air since it's still in the path of air to the air box, or am i mistaken?

Back to top

IP Logged

Serowbot YaBB Moderator ModSquad Offline OK.... so what's the speed of dark? Posts: 28375 Tucson Az Gender:	Re: Rectifier Placement Safety Reply #5 - 02/02/20 at 09:46:02 Mine's been screwed to the plastic air-box for 10 years and it's fine. If AZ heat don't kill it, nuttin' will.
Back to top	Ludicrous Speed !... ... ... IP Logged

srinath Serious Thumper Offline I love YaBB 1G - SP1! Posts: 5349	Re: Rectifier Placement Safety Reply #6 - 02/02/20 at 10:49:08 I put mine in the airbox, loose not screwed to anything, worked fine. It is better off where there is airflow than where it was originally mounted. Cool. Srinath.
Back to top	IP Logged

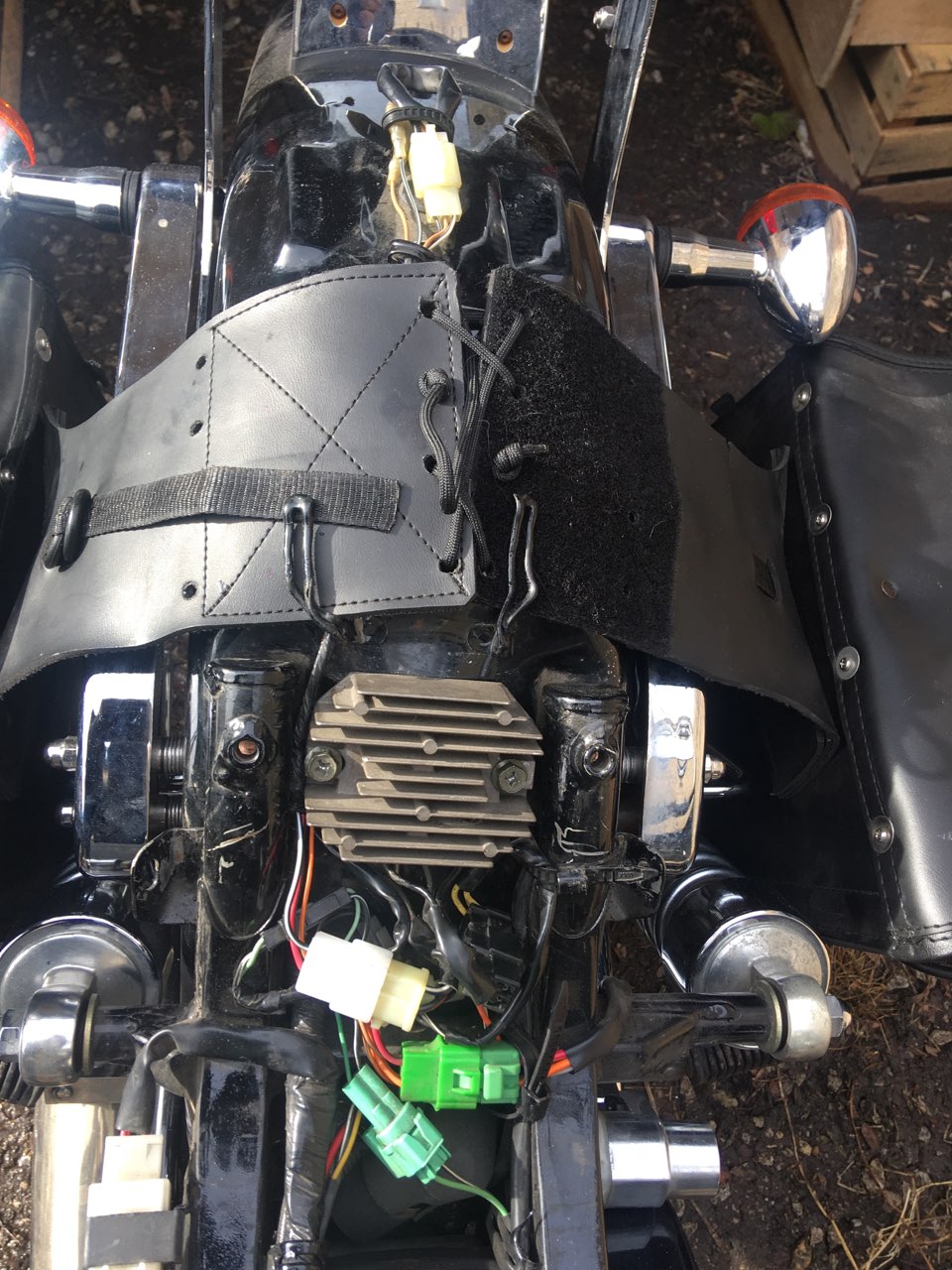

d3adrock Full Member Offline Posts: 111	Re: Rectifier Placement Safety Reply #7 - 02/02/20 at 11:14:08 I just finished remounting mine. Hope it's ok.
Back to top	MMS_17169.jpg IP Logged

Juliana Junior Member Offline SuzukiSavage.com Rocks! Posts: 50	Re: Rectifier Placement Safety Reply #8 - 02/02/20 at 12:47:56 Looks perfect to me d3adrock. Thanks too to everyone that replied . I will relocate mine too.
Back to top	IP Logged

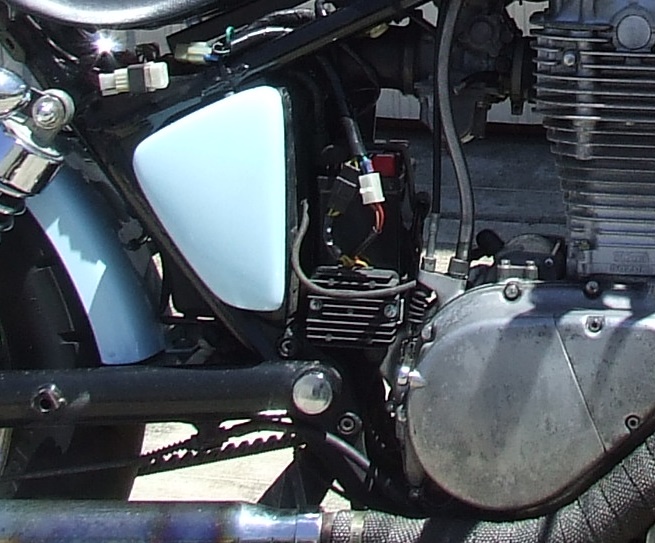

Irish Bill YaBB Newbies Offline O'l Skool Street Bobbers Rule Posts: 45 Fenimore, New York Gender:	Re: Rectifier Placement Safety Reply #9 - 02/02/20 at 19:38:02 Mines being relocated like this set up...
Back to top	kiuytresxdfghjuikopolkjhg.jpg 1996 Suzuki Savage Street Bobber, Arlen Ness Air Filter, El Diablo Ape Hangers, Kuryakyn Flame Mirrors with more parts to come... IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: Rectifier Placement Safety Reply #10 - 02/02/20 at 20:29:22 why not bolt it on one end to the fender . and use a small shim and longer bolt where it curves away from the fender? that way it's mounted solidly and grounded.
Back to top	my old work mates called me MacGyver IP Logged

d3adrock Full Member Offline Posts: 111	Re: Rectifier Placement Safety Reply #11 - 02/02/20 at 21:19:47 I didnt use a shim or a longer bolt, but it seemed solid enough to me. Do you recon it's okay without a shim? Where would I find a shim the right size?
Back to top	IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: Rectifier Placement Safety Reply #12 - 02/03/20 at 14:18:44 Anywhere you want to. tightly rolled/folded aluminum foil would work.
