Versy Cam Chain Adjuster
09/19/19 at 22:21:18

So today I finally got around to splitting my side cover and installing a Versy cam chain adjuster. As reference I am sending a couple photos so folks know what to expect and what I found. First it was fairly straight forward and not to diffacult with nothing special in the way of tools. I would definately recommend the expense of a new OEM gasket, which comes pre-gooped around the oil passages.

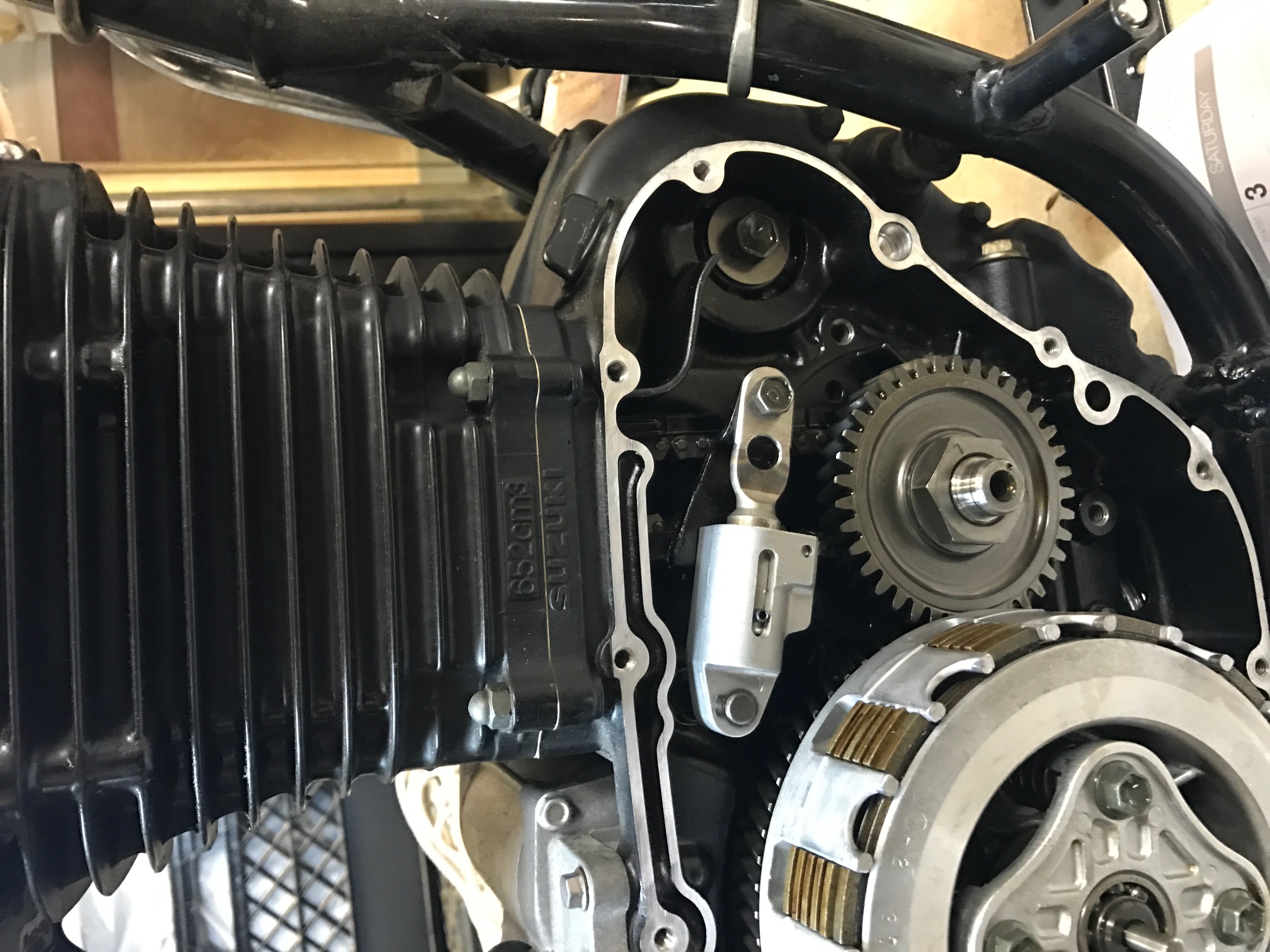

That said my unit was exactly at the .71, the max tolerence, photo attached for reference. The Second note shows install complete. Thanks to Mr. Verslagen for the great part. I am sending you my old unit to help pay it forward, first thing tomorrow.


IP Logged

SoC Senior Member Offline SuzukiSavage.com Rocks! Posts: 498 New Jersey Gender:	Re: Versy Cam Chain Adjuster Install complete Reply #1 - 09/19/19 at 22:23:49 Photo post install.
Back to top	IMG_4727.JPG IP Logged

stewmills Serious Thumper Offline Imagination is more important than knowledge Posts: 2626 Auburn, AL Gender:	Re: Versy Cam Chain Adjuster Reply #2 - 09/20/19 at 06:47:14 How many miles on the bike at this measurement? Just curious...I will probably do mine later this fall.
Back to top	2008 \| 152/52.5–Air Mix 3/4 \| RT6 w/Redline \| Seat Lift w/Sheepskin \| Speedo Rattle \| Rear Pulley Shim \| 140/90-15 Rear \| Kaw Front Pulley \| Relocated Rear Signals FREEDOM ISN'T FREE! IP Logged

verslagen1 YaBB Moderator ModSquad Online Where there's a will, I want to be in it. Posts: 28755 L.A. California Gender:	Re: Versy Cam Chain Adjuster Reply #3 - 09/20/19 at 07:29:32 http://suzukisavage.com/cgi-bin/YaBB.pl?num=1192027390 cam chain life varies from rider to rider. I ride 25 miles to work then 25 back and I get about 23,000 miles before it gets to 20mm There are lots of people with 8,000 miles before they need to change. That's to be expected with a beginners bike.
Back to top	Versey's Place Tech Section Index IP Logged

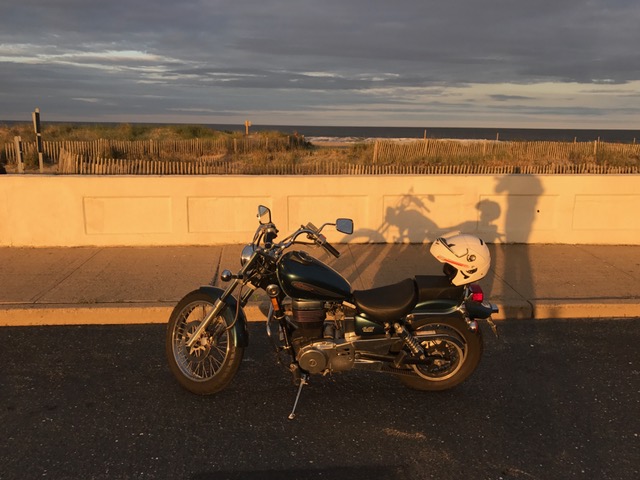

SoC Senior Member Offline SuzukiSavage.com Rocks! Posts: 498 New Jersey Gender:	Re: Versy Cam Chain Adjuster Reply #4 - 09/20/19 at 08:47:43 Bike has a little over 19K miles. Not a speed demon, rarely see over 65mph, which is just barely keeping up with traffic here in Jersey. Mostly easy around town and too and from work, which is a nice cruise along the shore. Versey I need an address to send you my old adjuster, shot me an eamil or PM.
Back to top	FullSizeRender_007.jpg IP Logged

ZSteele Senior Member Offline I'll finish it tomorrow Posts: 253	Re: Versy Cam Chain Adjuster Reply #5 - 09/20/19 at 11:02:22 Versy, are there particular riding habits that would contribute to a shorter adjuster life? Ie heavy engine braking or hard acceleraction?
Back to top	IP Logged

verslagen1

YaBB Moderator
ModSquad

Online

Where there's a
will, I want to be
in it.

Posts: 28755
L.A. California
Gender: male

Re: Versy Cam Chain Adjuster
Reply #6 - 09/20/19 at 12:02:30

ZSteele wrote on 09/20/19 at 11:02:22:

Versy, are there particular riding habits that would contribute to a shorter adjuster life? Ie heavy engine braking or hard acceleraction?

I've heard people mention that but I haven't seen any conclusive proof to that claim.
Most that have short chain life are newbs that ride short distances.
I believe it's caused by the thermal cycle, the ratchet getting tight and there's no way to release it, putting a lot of force on the chain.

Versey's Place
Tech Section Index

IP Logged

eau de sauvage

Serious Thumper

Offline

Posts: 2565
Queensland
Gender: male

Re: Versy Cam Chain Adjuster
Reply #7 - 09/20/19 at 21:27:41

Ours is at 36K kms and has been at 15mm out for the past 12K kms.

I use quality oil and she only uses up about 400ml of oil between changes, so I'm guessing that seeing as chain stretch is actually the wear on the bushings that poor lubrication could also contribute to excessive cam chain wear.

I should take this opportunity to mention about the difficult of getting the cables attached to the foot peg on and off. Various things have been mentioned except the obvious.

I finally worked out that you need to undo the two 10mm bolts (reminds me I need to replace one) that clip the cables to the frame, then it's all easy peasy.

MAGA! Make the Assholes Go Away

IP Logged
