Horn button & start button
09/18/19 at 13:49:50

Are these buttons the same, as in they are both momentary switches but can they handle the same electrical load? I removed the electrical controls on the throttle side. I have added a toggle switch for the power/kill switch. I am just wondering if I can use the horn button as the start button. I have removed the horn, so the switch is not in use. I sanded down the switch housing on the clutch side and painted it black so keeping that on the bike and would like to repurpose that button.

Thanks guys.

Back to top

2000 Savage

IP Logged

stewmills Serious Thumper Offline Imagination is more important than knowledge Posts: 2626 Auburn, AL Gender:	Re: Horn button & start button Reply #1 - 09/18/19 at 14:44:12 Pretty sure that both function off of a relay, meaning that the high voltage/amperage needed for high load devices doesn't run through the tiny contacts at the switch. The relay is where you need to focus your question in the event that the relays are sized differently. I don't know the answer to that.
Back to top	2008 \| 152/52.5–Air Mix 3/4 \| RT6 w/Redline \| Seat Lift w/Sheepskin \| Speedo Rattle \| Rear Pulley Shim \| 140/90-15 Rear \| Kaw Front Pulley \| Relocated Rear Signals FREEDOM ISN'T FREE! IP Logged

Tacopimp

Full Member

Offline

ihatemonix.com

Posts: 100
South Jersey
Gender: male

Re: Horn button & start button
Reply #2 - 09/18/19 at 15:04:47

stewmills wrote on 09/18/19 at 14:44:12:

Pretty sure that both function off of a relay, meaning that the high voltage/amperage needed for high load devices doesn't run through the tiny contacts at the switch. The relay is where you need to focus your question in the event that the relays are sized differently.

I don't know the answer to that.

Well you answered my question then. If the switches are the same then I can run the start button wire to the horn button because the relay for the start switch will still be used.

Back to top

2000 Savage

IP Logged

Gary_in_NJ Serious Thumper Offline LS650 Cafe Racer Posts: 2625 Amongst the Twisty Roads	Re: Horn button & start button Reply #3 - 09/18/19 at 16:12:41 This sounds like a fuster cluck.
Back to top	A life-time student of motorcycling. LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG IP Logged

Tacopimp Full Member Offline ihatemonix.com Posts: 100 South Jersey Gender:	Re: Horn button & start button Reply #4 - 09/18/19 at 17:20:40 Gary_in_NJ wrote on 09/18/19 at 16:12:41: This sounds like a fuster cluck. Why? It's pretty simple...
Back to top	2000 Savage IP Logged

Ruttly Serious Thumper Offline Thumpers Rule Posts: 4997 Manteca , CA Gender:	Re: Horn button & start button Reply #5 - 09/18/19 at 18:19:34 🌮 pimp that will work just fine
Back to top	The Topic Terminator IP Logged

youzguyz

Serious Thumper

Offline

Posts: 2523
San Antonio, Texas
Gender: male

Re: Horn button & start button
Reply #6 - 09/19/19 at 03:16:44

On a stock savage, the horn does not have a relay. All current goes through the switch on the left handle bar.

I have had both switches pulled apart, at different times, for cleaning the contacts. From what I recall, they are built the same way inside.

The original horn switch eventually failed and had to be replaced. Too much pitting.

Back to top

2002 - Silver (Thumper)
2000 - Green (Mad Hamish)
Most motorcycle problems are caused by the nut between the seat and the handlebars. Make sure yours isn't too tight or too loose.

IP Logged

stewmills

Serious Thumper

Offline

Imagination is more
important than
knowledge

Posts: 2626
Auburn, AL
Gender: male

Re: Horn button & start button
Reply #7 - 09/19/19 at 07:06:45

youzguyz wrote on 09/19/19 at 03:16:44:

On a stock savage, the horn does not have a relay. All current goes through the switch on the left handle bar.

I stand corrected. I have not rewired my bike and I know that youzguyz has been deeper into the electrical. Now that you mention it, I was thinking about an aftermarket horn and remember that I would need to add a relay to the horn circuit because the stock is so small it doesn't need one.

So, Tacopimp, sounds like if all you are doing is swapping the horn wires from direct wire to the horn and reconnecting them to the two leads that go to the starter relay, then it's all the same. Just don't cut the relay out of the circuit.

So...get on to fuster clucking those switches Cool

Back to top

IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: Horn button & start button Reply #8 - 09/19/19 at 07:18:14 I'd be checking to make sure the same gauge wire is used for the horn button and the starter button .
Back to top	my old work mates called me MacGyver IP Logged

Tacopimp Full Member Offline ihatemonix.com Posts: 100 South Jersey Gender:	Re: Horn button & start button Reply #9 - 09/19/19 at 08:07:50 Thanks for all the help guys! Seemed pretty simple and straight forward but I still wanted to get some input here! Also I checked the wire and they seem to be the same guage. I am running new wire to the switch though anyhow.
Back to top	2000 Savage IP Logged

stewmills Serious Thumper Offline Imagination is more important than knowledge Posts: 2626 Auburn, AL Gender:	Re: Horn button & start button Reply #10 - 09/19/19 at 08:42:49 It is safe to slightly upsize the wire if you aren't 100% positive. Never want it to be undersized. I have some #6 gauge 60amp stove wire left over from my kitchen remodel if you need a short piece?
Back to top	2008 \| 152/52.5–Air Mix 3/4 \| RT6 w/Redline \| Seat Lift w/Sheepskin \| Speedo Rattle \| Rear Pulley Shim \| 140/90-15 Rear \| Kaw Front Pulley \| Relocated Rear Signals FREEDOM ISN'T FREE! IP Logged

Tacopimp

Full Member

Offline

ihatemonix.com

Posts: 100
South Jersey
Gender: male

Re: Horn button & start button
Reply #11 - 10/07/19 at 10:27:38

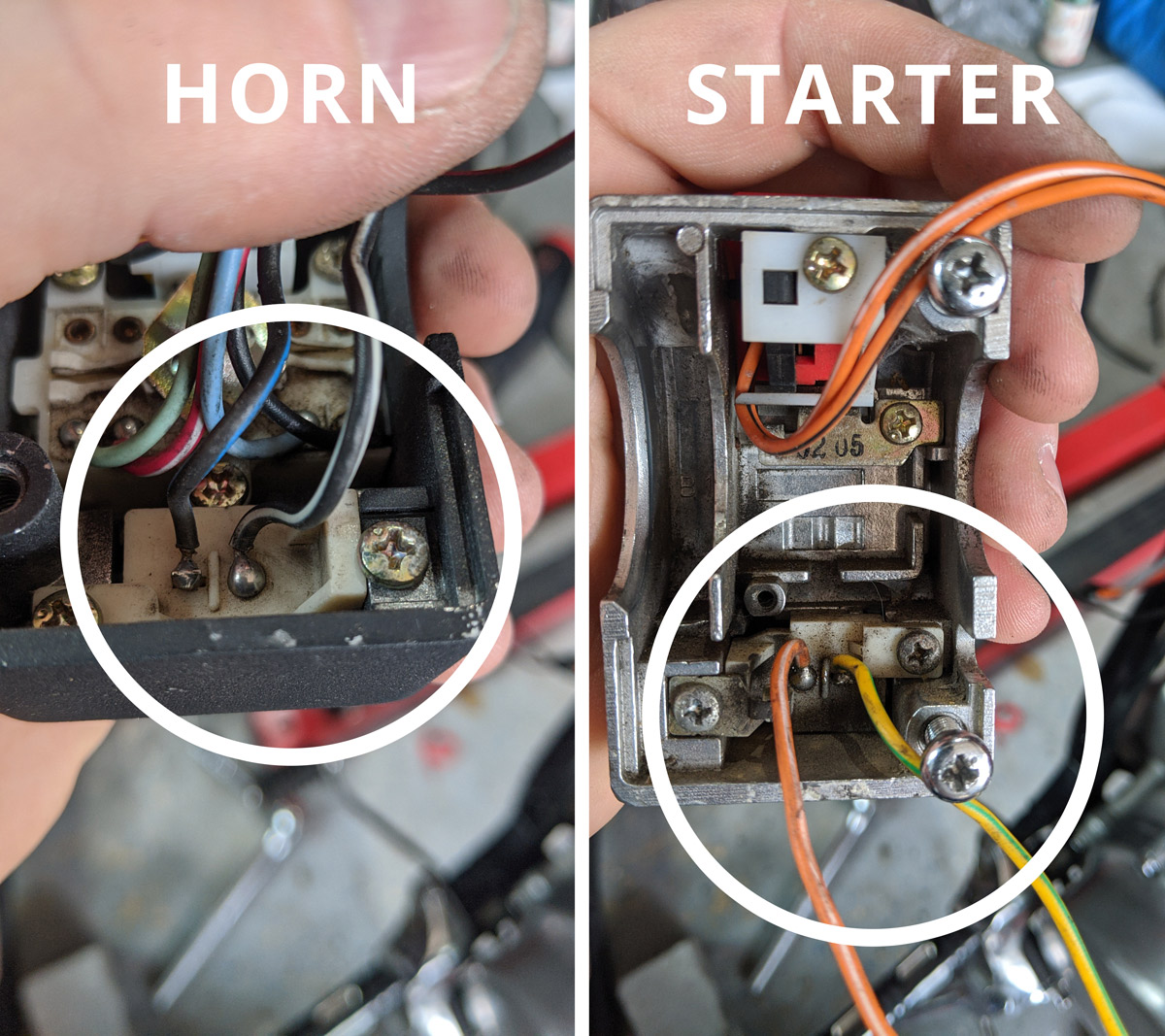

So, I need a little help identifying which wires I can "swap". Does it matter? On the start button, since it is a momentary switch is it just making a connection between the yellow/green stripe wire and the orange/white stripe wire? Sorry, electrical sometimes trips me up. Any help is appreciated. Thank you!!

Pic attached for clarification... maybe, lol

Back to top


2000 Savage

IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: Horn button & start button Reply #12 - 10/07/19 at 15:09:14 Go for it! I wouldn't try to solder the wires to the switch,(damage) I'd move the wire splices back into the harness a few inches.
Back to top	« Last Edit: 10/07/19 at 19:32:59 by batman » my old work mates called me MacGyver IP Logged

Tacopimp

Full Member

Offline

ihatemonix.com

Posts: 100
South Jersey
Gender: male

Re: Horn button & start button
Reply #13 - 10/07/19 at 15:35:19

batman wrote on 10/07/19 at 15:09:14:

Go for it! I wouldn't try to solder the wires to the switch,(damage) I'd the wire splices back into the harness a few inches.

I definitely won't be soldering them, just going to splice them and heat shrink around them.

So it doesn't matter where I splice the wires? There is no +/- ?

Back to top

2000 Savage

IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: Horn button & start button Reply #14 - 10/07/19 at 19:45:23 Orange/white to black/blue Yellow/green to black/white
